Spill Deck vs Spill Pallet: 4 Questions That Decide It (With Real Sump Sizes and Prices)

A spill deck is the right buy when drums are loaded and dispensed by hand, the storage area is indoors, and you want the drum top as low as it can go. A spill pallet is the right buy when a forklift moves the loaded unit, the drums sit outdoors, or you need the full 55 gallon sump in a single stand-alone piece. On Warehouse Gear Hub, an UltraTech Spill Deck P4 for four drums is $316.00 and stands 5.75 inches tall with a 44 gallon sump; the Spill Pallet P4 is $467.00, stands 11.8 inches tall, and holds 66 gallons. The four questions below take you from the drums you have to the part number, with the EPA sump rule quoted from 40 CFR 264.175, the SPCC rule from 40 CFR 112.8, and every height, sump volume and load rating from UltraTech's spec pages.

What is the difference between a spill deck and a spill pallet?

Height and sump depth. Both are polyethylene tubs with a grate on top that hold 55 gallon drums above a sump, and both count as the "base" that 40 CFR 264.175 asks for. A spill deck is the shallow version: per UltraTech's Spill Deck spec page, the P1, P2 and P4 decks are all 5.8 inches tall (UltraTech rounds it to 5 3/4 inches in the text) and hold 11, 22 and 44 gallons. A spill pallet is the deep version: per UltraTech's Spill Pallet spec page, the two-drum P2 is 16.5 inches tall and the four-drum P4 is 11.8 inches tall, and both hold 66 gallons.

Everything else follows from that. The deck is easier to load by hand and cheaper per drum, but a single deck module does not hold a full drum. The pallet holds a full drum on its own, takes forks, and can live outside under a cover, but every drum on it starts 12 to 16 inches off the floor instead of 6. Spill decks also connect to each other through bulkhead fittings so their sumps share liquid, which is how a deck layout gets to compliant capacity without gaining an inch of height.

Question 1: Does the sump pass the largest-container test?

This is the question the deck fails on its own, so start here. 40 CFR 264.175(b)(3), the EPA hazardous waste container storage rule, reads: "The containment system must have sufficient capacity to contain 10% of the volume of containers or the volume of the largest container, whichever is greater. Containers that do not contain free liquids need not be considered in this determination." For 55 gallon drums, 10 percent does not overtake the largest container until you pass ten drums, so the number to beat on a one to eight drum unit is 55 gallons. Oil has its own rule: 40 CFR 112.8(c)(2) requires "a secondary means of containment for the entire capacity of the largest single container and sufficient freeboard to contain precipitation," and 112.8(c)(11) says the same for mobile or portable containers. Same 55 gallon floor, plus rain allowance if the unit sits outside. State rules and your permit can go further; the federal numbers are the minimum.

Now put the sump volumes next to that 55 gallon line.

Read the deck rows carefully. A P4 deck under four full drums holds 44 gallons, 11 short of one drum. UltraTech gives you three ways to close that gap without raising the deck. Connecting a second module is the cheapest: the P4 and P2 have bulkhead ports that let liquid flow between sumps, and the 1090 P6 System sells exactly that pair as one 66 gallon unit for $736.00. The one-piece P6 and P8 skip the fittings, since each is molded as a single 66 or 75 gallon sump at 5.3 inches. The bladder is the third route: per UltraTech's bladder system page, a 66 gallon polyethylene bladder rides in a housing on the side of the deck and "will roll out 65.5" away from the deck and will be 66" wide when completely unfurled" once the sump overflows, taking the P1, P2 and P4 to 77, 88 and 110 gallons. The bladder is single use: UltraTech's answer on reuse is "No. Spilled liquids will more than likely cause the internal surfaces of the bladder to adhere to each other," and it should be replaced after any deployment or after five years unused. Budget the 6340 replacement bladder ($80.00) into the plan.

Deck, 4 drum, 5.75 in tall

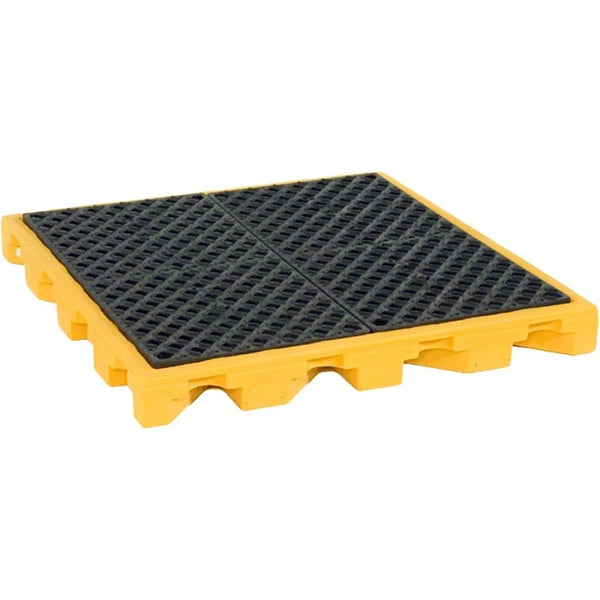

UltraTech 1072 Spill Deck P4

Four 55 gallon drums at a 5.75 inch working height, 44 gallon sump, 6,000 lb uniformly distributed load, 100% linear low density polyethylene, bulkhead ports to share sump volume with a linked P2 or P4, removable slip-resistant grates.

$316.00 View specs →

Question 2: How high will your crew lift and pour?

This is the question that sends most hand-loading operations to a deck. OSHA's materials handling eTool puts the body's power zone at "about mid-thigh to mid-chest" and says to "Keep the vertical distance of lifts between mid-thigh and shoulder height. Do not start a lift below mid-thigh height nor end the lift above shoulder height." It adds that "Lifting above shoulder height puts stress on the upper back, shoulders, and arms." A drum on a spill pallet moves every lift toward that ceiling. UltraTech's own deck versus pallet comparison puts the top of a drum on a spill pallet at "approximately 52 inches," then adds 11 to 12 inches for a funnel, against a 36 inch kitchen counter as the reference for comfortable work.

Subtract the platform and the picture changes. The same drum on a 5.8 inch deck sits about 6 to 11 inches lower than it does on a P4 or P2 pallet, and the Spill Deck Plus models drop to 4.3 inches. If your crew tips drums onto the platform with a hand truck, pumps or pours from the bung by hand, or racks a drum on its side for gravity dispensing, the deck keeps every one of those motions closer to the power zone. If a forklift does the lifting and a pump does the dispensing, the extra height of a pallet costs nothing and buys the full sump.

The Spill Pallet Plus line is the compromise. Per UltraTech's Spill Pallet Plus page, the P2 Plus (66 gallons) and P4 Plus (75 gallons) stand 8.8 inches, the P3 Plus (66 gallons) stands 9 inches, and all three keep forklift pockets. That is 3 inches lower than a standard P4 pallet and 7.7 inches lower than a standard P2, with the full drum's worth of sump in one piece. It is also the pallet UltraTech recommends when you want a ramp on a two-drum unit, since the standard 16.5 inch P2 is too tall for one.

Question 3: How do the drums get on and off?

Match the platform to the equipment you already own. Spill pallets have fork pockets: per UltraTech, the standard P4 and the P4 Plus are "forkliftable from all four sides," and the standard P2 is "forkliftable from either of the two longer (53") sides." That is how a pallet gets from the receiving dock to the mix room and back without unloading it. The load figures on the spec pages are static ratings for drums sitting on the grate, not ratings for carrying a loaded pallet on forks: 3,000 and 6,000 lb uniformly distributed on the standard P2 and P4, and 1,200 and 3,000 lb on the Economy P2 and P4, which is why the Economy pallets at $279.00 and $360.00 are a static storage buy. If a loaded station has to travel, tell us the drum weights and we will confirm the model with UltraTech before you order.

Spill decks have no fork pockets. They are loaded by drum dolly, hand truck or drum lifter over a ramp, or set in place empty and filled where they sit. UltraTech's 1089 polyethylene ramp ($229.00) fits the P2 and P4 decks, carries 600 lb, and is not offered for the P1 or the short side of a P2. The Spill Deck Plus uses the 2353 steel ramp ($526.00) rated for 1,000 lb, and UltraTech rates the Plus decks themselves at 10,000 lb per square foot, which is the deck to specify when a loaded drum truck crosses the grate every shift.

Drains are the other handling decision. Every spill pallet above comes with or without a threaded 3/4 inch drain, for $7.00 to $39.00 more depending on the model; spill decks use plugged sidewall ports instead, and the 9960 plug ($8.00) seals a port or a drain. 40 CFR 264.175(b)(2) says "The base must be sloped or the containment system must be otherwise designed and operated to drain and remove liquids resulting from leaks, spills, or precipitation, unless the containers are elevated or are otherwise protected from contact with accumulated liquids," and (b)(5) says collected liquid "must be removed from the sump or collection area in as timely a manner as is necessary to prevent overflow." Because the grate keeps the drums above the sump, either version satisfies the rule; the drain decides whether you empty the sump with a hose or with the 2345 bladder pump ($374.00) and a bucket. A drain plug is one more thing that can be left open, so no-drain units are the default for hazardous liquids.

Pallet, 4 drum, forkliftable four sides

UltraTech 1000 Spill Pallet P4, No Drain, Yellow

Four 55 gallon drums over a sealed 66 gallon sump, 11.8 inches tall, 6,000 lb uniformly distributed load, fork pockets on all four sides, removable slip-resistant grates, polyethylene with UV inhibitors, 1006 pullover cover available for outdoor use.

$467.00 View specs →

Question 4: Where will it sit, and will it grow?

Indoors, the deck wins on floor space and on flexibility. A P4 deck is 52 x 52 inches for four drums, a P4 pallet is 53 x 53, and a P4 Plus pallet is 62 x 62, so a row of four-drum stations on decks takes the least aisle. Decks also change shape after you buy them: the pre-drilled bulkhead ports, a 1073 fitting ($17.00) and a 1131 T-strip ($9.00) join a P4 to a P2 or another P4 in minutes, and the 1090 P6 System and 1074 P8 System are those combinations sold as kits for $736.00 and $886.00. For drums stored in a single row along a wall, the InLine deck models keep a 25 7/8 inch depth for three to six drums; call us for the sump figures on those before you size to them.

Outdoors is pallet territory, and the rule is the reason. 112.8(c)(2) asks for "sufficient freeboard to contain precipitation," and 264.175(b)(4) says "Run-on into the containment system must be prevented unless the collection system has sufficient excess capacity" to hold it. A 5.8 inch open deck has no freeboard to give. A P4 pallet under its 1006 pullover cover ($282.00), a P4 Plus under the 9634 cover ($315.00), or a Hard Top spill pallet with its own roof are the outdoor answers, and the 66 to 75 gallon sump leaves margin above the 55 gallon floor. Rain that does reach a sump counts against capacity until it is pumped out, which is the other reason to keep the drain plugged and a pump on the wall.

Deck, 4 drum, 110 gal with bladder

UltraTech 2330 Spill Deck P4 Bladder System

44 gallon sump plus a pre-installed 66 gallon roll-out bladder for 110 gallons total, 5.75 inch deck height, 6,000 lb uniformly distributed load, two removable slip-resistant grates, polyethylene with UV inhibitors. The one deck that passes the 55 gallon test by itself at four drums.

$538.00 View specs →

Deck system, 6 drum, linked 66 gal

UltraTech 1090 Spill Deck P6 System, 4-Drum Module and 2-Drum Module

One P4 and one P2 deck joined through bulkhead fittings into a shared 66 gallon sump, six drums at a 5.75 inch working height, 9,000 lb uniformly distributed load, linear low density polyethylene. The modular route to a compliant sump with no gain in height.

$736.00 View specs →

Which should you buy?

Match your drum station to the line that describes it.

• One or two drums, hand loaded, indoors, tight budget: Spill Deck P1 ($129.00) or P2 ($186.00), joined to a neighbor or fitted with the 2317 bladder attachment ($166.00) to get past 55 gallons. Two P2 decks linked hold 44 gallons and do not pass; a P4 linked to a P1 reaches 55 gallons exactly, and a P4 linked to a P2 reaches 66.
• Four drums, hand loaded, indoors, one piece: Spill Deck P4 Bladder System 2330 ($538.00). 44 gallons in the sump, 110 with the bladder, 5.75 inches tall.
• Four to eight drums, hand loaded, indoors, room to expand: Spill Deck P4 ($316.00) linked to a P2 or a second P4, or the one-piece P6 ($490.00) and P8 ($655.00) at 66 and 75 gallons.
• Drums moved by forklift, or stored outside: Spill Pallet P4 ($467.00) with the 1006 cover, or Spill Pallet P2 ($321.00) for two. Both hold 66 gallons on their own.
• Forklift moves it, but the crew pours by hand: Spill Pallet P4 Plus ($681.00) or P2 Plus ($409.00). 8.8 inches tall, 75 and 66 gallons, fork pockets, ramp available.
• Heavy drum trucks crossing the grate every shift: Spill Deck Plus P2 ($398.00) or P4 ($611.00) at 4.3 inches with the 2353 steel ramp, then check the 17.5 and 35 gallon sumps against the 55 gallon test and link or add a bladder as needed.

Every unit above is in the Spill Pallets and Decks collection. If you are sizing for more than four drums or for mixed container sizes, our spill pallet sizing guide walks through the two-step math, and the overpack drum guide covers what to do with the drum that is already leaking. Warehouse Gear Hub is an authorized UltraTech dealer, and we match prices and quote volume orders; call 1-800-794-1049, 8 AM to 4 PM Central, with the drum count, the liquid, and whether a forklift is involved, and we will size it in one call.

Frequently Asked Questions

Do spill decks meet EPA requirements?

A single standard deck module does not, at 55 gallon drum sizes. 40 CFR 264.175(b)(3) requires capacity for "10% of the volume of containers or the volume of the largest container, whichever is greater," which is 55 gallons for any station of one to ten drums, and the UltraTech P1, P2 and P4 decks hold 11, 22 and 44 gallons per UltraTech. A deck meets the rule when it is linked to another module so the sumps total 55 gallons or more, when it carries the 66 gallon bladder, or when it is a one-piece P6 (66 gallons) or P8 (75 gallons).

How tall is a spill deck compared with a spill pallet?

Per UltraTech's spec pages, the standard Spill Deck P1, P2 and P4 are 5.8 inches tall, the one-piece P6 and P8 are 5.3 inches, and the Spill Deck Plus is 4.3 inches. The standard Spill Pallet P4 is 11.8 inches, the standard P2 is 16.5 inches, the P1 Plus is 12 inches, and the P2 Plus and P4 Plus are 8.8 inches.

Can you move a spill deck with a forklift?

No. Spill decks have no fork pockets; drums are loaded over the 1089 polyethylene ramp (600 lb) or the 2353 steel ramp for Plus decks (1,000 lb), or the deck is placed empty and filled in position. Spill pallets have fork pockets: the P4 and P4 Plus from all four sides and the P2 from the two longer sides, per UltraTech, with load ratings from 1,200 lb on the Economy P2 to 9,000 lb on the P4 Plus.

How much does a spill deck cost compared with a spill pallet?

On Warehouse Gear Hub as of this writing, the UltraTech Spill Deck P1 is $129.00, the P2 is $186.00, the P4 is $316.00, the P4 Bladder System is $538.00, and the one-piece P6 and P8 are $490.00 and $655.00. The Spill Pallet P2 is $321.00, the P4 is $467.00, the P2 Plus is $409.00, the P4 Plus is $681.00, and the Economy P2 and P4 are $279.00 and $360.00. Per drum, a P4 deck is $79.00 and a P4 pallet is $116.75 before covers, ramps or bladders.

Can a spill deck be used outside?

Not without a roof. 40 CFR 112.8(c)(2) requires "sufficient freeboard to contain precipitation" and 264.175(b)(4) requires run-on to be prevented or held in excess capacity, and a 5.8 inch open deck has no margin for rain. Outdoor drum storage belongs on a spill pallet under a pullover cover or in a Hard Top spill pallet with its own roof, and the Spill Pallet P4's polyethylene is molded with UV inhibitors per its product page.

What happens to the bladder after a spill?

It is replaced. UltraTech states that a deployed bladder cannot be reused because "Spilled liquids will more than likely cause the internal surfaces of the bladder to adhere to each other," and it should also be replaced if it deploys, rolls or falls out without a spill, or has sat unused for more than five years. The 6340 replacement bladder is $80.00 and the 2345 pump for emptying the sump and bladder is $374.00.
