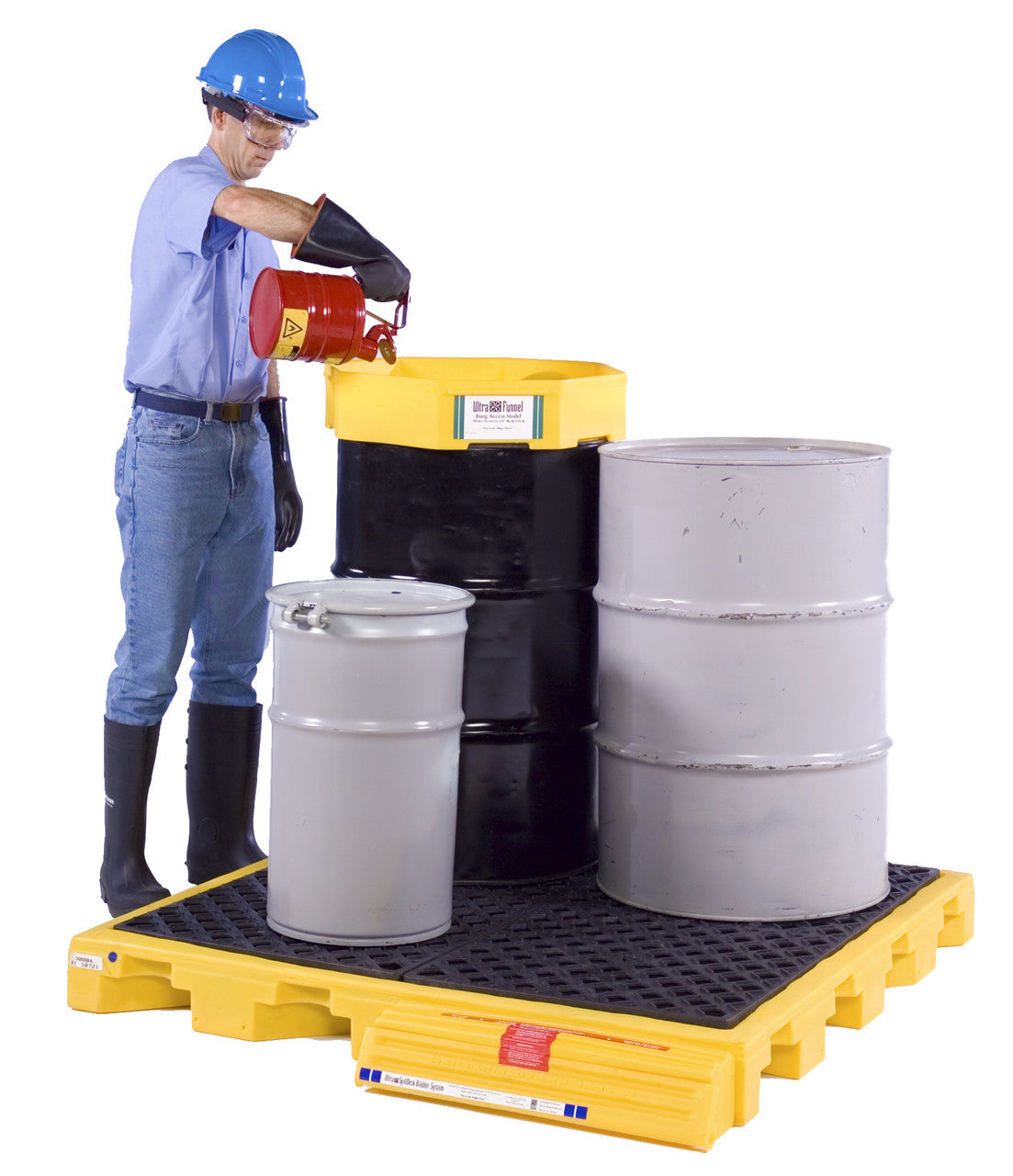

The UltraTech 2330 is a heavy-duty, low-profile secondary containment platform engineered for the safe storage and handling of up to four 55-gallon drums. Fabricated from high-density linear low-density polyethylene with UV inhibitors, this industrial system supports a uniform static load capacity of 6,000 pounds while delivering a total containment capacity of 110 gallons. The integrated configuration features a low 5.75-inch deck height to ease manual container loading and pairs a 44-gallon primary sump with an attached roll-out containment bladder that automatically unfurls during a catastrophic tank failure to ensure compliance with strict environmental regulations.
Key Features
-

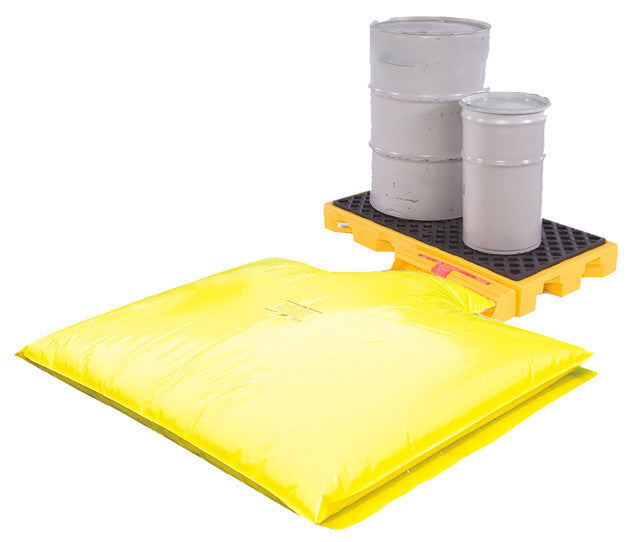

Automated Bladder Capacity Expansion: Outfitted with an external, pre-installed housing that automatically deploys a hidden 66-gallon polyethylene bladder when the primary sump overflows, providing a total system containment of 110 gallons.
-
Low-Profile Structural Loading: Features a low 5.75-inch deck height that optimizes warehouse space and minimizes vertical lift height, streamlining manual drum management and staging.
-
6,000 lb. Static Load Rating: Built with a rugged, high-integrity polyethylene structure capable of sustaining up to 6,000 pounds of uniform distributed load (UDL) to manage fully packed fluid containers safely.
-
Removable Polyethylene Grating: Outfitted with two industrial-grade black polyethylene grates with slip-resistant traction patterns that lift out directly for rapid internal sump maintenance.
-
Strict Regulatory Compliance: Delivers the necessary engineering baselines and fluid retention capacities required to satisfy SPCC mandates and EPA 40 CFR 264.175 container storage directives.
- Product Title
- UltraTech 2330 Spill Deck P4 Bladder System
- Manufacturer
- UltraTech International
- Part Number
- 2330
- UPC Code
- 808416023305
- Drum Capacity
- 4 Drums (55-Gallon)
- Material Composition
- Linear Low-Density Polyethylene (LLDPE) with UV Inhibitors
- Color Configuration
- Yellow Sump / Black Grates
- Dimensions (L x W x H)
- 52.0" x 56.63" x 5.75" (1,321 mm x 1,438 mm x 146 mm)
- Product Weight
- 66.0 lbs (30.0 kg)
- Total Containment Capacity
- 110.0 Gallons (416.4 Liters)
- Sump Capacity (Prior to Bladder Entry)
- 44.0 Gallons (166.6 Liters)
- Static Load Capacity UDL
- 6,000 lbs (2,722 kg)
- Grating Specifications
- Two 48" L x 24" W Polyethylene Grates
- Bladder Dimensions (Deployed)
- 65.5" L x 66.0" W (1,664 mm x 1,676 mm)
- Forklift Access
- No Pockets (Stationary floor layout only)
- Compatible Loading Ramp
- UltraTech 1089 Polyethylene Ramp (Sold Separately)
- Regulatory Alignment
- EPA 40 CFR 264.175, SPCC, and UFC Spill Containment Regulations
