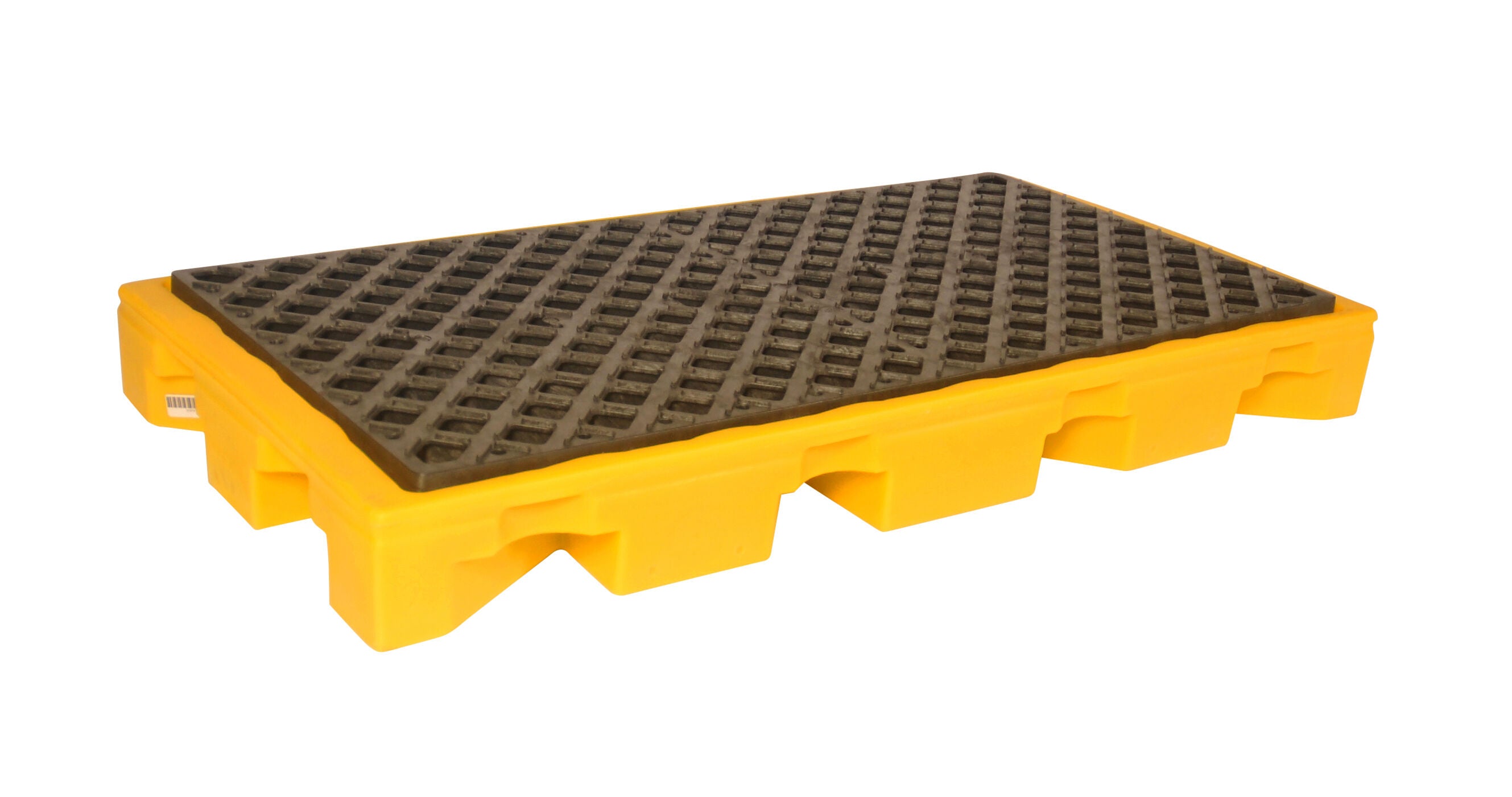

The UltraTech 1086 Spill Deck P2 is a heavy-duty secondary containment platform engineered to safely store up to two 55-gallon drums. Standing at a working height of 5.75 inches, this containment deck improves plant floor safety by significantly reducing the physical strain associated with handling and loading heavy drums. The unit can be operated independently or combined with other UltraTech containment modules via specialized bulkhead fittings to expand overall containment capacity and adapt to specific facility layouts.
Key Features
-
Low-Profile Workspace: The 5.75-inch deck profile reduces the lifting height required for drum positioning, enhancing ergonomic safety during daily warehouse and fluid dispensing operations.
-
High Distributed Load Capacity: Structural engineering allows the poly deck to support a uniformly distributed load (UDL) of up to 3,000 lbs.
-
Chemical-Resistant Polyethylene: Molded entirely from 100% linear low-density polyethylene (LLDPE) to protect work areas from degradation caused by acids, caustics, and industrial solvents.
-
Modular Fluid Communication: Built-in bulkhead ports permit integration with additional spill decks, allowing captured fluids to share containment capacity across the system.
-
Regulatory Alignment: Features an independent 22-gallon sump that satisfies SPCC rules and EPA Container Storage Regulation 40 CFR 264.175 when configured in multi-deck compliance arrays.
| Specification | Data |
|---|---|
| Part Number | 1086 |
| Drum Capacity | 2-Drum |
| Dimensions | 52" x 26" x 5.75" (1321 x 660 x 146 mm) |
| Load Capacity (UDL) | 3,000 lbs (1,361 kg) |
| Sump Capacity | 22 Gallons (83 Liters) |
| Material | Polyethylene (LLDPE) |
| Grate Configuration | (1) Removable Polyethylene Grate |
| Weight | 39 lbs (18 kg) |
