What Size IBC Spill Pallet Do You Need? The 40 CFR 264.175 Math for 1 to 5 Totes (With Real Sump Sizes and Prices)

An IBC spill pallet needs a sump at least as large as your biggest tote: 275 gal for a 275 gal tote, 330 gal for a 330 gal tote, and that same number for two, three, or five totes on one pallet, because the federal rule takes the larger of 10% of everything stored or the single largest container. Every UltraTech IBC pallet we stock clears it for a single tote: the IBC Spill Pallet Plus holds 365 gal and is $1,558.00, the heavy-duty IBC Spill Pallet holds 400 gal and is $2,096.00, the Twin IBC Spill Pallet holds 535 gal for two totes and is $2,356.00, and the IBC Hard Top holds 365 gal under a locking roof for outdoor storage and is $3,593.00. The three steps below take you from the tote count to the part number, with the capacity rule quoted from 40 CFR 264.175 and every sump size and load rating from UltraTech's spec pages.

How much secondary containment does an IBC tote need?

The federal container storage rule for hazardous waste sets the floor. 40 CFR 264.175(b)(3) reads: "The containment system must have sufficient capacity to contain 10% of the volume of containers or the volume of the largest container, whichever is greater. Containers that do not contain free liquids need not be considered in this determination." With IBC totes, the largest container wins every time until you pass ten totes, because 10% of ten 330 gal totes is 330 gal, the same as one tote. Below that count, the sump only has to hold one full tote.

For oil, the SPCC rule is stricter on the outdoor side. 40 CFR 112.8(c)(2) requires "a secondary means of containment for the entire capacity of the largest single container and sufficient freeboard to contain precipitation." Same largest-container logic, plus room for rain if the pallet is outside. UltraTech's own guidance page states the requirement as 110% of the tote's volume, and buying to 110% of your largest tote satisfies both readings.

The tote itself is the other input. Per UltraTech's IBC containment guide, IBCs are "275-gallon or 330-gallon storage containers" with outer dimensions, including the steel cage, of 48 x 40 x 46 in, and a tote "full of water or a similar liquid" weighs "upwards of 2,500 pounds." Run the rule against your tote count and you get the table below.

Two things the table does not show. A 330 gal tote on a pallet rated for "one IBC" is only compliant if the sump holds 330 gal, so read the sump number, not the tote count in the product name. And if two totes share one sump, everything in both totes has to be chemically compatible, because a leak from one lands in the same basin as a leak from the other.

Step 1: How many totes go on the pallet, and how big are they?

Count the totes that will sit on one containment unit, then match the sump. UltraTech publishes the sump capacity for every model, and the numbers below come from those spec pages.

The modular row is the trap. UltraTech's modular spill pallet page lists the two-tank indoor system at 280 gal, which covers two 275 gal totes and falls 50 gal short for a single 330 gal tote. The fix is the 1124 expansion tank, which "adds 65 gallons of containment" per tank, and UltraTech notes that "once five (5) or more spill pallets are connected together, the total containment capacity is 375 gallons minimum and does not require the use of an expansion tank." If your totes are 330 gal and you want the two-tank modular layout, price in one expansion tank ($364.00) on top of the 1118 assembly kit ($115.00) that every modular system needs.

Every other row clears a 330 gal tote on its own. The Twin IBC Spill Pallet carries two totes side by side over one 535 gal molded sump, and the single-tote pallets range from 365 to 400 gal.

Single IBC, indoor, forkliftable

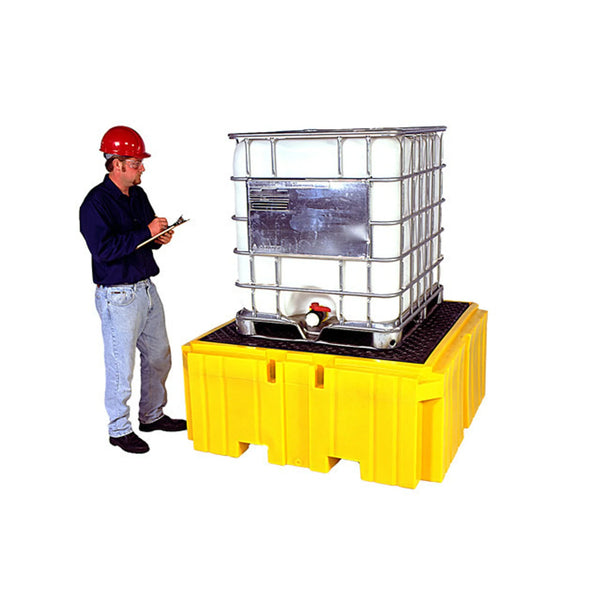

UltraTech 1157 IBC Spill Pallet Plus, No Drain

365 gal sump, 8,500 lb uniformly distributed load, 52 x 52 in flat grate, forklift pockets on two sides, all polyethylene, takes the 1159 pullover cover and 1160 bucket shelf.

$1,558.00 View specs →

Step 2: How heavy is the loaded tote, and how will you set it down?

A full tote puts upwards of 2,500 lb on the grating, so the load rating separates the single-tote pallets more than the sump does. UltraTech rates the Spill Pallet Plus at 8,500 lb uniformly distributed on five inner polyethylene columns. The standard IBC Spill Pallet is rated at 16,000 lb, which is why its listing describes two full totes stacked vertically on one footprint. The steel 1184 is rated at 5,650 lb: one full tote, not two.

How the tote gets onto the pallet matters as much as the weight. The Plus has forklift pockets on two sides, so an empty pallet moves to the storage bay on the forks. The 16,000 lb pallet has none: UltraTech's page states "there are no forklift pockets," so it is positioned once and the totes come to it. The steel model is forkliftable from all four sides.

Height decides dispensing. The Plus stands 26 in tall, the standard pallet 33 in, the steel pallet 35 in, and the modular pallets 11 in, all per UltraTech's spec pages. A tote valve riding on a 33 in pallet clears a pail on the 1160 bucket shelf with room to spare. The modular pallets sit 11 in high, which is the lowest lift for the forklift operator placing a tote and the lowest valve for anyone dispensing from it.

Single IBC, heavy duty, stackable

UltraTech 1057 IBC Spill Pallet, No Drain

400 gal sump, 16,000 lb uniformly distributed load for two totes stacked, 52 x 52 in grating, 33 in dispensing height, 100% polyethylene with UV inhibitor, drain version is the 1058.

$2,096.00 View specs →

Step 3: Does the pallet live indoors or outdoors?

An open sump outdoors is a rain gauge. UltraTech puts it plainly on the Spill Pallet Plus page: "if the sump is filled (even partially) with rainwater, it has lost or reduced its capacity to capture a spill." The regulations say the same thing from the other direction. 40 CFR 264.175(b)(4): "Run-on into the containment system must be prevented unless the collection system has sufficient excess capacity in addition to that required in paragraph (b)(3) of this section to contain any run-on which might enter the system." And (b)(5): "Spilled or leaked waste and accumulated precipitation must be removed from the sump or collection area in as timely a manner as is necessary to prevent overflow of the collection system." For oil, 112.8(c)(2) adds the freeboard requirement quoted above.

Three ways to meet that outdoors, in rising order of cost. A pullover cover ($328.00 for the 1159 on the Plus, $414.00 for the 1055 on the standard pallet) keeps rain out of the sump but leaves the tote exposed and takes hands to remove every time you dispense. The IBC Hard Top puts the same 365 gal, 8,500 lb sump under a roll-top upper door and swing-out lower doors, locks, holds a tote up to 52 x 52 x 61 in, and stands 96 in tall. The Twin IBC Hard Top does the same for two totes over a 535 gal sump. The steel hard tops (1185 single at $6,995.00, 1186 twin at $9,390.00) are built for flammable liquid storage, for the reason UltraTech gives on its steel pallet page: steel "will not melt or deform from extreme heat or fire."

Drain or no drain. On every UltraTech IBC pallet the drain is "a threaded hole in the sidewall with a 3/4 inch polyethylene plug with NPT threads," and it adds $22.00 to $27.00 to the price. Order it if you will empty the sump by hose rather than by pump. Keep it plugged in service. And if the sump collects rainwater at an SPCC-regulated site, 112.8(c)(3) does not let you drain it to a storm drain unless you keep the bypass valve sealed closed, inspect the retained water first, open and reseal the valve under responsible supervision, and keep records of each event.

Single IBC, outdoor, lockable

UltraTech 1162 IBC Hard Top, No Drain

365 gal sump, 8,500 lb uniformly distributed load, fits a tote up to 52 x 52 x 61 in, roll-top and swing-out doors, forkliftable, UV-inhibited polyethylene, drain version is the 1161.

$3,593.00 View specs →

Which IBC spill pallet should you buy?

Match your storage bay to the line that describes it.

• One tote, indoors, moved by forklift, dispensed from the valve: UltraTech 1157 IBC Spill Pallet Plus ($1,558.00). 365 gal sump, forklift pockets, 26 in overall height. Add the 1160 bucket shelf ($118.00) to catch valve drips.
• One tote today and two stacked later, or a tote you never want to move again: UltraTech 1057 IBC Spill Pallet ($2,096.00). 400 gal sump, 16,000 lb rating, no forklift pockets.
• One tote of flammable liquid: UltraTech 1184 Steel IBC Spill Pallet ($2,703.00). 370 gal sump, 14-gauge galvanized steel, forkliftable from four sides, 5,650 lb rating.
• One tote on a budget, or a temporary bay: UltraTech 0816 IBC Berm ($1,324.00). An 85 gal poly inner pallet inside a 400 gal PVC berm, 6,500 lb rating, sets up without tools.
• Two totes of compatible liquids side by side: UltraTech 1140 Twin IBC Spill Pallet ($2,356.00). 535 gal shared sump, 8,000 lb per side, 124.5 in long. Specify bucket shelves at order time; the bulkhead fittings are factory installed.
• Three to five totes in a row, dispensed by pump: UltraTech 1126, 1127, or 1128 Modular IBC Spill Pallet ($2,804.00 to $3,275.00), plus the 1118 assembly kit. The 3-, 4-, and 5-tank systems hold 355 to 375 gal, so they clear a 330 gal tote without the expansion tank; only the 2-tank system (280 gal) needs one.
• One or two totes outdoors: UltraTech 1162 IBC Hard Top ($3,593.00) or 1148 Twin IBC Hard Top ($5,455.00). Steel hard tops for flammables start at $6,995.00.
• A tank, a generator, or more totes than a pallet holds: a containment berm, sized with our berm sizing guide.
• Drums, not totes: our spill pallet sizing guide runs the same math for 1 to 4 drums.

Two IBCs, one sump

UltraTech 1140 Twin IBC Spill Pallet, No Drain

535 gal one-piece molded sump, 8,000 lb per side, two 52 x 52 in grating surfaces, 124.5 x 61.6 x 22 in, made in the USA, 5-year warranty, drain version is the 1144.

$2,356.00 View specs →

Every model above is in the IBC spill containment collection. If your bay lands between two lines, call 1-800-794-1049, 8 AM to 4 PM Central, with your tote size, tote count, the liquid, and whether the bay has a roof. We will size it in one call and send a written quote for approval.

Frequently Asked Questions

Do IBC totes need secondary containment?

Under federal rules, yes for two categories. Hazardous waste in containers falls under 40 CFR 264.175, which requires a containment system with a base "free of cracks or gaps" and capacity for 10% of the stored volume or the largest container, whichever is greater. Oil at an SPCC-regulated facility falls under 40 CFR 112.8(c)(2), which requires containment for "the entire capacity of the largest single container" plus freeboard for precipitation. State rules and fire codes add requirements for other liquids, so check the ones that cover your site.

How much containment does one 275 gallon IBC tote need?

275 gal, because the largest container (275 gal) is greater than 10% of the stored volume (27.5 gal). A 330 gal tote needs 330 gal. Every single-tote UltraTech pallet we stock clears both: 365 gal for the Spill Pallet Plus and Hard Top, 370 gal for the steel pallet, 400 gal for the standard Spill Pallet and the IBC Berm.

Can you put two IBC totes on one spill pallet?

Yes, on a pallet built for it. The UltraTech Twin IBC Spill Pallet carries two totes over one 535 gal sump rated at 8,000 lb per side. The heavy-duty 1057 Spill Pallet carries two totes stacked vertically on its 16,000 lb, 400 gal footprint. Both liquids have to be chemically compatible, because a shared sump mixes whatever leaks.

Can an IBC spill pallet be used outside?

Only with the sump protected from rain. UltraTech's spec page for the Spill Pallet Plus warns that a sump partially filled with rainwater "has lost or reduced its capacity to capture a spill," and 40 CFR 264.175(b)(4) requires run-on to be prevented unless the system has excess capacity to hold it. Use a pullover cover, a roof, or an IBC Hard Top, which encloses the tote and the 365 gal sump behind lockable doors.

Should I buy the IBC spill pallet with a drain or without?

Without, unless you will empty the sump by hose. The drain is a plugged 3/4 inch NPT port in the sidewall, and the with-drain versions (1058, 1158, 1144, 1161) cost $22.00 to $27.00 more than the no-drain versions on Warehouse Gear Hub as of this writing. A drain that is never opened is one more fitting to inspect; a pump-out serves the same purpose on a no-drain sump.

How much does an IBC spill pallet cost?

On Warehouse Gear Hub as of this writing, single-tote UltraTech IBC pallets run from $1,324.00 for the 0816 IBC Berm and $1,558.00 for the 1157 Spill Pallet Plus to $2,703.00 for the 1184 steel model. The 1140 Twin IBC Spill Pallet is $2,356.00, the 1162 IBC Hard Top is $3,593.00, and the 1148 Twin IBC Hard Top is $5,455.00. Prices are on each product page and change with the manufacturer's list.
