How to Block a Storm Drain During a Spill: Drain Seal vs Drain Plug vs Drain Guard (With Real Sizes and Prices)

The fastest way to block a storm drain during a spill is a polyurethane drain seal laid over the grate. It is a flexible, non-absorbing mat that lays over the grate in seconds and, per UltraTech, deforms and seals to a smooth surface with no adhesive or fasteners, then comes off and washes with soap and water when the cleanup is done. Use a drain plug instead when the opening is a bare pipe or a floor drain with no grate to cover, and use a drain guard when the job is filtering everyday runoff rather than stopping a spill, because a guard passes water and will not hold a liquid spill back. On Warehouse Gear Hub, the UltraTech 2130 36 x 36 inch drain seal is $360.00, the 2160 Drain Seal Plus in the same size is $491.00, the 2116 drain plug kit with 2, 3, and 4 inch plugs is $336.00, and the 9219 Drain Guard Plus is $48.00. The four questions below take you from the drain in front of you to the part number, with sizing and time limits quoted from UltraTech's spec pages and the SPCC and reporting rules quoted from 40 CFR.

What blocks a storm drain during a spill?

Three products get sold under the words "storm drain cover," and only two of them stop liquid. Per UltraTech's Ultra-Drain Seal page, the seal is flexible, non-absorbing polyurethane with a tear-resistant mesh sandwiched inside, 0.4 inches (9.7 mm) thick, and "both sides are designed to effectively seal most drains (no top or bottom)." It resists oil, water, and most aggressive chemicals, and it is reusable as long as a chemical has not degraded it. The Ultra-Drain Plug is the same polyurethane in a tapered cone that wedges into a standard drain opening. The Ultra-Drain Guard is a fabric catch basin insert that hangs under the grate and filters sediment and oil out of stormwater as it flows through. UltraTech's page is direct on the last point: the guard does not stop liquid spills, it filters flowing stormwater.

Product	What it does	Fits	Time in place, per UltraTech	Price range on our site
Ultra-Drain Seal (orange or clear)	Lays over a grate and seals it shut, 0.4 in thick	Grates up to 48 x 48 in square, 36 in round, 30 x 52 in rectangular	Spill response; not for outdoor use past 2 hours (UV and heat)	$102.00 to $923.00
Ultra-Drain Seal Plus (yellow top)	Same urethane seal with a UV-resistant polyethylene top layer, 0.6 in thick	Same size range as the standard seal	Longer-term placement at parking areas and loading docks	$142.00 to $1,509.00
Ultra-Drain Plug	Tapered cone wedges into an open pipe or floor drain	2, 3, 4, 6, 8, 10, and 12 in drains	Spill response; long-term outdoor use not recommended	$76.00 to $266.00, kit $336.00
Ultra-Drain Guard	Under-grate insert that filters sediment and oil from runoff; does not stop a spill	Catch basins, 48 x 36 in and 60 x 60 in inserts plus adjustable frames	Continuous; inspect after each significant rain event	$27.00 to $605.00

Question 1: Is it a grated drain or an open pipe?

Look at the opening. A storm drain in a parking lot, a trench drain at a dock, or a floor drain with a grate over it takes a seal, because the seal needs a flat rim to sit on and the grate gives it one. A bare pipe stub, a conduit opening, or a floor drain whose grate has been pulled takes a plug, because there is nothing for a mat to seal against.

Plugs are sized to the drain's inside diameter. Per UltraTech, the 2 inch plug (2113) is 2.5 x 2.5 x 4.6 inches and 2 pounds, the 4 inch plug (2115) is 4.5 x 4.5 x 4.8 inches and 3 pounds, and the 12 inch plug (2121) is 13.5 x 13.5 x 4 inches and 25 pounds. The 2116 kit packs one each of the 2, 3, and 4 inch plugs in a case at 8 pounds, which covers the floor drains in most warehouses and shops. The eyebolt on top is what you pull to remove the plug, and per the product listing it unscrews so the grate can go back on with the plug still in the pipe.

Question 2: What size drain seal do you need?

Measure the outside of the grate, not the opening, then add 6 inches. UltraTech's sizing line reads: "For best results, use an Ultra-Drain Seal that is at least 6" larger than the outside of the grate." That gives 3 inches of pavement contact on every side, which is where the seal is made. A common 24 x 24 inch catch basin grate therefore takes a 36 x 36 inch seal, not a 24 x 24, and a 30 x 30 grate takes a 42 x 42.

Weight is the second number to read, because the person deploying it will be carrying it at a jog. Per UltraTech, the 36 x 36 seal (2130) is 20 pounds, the 48 x 48 (2132) is 36 pounds, and the 54 x 54 (2133) is 41 pounds. A seal that is too heavy to move in under a minute is a seal that stays in the closet.

Grate outside dimension, up to	Seal to buy	Weight, per UltraTech	Price as listed
12 x 12 in square	2126, 18 x 18 in	5 lb	$116.00
18 x 18 in square	2127, 24 x 24 in	8 lb	$175.00
30 x 30 in square	2130, 36 x 36 in	20 lb	$360.00
36 x 36 in square	2131, 42 x 42 in	23 lb	$467.00
42 x 42 in square	2132, 48 x 48 in	36 lb	$615.00
48 x 48 in square	2133, 54 x 54 in	41 lb	$851.00
14 in round	2135, 20 in round	6 lb	$170.00
24 in round	2136, 30 in round	11 lb	$261.00
36 in round	2137, 42 in round	19 lb	$410.00
12 x 52 in trench	2124, 18 x 58 in	16 lb	$406.00
30 x 52 in trench	2125, 36 x 58 in	26 lb	$691.00

Two more sizing notes from UltraTech's page. Do not cut a seal down to fit, because cutting opens the mesh to delamination, and do not drive over one. If the grate sits in cracked or pitted pavement, buy the clear model in the same size (2200 series, $111.00 to $923.00 on our site): per UltraTech's clear model page, the transparency lets responders "see if spills are entering the drain through cracks in the surface, imperfections in the grating or other irregularities that can break the seal."

Question 3: How long does the drain need to stay blocked?

This is the question that separates the standard seal from the Plus. UltraTech's page for the standard Ultra-Drain Seal says it is not intended for extended outdoor use exceeding 2 hours, because UV exposure and heat degrade urethane. Two hours is a spill response window: block the drain, absorb the spill, lift the seal, wash it, put it away. A seal left on a parking lot drain overnight is being used outside its rating.

For anything longer, UltraTech builds the Ultra-Drain Seal Plus: the same urethane sealing layer on the bottom, with a "rugged, reinforced polyethylene top layer (yellow)" that "provides protection from extended UV exposure," 0.6 inches thick, for "parking areas, loading docks and other areas where drains may need longer-term spill protection." The trade-off is weight. The 36 x 36 Plus (2160) is 23 pounds against 20 for the standard, and the 54 x 54 Plus (2163) is 53 pounds against 41. Buy the Plus for the drain below a fuel island, a tanker unloading pad, or a dock where you stage drums for hours at a time, and buy the standard for the spill kit.

If the drain never needs to be sealed and the problem is oily, silty runoff every time it rains, that is the drain guard's job, and it is a different product doing a different thing. Per UltraTech's page, a new Ultra-Drain Guard passes 90 gallons per minute per square foot, its overflow ports carry 770 gallons per minute so the basin does not pond in a storm, the Oil & Sediment model (9217) holds 0.87 gallons of oil and up to 40 pounds of sediment, and the Plus model (9219) holds 1.38 gallons of oil. Inspect it after each significant rain event and replace it once it is saturated with hydrocarbons. It cannot be your spill response, because water goes through it by design.

Question 4: Does your SPCC or stormwater plan already call for it?

Federal rules do not say "drain cover" anywhere. They say what the drain cover accomplishes, and two programs reach most warehouses and yards.

The first is SPCC. 40 CFR 112.1 exempts a facility only where "the aggregate aboveground storage capacity of the facility is 1,320 U.S. gallons or less of oil," and "only containers with a capacity of 55 U.S. gallons or greater are counted." Twenty-five drums of hydraulic oil, or one 1,500 gallon diesel tank, puts a yard over that line. Above it, 40 CFR 112.7(a)(3)(iv) requires the plan to describe "countermeasures for discharge discovery, response, and cleanup," and 112.7(c) requires "appropriate containment and/or diversionary structures or equipment to prevent a discharge," with a list of eight prevention systems for onshore facilities that includes barriers such as weirs and booms, and sorbent materials. 40 CFR 112.8(b)(4) then requires, where drainage is not engineered to catchment basins, "a diversion system that would, in the event of an uncontrolled discharge, retain oil in the facility." A drain seal staged at the drain, and named in the countermeasures section of the plan, is how a facility with ordinary storm drains meets those lines without pouring a retention pond.

The second is the stormwater permit. 40 CFR 122.26 defines a storm water discharge associated with industrial activity as "the discharge from any conveyance that is used for collecting and conveying storm water and that is directly related to manufacturing, processing or raw materials storage areas at an industrial plant." If your storm drains carry that water, the stormwater pollution prevention plan behind your permit lists the spill response equipment at each outdoor area, and the drain seal goes on that list with its size and its storage location.

Then there is the rule that applies to everyone, permit or not. 40 CFR 110.3 defines a harmful discharge of oil as one that would "cause a film or sheen upon or discoloration of the surface of the water or adjoining shorelines," and 110.6 requires the person in charge, "as soon as he or she has knowledge" of such a discharge, to "immediately notify the National Response Center (NRC)" at 800-424-8802. A storm drain is a pipe to a creek. A $360.00 seal on the grate is the difference between a cleanup on your pavement and a sheen report to the NRC.

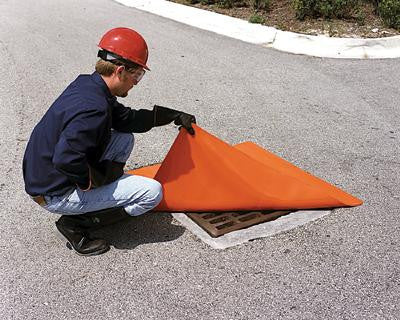

How do you deploy a drain seal when a spill happens?

The University of Michigan-Dearborn's spill guidance puts the drain step near the top of its list: "Block any drains that could be impacted by the spill," and "Never wash spilled materials down a storm drain or sanitary sewer, or allow them to evaporate." Between those two instructions, the seal is deployed like this.

1. Stop the source first. Close the valve, upright the drum, or stop the transfer. A drain seal buys time; it does not end the spill.
2. Sweep the rim. Kick gravel, leaves, and ice off the pavement around the grate. The seal has to touch the surface on all four sides to hold, and the clear model exists so you can see where it is not touching.
3. Center it and walk it down. Lay the seal with 3 inches of overlap on each side and press it flat from the middle out. Either side goes down; UltraTech's design has no top or bottom.
4. Absorb, then lift. Put absorbents or a berm around the spill and clean it up. Lift the seal from one edge, wash it with soap and water, and let it air dry.
5. Store it flat, in its box. UltraTech's storage line matters: keep the seal in a cool, dry place in the original box, on the cardboard tube and plastic sheeting it shipped with, so the urethane does not touch itself, "because, over time, the touching areas will fuse together."

Stage the seal within a few seconds of the drain it protects, not in the maintenance office. A loading dock with one storm drain gets a seal on a wall holder inside the dock door; UltraTech makes three, and the 2142 holder that fits the 36 x 36 seal is $204.00 on our site. A yard with six drains gets six seals, or a cart with two seals and a plug kit that a spotter can wheel to the leak. Pair it with the containment that keeps the spill small in the first place: our spill pallet sizing guide covers drums and our berm sizing guide covers tanks and totes.

Which storm drain protection should you buy?

Match the drain to the line that describes it.

• Grated storm drain, spill kit duty, common 24 x 24 grate: UltraTech 2130 Drain Seal, 36 x 36 ($360.00). 20 pounds, 0.4 inch, up to 2 hours outdoors.
• Grated drain in cracked or pitted pavement: the clear seal in the same size (2202, 36 x 36, $409.00), so the responder can see the seal is complete.
• Drain below a fuel island, tanker pad, or drum staging dock, covered for hours or days: UltraTech 2160 Drain Seal Plus, 36 x 36 ($491.00). Polyethylene top layer for UV, 23 pounds.
• Trench drain at a dock door: 2124 (18 x 58, $406.00) for a trench up to 12 inches wide, 2125 (36 x 58, $691.00) up to 30 inches wide.
• Floor drains and pipe stubs with no grate: UltraTech 2116 Drain Plug Kit ($336.00) for 2 to 4 inch drains; single plugs from 2 inches ($76.00) to 12 inches ($266.00).
• Oily or silty runoff every time it rains, no sealing needed: UltraTech 9219 Drain Guard Plus ($48.00) under the grate, replaced when saturated.
• Twelve drains across a yard, or a mixed order of seals, plugs, and guards: call for a volume quote before you buy one at a time.

Every seal, plug, and guard above is in the Storm Drain Seals collection and the Drain Guards collection. Warehouse Gear Hub is an authorized UltraTech dealer, we match prices, and we quote B2B and volume orders in writing. If the grate is an odd size or the pavement is rough, call 1-800-794-1049, 8 AM to 4 PM Central, with the outside dimension of the grate and a photo of the drain, and we will size it in one call.

Frequently Asked Questions

How do you block a storm drain during a spill?

Stop the source, then lay a polyurethane drain seal over the grate with at least 3 inches of overlap on every side and press it flat from the center out. It seals to a smooth surface and holds the spill on the pavement so it can be absorbed. For an open pipe or a floor drain with no grate, wedge a tapered drain plug sized to the drain's diameter into the opening instead. Never hose the spill toward the drain.

What size drain seal do I need for a storm drain?

Measure the outside of the grate and add 6 inches to each dimension. UltraTech's sizing guidance is "at least 6" larger than the outside of the grate." A 24 x 24 inch grate takes a 36 x 36 inch seal ($360.00), a 30 x 30 grate takes a 42 x 42 ($467.00), and a 24 inch round grate takes a 30 inch round seal ($261.00). Do not cut a seal to fit; cutting exposes the mesh and the layers separate.

How long can a drain seal stay on a storm drain?

Per UltraTech, the standard Ultra-Drain Seal is not intended for extended outdoor use exceeding 2 hours, because UV and heat degrade urethane. The Ultra-Drain Seal Plus adds a reinforced polyethylene top layer for extended UV exposure and is built for longer-term placement at parking areas and loading docks. Neither model is rated to be driven over.

Does a drain guard stop a spill?

No. An Ultra-Drain Guard is a catch basin insert that filters sediment and oil out of flowing stormwater, with overflow ports rated at 770 gallons per minute so the basin never ponds. UltraTech's page states it does not stop liquid spills. A 9217 Oil & Sediment guard holds 0.87 gallons of oil and the 9219 Plus holds 1.38 gallons, which is a rain event, not a drum. For a spill you need a seal or a plug.

Do I have to report a spill that reaches a storm drain?

If oil reaches water in a quantity that causes a film, sheen, or discoloration, yes. 40 CFR 110.3 defines that as a harmful discharge and 40 CFR 110.6 requires the person in charge to immediately notify the National Response Center at 800-424-8802 as soon as they know of it. State and local agencies add their own hotlines, and many SPCC and stormwater plans name them. A seal on the grate is what keeps the spill on your pavement and off that call list.

How much does a storm drain cover for spills cost?

On Warehouse Gear Hub as of this writing, UltraTech orange drain seals run from $102.00 for the 12 inch round (2134) to $851.00 for the 54 x 54 inch square (2133), with the 36 x 36 inch 2130 at $360.00. The Drain Seal Plus line runs $142.00 to $1,509.00, single drain plugs run $76.00 to $266.00, the three-plug kit is $336.00, and drain guards run $27.00 to $605.00 depending on model and pack size.
