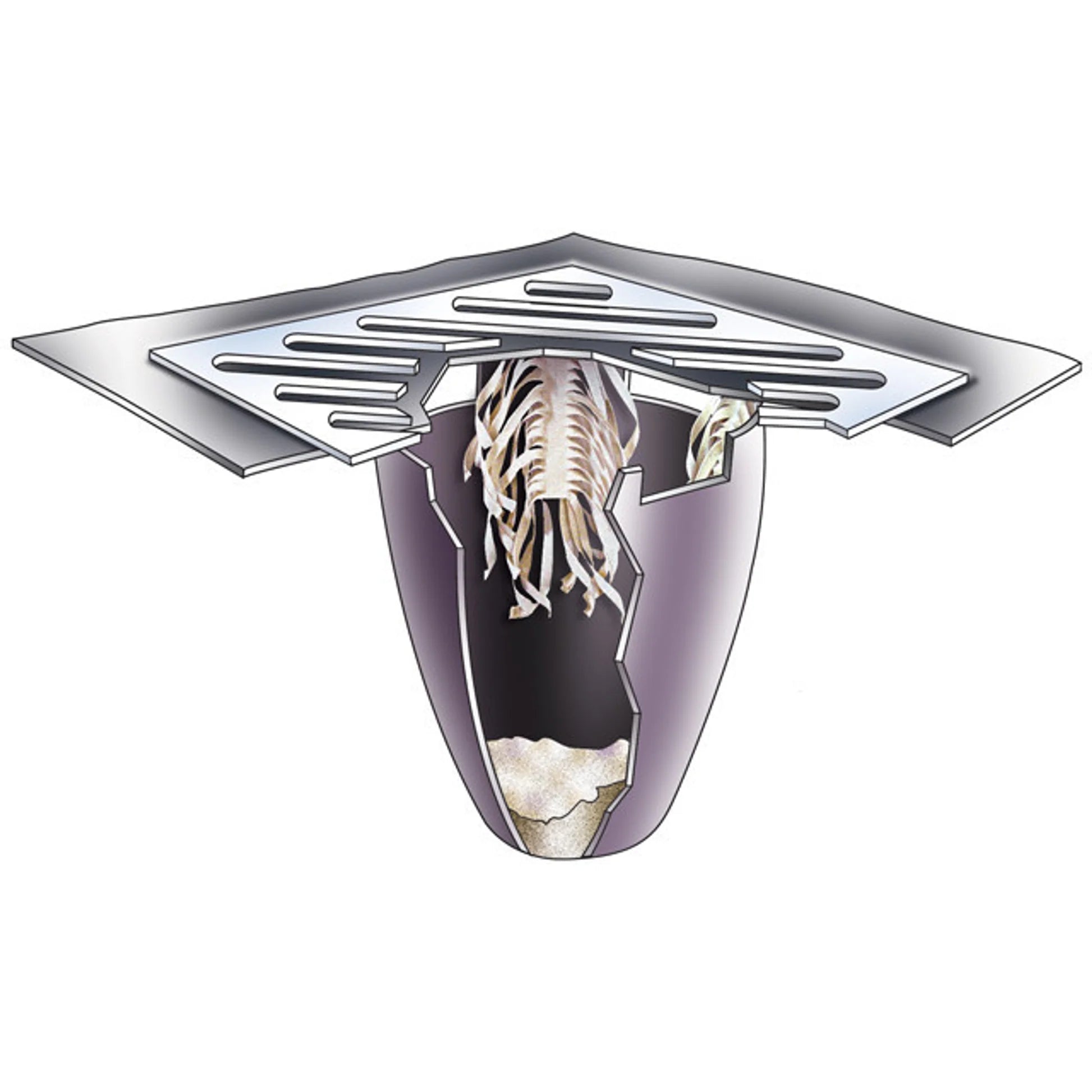

The UltraTech 9219 Drain Guard Plus Oil & Sediment Model is a catch basin insert designed to capture sediment, dirt, debris, oil, and hydrocarbons from stormwater runoff before they enter drainage systems. Constructed from non-woven polypropylene geotextile fabric with integrated Ultra-X-Tex® absorbent strips, it provides enhanced oil retention compared to standard drain guards while maintaining effective sediment filtration. Designed for installation beneath storm drain grates, it helps support stormwater pollution prevention and regulatory compliance programs.
- Enhanced Oil and Hydrocarbon Capture – Integrated Ultra-X-Tex® absorbent strips increase oil and grease retention capacity while maintaining stormwater flow through the filtration media
- Oil and Sediment Filtration – Captures sediment, dirt, sand, and debris while absorbing oil, fuel residue, and hydrocarbon contaminants from runoff before discharge
- Built-In Overflow Protection – Integrated overflow ports help maintain drainage performance during heavy rainfall events and reduce the risk of flooding or ponding
- High Filtration Efficiency – Designed to achieve greater than 80% sediment removal efficiency under typical operating conditions

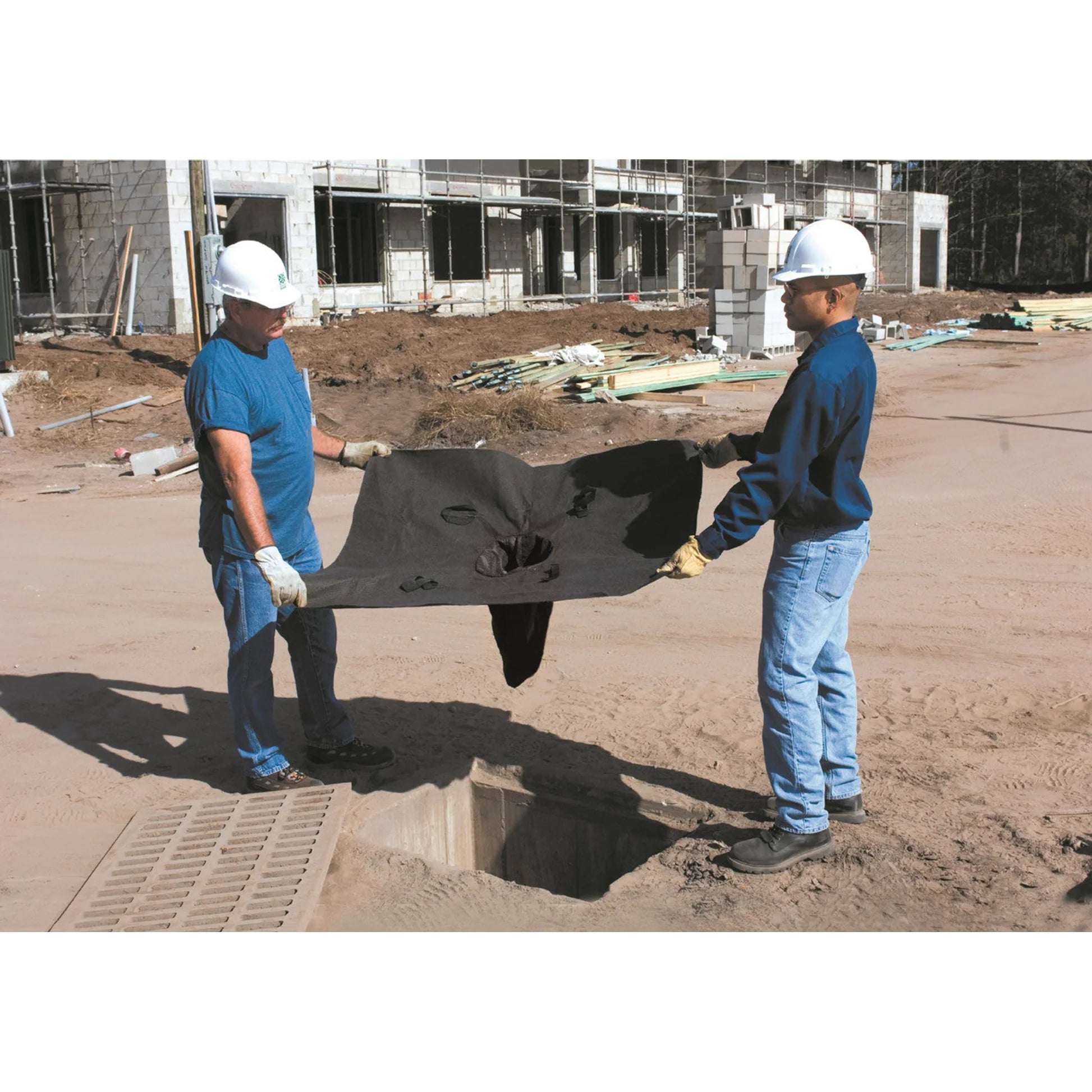

- Simple Under-Grate Installation – Installs beneath catch basin grates without special tools or permanent modifications to existing drainage infrastructure
Product Specifications:
| Model Number | 9219 |
| Product Type | Ultra-Drain Guard® Plus – Oil & Sediment Model |
| Dimensions | 48" L x 36" W x 18" H (1,219 x 914 x 457 mm) |
| Opening Size | 10" Diameter (254 mm) |
| Oil Capacity | Up to 1.6 Gallons (6.1 L) |
| Sediment Capacity | 40 lbs. (18 kg) |
| Flow Capacity | 720 GPM |
| Maximum Flow Rate | 90 GPM/ft² |
| Sediment Removal Efficiency | Greater Than 80% |
| Filter Material | Non-Woven Polypropylene Geotextile with Ultra-X-Tex® Absorbent Strips |
| Substances Filtered | Oil, Hydrocarbons, Sediment, Dirt, Sand, and Debris |
| Drain Compatibility | Catch Basin Storm Drains |
| Installation Method | Under Grate |
| Overflow Protection | Integrated Overflow Ports |
| Reusable | No |
| Weight | 2 lbs. (0.9 kg) |
| Color | Black |
| Package Quantity | 1-Pack |
| Compliance | NPDES 40 CFR 122.26 (1999), SPCC, TMDL |
| UPC | 808416092196 |
| Country of Origin | Guatemala |
| Brand | UltraTech International |
