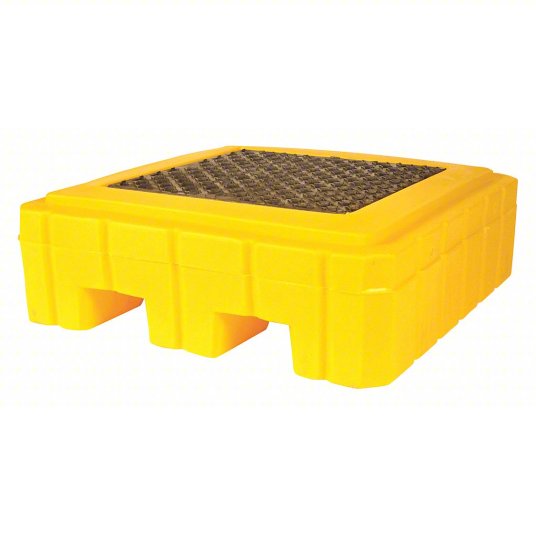

The UltraTech 9607 is a heavy-duty, industrial secondary containment platform engineered for the safe storage and handling of a single 55-gallon drum or smaller hazardous chemical containers. Fabricated entirely from high-density, nonporous polyethylene, this specialized unit features an uncompromised 62-gallon sump capacity designed to isolate fluids and capture critical leaks, drips, or structural container breaches before ground contact occurs. Outfitted with an integrated baseline drain plug, the assembly permits rapid liquid extraction and simplified interior washdowns while maintaining compliance with strict facility safety mandates.
Key Features
-
62-Gallon Sump with Drain: Outfitted with an uncompromised, leak-proof baseline reservoir that exceeds federal regulations and contains a threaded plug for tool-free drainage and liquid recovery.
- Industrial Polyethylene Composition: Molded from premium, chemical-resistant polymer with UV inhibitors to deliver exceptional resistance to acids, fuels, solvents, and harsh outdoor environments.
- Removable Slip-Resistant Grating: Equipped with a 26" x 26" texturized top grid that stabilizes the drum footprint while allowing rapid extraction for routine sump cleaning and inspections.
- 2-Way Forklift Integration: Built with integrated fork pockets (7" width) that accept standard material handling machinery forks for simple, empty relocation across facilCompliance Support Asset: Engineered to serve as the critical baseline infrastructure necessary to ensure industrial facilities satisfy strict EPA 40 CFR 264.175 and SPCC mandates.ity floors.
| Specification | Value |
|---|---|
| Product Title | UltraTech 9607 Spill Pallet P1 Plus, With Drain |
| Manufacturer | UltraTech International |
| Part Number | 9607 |
| UPC Code | 808416096071 |
| Drum Capacity | 1 Drum (55-Gallon) |
| Material Composition | Linear Low-Density Polyethylene (LLDPE) |
| Color Configuration | Yellow Sump / Black Grate |
| Dimensions (L x W x H) | 40.0" x 40.0" x 12.0" (1,016 mm x 1,016 mm x 305 mm) |
| Product Weight | 51.0 lbs (23.0 kg) |
| Containment Sump Capacity | 62.0 Gallons (235.0 Liters) |
| Static Load Capacity UDL | 800 lbs (363 kg) |
| Drain Included | Yes |
| Forklift Access | 2-Way (Distance between fork pockets: 8 in) |
| Regulatory Alignment | EPA 40 CFR 264.175 and SPCC Spill Containment Regulations |
