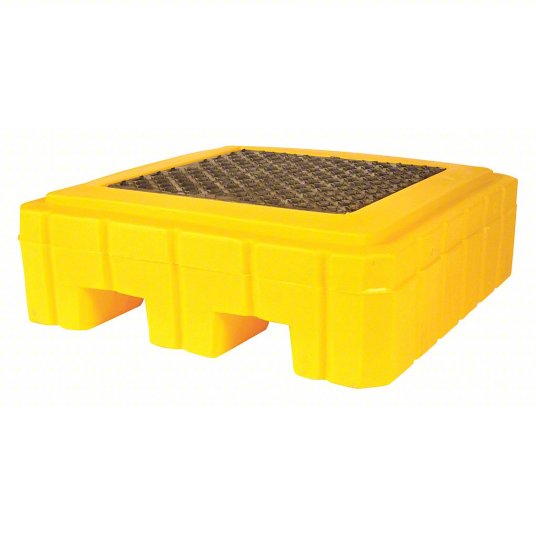

The UltraTech 9606 is a heavy-duty, industrial secondary containment platform engineered for the safe storage and handling of a single 55-gallon drum or smaller hazardous chemical containers. Fabricated entirely from high-density, nonporous polyethylene, this specialized unit features an uncompromised 62-gallon sump capacity designed to isolate fluids and capture leaks, drips, or structural container breaches before ground contact occurs. This configuration features a completely sealed sump base to permanently isolate hazardous liquid leaks, ensuring absolute fluid containment without the risk of drain plug failure.
Key Features
-
62-Gallon Sealed Baseline Sump: Outfitted with an uncompromised, leak-proof baseline reservoir that exceeds federal regulations and contains hazardous spills internally without structural drain vulnerabilities.
-
Industrial Polyethylene Composition: Molded from premium linear low-density polymer with UV inhibitors to deliver exceptional resistance to acids, fuels, solvents, and harsh environments.
-
Removable Slip-Resistant Grating: Equipped with a 26" x 26" texturized top grid that stabilizes the drum footprint while allowing rapid extraction for routine sump cleaning and inspections.
-
2-Way Forklift Integration: Built with integrated fork pockets that accept standard material handling machinery forks for simple, tool-free relocation across the facility when empty.
-
Compliance Support Asset: Engineered to serve as the critical baseline infrastructure necessary to ensure industrial facilities satisfy strict EPA 40 CFR 264.175 and SPCC mandates.
| Specification | Value |
|---|---|
| Product Title | UltraTech 9606 Spill Pallet P1 Plus, No Drain |
| Manufacturer | UltraTech International |
| Part Number | 9606 |
| UPC Code | 084160960640 |
| Drum Capacity | 1 Drum (55-Gallon) |
| Material Composition | Linear Low-Density Polyethylene (LLDPE) |
| Color Configuration | Yellow Sump / Black Grate |
| Dimensions (L x W x H) | 40.0" x 40.0" x 12.0" (1,016 mm x 1,016 mm x 305 mm) |
| Product Weight | 51.0 lbs (23.0 kg) |
| Containment Sump Capacity | 62.0 Gallons (234.7 Liters) |
| Static Load Capacity UDL | 800 lbs (362.9 kg) |
| Drain Included | No |
| Forklift Access | 2-Way (Distance between fork pockets: 8 in) |
| Regulatory Alignment | EPA 40 CFR 264.175, SPCC, and UFC Spill Containment Regulations |
