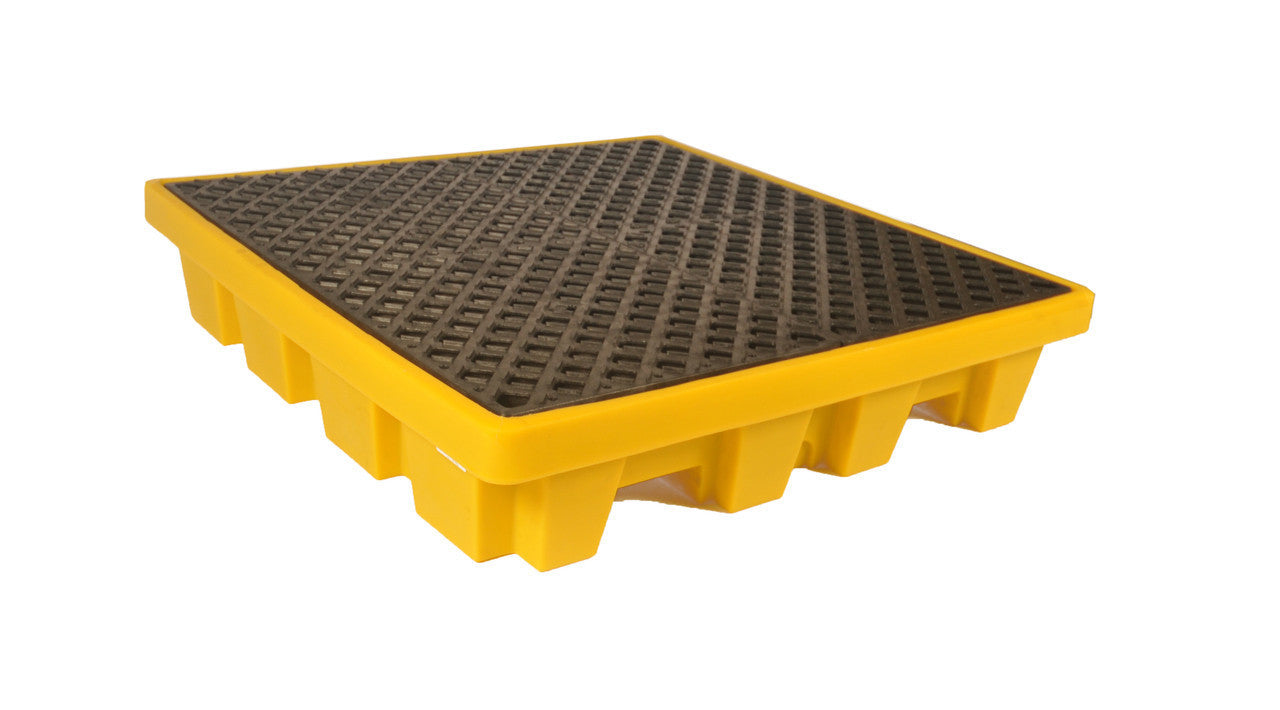

The UltraTech 1231 is a heavy-duty, low-profile secondary containment platform engineered for the safe, centralized storage of up to four 55-gallon drums. Molded from premium, high-density polyethylene, this industrial unit features a space-saving nestable geometry that allows empty sumps to stack tightly inside one another to significantly optimize shipping and warehouse storage space. The design integrates a 66-gallon containment capacity with a built-in threaded baseline drain plug to permit rapid fluid recovery and straightforward washdowns following any container breach.
Key Features
-
Nestable Space-Saving Layout: Features a specialized tapered profile that allows empty units to stack securely within one another, minimizing storage footprints and reducing freight costs when not in service.
-
Integrated Sump Drain Plug: Outfitted with a baseline threaded plug configuration that allows operators to safely drain captured chemical leaks and wash water without tipping or manually siphoning the unit.
-
Industrial Polyethylene Composition: Molded from high-density, nonporous polymer that provides exceptional structural resistance against mechanical impact, industrial oils, and corrosive chemical drips.
-
6,000-Pound Uniform Static Capacity: Built with a reinforced structural core and internal support columns capable of sustaining a continuous maximum load of 6,000 pounds when uniformly distributed.
-
Removable Low-Profile Grates: Equipped with dual texturized, slip-resistant top grids that prevent drum shifting while remaining fully removable for direct containment sump inspection.
| Specification | Value |
|---|---|
| Product Title | UltraTech 1231 Spill Pallet P4, Nestable Model, With Drain, Yellow |
| Manufacturer | UltraTech International |
| Part Number | 1231 |
| UPC Code | 808416012316 |
| Drum Capacity | 4 Drums (55-Gallon) |
| Material Composition | High-Density Polyethylene (HDPE) |
| Color Configuration | Yellow Sump / Black Grates |
| Dimensions (L x W x H) | 51.0" x 51.0" x 10.0" (1,295 mm x 1,295 mm x 254 mm) |
| Product Weight | 80.0 lbs (36.3 kg) |
| Containment Sump Capacity | 66.0 Gallons (250.0 Liters) |
| Static Load Capacity UDL | 6,000 lbs (2,722 kg) |
| Drain Included | Yes |
| Nestable Design | Yes (When empty and grates removed) |
| Regulatory Alignment | EPA 40 CFR 264.175, SPCC, and UFC Spill Containment Regulations |
