How to Dispense From a 55-Gallon Drum: 4 Questions That Decide It (With OSHA Rules and Real Drum Rack Prices)

There are two ways to dispense from a 55-gallon drum: a pump down through the top bung of a drum standing upright, or gravity through a faucet on a drum laid on its side in a rack. Gravity is the right call for a drum you draw from every shift (lubricants, coolant, solvents, cleaners) because it needs no priming, drains the drum nearly dry, and keeps both hands free. A pump is the right call when the drum has to stay vertical, when the liquid is too thick to run through a faucet, or when you draw from it a few times a year. Either way, the drum needs a vent, the faucet or pump needs to satisfy 29 CFR 1910.106 if the liquid is flammable, and the drum needs a sump under it. On Warehouse Gear Hub, the UltraTech 1-drum rack and containment system with a 66-gallon sump is $512.00, the 2-drum system is $877.00, the 4-drum system is $1,142.00, and a polyethylene Drum Rack P1 that sits on a spill pallet you already own is $180.00. The four questions below take you from the liquid to the part number, with every OSHA sentence quoted from the standard, the sump math quoted from EPA, and every dimension and load rating from UltraTech's spec page.

What does OSHA say about dispensing from a drum?

One sentence covers the method. 29 CFR 1910.106(e)(2)(iv)(d) reads: "Flammable liquids shall be drawn from or transferred into vessels, containers, or portable tanks within a building only through a closed piping system, from safety cans, by means of a device drawing through the top, or from a container or portable tanks by gravity through an approved self-closing valve." The same paragraph adds: "Transferring by means of air pressure on the container or portable tanks shall be prohibited." A pump in the top bung is "a device drawing through the top." A faucet on a horizontal drum is "gravity through an approved self-closing valve," and the words that matter are approved and self-closing. A faucet you have to turn off by hand does not meet that wording for a flammable liquid.

A second sentence covers static. 1910.106(e)(6)(ii) reads: "Category 1 or 2 flammable liquids, or Category 3 flammable liquids with a flashpoint below 100 °F (37.8 °C), shall not be dispensed into containers unless the nozzle and container are electrically interconnected." It goes on to say the rule is satisfied "where the fill stem is bonded to the container during filling operations by means of a bond wire." OSHA's March 29, 1999 letter confirms this applies even when the source drum or the receiving container is plastic, and names the two acceptable setups: an approved metallic suction pump that is grounded, or a metallic, self-closing faucet that can be grounded electrically. The letter also says containers of five gallons or less may not need special precautions, while containers from 5 to 60 gallons should use the techniques in NFPA 77.

The categories come from 1910.106(a)(19). A flammable liquid is "any liquid having a flashpoint at or below 199.4 °F (93 °C)." Category 1 flashes below 73.4 °F with a boiling point at or below 95 °F, Category 2 flashes below 73.4 °F with a boiling point above 95 °F, Category 3 flashes from 73.4 °F to 140 °F, and Category 4 flashes above 140 °F up to 199.4 °F. Section 9 of the liquid's safety data sheet gives the flashpoint. Above 199.4 °F, the liquid is outside the standard. At or below it, the category on the SDS decides the faucet, the bond wire, and the drum count.

Question 1: Pump or gravity?

Justrite's drum dispensing guidance draws the line the same way the industry does: horizontal drums dispense by gravity through faucets, vertical drums dispense through pumps mounted in the top bung. The choice comes down to how many times a day you draw and how thick the liquid is.

Decision point	Vertical drum with a pump	Horizontal drum on a rack with a faucet
How the liquid moves	Hand lever, rotary, or electric pump draws up through the 2 inch bung	Gravity, through a faucet in the low bung, with a vent in the high bung
What you need	A pump, a spill pallet or drum tray, and for flammables a grounded metallic pump	A rack, a faucet, a vent, a sump, and for flammables a self-closing metallic faucet with a bond wire
OSHA 1910.106(e)(2)(iv)(d) fit	"A device drawing through the top"	"Gravity through an approved self-closing valve"
Best for	Thick liquids, drums you draw from rarely, drums that stay on a pallet	Lubricants, coolants, solvents, and cleaners you draw from daily, with a full drain-down
What it leaves behind	A pump to clean and a few gallons the suction tube cannot reach	A forward-tilted drum that drains to the faucet, per UltraTech

Two more points settle it. A pump has to be primed, cleaned, and kept with the drum it was last used on, or you cross-contaminate oils. A faucet stays on the drum until the drum is empty. And a rack lifts the drum so a 5-gallon pail or a quart bottle sits under the faucet on a shelf instead of on the floor, which is the difference between a clean fill and a drip every time.

Question 2: What is in the drum?

The liquid sets the hardware and the headcount. Three cases cover a warehouse.

A flammable liquid (Category 1 to 4). The faucet must be an approved self-closing valve, and for Category 1, 2, or low-flash Category 3 liquids, the faucet and the receiving container get a bond wire. Justrite's faucet line shows how to read the spec pages: its model 08955 brass faucet is 3/4 inch NPT, FM Approved, and listed as "manual close" with no flame arrester, while its description notes that models 08910, 08916, and 08552 "feature an internal flame arrester that prevents flashback of fire into the drum." Buy the self-closing, flame-arrester version for anything inside the 1910.106 flashpoint range.

Quantity is the other limit. 1910.106(e)(2)(ii)(b) reads: "The quantity of liquid that may be located outside of an inside storage room or storage cabinet in a building or in any one fire area of a building shall not exceed: (1) 25 gallons of Category 1 flammable liquids in containers (2) 120 gallons of Category 2, 3, or 4 flammable liquids in containers (3) 660 gallons of Category 2, 3, or 4 flammable liquids in a single portable tank." OSHA's December 2, 2003 letter applies that paragraph to facilities where flammable liquid use is incidental to the main business, which describes most warehouses. Do the math before you pick a rack: two 55-gallon drums of a Category 2, 3, or 4 liquid is 110 gallons and fits under the 120-gallon line. Three drums is 165 gallons and does not. A 4-drum rack of solvent belongs in an inside storage room, or holds two drums of solvent and two drums of oil. A storage cabinet does not solve it either: 1910.106(d)(3)(i) caps a cabinet at "not more than 60 gallons of Category 1, 2, or 3 flammable liquids, nor more than 120 gallons of Category 4," so one 55-gallon drum uses up a cabinet.

Oil (hydraulic, gear, motor, lubricating). Outside the flammable standard when the SDS flashpoint is above 199.4 °F, but inside SPCC once the site's aboveground oil storage passes the exemption line in 40 CFR 112.1(d)(2)(ii): "1,320 U.S. gallons or less of oil," where "only containers with a capacity of 55 U.S. gallons or greater are counted." Twenty-four drums of oil on site is 1,320 gallons, so the twenty-fifth drum takes the site past that exemption. 40 CFR 112.8(c)(2) requires "a secondary means of containment for the entire capacity of the largest single container and sufficient freeboard to contain precipitation." Indoors, precipitation is zero, so the sump has to hold one full drum.

Hazardous waste. 40 CFR 264.175(b)(3) sets the sump: "The containment system must have sufficient capacity to contain 10% of the volume of containers or the volume of the largest container, whichever is greater." Paragraph (b)(5) adds that spilled or leaked waste "must be removed from the sump or collection area in as timely a manner as is necessary to prevent overflow." A rack that dispenses into a waste drum is still a container storage area.

Water-based cleaners and non-hazardous liquids carry none of these rules, and the sump still earns its price the first time a faucet is left open overnight.

Question 3: How much sump does the rack need?

Run the EPA formula for each rack size. The largest container is always one 55-gallon drum, and 10 percent of the total never catches up to it below ten drums:

• 1 drum: 10% of 55 = 5.5 gal, or the largest container at 55 gal. Required: 55 gal.
• 2 drums: 10% of 110 = 11 gal, or 55 gal. Required: 55 gal.
• 4 drums: 10% of 220 = 22 gal, or 55 gal. Required: 55 gal.

Every UltraTech Ultra-Drum Rack Containment System, 1-drum, 2-drum, or 4-drum, ships on a spill pallet with a 66-gallon sump per UltraTech's spec page, which is 11 gallons over the 55-gallon requirement under 264.175(b)(3) and 112.8(c)(2) alike. The same page lists the systems as meeting "EPA Container Storage Regulation 40 CFR 264.175" and "Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112." If you are sizing a plain spill pallet for upright drums instead, our spill pallet sizing guide runs the same math for 1 to 4 drums.

Weight is the second number on that page. Water weighs 8.329 pounds per gallon at 70 °F per the USGS Water Science School, so 55 gallons of a water-weight liquid is 458 pounds before the drum, and a tight-head steel drum adds 38 to 48 pounds empty per Repackify's drum dimension guide. UltraTech rates the 1-drum system at 750 lb uniformly distributed, the 2-drum at 1,500 lb, and the 4-drum at 3,000 lb, so each system carries its full count of water-weight drums with about 240 pounds per drum to spare. Oils are lighter than water, which widens the margin.

Drain or no drain. The drain versions cost $21.00 to $27.00 more and add a fitting at the sump so you can empty it with a hose instead of a pump. The no-drain versions have nothing to open, nothing to leak, and nothing to leave open by mistake, which is why they are the default for indoor dispensing where the sump catches drips rather than floods. Pick the drain if the rack lives where a full-drum release is plausible and you want to pump the sump out through a hose.

Question 4: How many drums, and do you already own a spill pallet?

UltraTech sells the horizontal rack two ways: as a complete system on its own containment pallet, or as a bare polyethylene rack you set on a spill pallet you already have. The P1 holds one drum, the P2 holds two side by side, and the 4-drum system is two P2 racks stacked. UltraTech's spec page is explicit on the limit: "Two drum racks is the maximum number that should be stacked."

Model we stock	Drums	Sump	Load rating (UDL)	Size (L x W x H)	Drain	Price as listed
UltraTech 2386 1-Drum System	1	66 gal	750 lb	52 x 29 x 49.5 in	No	$512.00
UltraTech 2387 1-Drum System	1	66 gal	750 lb	52 x 29 x 49.5 in	Yes	$539.00

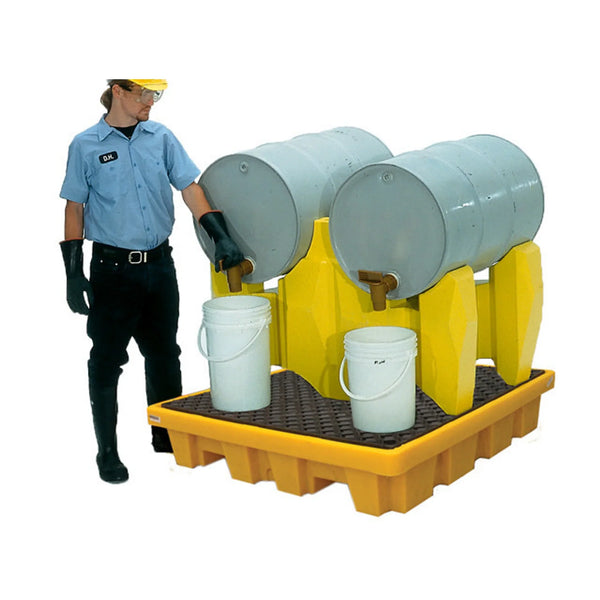

UltraTech 2383 2-Drum System	2, side by side	66 gal	1,500 lb	53 x 53 x 44.8 in	No	$877.00
UltraTech 2384 2-Drum System	2, side by side	66 gal	1,500 lb	53 x 53 x 44.8 in	Yes	$900.00
UltraTech 2380 4-Drum System	4, two P2 racks stacked	66 gal	3,000 lb	53 x 53 x 77.8 in	No	$1,142.00
UltraTech 2381 4-Drum System	4, two P2 racks stacked	66 gal	3,000 lb	53 x 53 x 77.8 in	Yes	$1,163.00
UltraTech 9030 Drum Rack P1 (rack only)	1	Your spill pallet	Per the pallet	32.5 x 24 x 23.5 in, 31 lb	Per the pallet	$180.00
UltraTech 2389 Drum Rack P2 (rack only)	2, side by side	Your spill pallet	Per the pallet	46.5 x 30 x 31 in, 50 lb	Per the pallet	$345.00

Read the height column against the person doing the dispensing. The 4-drum system stands 77.8 inches because its top pair of drums sits on a second P2 rack above the first, so those two faucets are a reach with a 5-gallon pail and fine with a quart bottle on the dispensing shelf. If all four faucets need to be at one height, two 2-drum systems side by side take 106 inches of wall instead of 53. The optional 2390 dispensing shelf ($114.00) mounts to the rack and gives pails, safety cans, and bottles a platform under the faucet, and the 2391 locator pins ($19.00) install through the rack base into the spill pallet grating so the rack cannot slide.

How to set up a horizontal drum for dispensing

A tight-head 55-gallon steel drum is 22.5 inches in diameter, 33.5 inches tall, and has "two bung openings (2-inch and 3/4-inch)" per Repackify. The hardware the manufacturers sell maps onto those two openings: Justrite's safety faucets are threaded 3/4 inch NPT, and its horizontal drum vent, model 08306, is made for the 2-inch bung. Set the drum up in this order.

1. Set the rack on the sump and pin it. The complete systems arrive as a pallet plus rack. A bare P1 or P2 goes on your spill pallet, and the 2391 locator pins install through the rack base into the pallet grating so the rack cannot shift when a drum is rolled on.
2. Lay the drum with the 3/4-inch bung at the bottom and the 2-inch bung at the top. The faucet threads into the small bung at the low point so the forward tilt drains the drum toward it. The vent goes in the large bung at the top where it stays above the liquid.
3. Fit a vent before the first draw. Justrite's 08306 "automatically relieve[s] pressure between 3 and 8 psi" and carries a "manual close vacuum relief," because "vacuum relief is automatic on vertically-installed vents and manual on horizontally-installed vents." Justrite's stated purpose for the vacuum relief is "to prevent possible drum collapse and leakage" during dispensing, and the vent's six-inch flame arrester "prevents flashback from external ignition sources."
4. Bond and ground for flammables. Clamp a bond wire from the faucet to the receiving container before the valve opens, and ground the drum. That is the "electrically interconnected" condition in 1910.106(e)(6)(ii), and OSHA's 1999 letter requires it whether the containers are steel or plastic.
5. Hang the receiving container under the faucet. The 2390 dispensing shelf holds the pail or bottle at the faucet so you are not bending to the floor with a self-closing valve held open in one hand.
6. Keep the sump dry. A sump that already holds 10 gallons of drips has 56 gallons left for the drum. 264.175(b)(5) calls for removal "in as timely a manner as is necessary to prevent overflow," and a weekly look at the sump is the whole program.

Which drum rack should you buy?

Match the drum to the line that describes it.

• One drum of oil, coolant, or cleaner, drawn from daily, indoors: UltraTech 2386 1-Drum System ($512.00). 66-gallon sump, 750 lb UDL, no drain to leave open.
• One drum where a full release is plausible and you will pump the sump out by hose: UltraTech 2387 1-Drum System With Drain ($539.00).
• Two liquids you draw from at the same bench, or two drums of one solvent under the 120-gallon line: UltraTech 2383 2-Drum System ($877.00), or the 2384 with drain ($900.00). Both faucets at the same height.
• Four drums of oil on the least floor space: UltraTech 2380 4-Drum System ($1,142.00), or the 2381 with drain ($1,163.00). Put the pails on the 2390 shelf for the top row.
• Four drums of a flammable liquid: two drums per fire area outside a storage room under 1910.106(e)(2)(ii)(b), so either two 2-drum systems in separate fire areas, or a 4-drum system inside an inside storage room.
• You already own an UltraTech spill pallet: the 9030 P1 ($180.00) for one drum or the 2389 P2 ($345.00) for two, plus the 2391 pins ($19.00).
• Drums that stay upright and get pumped a few times a year: skip the rack and put them on a spill pallet from the Spill Pallets & Decks collection.

Every rack and system above is in the UltraTech collection, and Warehouse Gear Hub is an authorized UltraTech dealer, so each unit ships with UltraTech's 5-year warranty against defects in material and workmanship. If the drum lands between two lines, call 1-800-794-1049, 8 AM to 4 PM Central, with the liquid's flashpoint from Section 9 of the SDS, the drum count, and whether the rack goes inside a storage room. We will match it to a part number in one call, price match an authorized dealer's listed price, and send a written quote for a multi-rack order.

Frequently Asked Questions

Can you store a 55-gallon drum on its side?

Yes, on a rack built for it, with the 2-inch bung at the top and the 3/4-inch bung at the bottom. A drum on its side with no rack rolls, and a drum on its side with no vent pulls a vacuum every time the faucet opens. The UltraTech P1 and P2 racks cradle the drum at a forward tilt so it drains to the faucet, and the complete systems put a 66-gallon sump underneath.

How do you vent a 55-gallon drum when dispensing?

Thread a drum vent into the top bung. Justrite's horizontal drum vent for the 2-inch bung relieves pressure between 3 and 8 psi, has a manual vacuum relief you open as you draw, and carries a six-inch flame arrester. Vacuum relief is automatic on vertical vents and manual on horizontal ones, so on a rack you open the relief, fill, and close it.

Does a drum on a rack need secondary containment?

Yes when the drum holds hazardous waste (40 CFR 264.175) or counts toward an SPCC plan (40 CFR 112.8), and in both cases the sump has to hold the largest single container, which is 55 gallons. UltraTech's 1-, 2-, and 4-drum systems all include a 66-gallon sump. For a non-regulated liquid, the sump is the difference between a faucet left open and a floor to mop.

What does OSHA require for dispensing flammable liquids from a drum?

29 CFR 1910.106(e)(2)(iv)(d) allows four methods inside a building: a closed piping system, safety cans, "a device drawing through the top," or "gravity through an approved self-closing valve." Air pressure on the drum is prohibited. 1910.106(e)(6)(ii) adds that Category 1 or 2 liquids, and Category 3 liquids flashing below 100 °F, are not dispensed into a container unless the nozzle and container are electrically interconnected, which a bond wire satisfies.

How many drum racks can you stack?

Two. UltraTech's spec page states "Two drum racks is the maximum number that should be stacked," which is how the 4-drum system is built: two P2 racks on one pallet, 77.8 inches tall, rated for 3,000 lb uniformly distributed.

How much does a drum rack cost?

On Warehouse Gear Hub as of this writing, the UltraTech 9030 Drum Rack P1 is $180.00 and the 2389 Drum Rack P2 is $345.00, both without a pallet. The complete containment systems are $512.00 (2386, 1 drum), $539.00 (2387, 1 drum with drain), $877.00 (2383, 2 drums), $900.00 (2384, 2 drums with drain), $1,142.00 (2380, 4 drums), and $1,163.00 (2381, 4 drums with drain). Faucets, vents, and bond wires are sold separately.
