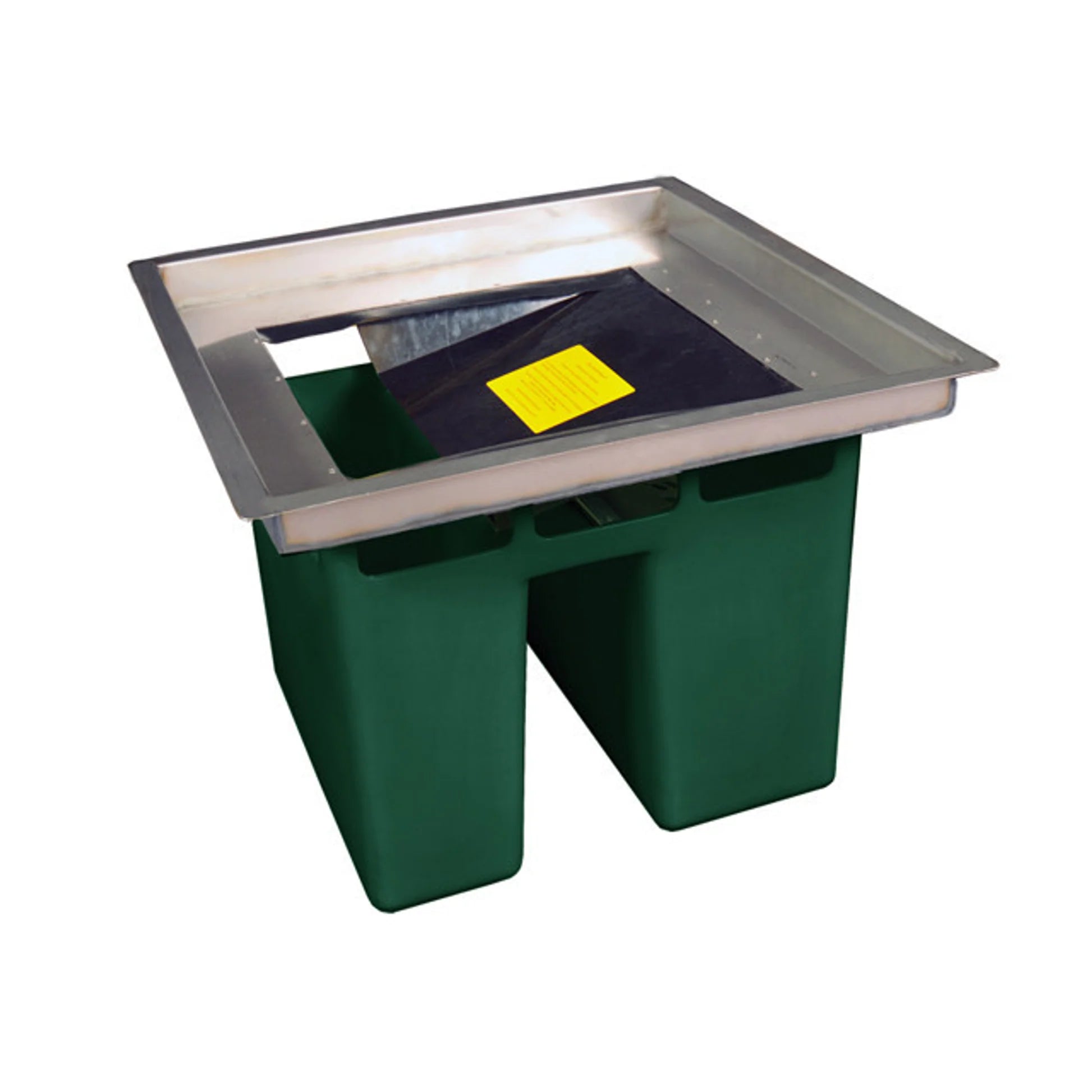

The UltraTech 9876 is the sampling option configuration of the Ultra-HydroKleen catch basin filter, providing a built-in post-treatment effluent sampling capability for facilities required to monitor and test stormwater discharge quality as part of their NPDES permit or local regulatory compliance program. The unit includes factory modifications to the standard HydroKleen frame that allow the Ultra-Universal Sampler (Part #8247, sold separately) to extract post-treatment water samples from below the filter media without removing the unit from the catch basin — in many cases without even lifting the grate. This option must be specified and ordered with the HydroKleen unit; it cannot be installed as a retrofit to an existing standard HydroKleen.
- Post-Treatment Sampling Capability – Factory-modified HydroKleen frame allows real-time water samples to be taken during storm events from below the filter media, providing verified post-treatment effluent data for regulatory reporting and permit compliance

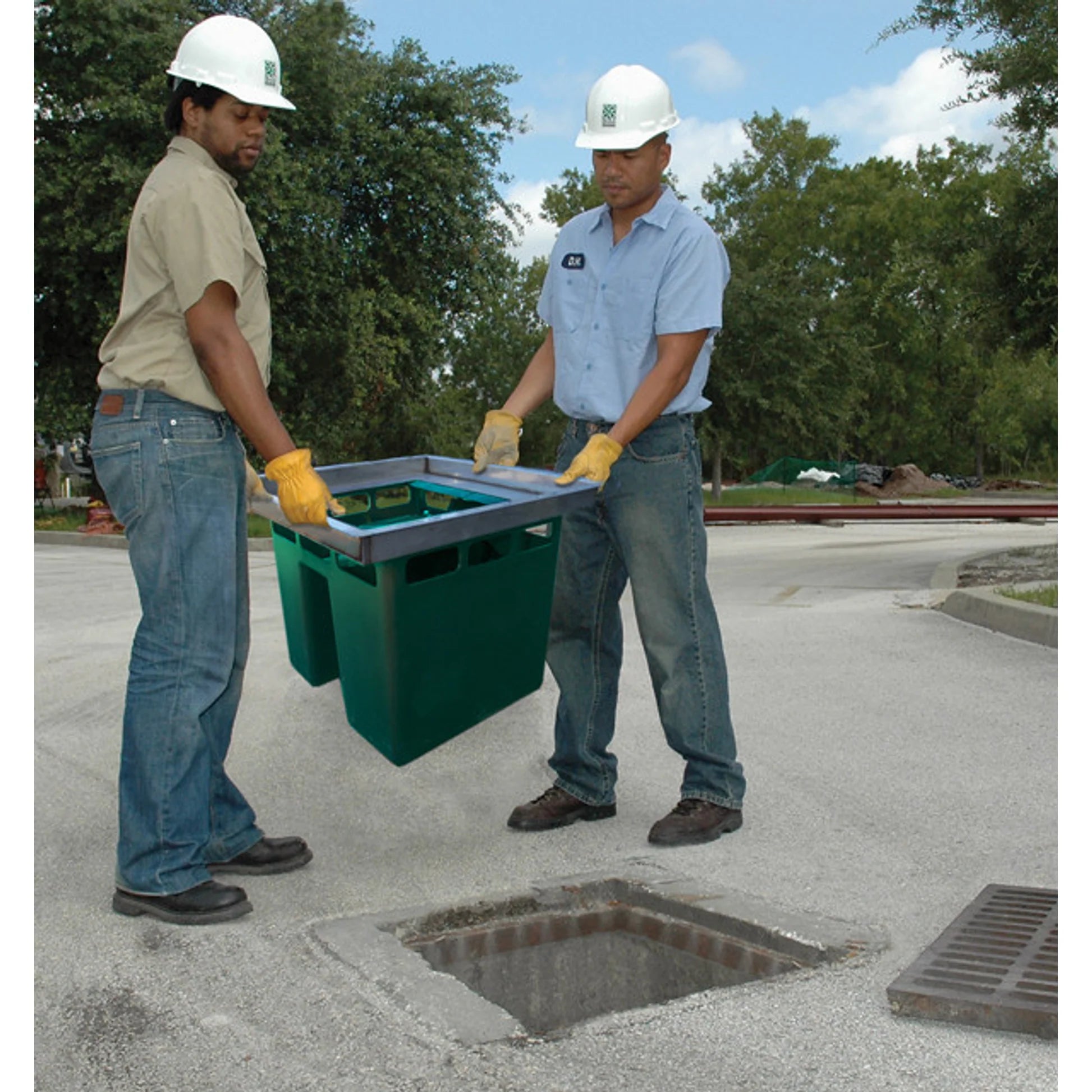

- Non-Intrusive Sampling Process – Access area remains closed until sampling is required; slide open the sampling port and insert the Universal Sampler (Part #8247) — in many cases without removing the unit or lifting the grate
- Must Be Ordered with HydroKleen Unit – The sampling option is a factory modification and cannot be retrofitted to a standard HydroKleen after purchase; specify Part #9876 at time of original order

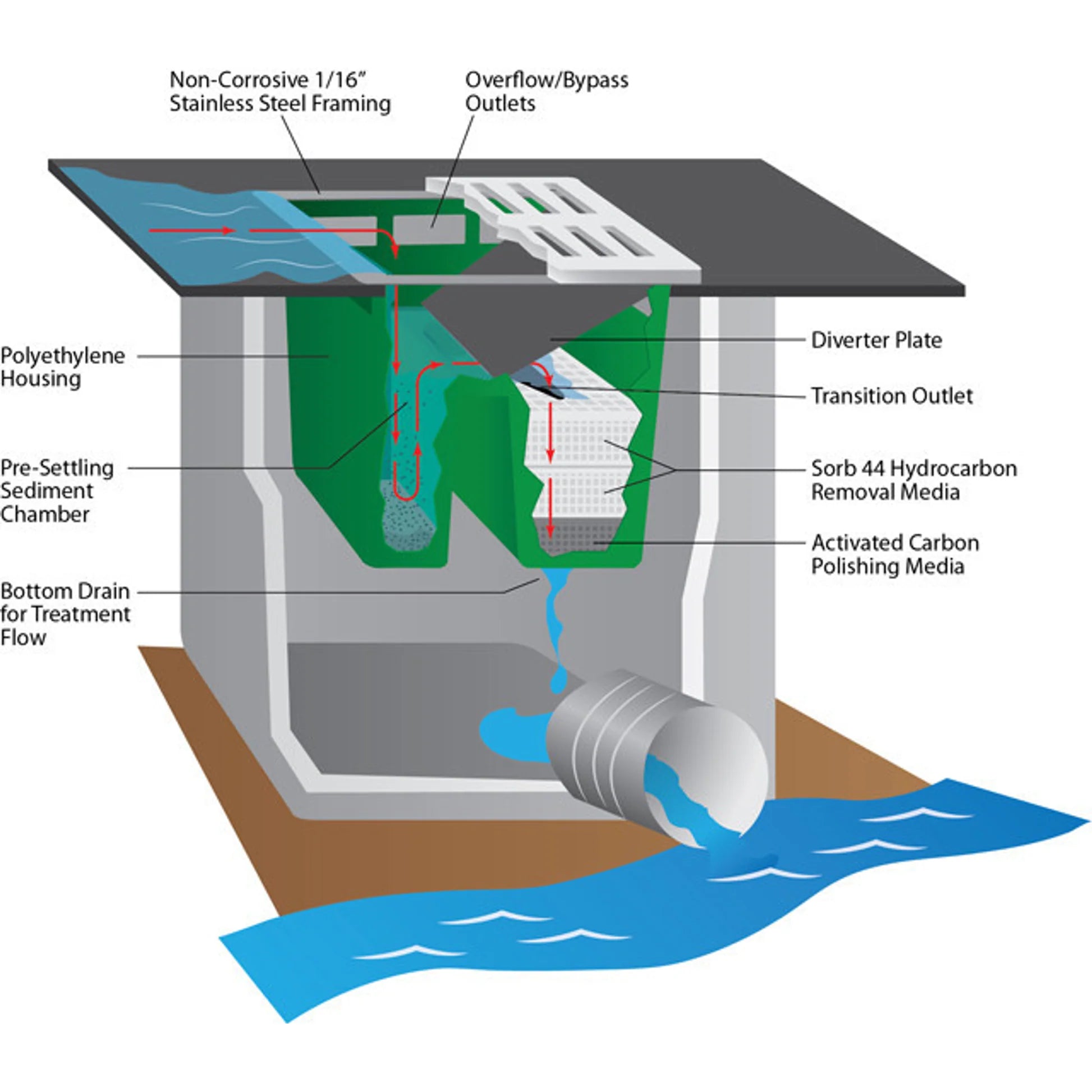

- Full HydroKleen Filtration Performance – Retains all standard HydroKleen capabilities including up to 3 media bags, 80%+ sediment removal efficiency, bypass system for high-flow storm events, and compatibility with all HydroKleen media types
- Compatible with All HydroKleen Media – Supports Sorb-44 (Part #9462), Activated Carbon (Part #9463), PhosFilter (Part #9461), and Heavy Metal Media (Part #9460) for customized multi-pollutant stormwater treatment
- Model Number
- 9876
- Product Type
- Ultra-HydroKleen – Sampling Option Configuration
- HydroKleen Body Dimensions
- 15" L x 19" W x 19" Deep
- Flow Rate with Overflow
- 135 ft³/min (1,000 gpm)
- Sediment Removal Efficiency
- Exceeds 80%
- Media Capacity
- 2–3 Media Filter Bags (Based on Catch Basin Size)
- Sampling Method
- Slide-Open Sampling Port – Compatible with Part #8247 Ultra-Universal Sampler
- Sampler Included
- No – Ultra-Universal Sampler (Part #8247) Sold Separately
- Retrofit Compatible
- No – Must Be Ordered with HydroKleen Unit at Time of Purchase
- Compatible Media Bags
- Part #9462 Sorb-44 / Part #9463 Activated Carbon / Part #9461 PhosFilter / Part #9460 Heavy Metal
- Bypass System
- Yes – Prevents Flooding or Ponding During High-Flow Storm Events
- Compliance
- Supports NPDES 40 CFR 122.26 / EPA BMP / TMDL Requirements
- UPC
- 808416098761
