The UltraTech 9341 Ultra-Drain Guard Reusable Model is a high-flow catch basin insert designed to capture sediment, silt, dirt, and debris before they enter stormwater drainage systems. Constructed from durable high-visibility woven polypropylene, the reusable filter features a deep 36" accumulation pocket capable of holding up to 500 lbs. of collected material. Four integrated overflow ports help maintain drainage capacity during heavy rainfall while allowing the unit to be cleaned and reused for multiple service cycles.
- Reusable Catch Basin Filter – Designed for repeated use and can be cleaned, emptied, and reinstalled during ongoing stormwater management programs
- 500 lb Sediment Capacity – Deep 36" accumulation pocket captures and retains up to 500 lbs. (227 kg) of soil, sand, sediment, dirt, and debris
- High Flow Polypropylene Fabric – High-flow woven construction supports increased water throughput while filtering sediment and debris from runoff
- Four Overflow Ports – Integrated overflow ports help reduce ponding and maintain drainage performance during high-flow rain events

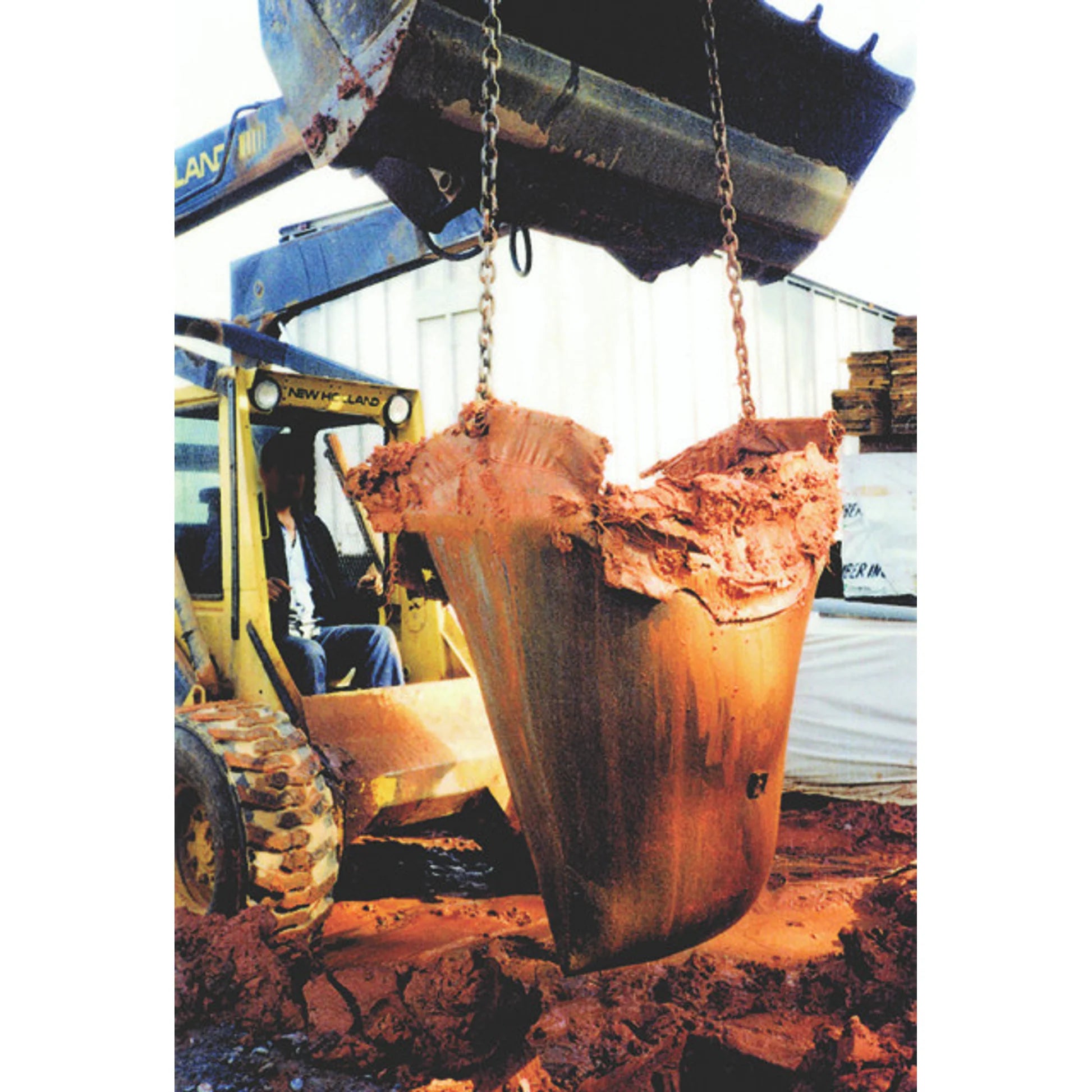

- Heavy-Duty Reusable Construction – Durable hi-vis polypropylene fabric allows removal and cleaning with backhoes, forklifts, or other maintenance equipment
UltraTech Drain Guard
UltraTech product video · plays on this page
- Model Number
- 9341
- Product Type
- Ultra-Drain Guard, Reusable Model
- Dimensions
- 24" L x 24" W x 36" D (610 x 610 x 914 mm)
- Flow Type
- High Flow
- Overflow Ports
- 4
- Sediment Capacity
- 500 lbs. (227 kg)
- Pocket Depth
- 36" (914 mm)
- Material
- High Flow Woven, Hi-Vis Polypropylene
- Flow Rate
- 250 GPM
- Permittivity
- 0.25 sec⁻¹
- Apparent Opening Size (AOS)
- 30 U.S. Sieve
- Percent Open Area (POA)
- 28%
- Trapezoid Tear Strength
- 165 x 140 lbs.
- Grab Tensile Strength
- 400 x 275 lbs.
- Grab Elongation
- 40 x 22%
- CBR Puncture Strength
- 654 lbs.
- Mullen Burst Strength
- 600 PSI
- Puncture Strength
- 130 lbs.
- Reusable
- Yes
- Substances Filtered
- Sediment, Soil, Sand, Dirt, Debris, Trash
- Hydrocarbon Filtration
- No
- Installation Method
- Under Grate
- Drain Type
- Storm Drain / Catch Basin
- Frame Style
- Frameless
- Custom Sizes Available
- Yes (Minimum Order Quantity Required)
- Compliance
- NPDES 40 CFR 122.26 (1999), TMDL
- Weight
- 1 lb. (0.5 kg)
- UPC
- 808416093414
- Color
- Green
- Country of Origin
- USA
- Brand
- UltraTech International
- How it ships
- Parcel — UPS Ground
- Shipping cost
- Shown at checkout before you pay
- Lead time
- Ships in 3–5 business days
- Your own UPS or FedEx account
- Accepted. Choose it in the cart.
- Order ships. Tracking is emailed as soon as it leaves the warehouse.
- Delivered to your door. It arrives by UPS or FedEx Ground.
- Check the carton. Send us photos of any damage right away and we file the claim for you.
- No loading dock or liftgate needed.
- Delivered to the door; the carrier may ask for a signature.
- Inspect the carton and note damage before signing.
- Shortages or damage reported within 48 hours are claimed by us on your behalf.
Goes with this drain guard
Retainers hold the guard in a catch basin that has no grate lip to hang from. Pick the set for your basin width.


UltraTech 9238 Drain Guard Retainers for catch basins from 36"-62", Set of 2
