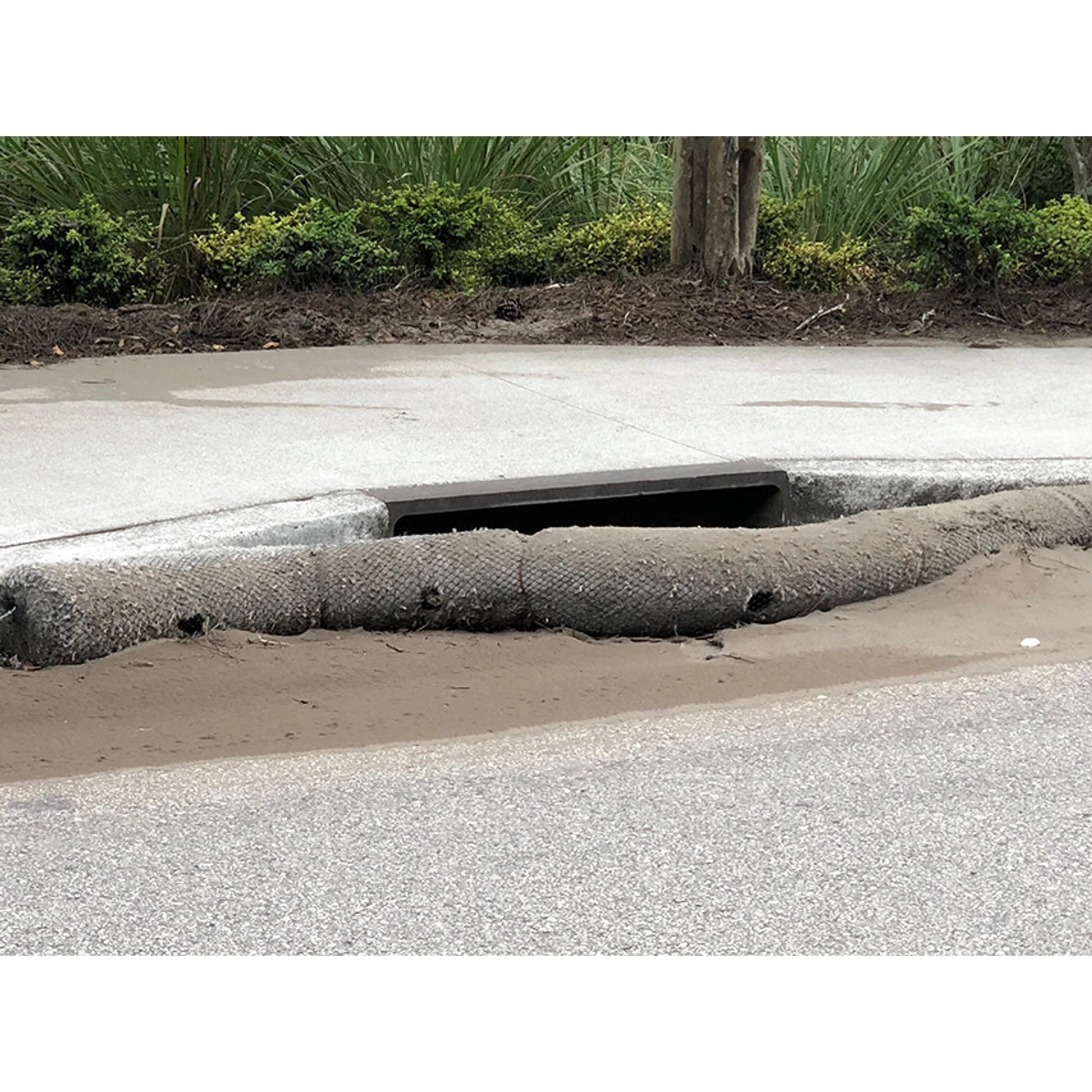

The UltraTech 9320 Ultra-Gutter Guard is a compact stormwater filtration device designed for curb inlet protection, helping prevent sediment, silt, and debris from entering drainage systems. It is manufactured from recycled synthetic fibers and engineered to maintain permeability while capturing particulate matter at the surface. The 9-inch diameter, 8-foot length configuration is intended for smaller inlet spans where controlled flow and debris filtration are required.
- Compact 8-Foot Coverage – Designed for shorter curb inlet openings, providing effective sediment control with required overlap on both ends for proper installation
- Recycled Synthetic Fiber Media – Constructed from 100% recycled materials engineered to filter silt and debris while allowing stormwater flow through the media structure
- Built-In Overflow Ports – Integrated overflow channels allow water to pass through during high-flow rainfall events to reduce clogging and surface water backup
- Reusable Stormwater Control Design – Can be removed, cleaned, and reused multiple times across projects, reducing replacement costs and waste

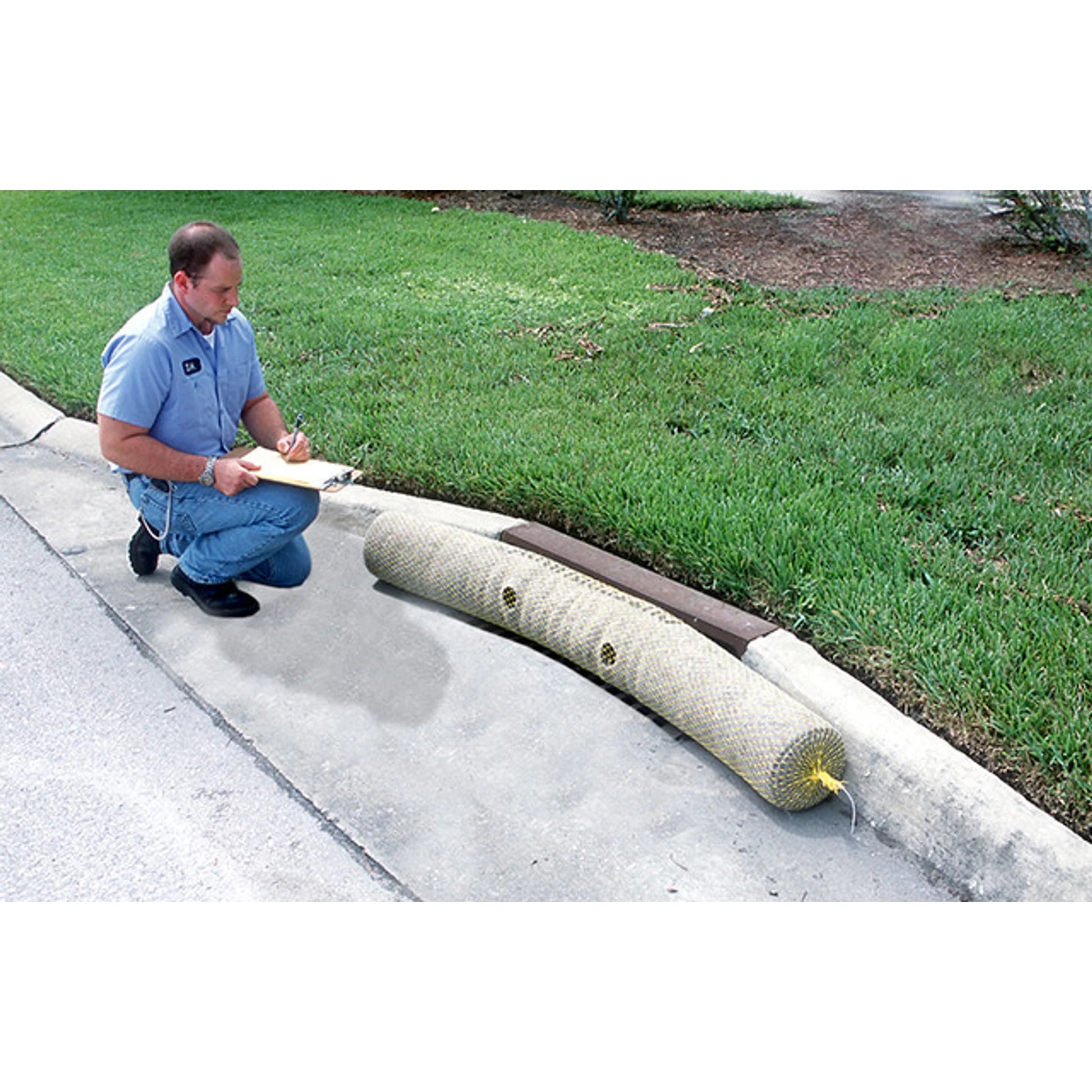

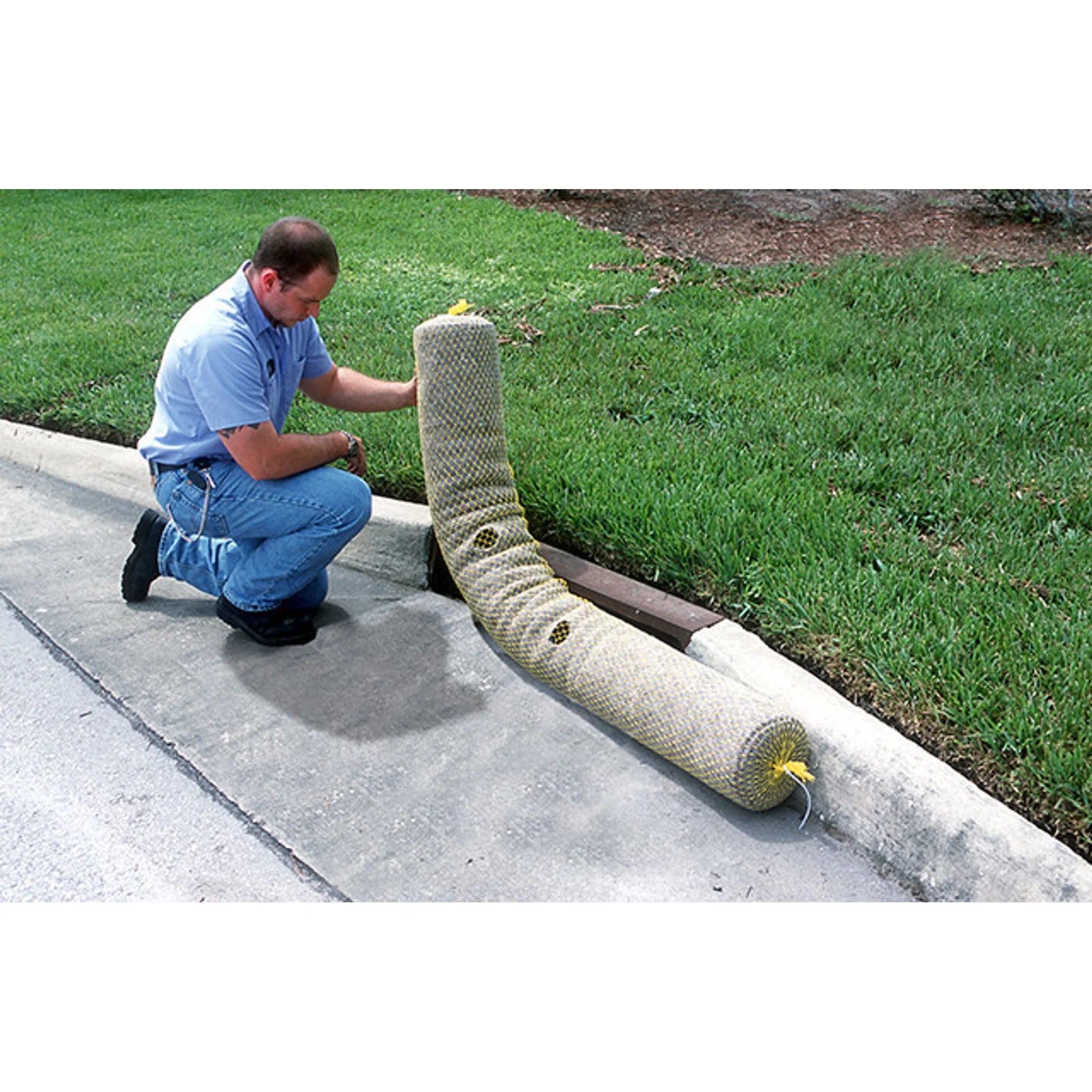

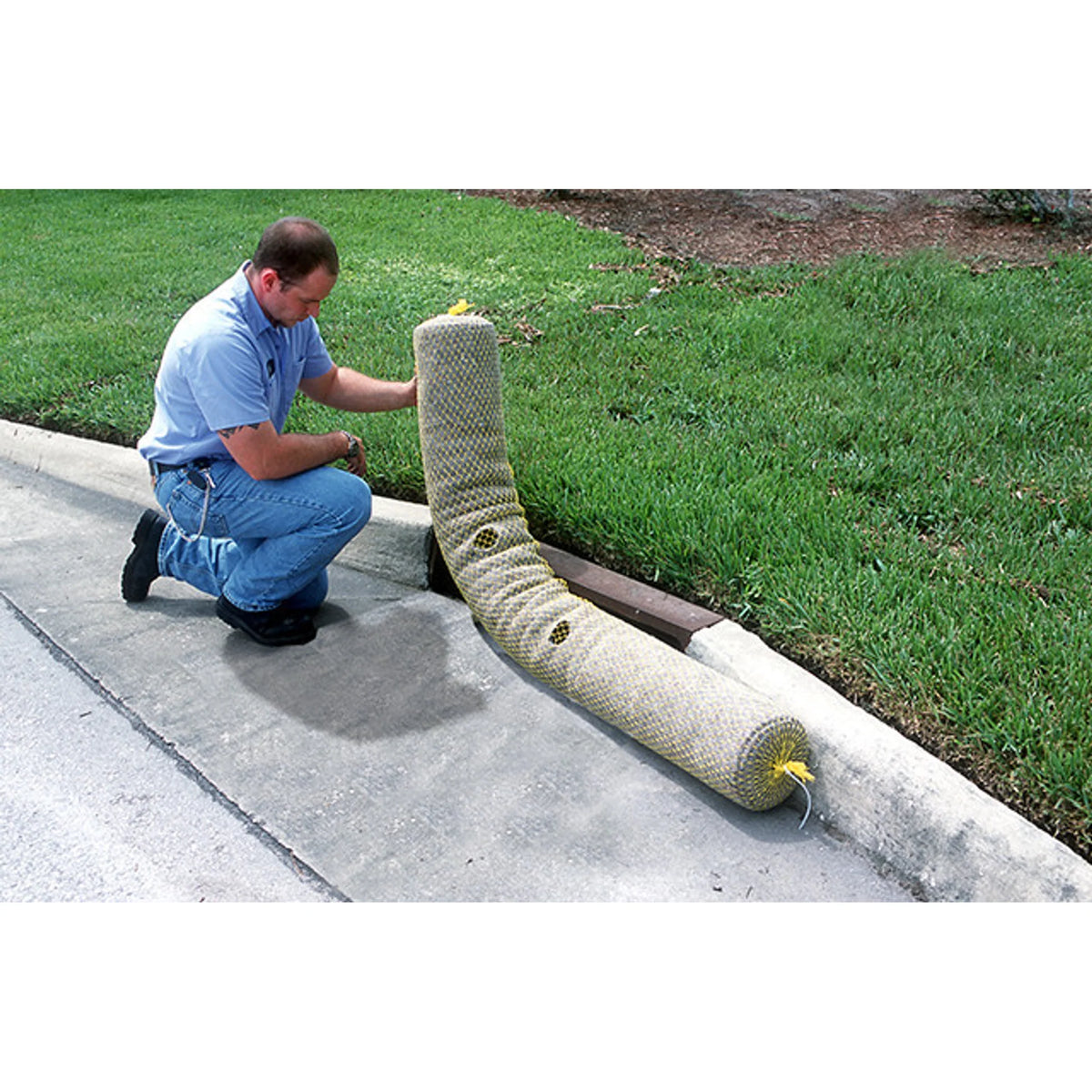

- Tool-Free Installation – Installs by simple placement in front of curb inlets with approximately 12-inch overlap on each side; no stakes or hardware required
- Model Number
- 9320
- Product Type
- Ultra-Gutter Guard – 9" Dia. x 8' L
- Dimensions
- 96" L x 9" Dia. (2,438 x 229 mm)
- Length
- 8 ft (2.44 m)
- Diameter
- 9 in (228.6 mm)
- Weight
- 15 lbs (6.8 kg)
- Material
- Recycled Synthetic Fibers
- Filtration Type
- Stormwater sediment and debris filtration media
- Overflow Design
- Integrated overflow ports for high-flow rainfall events
- Installation Method
- Loose placement (no tools or hardware required)
- Maintenance
- Washable and reusable
- Compliance
- NPDES 40 CFR 122.26 / TMDL stormwater requirements
- UPC
- 808416093209
- Country of Origin
- USA
- Brand
- UltraTech International
- How it ships
- Parcel — UPS Ground
- Shipping cost
- Shown at checkout before you pay
- Lead time
- Ships in 3–5 business days
- Your own UPS or FedEx account
- Accepted. Choose it in the cart.
- Order ships. Tracking is emailed as soon as it leaves the warehouse.
- Delivered to your door. It arrives by UPS or FedEx Ground.
- Check the carton. Send us photos of any damage right away and we file the claim for you.
- No loading dock or liftgate needed.
- Delivered to the door; the carrier may ask for a signature.
- Inspect the carton and note damage before signing.
- Shortages or damage reported within 48 hours are claimed by us on your behalf.
