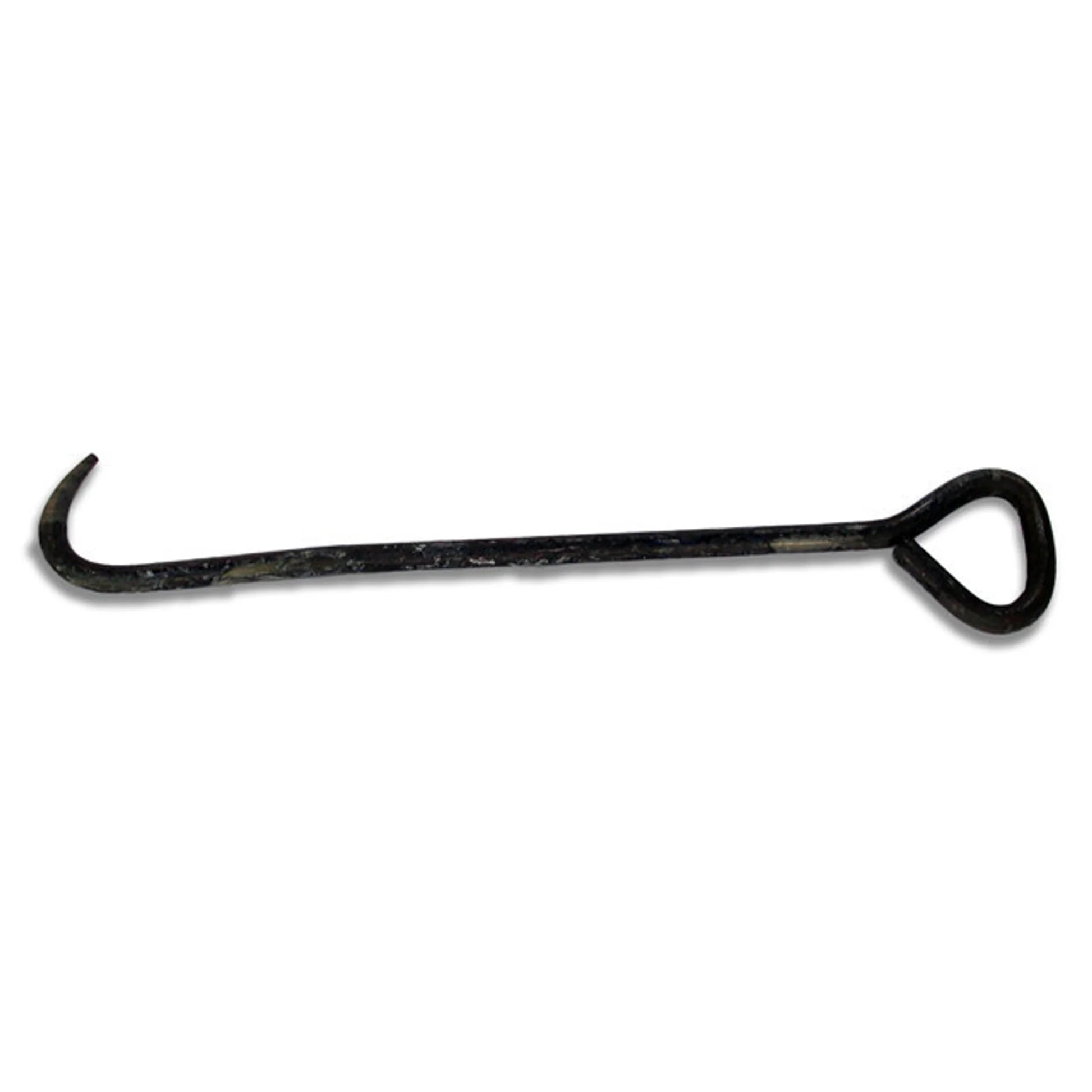

The UltraTech 9235 Grate Hook is a heavy-duty steel lifting tool designed for manual removal of storm drain grates, trench covers, and similar access panels in industrial and municipal environments. Its 26" overall length and 5" wide handle provide controlled leverage while keeping hands clear of pinch points and load edges. The compact, one-piece design supports single-person operation and repeated field use where powered lifting equipment is not practical.
- Heavy-Duty Steel Construction – 3/4" thick steel hook provides a rigid lifting interface for cast-iron and steel grates under frequent use.
- 26" Length for Leverage – Extended bar length improves mechanical advantage while helping operators lift with their legs instead of their back.
- 5" Wide Handle Grip – Oversized grip area offers stable two-hand control and keeps fingers away from grate edges during lifting.
- Portable and Compact Form Factor – Slim profile makes it easy to store in service vehicles or tool lockers and transport between job sites.

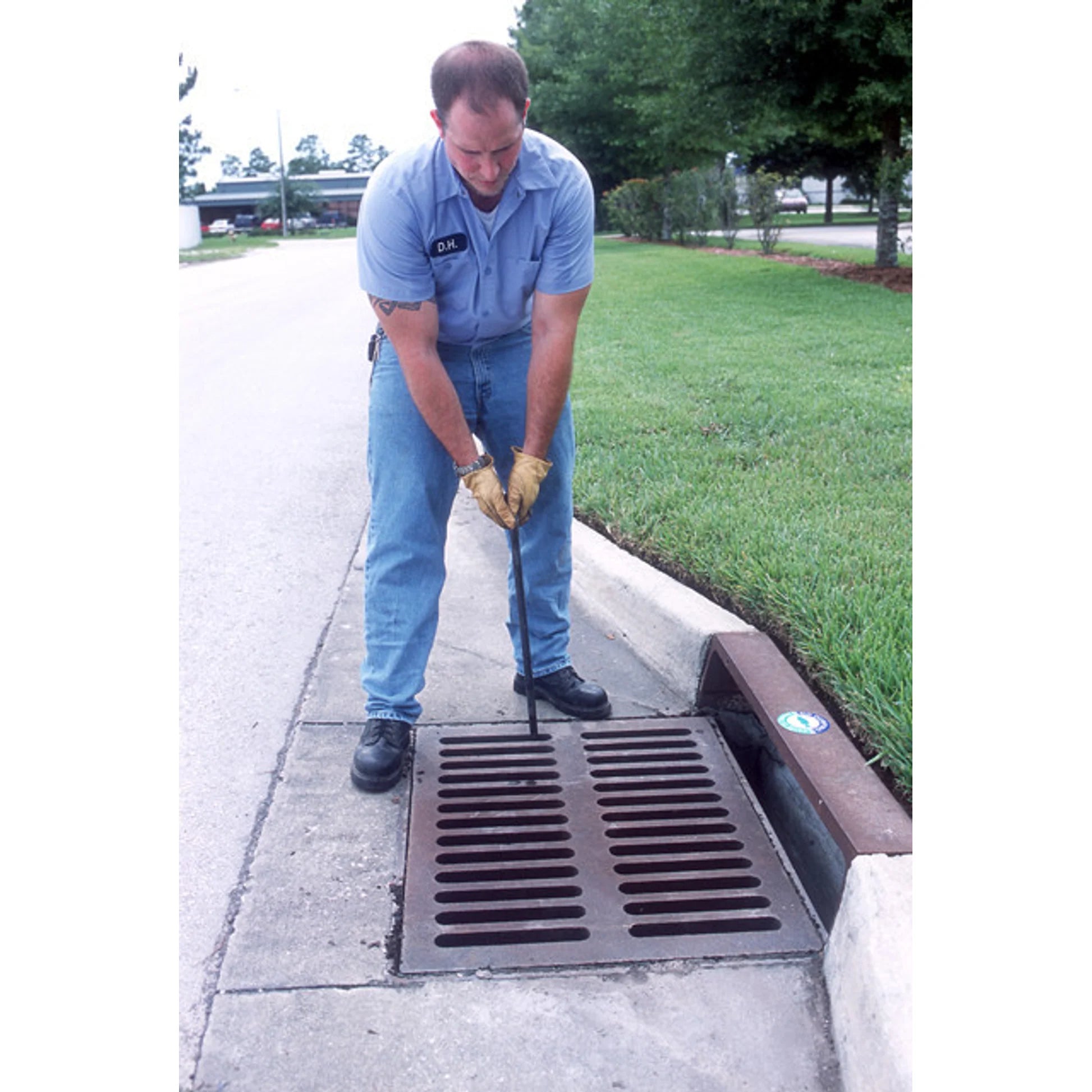

- Supports Single-Person Grate Lifting – Ergonomic geometry is designed to minimize strain and allow one worker to lift and reposition grates when properly used.
Product Specifications:
| Model Number | 9235 |
| Product Type | Heavy-Duty Steel Grate Hook – Manual Lifting Tool |
| Overall Dimensions | 26" L x 5" W (handle) x 3/4" Thick (66 cm x 12.7 cm x 1.9 cm) |
| Handle Width | 5" (12.7 cm) Grip Width |
| Weight | 4 lbs (1.8 kg) |
| Material | Heavy-Duty Steel |
| Finish / Color | Black |
| Design Features | Curved hook end with rigid bar and triangular-style handle; portable and compact form factor |
| Ergonomics | Ergonomically designed to minimize strain and allow single-person grate lifting when used correctly |
| Primary Function | Manual lifting and removal of storm drain grates, trench grates, and similar covers |
| Included Components | Grate Hook (one-piece tool) |
| Optional Accessories | Optional 2-piece carrying case, UltraTech Part #9241 (sold separately) |
| UPC | 808416092356 |
| Country of Origin | USA (per UltraTech model listing; some distributors list CN – verify if country of origin must be exact for compliance) |
| Brand | UltraTech International |
