The UltraTech 8940 Drain Guard Reusable Model, Low Capacity is a reusable catch basin insert designed to capture sand, dirt, silt, and sediment from stormwater runoff before pollutants enter the drainage system. Constructed from woven polypropylene geotextile, it can be removed, cleaned, and reused multiple times, making it suitable for locations with lighter sediment loading and lower rainfall volumes. The shallow 24-inch collection depth and integrated overflow ports help maintain drainage performance while supporting stormwater management and compliance programs.
- Reusable Polypropylene Construction – Woven polypropylene geotextile can be rinsed, emptied, and reused multiple times, reducing replacement frequency and maintenance costs
- 359-Gallon Containment Capacity – Internal collection area provides effective sediment containment for smaller catch basins and lower-volume stormwater applications
- 24" Deep Collection Pocket – Low-capacity profile is designed for locations with lighter sediment accumulation and moderate runoff conditions
- Built-In Overflow Ports – Allows controlled water flow during storm events to help reduce ponding and localized flooding around drain openings

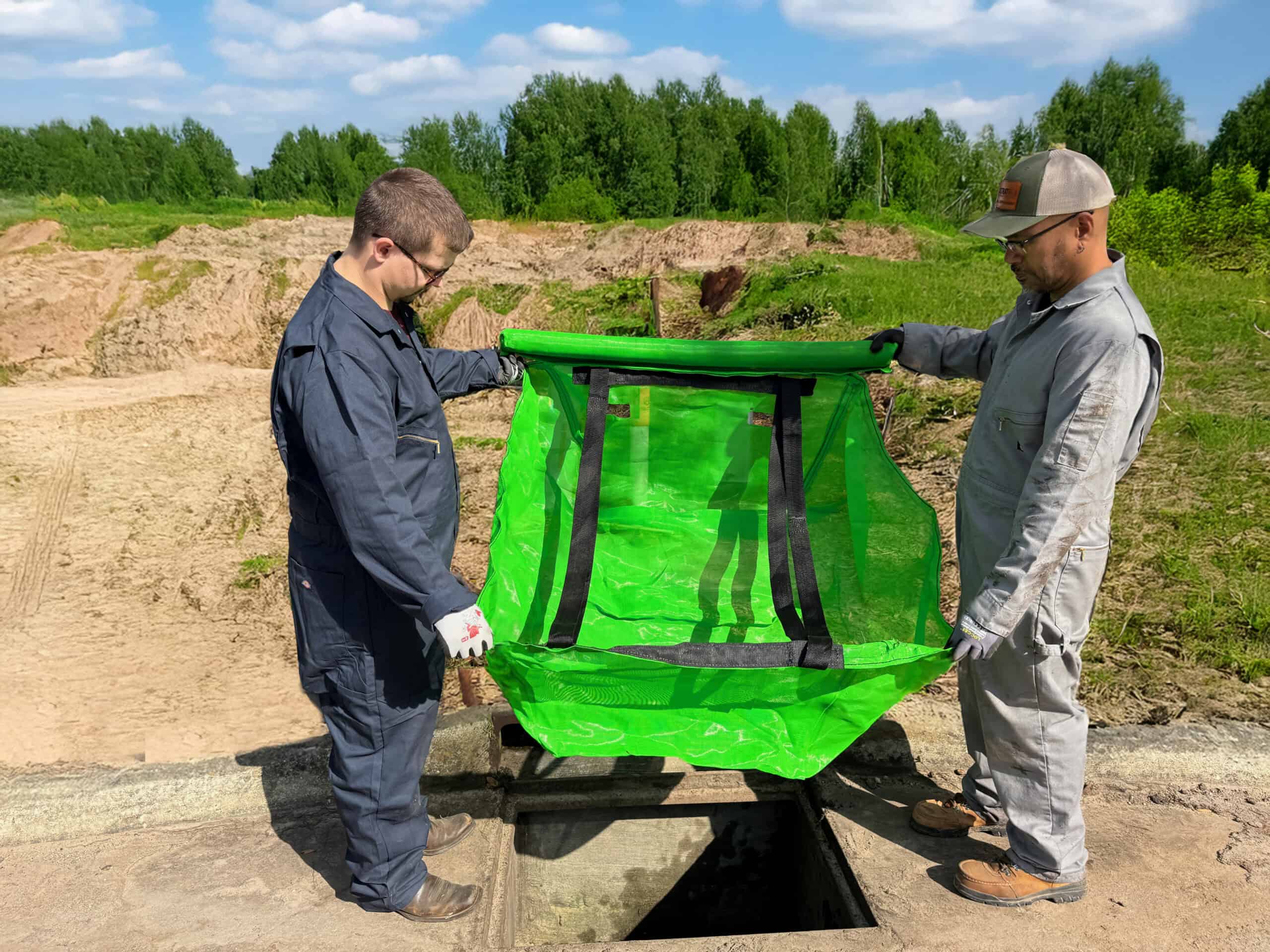

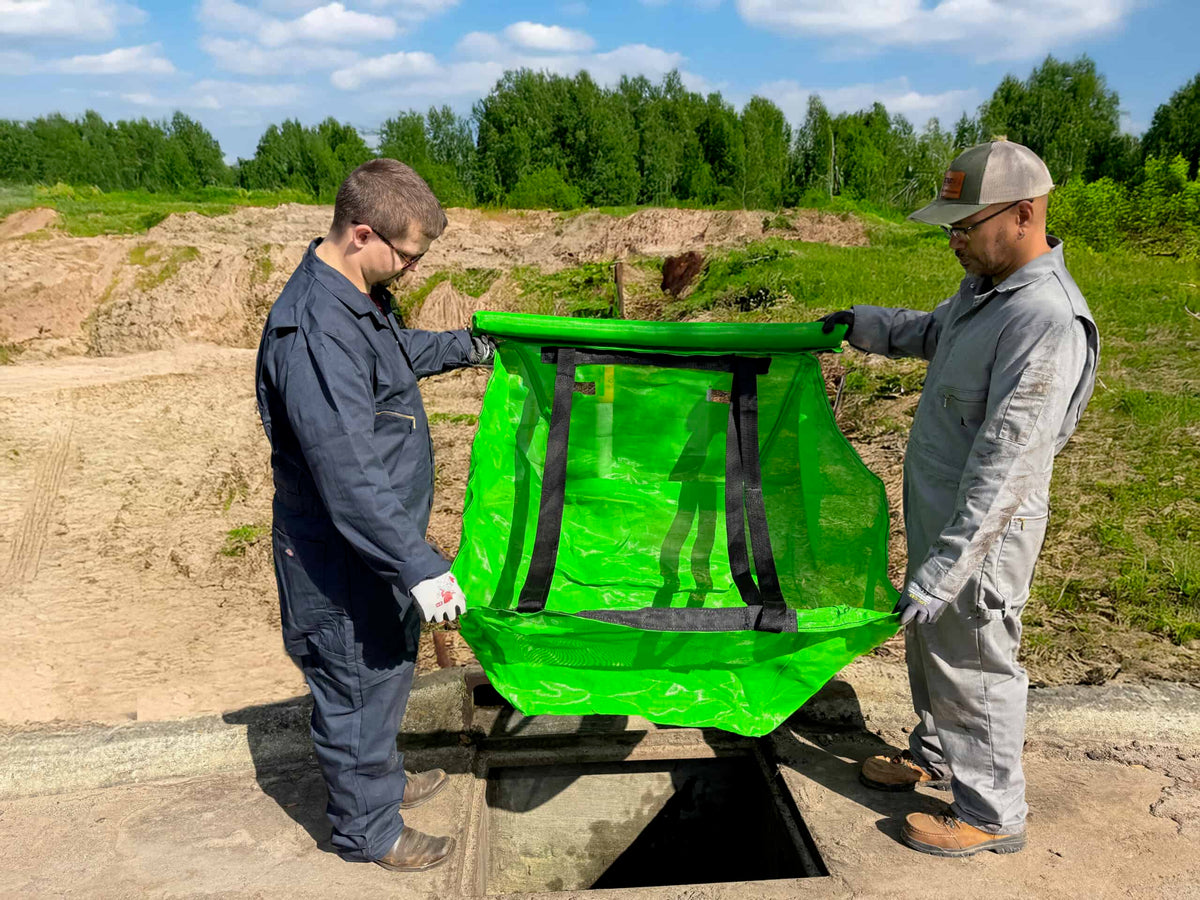

- Heavy-Duty Lifting Straps – Integrated straps simplify installation, removal, cleaning, and reinstallation during routine maintenance operations
Product Specifications:
| Model Number | 8940 |
| Product Type | Ultra-Drain Guard® Reusable Model – Low Capacity |
| Dimensions | 24" L x 24" W x 24" H (0.6 x 0.6 x 0.6 m) |
| Collection Depth | 24" (610 mm) |
| Containment Capacity | 359 Gallons (1,359 L) |
| Material | Woven Polypropylene Geotextile |
| Flow Rate | |
| Sediment Capture | Sand, Dirt, Silt, and Sediment |
| Overflow Protection | Built-In Overflow Ports |

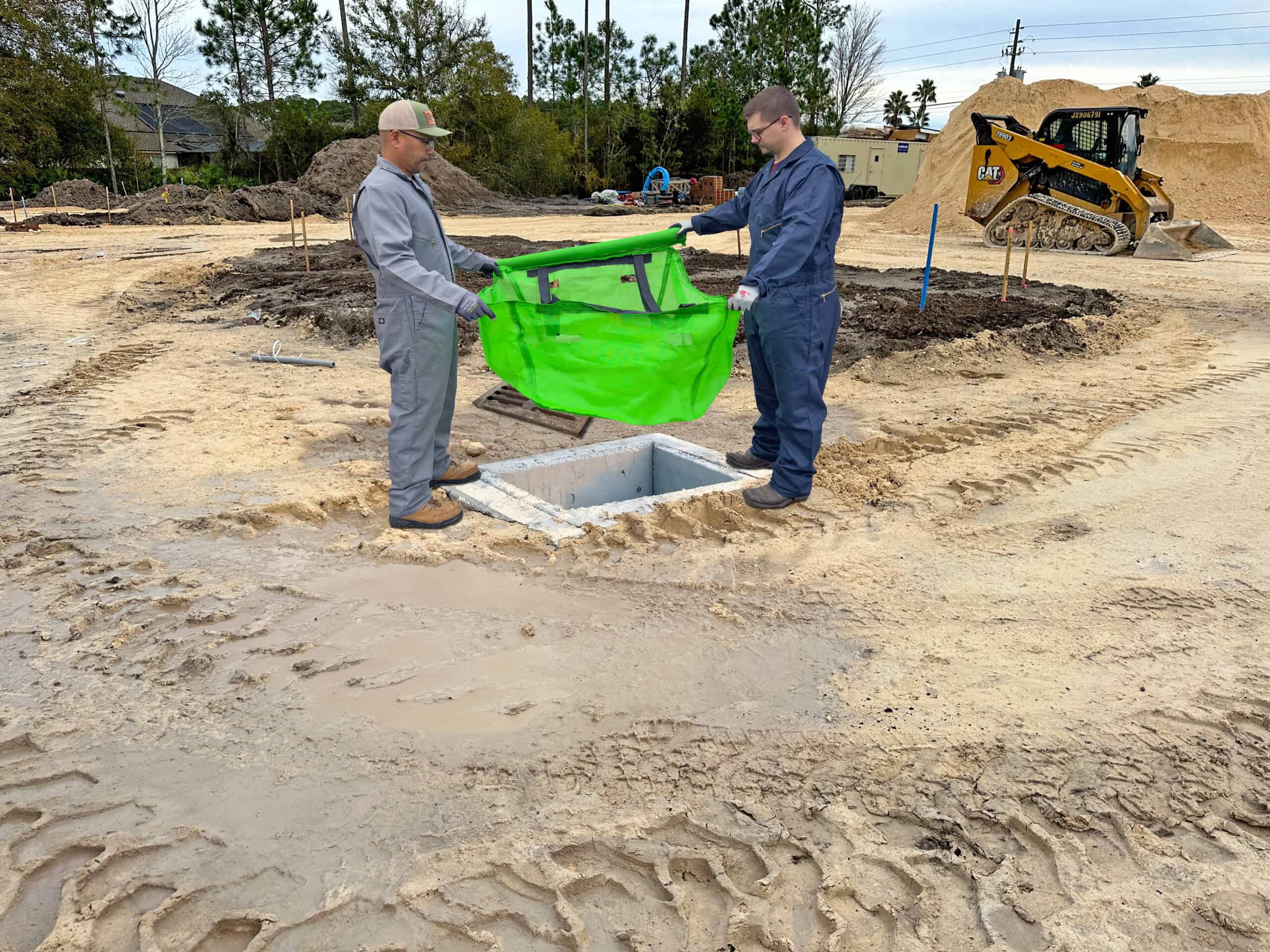

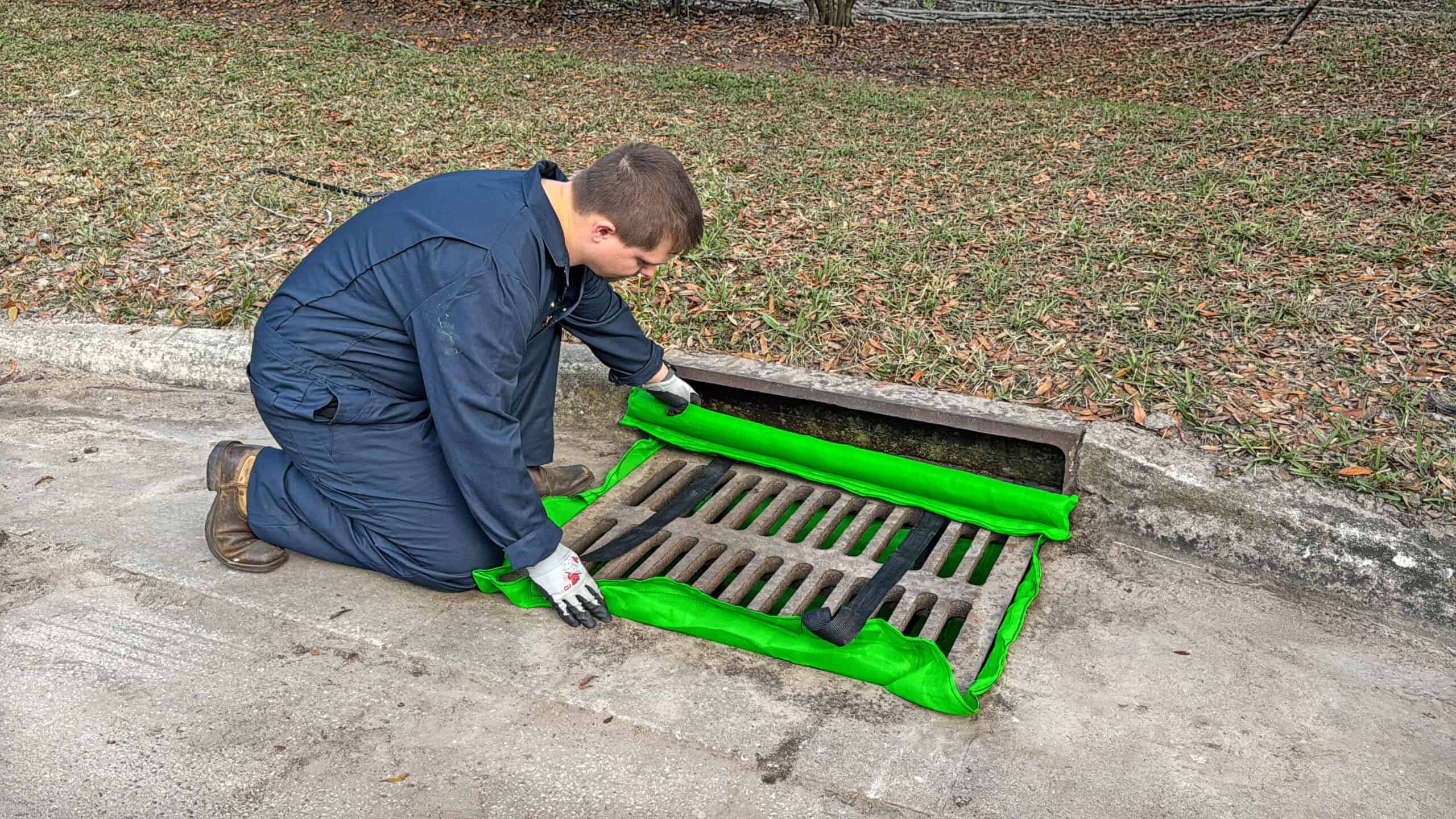

| Installation Method | Installed Inside Catch Basin Under Drain Grate |
| Drain Compatibility | Standard Street Drains and Combination Drains |
| Lifting System | Integrated Heavy-Duty Lifting Straps |
| Weight | 1 lb (0.45 kg) |
| Color | Green |
| Package Quantity | 1 Each |
| Compliance | Stormwater Management Regulation 40 CFR 122.26, NPDES, TMDL |
| UPC | 808416089400 |
| Country of Origin | |
| Brand | UltraTech International |
