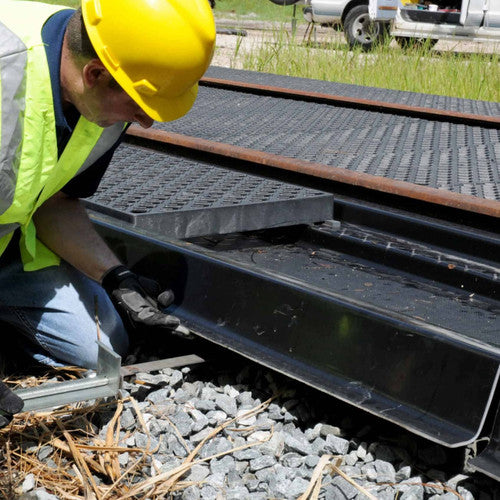

UltraTech 7211 Composite Track Pan, Side Pan Only 20' System

The UltraTech 7211 is a modular, 20-foot railway spill containment system engineered exclusively for installation on the outer field sides of railroad tracks to capture hazardous liquid leaks and drips. Fabricated from high-strength, nonporous, and corrosion-resistant fiberglass composite material, this heavy-duty system delivers an 89-gallon fluid capacity designed for demanding industrial rail sidings and fueling stations. The pre-engineered kit features integrated drainage hardware and an elastomeric railside sealing system to prevent industrial contaminants from bypassing the unit and saturating the underlying track ballast.

Key Features

• Modular Field-Side Protection: Formulated exclusively for exterior placement along the rail flanges, functioning as a standalone 20-foot run or connected sequentially for unlimited layout length.

• Corrosion-Resistant Fiberglass Build: Constructed from high-strength composite materials that protect the unit against harsh sunlight, extreme thermal shifts, and aggressive chemical exposure.
• Integrated Under-Pan Manifold: Equipped with a heavy-duty drainage manifold featuring a built-in cleanout port to route captured hazardous fluids directly to oil/water separators or offsite retention ponds.
• Positive Gasket & Clip Sealing: Outfitted with tight-fitting elastomeric railside gaskets and mechanical rail clips to seal structural gaps and prevent runoff from sliding beneath the system profile.
• High-Traction Grating Included: Ships with five protective linear low-density polyethylene (LLDPE) grates that support safe, slip-resistant pedestrian foot traffic across the collection sump.
