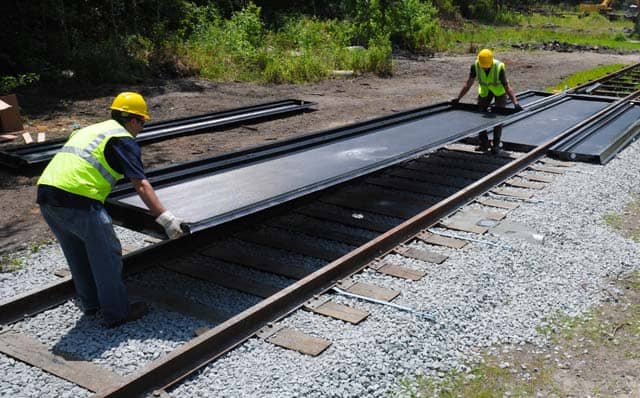

UltraTech 7201 Composite Track Pan, Center Pan Only 20' System

The UltraTech 7201 is a modular, 20-foot railway spill containment system engineered exclusively for installation between the rails of standard railroad tracks to capture hazardous fluid leaks, drips, and overflows. Fabricated from premium, nonporous fiberglass composite material, this gauge-side unit features a continuous center pan layout delivering a static containment capacity of 218 gallons. The comprehensive kit comes equipped with an integrated under-pan drainage manifold, structural support pedestals, protective high-traction grating, and an elastomeric railside sealing system to isolate fluids and protect the track ballast from environmental contamination.

Key Features

• Gauge Side Alignment: Sized and contoured specifically to seat precisely between standard railroad rails, fitting cleanly against the inside rail flanges.

• Integrated Drainage Manifold: Equipped with a heavy-duty center drainage manifold featuring a built-in cleanout port to route captured hazardous fluids directly to sub-surface collection or treatment systems.

• High-Strength Fiberglass Build: Constructed from rugged, nonporous composite materials engineered for long-term outdoor track deployment under heavy mechanical vibrations and severe weather.

• Sealed Gaskets and Rail Clips: Outfitted with four high-density rail gaskets and mechanical anchoring clips to establish a tight physical barrier against the rail flange, preventing fluid bypass.

• High-Traction Grating Package: Ships with 10 protective linear low-density polyethylene (LLDPE) grates and structural support pedestals that provide a stable, slip-resistant walking surface for operators.
