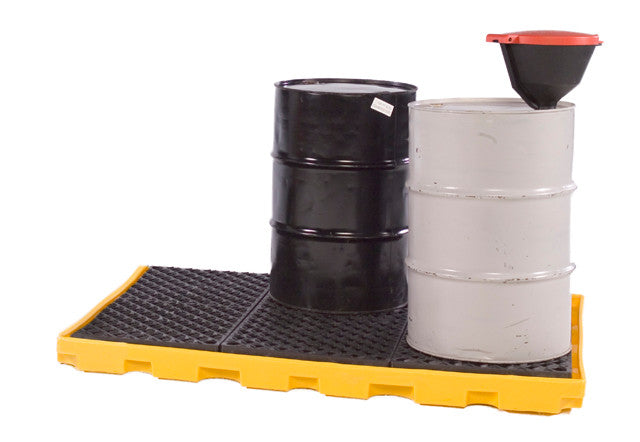

UltraTech 2334 Spill Deck, InLine, 6-Drum Model

SKU 2334
UltraTech 2334 Spill Deck, InLine, 6-Drum Model
Click image to open expanded view

The UltraTech 2334 is a heavy-duty, low-profile secondary containment platform engineered for the secure, linear staging of up to six 55-gallon drums along facility walls and narrow corridors. Molded from 100% high-density linear low-density polyethylene with UV inhibitors, this industrial unit provides an exceptional uniform static load capacity of 9,000 pounds while delivering a 33-gallon containment sump capacity. The inline configuration features a low 5.75-inch deck height to ease manual drum placement, and it utilizes internal flow-through bulkhead fittings to interconnect the sumps, maximizing shared capacity to satisfy strict environmental storage regulations.

Key Features

  • Space-Saving Inline Profile: Configured in a narrow, single-row layout that allows six 55-gallon drums to be securely stationed flat against facility walls or in high-traffic work areas without obstructing warehouse lanes.

  • Interconnected Sump Engineering: Equipped with pre-installed, heavy-duty bulkhead fittings that link the individual sumps internally, providing a shared 33-gallon containment capacity that functions as a single fluid-management asset.

  • 9,000 lb. Static Load Capacity: Built with an extra-rugged polyethylene structural core capable of sustaining up to 9,000 pounds of uniform distributed load (UDL) to comfortably manage fully loaded industrial chemical containers.

  • Removable Anti-Slip Grating: Features three industrial-grade black polyethylene grates that maximize footwear and drum traction while lifting out directly for unhindered sump cleaning and compliance inspections.

  • Regulatory Compliance Integration: Provides the engineering baseline and aggregate sump capacity necessary to satisfy SPCC mandates and EPA 40 CFR 264.175 secondary containment directives.

Product Title
UltraTech 2334 Spill Deck, InLine, 6-Drum Model
Manufacturer
UltraTech International
Part Number
2334
UPC Code
808416023343
Drum Capacity
6 Drums (55-Gallon)
Material Composition
Linear Low-Density Polyethylene (LLDPE) with UV Inhibitors
Color Configuration
Yellow Sump / Black Grates
Dimensions (L x W x H)
77.0" x 52.0" x 5.75" (1,956 mm x 1,321 mm x 146 mm)
Product Weight
118.0 lbs (53.5 kg)
Containment Sump Capacity
33.0 Gallons (125.0 Liters)
Static Load Capacity UDL
9,000 lbs (4,082 kg)
Grating Specifications
Three 24" x 48" Removable Polyethylene Grates
Drain Included
No
Forklift Access
No Pockets (Static floor setup only)
Compatible Loading Ramp
UltraTech 1089 Polyethylene Ramp (Sold Separately)
Regulatory Alignment
EPA 40 CFR 264.175, SPCC, and UFC Spill Containment Regulations
Goes with

Goes with this spill pallet

A funnel for the drums and a ramp if you load with a hand truck or drum dolly.

Expert support
Equipment specialists verify fit and freight before you order.
Freight quoted upfront
Parcel or LTL, stated on every item.
Lead time stated per item
Stocked items ship in 3–5 business days. Built-to-order units are quoted before deposit.
Questions? Call(800) 794-1049
Storing mixed containers, flammables or more than 1,320 gal of oil?
Send drum count, container sizes and whether the storage is indoors or out. A specialist confirms the sump math against 40 CFR 264.175 and SPCC, and quotes freight to your dock, before you commit to a SKU.
