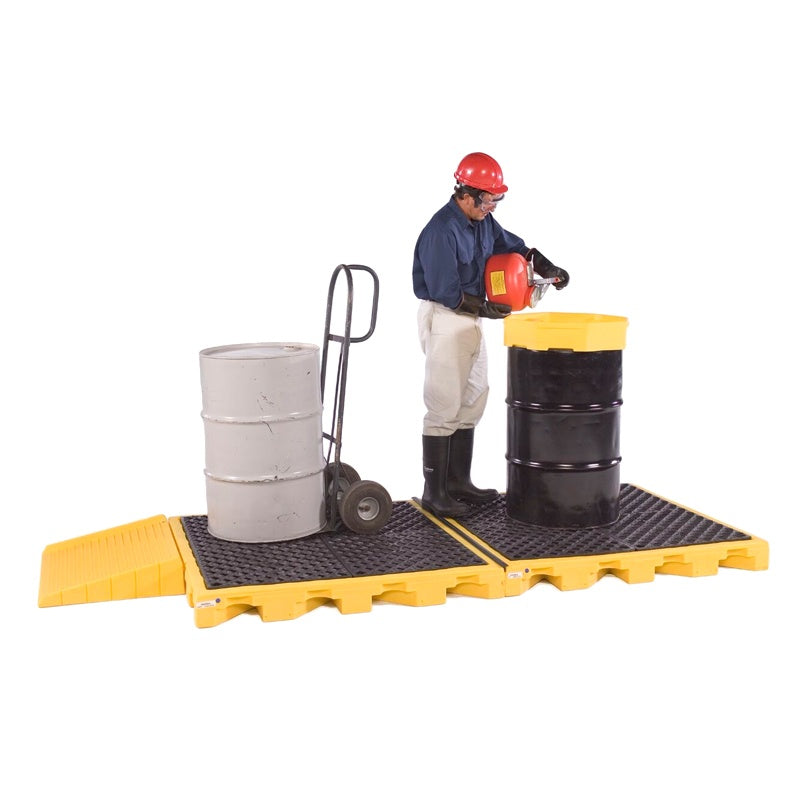

The UltraTech 1074 Spill Deck P8 System is a heavy-duty, low-profile modular secondary containment solution designed to safely store up to eight 55-gallon drums. The system is comprised of two interlocking 4-drum modules that create a continuous, shared sump to capture large-scale leaks and routine overflows. This configuration minimizes the physical height of the storage area, making drum loading, unloading, and dispensing tasks significantly safer and more efficient.
Key Features
-
Modular Architecture: Consists of two pre-engineered 4-drum modules that interlock seamlessly to create an integrated, high-capacity 8-drum workstation.
-
Low-Profile Interface: A deck height of 5.75 inches minimizes the required lift height, reducing ergonomic strain and improving overall facility safety during drum handling.
-
Exceptional Load Capacity: The rugged structural design handles a uniformly distributed load (UDL) of up to 12,000 lbs, easily supporting fully loaded industrial steel or poly drums.
-
Engineered Chemical Resistance: Formulated from 100% linear low-density polyethylene (LLDPE) to deliver long-term protection against harsh acids, solvents, and corrosive fluids without rusting.
-
Regulatory Compliance: Provides an 88-gallon sump capacity that meets or exceeds SPCC and EPA Container Storage Regulation 40 CFR 264.175 requirements.
| Specification | Data |
|---|---|
| Part Number | 1074 |
| Drum Capacity | 8-Drum |
| System Configuration | (2) Interlocking 4-Drum Modules |
| Dimensions | 104" x 52" x 5.75" (2642 x 1321 x 146 mm) |
| Load Capacity (UDL) | 12,000 lbs (5,443 kg) |
| Sump Capacity | 88 Gallons (333 Liters) |
| Material | Polyethylene (LLDPE) |
| Grate Specifications | Removable Polyethylene Black Grating |
| Weight | 142 lbs (64 kg) |
