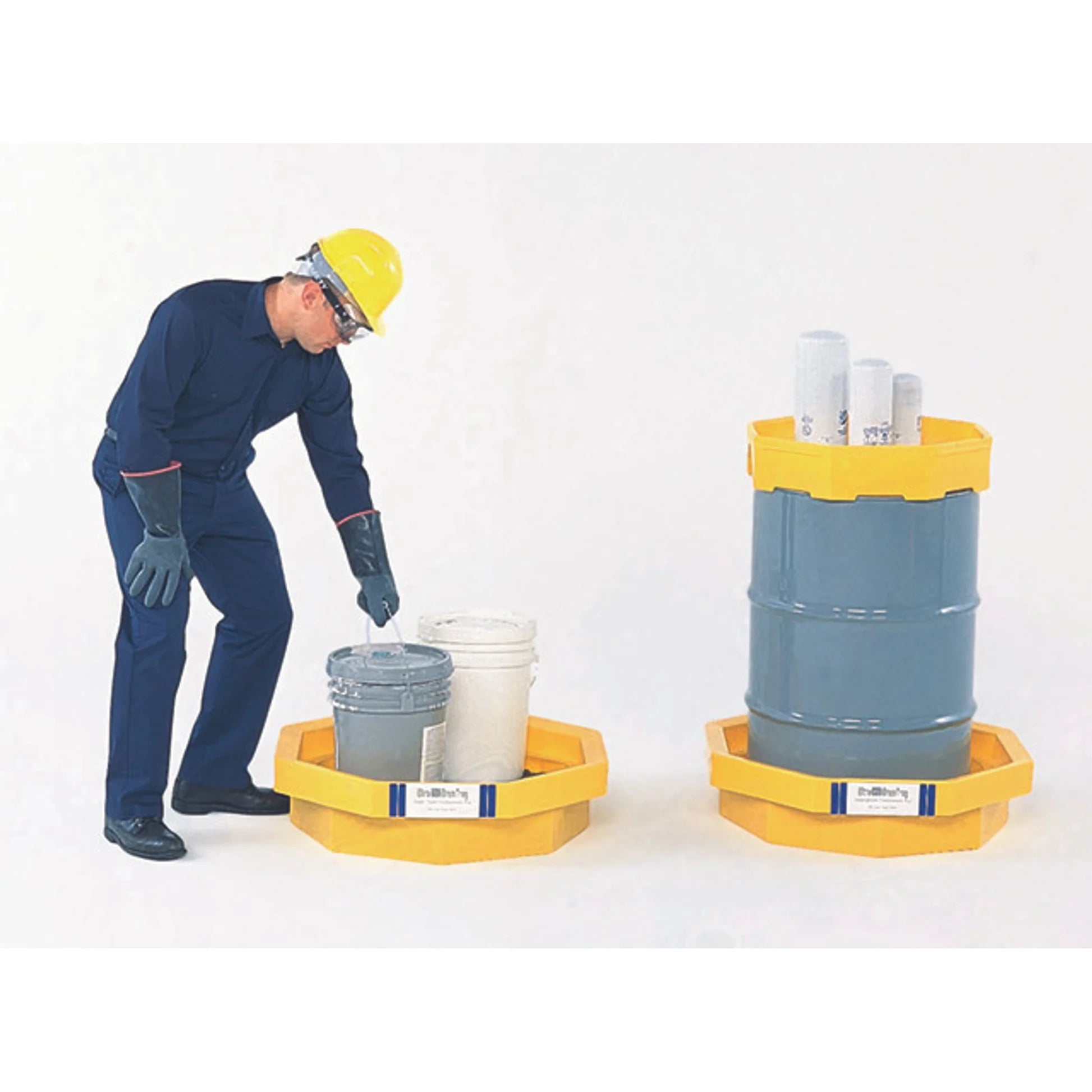

The UltraTech 1046 Ultra-Drum Tray with Grate is a low-profile spill containment tray designed to collect drips, leaks, and overflows associated with filling and dispensing 30- and 55-gallon drums. Constructed from UV-inhibited polyethylene, the tray incorporates a removable bottom grate that elevates containers above collected liquids, helping maintain a cleaner work area while providing secondary containment. Its compact footprint makes it suitable for drum dispensing stations, storage areas, and chemical handling locations.

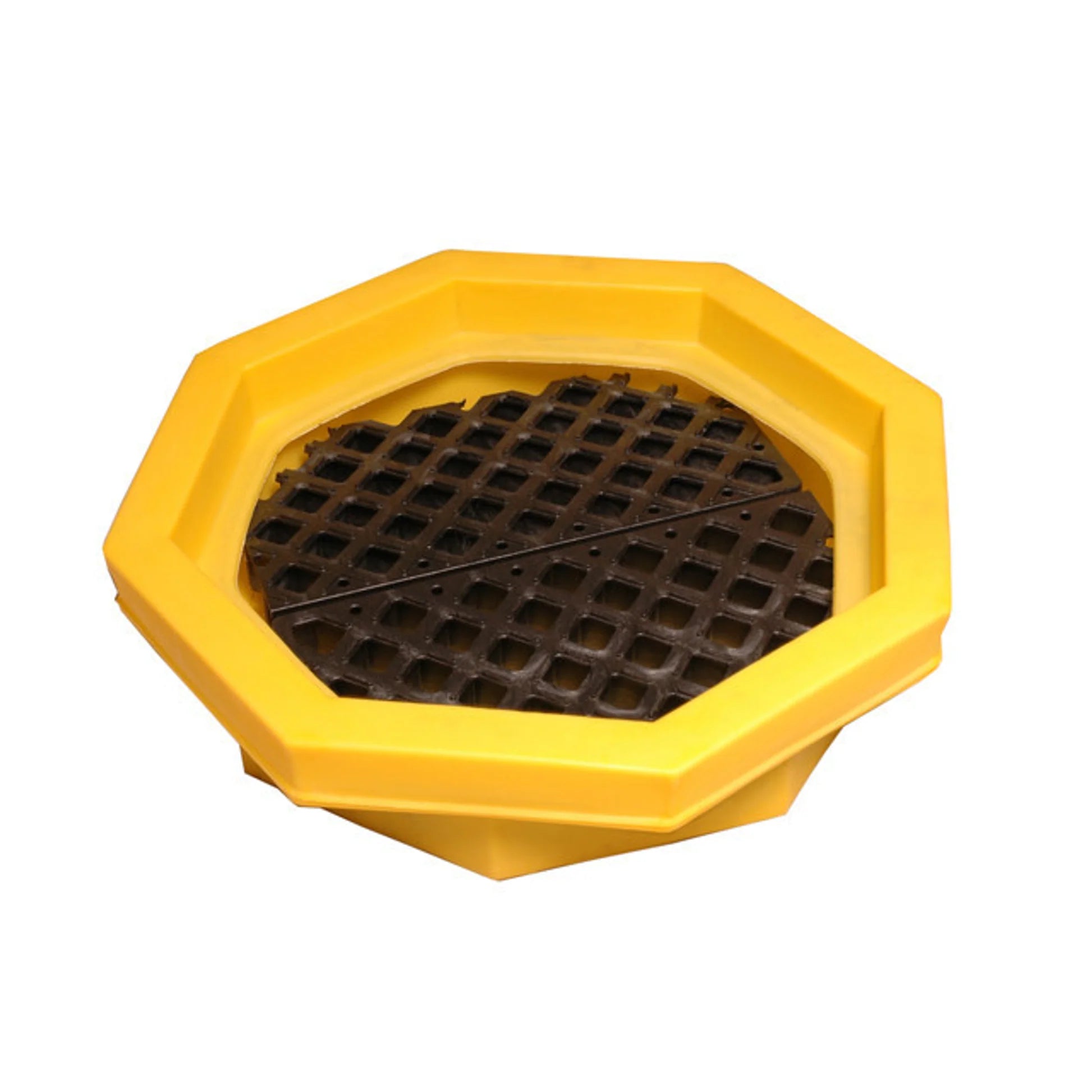

- Integrated Bottom Grate – Removable grate elevates drums approximately 2⅝" above collected liquids to help keep containers out of spilled material
- 21.1-Gallon Containment Capacity – Molded sump captures nuisance leaks, drips, and overflows generated during routine drum filling and dispensing operations
- Polyethylene Construction – Linear low-density polyethylene resists rust, corrosion, UV exposure, and a broad range of chemicals for long service life
- Low-Profile Design – Compact height simplifies drum placement and access while minimizing floor space requirements
- EPA Storage Compliance Support – Meets EPA Container Storage Regulations for 20-gallon or smaller containers when used with the bottom grate installed
- Model Number
- 1046
- Product Type
- Ultra-Drum Tray with Grate
- Dimensions
- 32" Outside Diameter x 27⅛" Opening Diameter x 8⅛" H (813 x 689 x 206 mm)
- Containment Capacity
- 21.1 Gallons (80 L)
- Drum Capacity
- One 30-Gallon or 55-Gallon Drum
- Weight
- 26 lbs. (12 kg)
- Material
- 100% Polyethylene with UV Inhibitors
- Construction
- Linear Low-Density Polyethylene (LLDPE)
- Grate Elevation
- 2⅝" (67 mm)
- Color
- Yellow
- Optional Accessory
- Part #0417 Dolly
- Compliance
- EPA Container Storage Regulations for 20-Gallon or Smaller Containers (with Grate Installed)
- Warranty
- 5 Years Against Material or Workmanship Defects
- UPC
- 808416010466
- Country of Origin
- USA
- Brand
- UltraTech International
