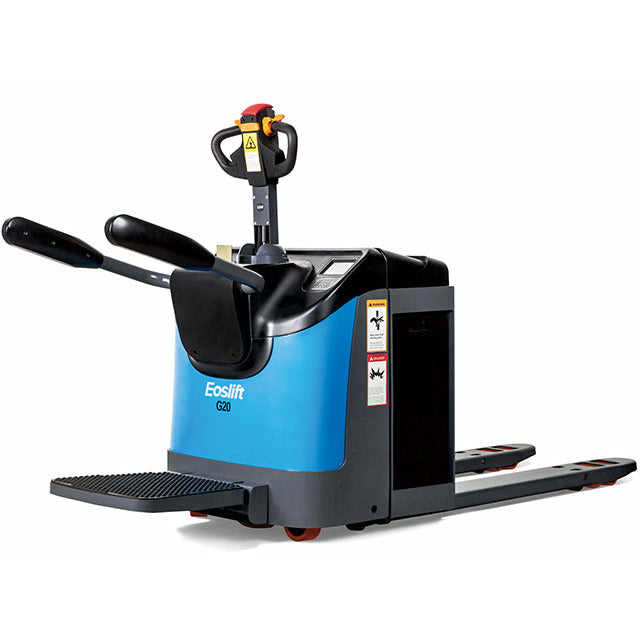

The EOSLift G20/G25 Electric Pallet Trucks are powerful and reliable solutions for heavy-duty material handling. These full-electric pallet trucks effortlessly lift and transport loads up to 4400 lbs (G20) or 5500 lbs (G25)
| General Information | |||
|---|---|---|---|
| Model | G20 | G25 | |
| Power | Battery | ||
| Operation Mode | Standing | ||
| Rated Capacity | lb. | 4400 | 5500 |
| Load Center | in. | 23.6 | |
| Wheel Base | in.1 | 56.8 | |
| Service Weight | lb. | 1243 | |
| Wheel | |||
|---|---|---|---|
| Wheel | PU | ||
| Drive Wheel | in. | Φ9.1x3.9 | |
| Load Wheel | in. | Φ3.3x3.3 | |
| Balance Wheel | in. | Φ4.9x2.4 | |
| Number Of Wheels,Drive/Load | 1/2/4 | ||
| Wheelbase,Drive | in. | 23.1 | |
| Wheelbase,Load | in. | 20.1 | |
| Size | |||
|---|---|---|---|
| Max. Lift Height | in.2 | 4.7 | |
| Min. Fork Height | in.4 | 3.0x2.9 | |
| Fork Length | in.8 | 45.2x44.1 | |
| Fork Width | in.7 | 22.1x27 | |
| Aisle width for pallets 1000x1200 Crossways | in. | 101.2/116.7(103.9/119.5) | |
| Aisle width for pallets 800x1200 Crossways | in. | 80.5/111.7(98.9/75.1) | |
| Ground Clearance,Wheelbase Center | in. | 1.2 | |
| Overall length(pedal folded/unfolded) | in.5 | 77.6/93.7(3.9/3.0) | |
| Overall Width | in.6 | 32.6 | |
| Turning radius(pedal folded/unfolded) | in.109 | 70.0/85.1(72.4/87.9) | |
| Performance | |||
|---|---|---|---|
| Travelling Speed,Laden/Unladen | in./s | 87.5/109.4 | |
| Lifting Speed,Laden/Unladen | in./s | 1.2/1.3 | |
| Gradeability,Laden/Unladen | % | 5/8 | |
| Service Brake | Electromagnetic | ||
| Drive | |||
|---|---|---|---|
| Driving Motor/Power | KW | AC1.7 | |
| Lifting Motor/Power | KW | DC3.0 | |
| Steering Motor/Power | KW | DC0.27 | |
| Battery Voltage | V/Ah | 24/350 | |
| Battery Weight | lb. | 290 | |
| Controller | Curtis-AC | ||
Product features
Reliability
- 5-Point low center gravity design, and with better carrying capacity as equipped with high-strength steel frame structure.
- With unique floating suspension system that prevents slipping, which makes the body have greater stability.
- The main components of the truck use imported parts to improve the reliability of the truck.
- Pull-rod type structure design with deformation resistance and durability.
- High-strength formed fork.
Safety
- With emergency reversing device and emergency brake function.
- High-strength arm protection design, to ensure safe operation of operator.
- Curve control technology to ensure large-angle turning stable and safe.
- Pedal folded automatically reduces travel speed to ensure safety of pedestrian-operation.
Comfort
- The ergonomically designed handle with accessible buttons reducing operator fatigue.
- Convenient EPS steering function, with low noise, can be operated with only one hand.
- Exceptional maneuverability in extremely confined areas ensured by creep speed button.
- The standing-type pedal with vibration reduction is suitable for long distance handing and reduces operator fatigue.
Easy maintenance
- Maintenance-free AC drive motor, replacement of carbon brush not needed.
- The CANBUS system enables fast access to the truck data an greatly reduces the maintenance time .
- Side-pulling battery design, replaced more conveniently.
- LIONMAN HMI system independently researched by Eoslift facilitates maintenance.
High Efficiency
- The imported high-power AC drive motor provides powerful acceleration strong, to ensure high-efficiency travel.
- High-capacity battery ensure its excellent lift cycle.
- Low-battery locking function extends the battery life.
- Electromagnetic and regenerative braking system greatly improves the efficiency.
Intelligent
- Equipped with LIONMAN fleet management system, which has function of operation of operator authority management, on-line monitoring of truck condition, release of notification information and generation of comprehensive reporting.
- Equipped with LIONMAN human-machine interaction system, which has functions of truck failure analysis, truck status display, etc.
Other Features
- Stand on electric pallet truck
- AC driving motor
- CURTIS controller
- 24V/210Ah lead-acid battery for WE20,WE25,WE30
- 24V/270Ah lead-acid battery for WE40
- Electric power steering
- PU wheels
- suitable for American pallet
- with standing platform and armrest
- with intelligent charger
