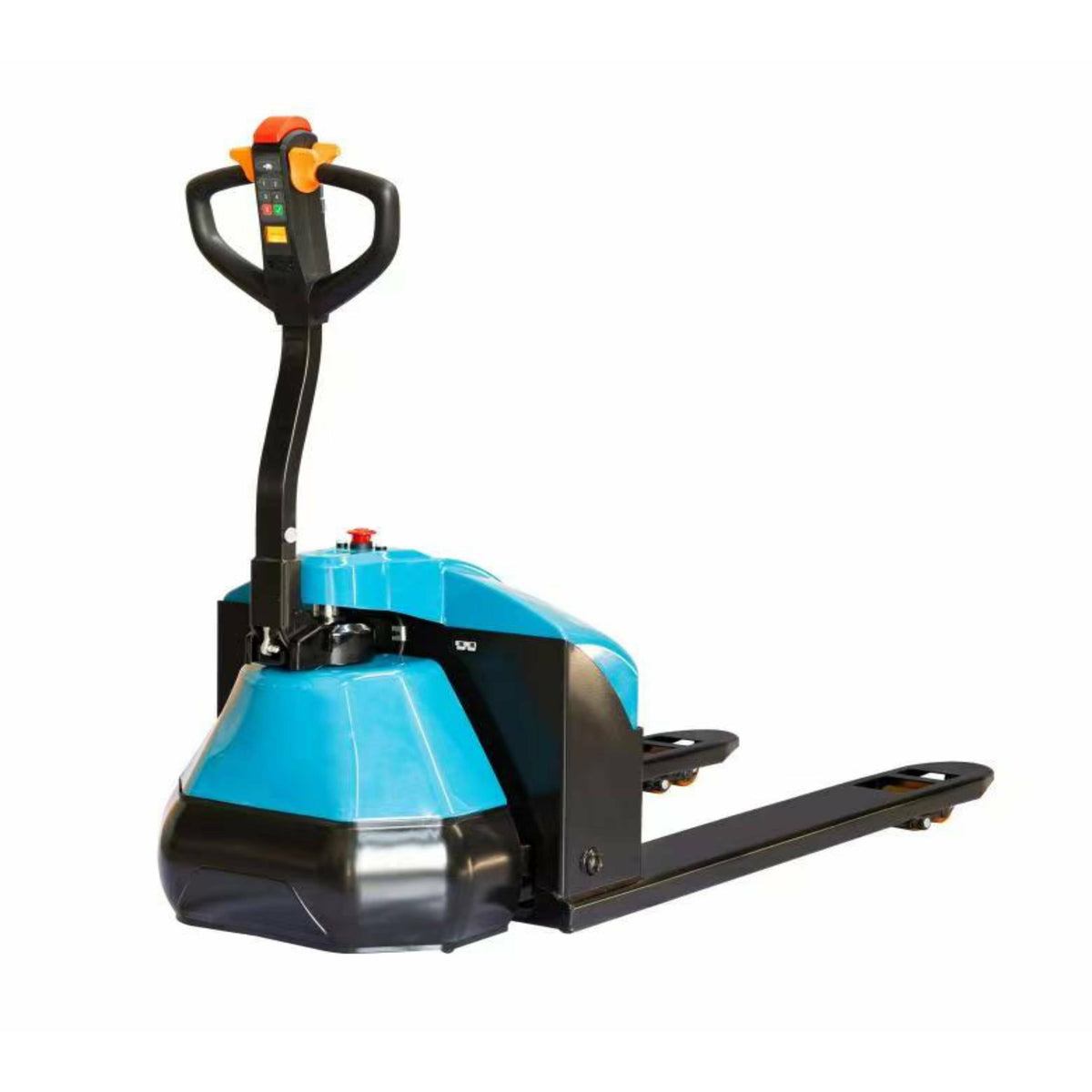

The EOSLift W20 Electric Pallet Truck is a powerful and maneuverable solution for heavy-duty material handling.
| General Information | ||
|---|---|---|
| Model | W20 | |
| Power | Electric | |
| Operation Mode | Walking | |
| Rated Capacity | lb. | 4400 |
| Load Center | in. | 23.6 |
| Wheel-Base | in.1 | 52 |
| Service Weight | lb. | 639 |
| Wheel | ||
|---|---|---|
| Tire | PU | |
| Tire Size/Drive Side | in. | Φ9×3 |
| Tire Size/Load-bearing Side | in. | Φ3.3×3.3 |
| Auxiliary Wheel Size | in. | Φ3.9×1.6 |
| Number of Wheels, Drive/Load-bearing Side | 1+2/4 | |
| Performance | ||
|---|---|---|
| Travel Speed, with/Wwithout Load | mph | 2.8/3.1 |
| Lift Speed, with/without Load | in/s | 1.57 |
| Gradeability, with/without Load | % | 8/16 |
| Drive | ||
|---|---|---|
| Drive Motor/Power | KW | AC1.2 |
| Lifting Motor/Power | KW | DC0.8 |
| Rated Capacity of the Battery | V/AH | 24/80 Li-lon |
Product Features
- Powder coated paint Maintenance free AC drive motor Electromagnetic and regenerative braking system 24/80 Lithium ion battery Load-bearing wheel bracket Firm assemblies of load-bearing wheel Pull-rod type structure design with deformation resistance and durability Emergency reversing device and emergency brake function Operating handle and motor cover easy for installation and removal
- Eoslift USA Superior (Professional Grade) full electric travel and lift pallet jack. 4400 lbs. weight capacity., Fork-27 in. x 48 in., including a 24-volt lithium-ion battery with load bearing wheel brackets and an AC Drive Motor, and electromagnetic regenerative braking system. 3-Years Limited Warranty.
- Max.Lift Height in.2
- 8
- Min.Fork Height in.3
- 2.95
- Fork Length in.7
- 48
- Fork Width in.6
- 26.7
- AST,1000X1200 pallet crossways in.
- 76.7
- AST,800X1200 pallet crossways in.
- 73.2
- Ground Clearance,Wheelbase Center in.
- 1.37
- Overall Length in.4
- 63.7
- Overall Width in.5
- 26.7
- Turning Radius in.8
- 58.2
