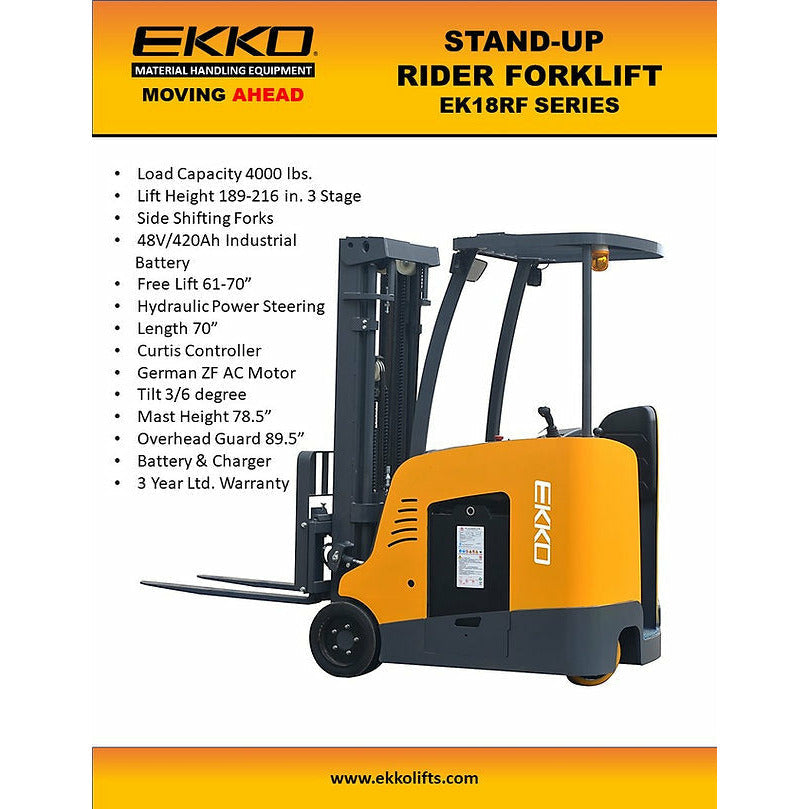

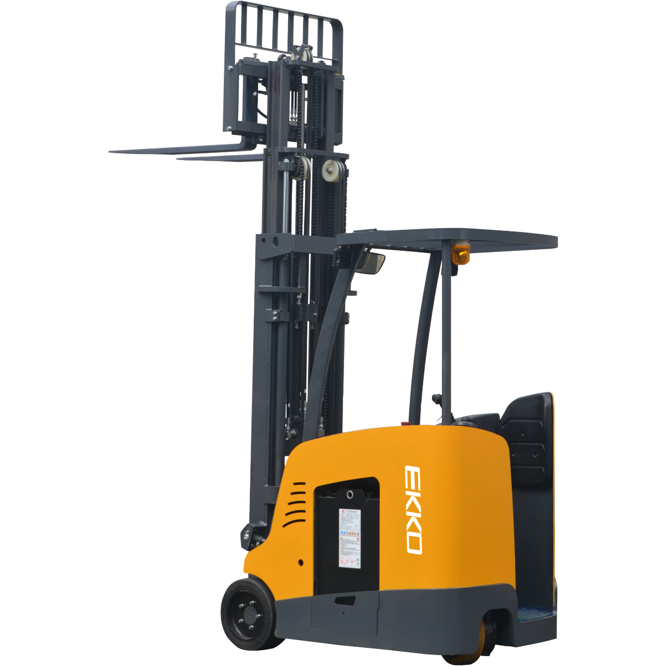

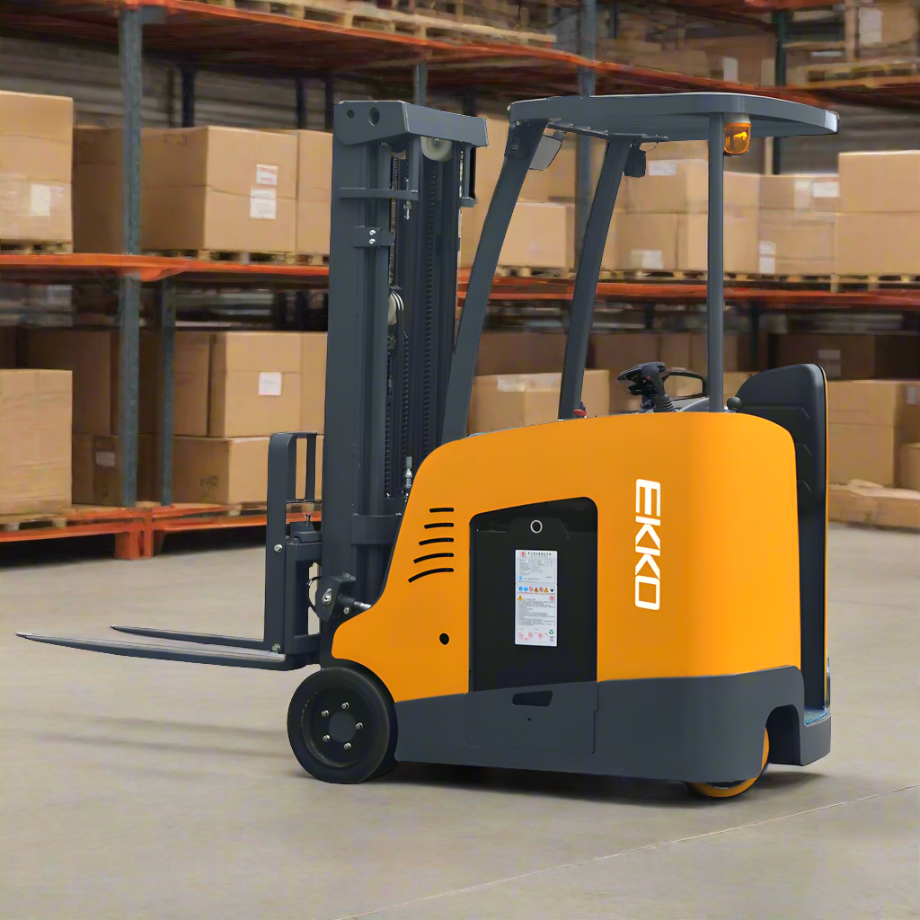

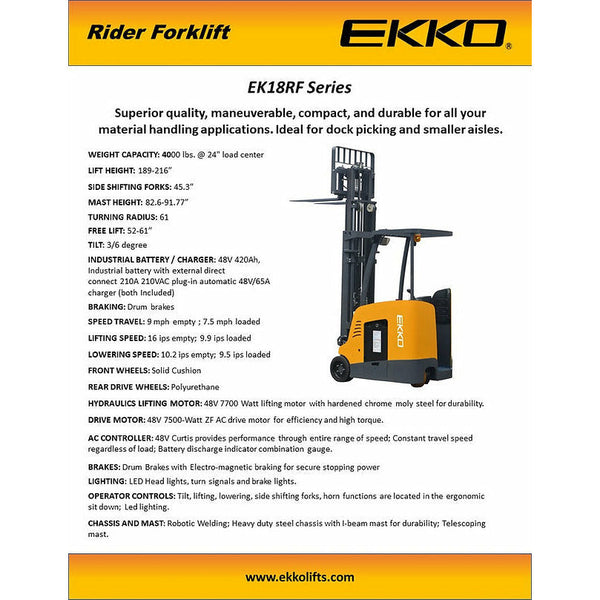

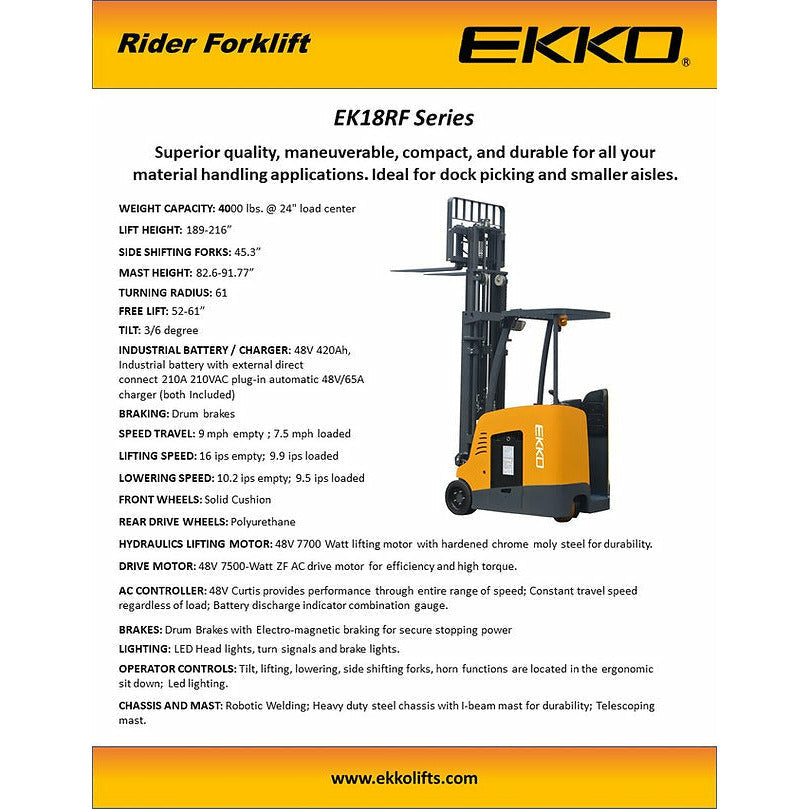

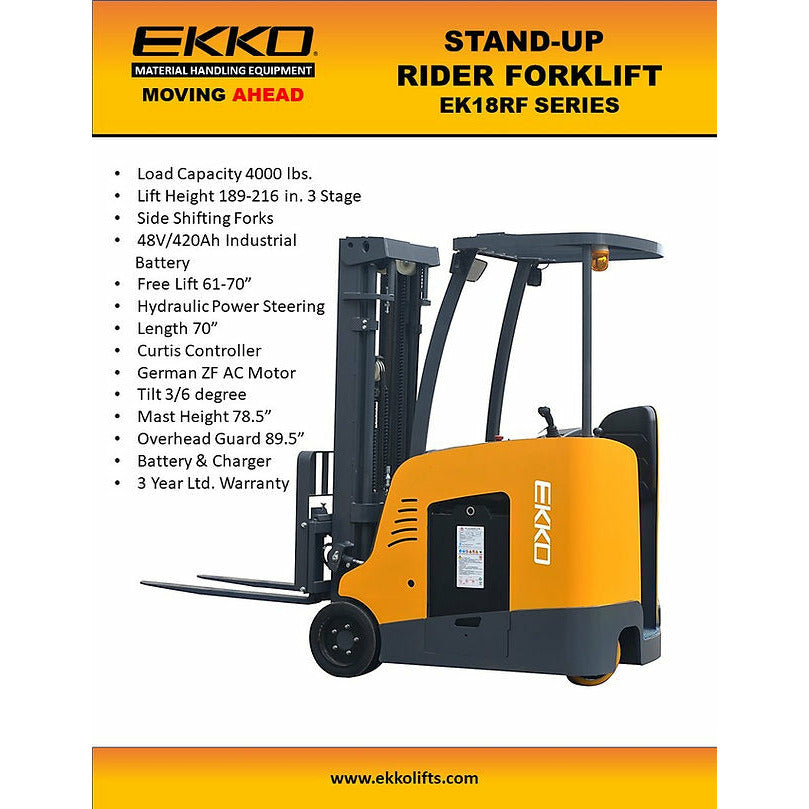

The EKKO EK18RF is a stand-up rider electric forklift designed for warehouses, loading docks, stock rooms, and manufacturing facilities requiring a compact, high-reach unit with an 18-foot maximum lift height and 4,000 lb. rated capacity. Operating on a 48V / 420Ah industrial battery with a German AC drive motor, Curtis controller, and hydraulic steering, it delivers a travel speed of 12 km/h loaded and a minimum turning radius of 58.5 in., making it well suited for standard and tight-aisle layouts. The unit features side-shifting forks adjustable from 9.4 to 35.6 in., a 61.34 in. free lift height, solid cushion load tires, and polyurethane drive tires, with a battery, charger, and 3-year limited warranty all included standard. The robotically welded steel frame and low 70 dB(A) operator noise rating support extended-shift operation in demanding indoor environments.
- 4,000 lb. Capacity with 216 in. Maximum Lift Height - Rated for 4,000 lbs at a 24 in. load center with a maximum lift height of 216.54 in. and a free lift height of 61.34 in. for operation in low-clearance door and rack environments
- German AC Drive Motor with Hydraulic Steering - Powered by a 6 kW German AC drive motor and 7.7 kW lift motor with a Curtis controller and hydraulic steering system for smooth, responsive operation during continuous aisle cycles
- 58.5 in. Minimum Turning Radius with 10.5 ft. Aisle Requirement - The EK18RF operates within a 10.5 ft. minimum aisle width and achieves a 58.5 in. turning radius, making it compatible with standard warehouse racking configurations
- Adjustable Side-Shifting Forks - Forks measure 1.58 in. thick x 4.72 in. wide x 45.28 in. long, adjust from 9.4 to 35.6 in. width, and include side shift for precise load placement without repositioning the truck
- 48V / 420Ah Battery and Charger Included - Ships with a 48V / 420Ah industrial battery weighing 1,570 lbs and a 48V / 65A 480V charger at no additional cost, with a noise level rated at 70 dB(A) or below at the operator position

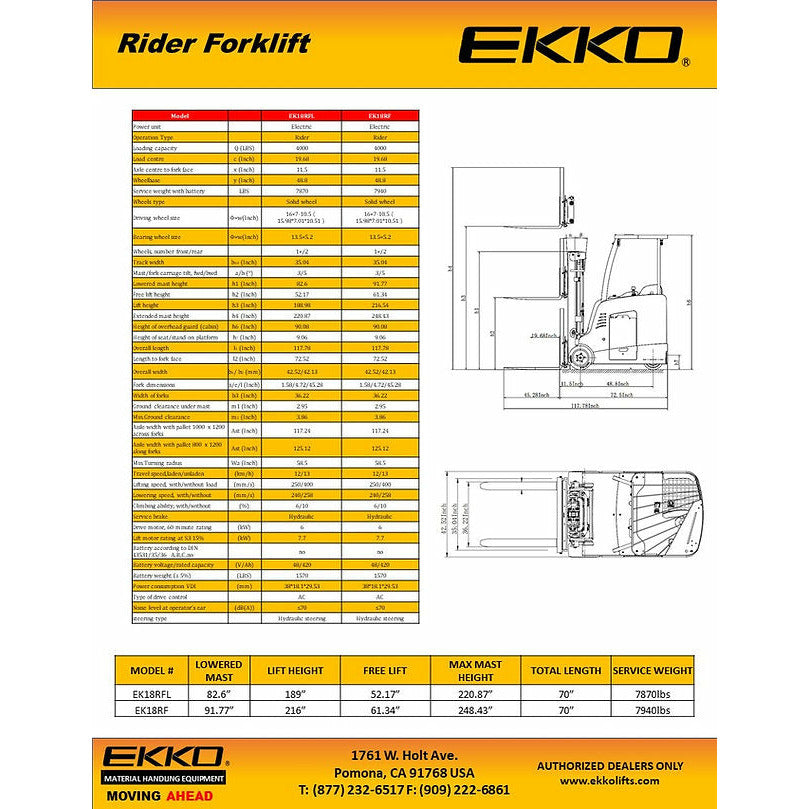

Product Specifications:
| Model Number | EK18RF |
| Product Type | Stand-Up Rider Electric Forklift |
| Load Capacity | 4,000 lbs |
| Load Center | 24 in. |
| Lift Height | 216.54 in. |
| Free Lifting Height | 61.34 in. |
| Extended Mast Height | 248.43 in. |
| Mast Overall Height (Lowered) | 91.77 in. |
| Overhead Guard Height | 90.08 in. |
| Mast Tilt (Forward / Backward) | 3° / 5° |
| Overall Length | 117.78 in. |
| Length to Fork Face | 72.52 in. |
| Overall Width | 42.52 in. |
| Wheelbase | 48.8 in. |
| Minimum Turning Radius | 58.5 in. |
| Minimum Aisle Width | 10.5 ft. |
| Ground Clearance (under Mast) | 2.95 in. |
| Service Weight (with Battery) | 7,940 lbs |
| Fork Size (Thick / Width / Length) | 1.58 in. x 4.72 in. x 45.28 in. |
| Fork Adjust Width | 9.4 in. – 35.6 in. |
| Side Shift | Standard |
| Max Travel Speed (Laden / Unladen) | 12 km/h / 13 km/h |
| Lifting Speed (Laden / Unladen) | 250 mm/s / 400 mm/s |
| Climbing Ability (Laden / Unladen) | 6% / 10% |
| Power Type | Electric |
| Battery | 48V / 420Ah (Included) |
| Battery Weight | 1,570 lbs |
| Charger | 48V / 65A 480V (Included) |
| Drive Motor | 6 kW German AC |
| Lift Motor | 7.7 kW |
| Controller | Curtis Instrument |
| Steering | Hydraulic |
| Service Brake | Hydraulic |
| Load Tire Type | Solid Cushion |
| Drive Tire Type | Polyurethane |
| Noise Level (at Operator) | ≤70 dB(A) |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
