EKKO EK18RRL Stand-Up NA Reach Truck 4000 lb Cap., 196"Lift Ht

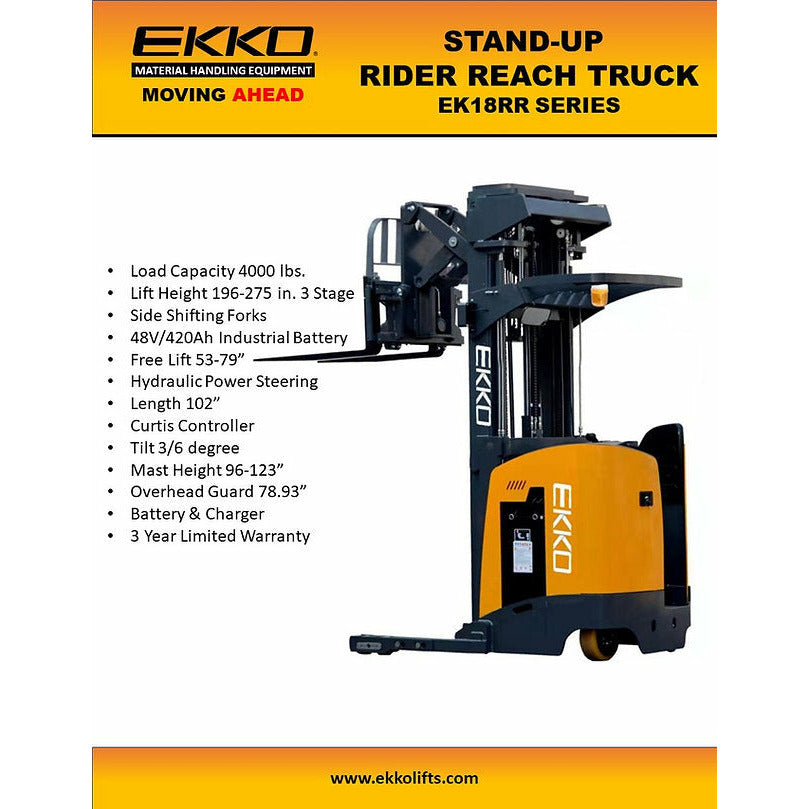

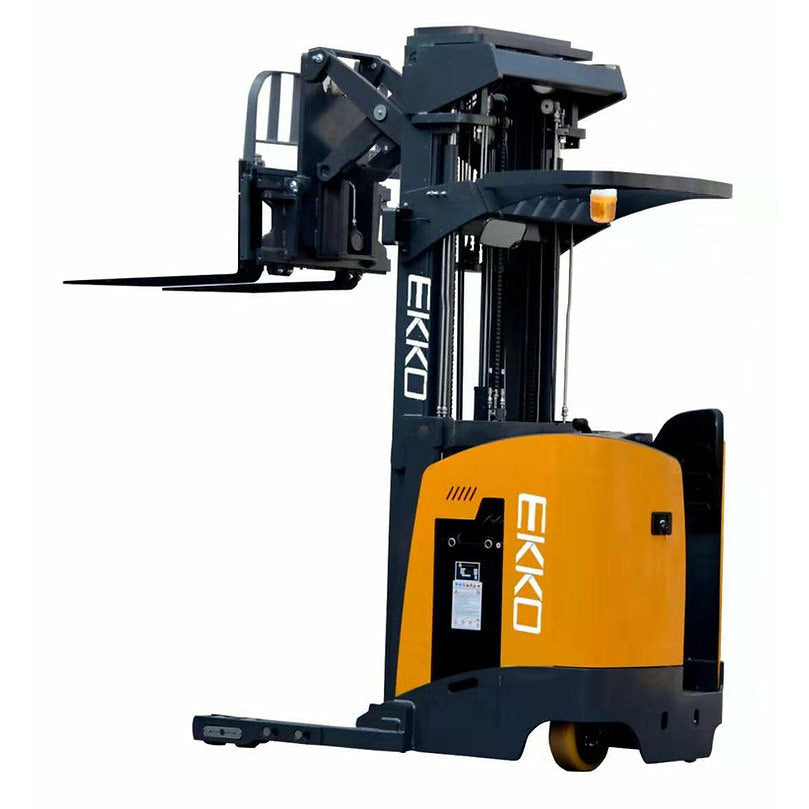

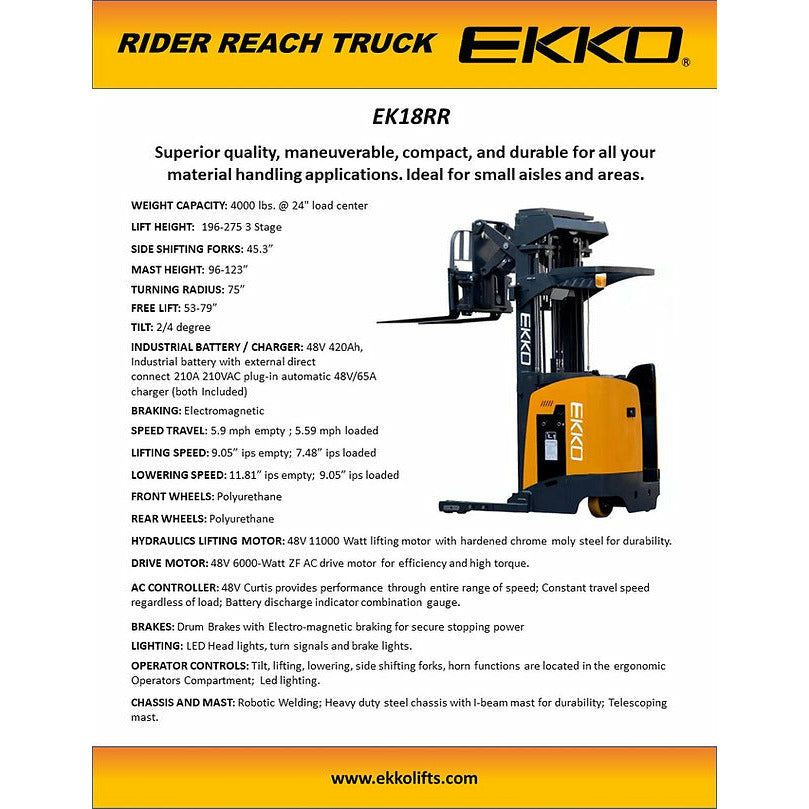

The EKKO EK18RRL is a stand-up narrow aisle electric reach truck that combines the functionality of a counterbalanced forklift, reach truck, and walkie stacker in a single unit, designed for warehouses, distribution centers, and manufacturing facilities where narrow aisle operation and high-reach storage are required. Rated for 4,000 lbs at a 24-inch load center with a maximum lift height of 196 inches and a free lift of 53.15 inches, it operates on a 48V / 420Ah industrial battery with a German AC drive motor, Curtis controller, and Electronic Power Steering. The triple mast configuration, 22.44 in. reach distance, side-shifting forks, tilt, and adjustable fork width from 7.9 to 35 in. provide a full range of load positioning capability within a 75 in. turning radius. Battery, charger, and a 3-year limited warranty are all included standard.
- 4,000 lb. Capacity with 196 in. Maximum Lift Height - Rated for 4,000 lbs at a 24 in. load center from 0 to 157 in., with capacity stepping down to 3,080 lbs at the 177 to 196 in. height range, and a free lift of 53.15 in.
- 22.44 in. Reach Distance with Triple Mast - The triple mast and 22.44 in. powered reach allows the operator to extend loads into standard pallet racking from a stationary aisle position without repositioning the truck
- German AC Drive Motor with Electronic Power Steering - Equipped with a 48V / 6,000W German AC drive motor, an 11,000W lifting motor, and Curtis controller with EPS for responsive, low-fatigue narrow aisle maneuvering
- Adjustable Side-Shifting Forks with Tilt - Forks adjust from 7.9 to 35.04 in. O.D., measure 42 in. in length, and include side shift and tilt via a 3-way valve for precise load handling across varied pallet configurations
- 75 in. Turning Radius for Narrow Aisle Operation - At 54.72 in. overall width and a 75 in. turning radius, the EK18RRL is sized for narrow aisle warehouse configurations where standard counterbalanced forklifts cannot operate efficiently

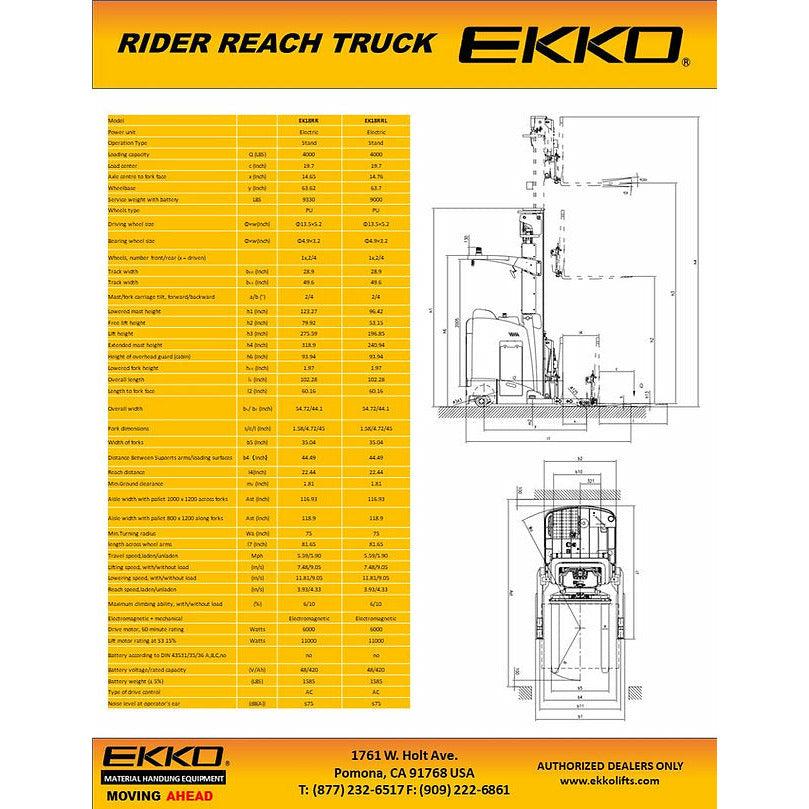

- Model Number
- EK18RRL
- Product Type
- Stand-Up Narrow Aisle Electric Reach Truck
- Load Capacity
- 4,000 lbs (at 0–157 in. height) / 3,080 lbs (at 177–196 in. height)
- Load Center
- 24 in.
- Lift Height
- 196 in.
- Free Lifting Height
- 53.15 in.
- Mast Type
- Triple Mast
- Mast Overall Height (Lowered)
- 96.42 in.
- Overall Length (Extended)
- 102.28 in.
- Overall Width
- 54.72 in.
- Turning Radius
- 75 in.
- Service Weight
- 9,000 lbs
- Reach Distance
- 22.44 in.
- Fork Size (Thick / Width / Length)
- 1.58 in. x 4.72 in. x 42 in.
- Fork Adjust Width (O.D.)
- 7.9 in. – 35.04 in.
- Side Shift
- 3-Way Valve (Standard)
- Power Type
- Electric
- Battery
- 48V / 420Ah (Included)
- Charger
- 48V / 65A 480V (Included)
- Drive Motor
- 48V / 6,000W German AC
- Lifting Motor
- 48V / 11,000W
- Controller
- Curtis Instrument
- Steering
- EPS (Electronic Power Steering)
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
