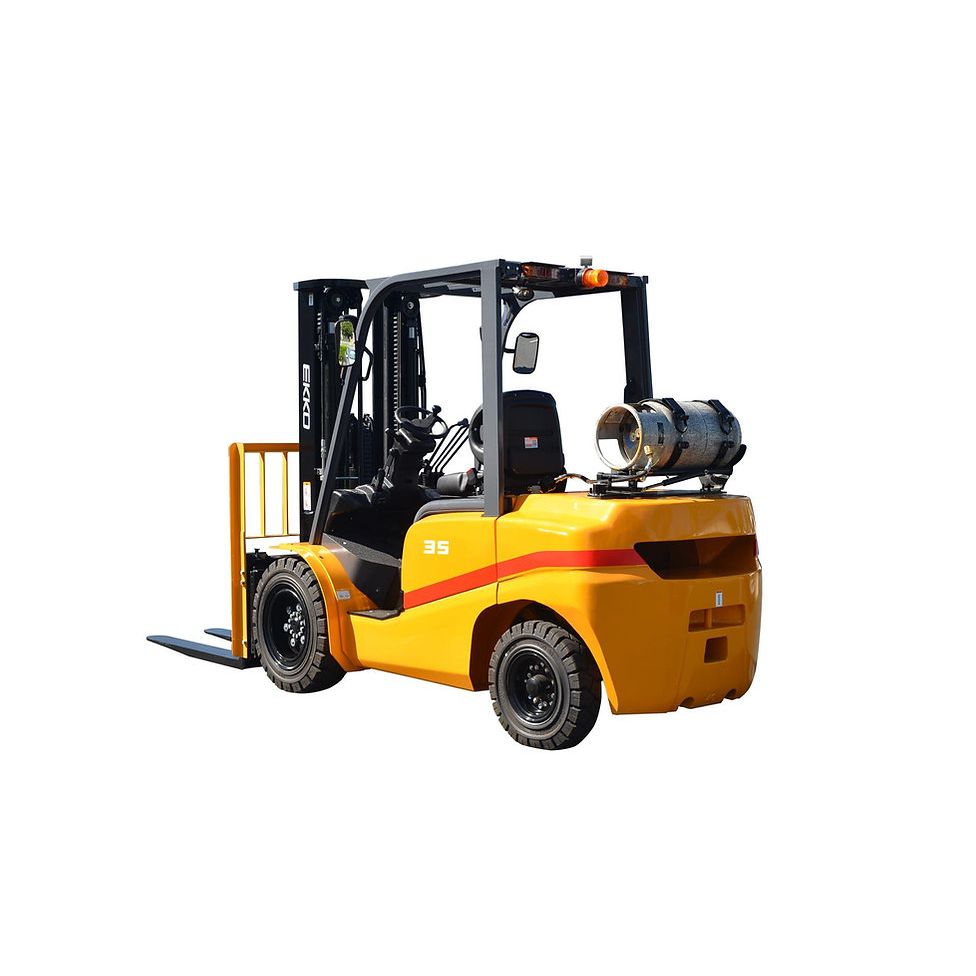

The EKKO EK35TLP is a liquid propane 4-wheel counterbalanced forklift designed for high-capacity material handling, warehousing, and distribution operations requiring a 7,000 lb. rated unit across indoor and outdoor environments. Powered by a Kubota or PSI 2.4L engine rated at 63 HP and compliant with Tier 4 EPA and CARB 4 emissions standards, it delivers a maximum lift height of 185 inches at a 24-inch load center. Standard equipment includes a Cascade side shift, Shimadzu 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a full suspension cab with semi-suspension seat and electro-hydraulic directional controls. This model is suited for procurement by heavy-duty distribution centers, manufacturing facilities, and industrial operations requiring a high-capacity LPG counterbalanced forklift with a factory-installed compliance and hydraulics package.
- 7,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 7,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 37.9 in.
- Tier 4 EPA and CARB 4 Compliant Engine - Kubota or PSI 2.4L LPG engine produces 63 HP at 2,700 RPM and satisfies Tier 4 EPA and California CARB 4 emissions requirements for indoor and outdoor operation
- Heavy-Duty Solid Pneumatic Tires - 28x9-15-12PR front and 6.50-10-10PR rear solid pneumatic tires deliver all-surface traction on concrete, asphalt, and uneven outdoor terrain without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and smooth mast control straight from delivery
- Full Suspension Cab with Vibration Damping Mast - Cushion-mounted suspension cab and a lowering damping device inside the lift system reduce mast shock, vibration, and impact noise to minimize operator fatigue during extended shifts
Product Specifications:
| Model Number | EK35TLP |
| Product Type | 4-Wheel Liquid Propane (LPG) Counterbalanced Forklift |
| Load Capacity | 7,000 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 37.9 in. |
| Overall Height with Forks Lifted | 234 in. |
| Mast Overall Height (Lowered) | 86.2 in. |
| Overall Length (with Forks) | 153 in. |
| Overall Length (without Forks) | 108 in. |
| Overall Width | 50.5 in. |
| Wheelbase | 66.9 in. |
| Ground Clearance (at Mast) | 4.7 in. |
| Service Weight | 10,967 lbs |
| Fork Size | 42 in. x 4.9 in. x 1.9 in. |
| Engine | Kubota or PSI 2.4L LPG |
| Engine Power | 63 HP at 2,700 RPM |
| Fuel Type | Liquid Propane (LPG) |
| Max Travel Speed (Loaded / Unloaded) | 11 mph / 12.1 mph |
| Tire Type | Solid Pneumatic |
| Tire Size | 28x9-15-12PR (Front) / 6.50-10-10PR (Rear) |
| Service Brake | Hydraulic Floor Pedal |
| Hydraulic Valve | Shimadzu 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Battery | 12V / 60Ah |
| Compliance / Certifications | Tier 4 EPA / CARB 4 |
| Warranty | 3-Year Structural / 2-Year Engine / 1-Year Parts |
| Brand | EKKO Lifts |
