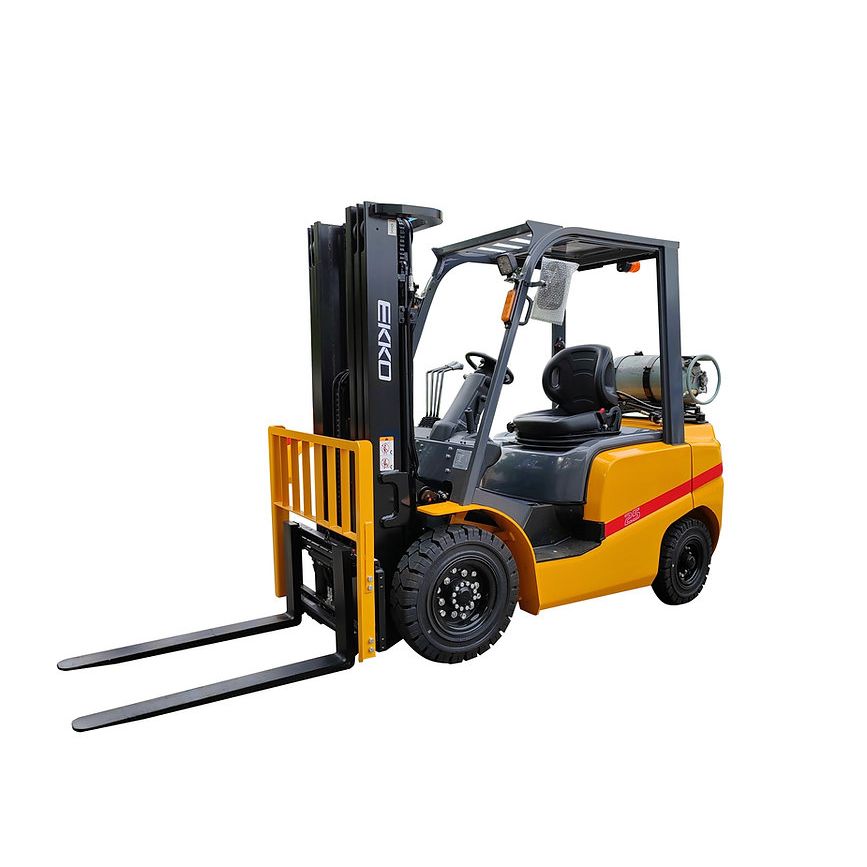

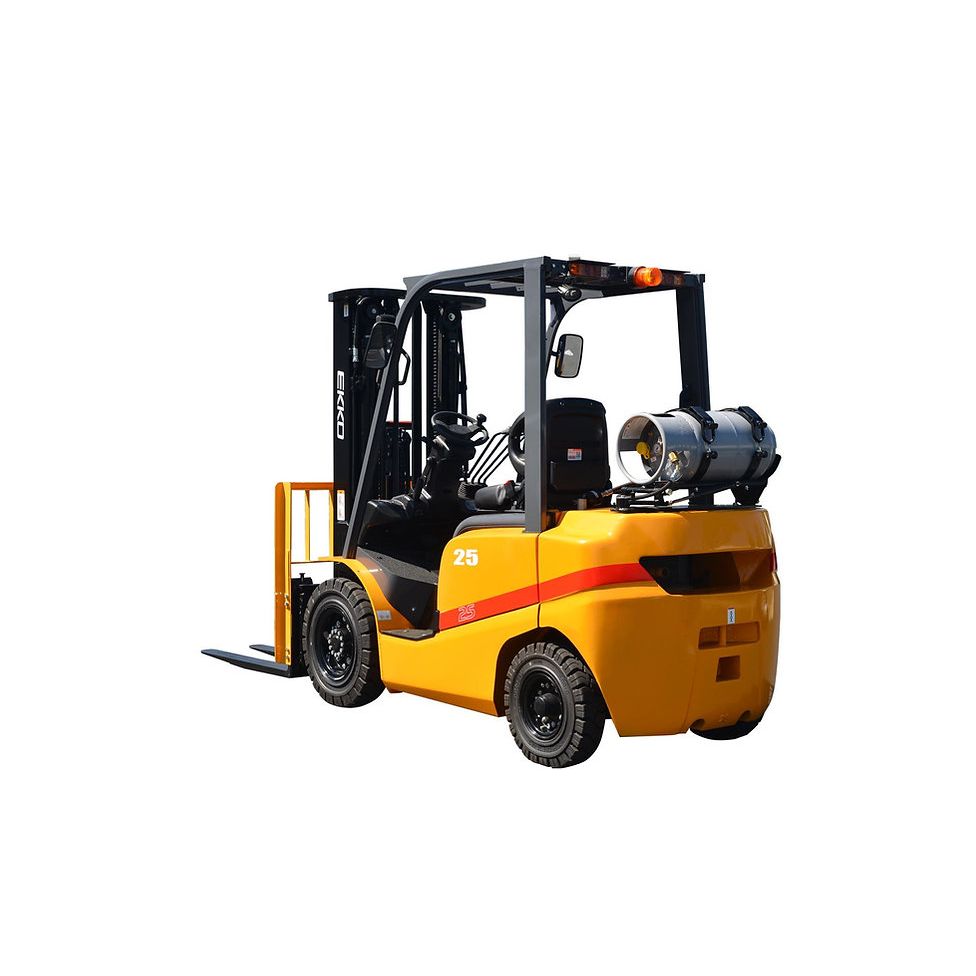

The EKKO EK20TLP is a liquid propane 4-wheel counterbalanced forklift designed for material handling, warehousing, and distribution operations requiring dependable performance across indoor and outdoor environments. Powered by a Kubota or PSI 2.4L engine rated at 63 HP and compliant with Tier 4 EPA and CARB 4 emissions standards, the unit delivers a 4,000 lb. load capacity with a maximum lift height of 185 inches. Standard equipment includes a Cascade side shift, Shimadzu 4SV 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a full suspension cab with electro-hydraulic directional controls. This model is suited for procurement by warehouse operators, distribution centers, and industrial facilities requiring a compact, fuel-efficient propane forklift with a proven compliance and equipment package.
- 4,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 4,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and free lifting height of 43.7 in.
- Tier 4 EPA and CARB 4 Compliant Engine - Kubota or PSI 2.4L LPG engine produces 63 HP at 2,700 RPM and meets current Tier 4 EPA and California CARB 4 emissions requirements for indoor and outdoor operation
- Solid Pneumatic Tires with All-Surface Stability - 7.00-12-12PR front and 6.00-9-10PR rear solid pneumatic tires deliver consistent traction on concrete, asphalt, and uneven outdoor surfaces without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4SV 4-way valve come pre-plumbed for precise load positioning and responsive mast control out of the box
- Compact Footprint for Tight Aisle Operation - At 96.8 in. body length (without forks), 45.2 in. width, and 62.9 in. wheelbase, the EK20TLP is sized for maneuvering in standard warehouse aisles and dock areas
Product Specifications:
| Model Number | EK20TLP |
| Product Type | 4-Wheel Liquid Propane (LPG) Counterbalanced Forklift |
| Load Capacity | 4,000 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 43.7 in. |
| Overall Height with Forks Lifted | 225 in. |
| Mast Overall Height (Lowered) | 83 in. |
| Overall Length (with Forks) | 141.8 in. |
| Overall Length (without Forks) | 96.8 in. |
| Overall Width | 45.2 in. |
| Wheelbase | 62.9 in. |
| Ground Clearance (at Mast) | 4.3 in. |
| Service Weight | 7,716 lbs |
| Fork Size | 42.1 in. x 4.8 in. x 1.5 in. |
| Engine | Kubota or PSI 2.4L LPG |
| Engine Power | 63 HP at 2,700 RPM |
| Fuel Type | Liquid Propane (LPG) |
| Max Travel Speed (Loaded / Unloaded) | 10.6 mph / 11.8 mph |
| Tire Type | Solid Pneumatic |
| Tire Size | 7.00-12-12PR (Front) / 6.00-9-10PR (Rear) |
| Service Brake | Hydraulic Floor Pedal |
| Hydraulic Valve | Shimadzu 4SV 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Battery | 12V / 60Ah |
| Compliance / Certifications | Tier 4 EPA / CARB 4 |
| Brand | EKKO Lifts |
