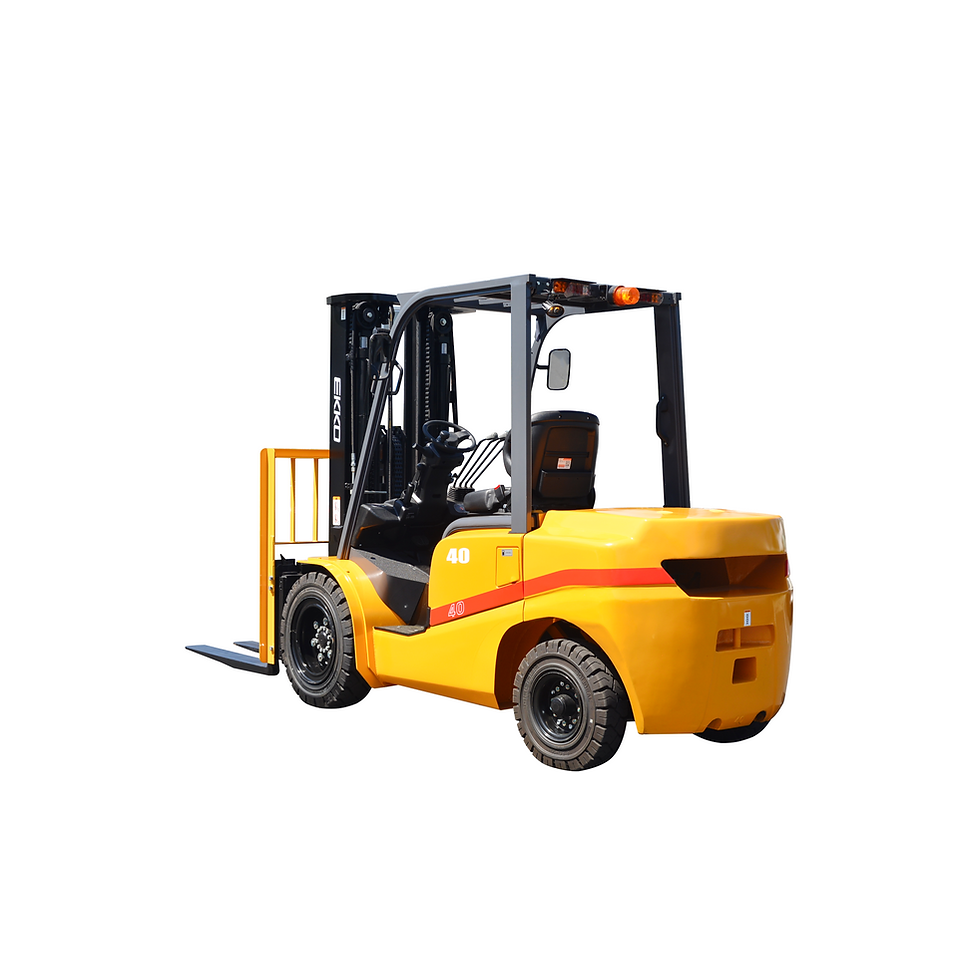

The EKKO EK40D is a diesel-powered 4-wheel counterbalanced forklift engineered for the most demanding material handling, warehousing, distribution, and outdoor operations requiring an 8,500 lb. capacity unit where diesel fuel is preferred or mandated. Powered by a Tier 4 EPA-compliant Mitsubishi 4EG engine rated at 49 HP, it delivers a maximum lift height of 185 inches at a 24-inch load center with a service weight of 11,519 lbs. The unit features a multifunctional suspended seat for vibration reduction, an adjustable steering wheel, and an impedance-composed muffler for reduced sound output, paired with solid pneumatic tires for stability across all surface types. Standard equipment includes a Cascade side shift and Shimadzu 4-way hydraulic valve pre-plumbed, making this model the highest-capacity diesel unit in the EKKO D series and well suited for heavy industrial operations and outdoor yards.
- 8,500 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 8,500 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 37.9 in.
- Tier 4 EPA-Compliant Mitsubishi Diesel Engine - Powered by a Mitsubishi 4EG diesel engine producing 49 HP at 2,250 RPM, meeting Tier 4 EPA emissions standards for indoor and outdoor operation
- Heavy-Duty Solid Pneumatic Tires - 250-15-16PR front and 6.50-10-10PR rear solid pneumatic tires deliver consistent traction on concrete, asphalt, and uneven outdoor surfaces without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control straight from delivery
- Extended Reach with Oversized Fork Package - 48 in. forks measuring 5.9 in. wide and 1.9 in. thick provide the extended load surface required for larger pallet configurations and heavy-load outdoor applications
Product Specifications:
| Model Number | EK40D |
| Product Type | 4-Wheel Diesel Counterbalanced Forklift |
| Load Capacity | 8,500 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 37.9 in. |
| Overall Height with Forks Lifted | 234 in. |
| Mast Overall Height (Lowered) | 86.2 in. |
| Overall Length (with Forks) | 157 in. |
| Overall Length (without Forks) | 112 in. |
| Overall Width | 52.9 in. |
| Wheelbase | 70.8 in. |
| Ground Clearance (at Mast) | 4.7 in. |
| Service Weight | 11,519 lbs |
| Fork Size | 48 in. x 5.9 in. x 1.9 in. |
| Engine | Mitsubishi 4EG Diesel |
| Engine Power | 49 HP at 2,250 RPM |
| Fuel Type | Diesel |
| Max Travel Speed (Loaded / Unloaded) | 10.3 mph / 11.2 mph |
| Tire Type | Solid Pneumatic |
| Tire Size | 250-15-16PR (Front) / 6.50-10-10PR (Rear) |
| Service Brake | Hydraulic Floor Pedal |
| Hydraulic Valve | Shimadzu 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Battery | 12V / 80Ah |
| Compliance / Certifications | Tier 4 EPA |
| Warranty | 3-Year Structural / 2-Year Engine / 1-Year Parts |
| Brand | EKKO Lifts |
