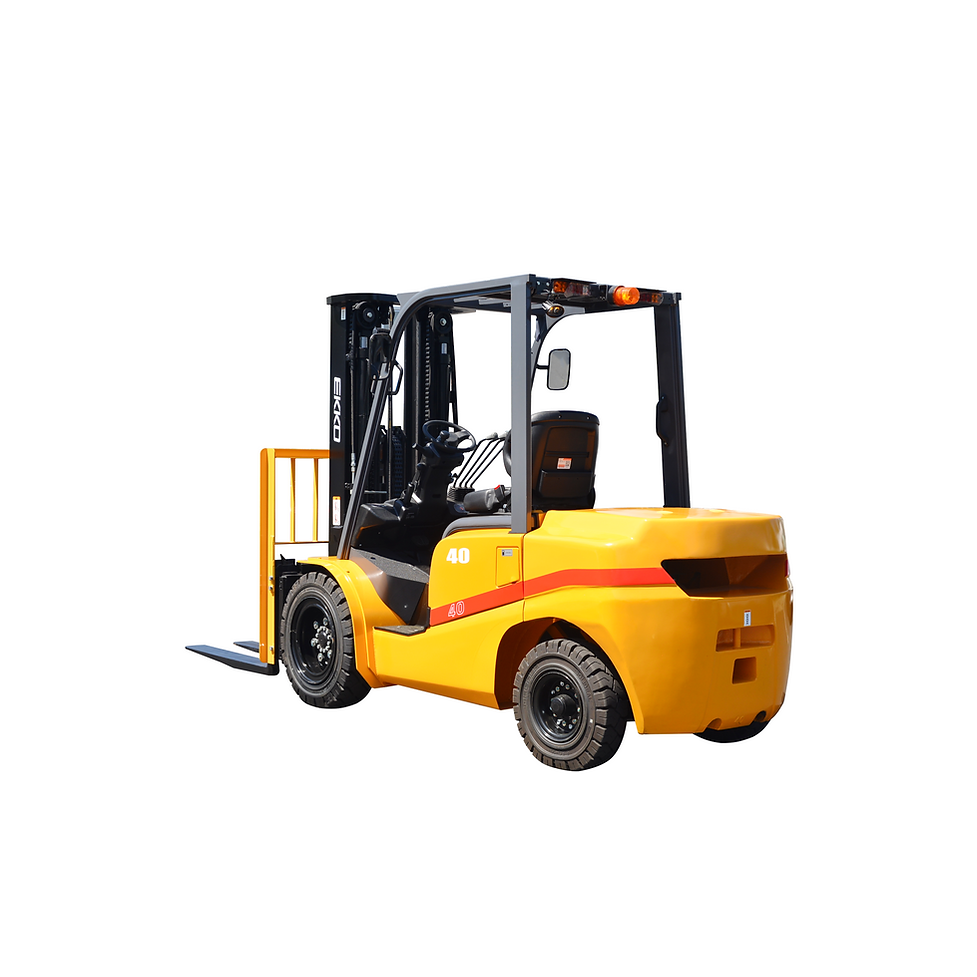

The EKKO EK30D is a diesel-powered 4-wheel counterbalanced forklift designed for material handling, warehousing, distribution, and outdoor operations where diesel fuel is preferred or required over LPG. Powered by a Tier 4 EPA-compliant Mitsubishi 4EG diesel engine rated at 49 HP, it delivers a 6,000 lb. load capacity with a maximum lift height of 185 inches at a 24-inch load center. The unit features a multifunctional suspended seat for vibration reduction, an adjustable steering column, an impedance-composed muffler for reduced sound output, and solid pneumatic tires for all-surface stability. Standard equipment includes a Cascade side shift and Shimadzu 4-way hydraulic valve pre-plumbed, making this model well suited for distribution centers, loading docks, manufacturing facilities, and outdoor yard operations.
- 6,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 6,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 37.9 in.
- Tier 4 EPA-Compliant Mitsubishi Diesel Engine - Powered by a Mitsubishi 4EG diesel engine producing 49 HP at 2,250 RPM and meeting Tier 4 EPA emissions standards for indoor and outdoor operation
- Heavy-Duty Solid Pneumatic Tires - 28x9-15-12PR front and 6.50-10-10PR rear solid pneumatic tires deliver consistent traction on concrete, asphalt, and uneven outdoor surfaces without flat risk
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control straight from delivery
- Operator Comfort and Noise Reduction Package - Multifunctional suspended seat distributes operator weight and reduces vibration, while an impedance-composed muffler and adjustable steering column lower fatigue during continuous operation
Product Specifications:
| Model Number | EK30D |
| Product Type | 4-Wheel Diesel Counterbalanced Forklift |
| Load Capacity | 6,000 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 37.9 in. |
| Overall Height with Forks Lifted | 234 in. |
| Mast Overall Height (Lowered) | 86.2 in. |
| Overall Length (with Forks) | 151 in. |
| Overall Length (without Forks) | 106 in. |
| Overall Width | 48.2 in. |
| Wheelbase | 66.9 in. |
| Ground Clearance (at Mast) | 4.7 in. |
| Service Weight | 10,108 lbs |
| Fork Size | 42 in. x 4.9 in. x 1.7 in. |
| Engine | Mitsubishi 4EG Diesel |
| Engine Power | 49 HP at 2,250 RPM |
| Fuel Type | Diesel |
| Max Travel Speed (Loaded / Unloaded) | 11 mph / 12.1 mph |
| Tire Type | Solid Pneumatic |
| Tire Size | 28x9-15-12PR (Front) / 6.50-10-10PR (Rear) |
| Service Brake | Hydraulic Floor Pedal |
| Hydraulic Valve | Shimadzu 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Battery | 12V / 60Ah |
| Compliance / Certifications | Tier 4 EPA |
| Warranty | 3-Year Structural / 2-Year Engine / 1-Year Parts |
| Brand | EKKO Lifts |
