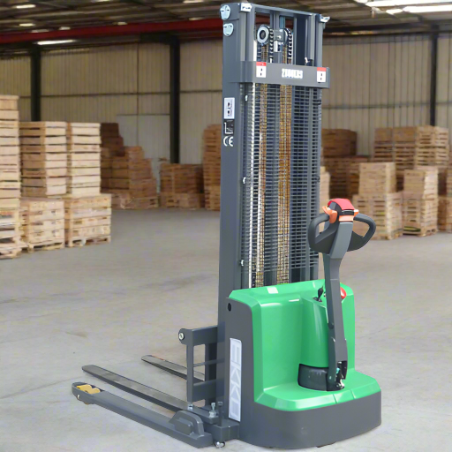

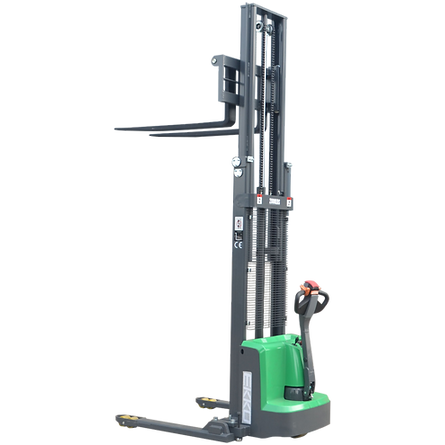

The EKKO EB13E-Li is a lithium-powered electric straddle stacker that combines the functionality of a forklift, reach truck, and walkie stacker in a single unit, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,800 lb. capacity lift to 119 inches with the maintenance and cycle-life advantages of a 24V / 50Ah lithium battery. Outrigger legs adjust from 45.5 to 59.1 inches wide to straddle standard pallets, while forks adjust from 8.3 to 33.5 inches and extend 45.3 inches in length to accommodate a broad range of pallet configurations. Powered by a 0.75 kW 24V center drive motor and 2.2 kW 24V lift motor with a Curtis Instrument controller and internal 24V / 15A charger, it travels at 4.0 km/h loaded and achieves a 52.6 in. turning radius for standard aisle operation. A 3-year limited warranty is included standard.
- 2,800 lb. Capacity with 119 in. Maximum Lift Height - Rated for 2,800 lbs at a 24 in. load center with a maximum lift height of 119 in., a lowered mast height of 82 in., and a lowered fork height of 2.35 in. for floor-level pallet access
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 45.5 to 59.1 in. to straddle standard pallets on the floor, with forks adjustable from 8.3 to 33.5 in. overall width and 45.3 in. fork length for varied pallet configurations
- 24V / 50Ah Lithium Battery with Internal 24V / 15A Charger - Powered by a 24V / 50Ah lithium battery with an internal 24V / 15A charger, offering longer cycle life and faster recharge compared to the dual lead acid alternative at a lighter service weight of 1,325 lbs
- 0.75 kW Center Drive and 2.2 kW Lift Motor with Curtis Controller - Equipped with a 24V / 0.75 kW center drive motor at 4.0 km/h loaded and a 24V / 2.2 kW lift motor with lifting speed of 92 mm/s laden and 136 mm/s unladen for efficient stack cycling
- Compact 52.6 in. Turning Radius with 70 in. Overall Length - At 70 in. overall length, 61 in. maximum overall width, and a 52.6 in. turning radius, the EB13E-Li is sized for standard warehouse aisle configurations while accommodating wide pallet spans
Product Specifications:
| Model Number | EB13E-Li |
| Product Type | Fully Powered Lithium Electric Straddle Stacker |
| Load Capacity | 2,800 lbs |
| Load Center | 24 in. |
| Lift Height | 119 in. |
| Lowered Fork Height | 2.35 in. |
| Mast Overall Height (Lowered) | 82 in. |
| Extended Mast Height | 135 in. |
| Overall Length | 70 in. |
| Max Overall Width | 61 in. |
| Turning Radius | 52.6 in. |
| Service Weight | 1,325 lbs |
| Fork Length | 45.3 in. |
| Single Fork Width | 4 in. |
| Fork Adjust Width (Overall) | 8.3 in. – 33.5 in. |
| Fixed Leg Length | 36.5 in. |
| Adjustable Leg Width | 45.5 in. – 59.1 in. |
| Max Travel Speed (Laden / Unladen) | 4.0 km/h / 4.2 km/h |
| Lifting Speed (Laden / Unladen) | 92 mm/s / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 mm/s / 98 mm/s |
| Power Type | Lithium-Ion Electric |
| Battery | 24V / 50Ah Lithium |
| Internal Charger | 24V / 15A (Included) |
| Drive Motor | 24V Center / 0.75 kW |
| Lift Motor | 24V / 2.2 kW |
| Controller | Curtis Instrument |
| Tire Type | Polyurethane |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
