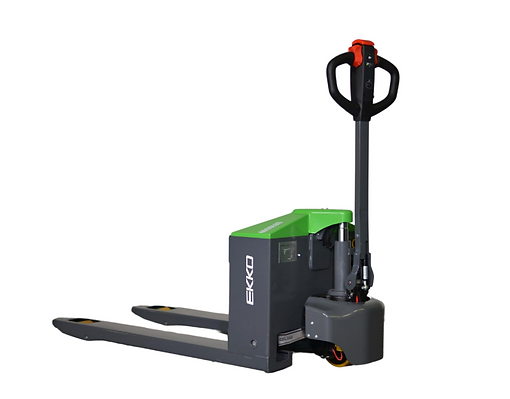

The EKKO EP20JLIC Lithium Walkie Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and elementss with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any platform with confidence and assurance.
- Lithium 48V Powered
- Load Capacity 4400 lb
- Fork Size 2.2x45.2
- Raised Height 7.48"
- Lowered Height 2.95"
- Pinwheel Capability
- Polyurethane Wheels

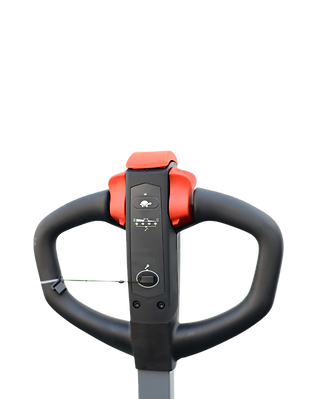

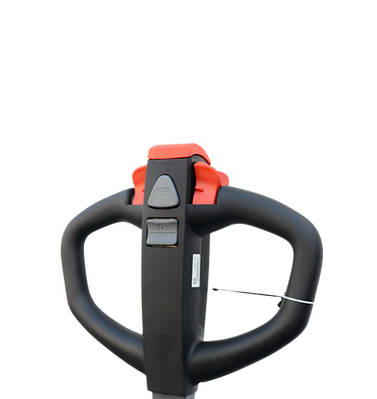

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
| Model | EP20JLIC |
|---|---|
| Drive type | Electric |
| Manner of operation | Walkie |
| Load Capacity Q (LBS) | 4400 |
| Load Centre c (Inch) | 23.6 |
| Axle centre to fork face x (Inch) | 37 |
| Wheel Base y (Inch) | 50.3 |
| Tire material | Polyurethane |
| Driving wheel size Φ×w (Inch) | Φ8.27×2.95 |
| Bearing wheel size Φ×w (Inch) | Φ2.91×3.66 |
| Qty of wheel, Front/Rear (x=driving wheel) | 1x/2 |
| Tread b11 (Inch) | 21.06 |
| Lifting Height h3 (Inch) | 7.48 |
| The height of handle in the operation position h14 (Inch) | 48.2 |
| Lowered fork height h13 (Inch) | 2.95 |
| Overall Length l1 (Inch) | 64 |
| Body Length l2 (Inch) | 16.53 |
| Overall Width b1/ b2 (Inch) | 27 |
| Fork Sizes s/e/l (Inch) | 2.24/6.3/45.28 |
| Fork Width b5 (Inch) | 27 |
| Min.Ground clearance m2 (Inch) | 1.06 |
| Aisle width for pallets 39.37*47.24 crossways Ast (Inch) | 88.9 |
| Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) | 83.9 |
| Turing Radius Wa (Inch) | 57.5 |
| Driving Speed, load/unload (km/h) | 2.6/2.8 |
| Maximum gradeability load/unload (in/s) | 0.24/0.39 |
| Brake Type | Electromagnetic brake |
| Drive Motor (kW) | 0.75 |
| Lift Motor (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity (V/Ah) | 48/20 |
| Battery Weight （±5%）LBS | 21.1 |
| Type of drive control | DC |
| Noise level (dB(A)) | ≤70 |
| Service Weight （with battery）LBS | 359 |
