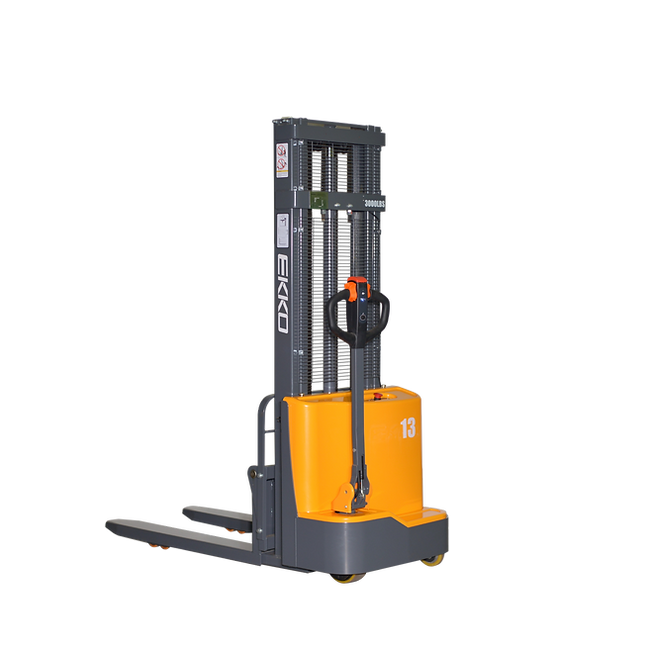

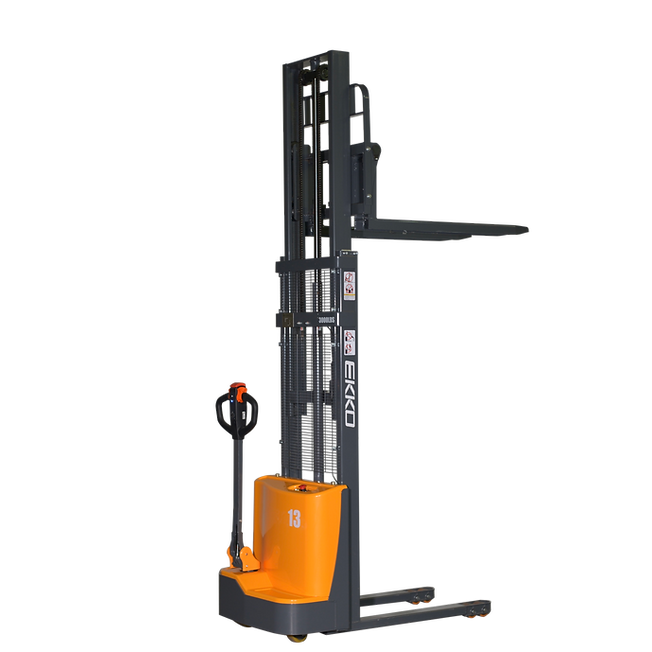

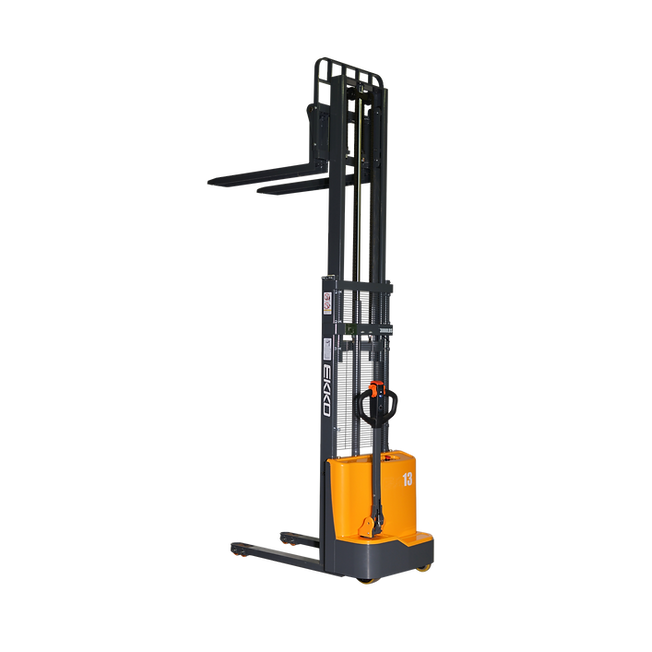

EKKO EB13CD Electric Straddle Stacker | Fork Over | 118" Lift Height | 2800 lb Capacity
The EKKO EB13CD is a fully powered fork-over electric stacker that combines the functionality of a forklift, reach truck, and walkie stacker in a single compact unit, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,800 lb. capacity lift to 118 inches on loads without bottom boards — including skids, bins, and 4-way plastic pallets. Unlike straddle stackers, the fork-over design uses fixed legs and forks that pass over the straddle frame, eliminating the need for adjustable outrigger legs and enabling pallet-floor-level access at 3.54 inches lowered fork height. Powered by a 0.75 kW center drive motor and 2.2 kW lift motor with a Curtis controller and internal 24V / 15A charger, it delivers a 55.1 in. turning radius and a service weight of just 992 lbs on a robotically welded steel frame. Battery and internal charger are included standard with a 3-year limited warranty.
- 2,800 lb. Capacity with 118 in. Maximum Lift Height - Rated for 2,800 lbs at a 24 in. load center with a maximum lift height of 118 in., a lowered mast height of 82.3 in., and a lowered fork height of 3.54 in. for low-clearance load access

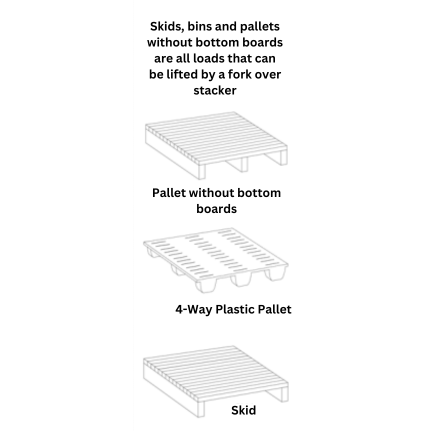

- Fork-Over Design for Loads Without Bottom Boards - Fixed straddle legs and forks that pass over the frame allow the EB13CD to lift skids, bins, 4-way plastic pallets, and pallets without bottom boards that standard straddle stackers cannot accommodate
- Fixed Fork Width with 45.28 in. Fork Length - Forks measure 45.28 in. in length with a fixed inner width of 11.8 in. and outer width of 26.8 in., providing a stable, consistent load platform suited for standard skid and pallet configurations
- 0.75 kW Center Drive and 2.2 kW Lift Motor with Curtis Controller - Equipped with a 24V / 0.75 kW center drive motor, 24V / 2.2 kW lift motor, and Curtis controller for reliable fully powered drive and lift operation in standard aisle widths
- Compact 55.1 in. Turning Radius at 992 lbs Service Weight - At 71.7 in. overall length, 55.1 in. turning radius, and a service weight of only 992 lbs, the EB13CD is the lightest unit in the EB13 series and suited for confined loading dock and stock room environments
- Model Number
- EB13CD
- Product Type
- Fully Powered Electric Fork-Over Stacker
- Load Capacity
- 2,800 lbs
- Load Center
- 24 in.
- Lift Height
- 118 in.
- Lowered Fork Height
- 3.54 in.
- Mast Overall Height (Lowered)
- 82.3 in.
- Extended Mast Height
- 147.6 in.
- Overall Length
- 71.7 in.
- Turning Radius
- 55.1 in.
- Service Weight
- 992 lbs
- Fork Length
- 45.28 in.
- Single Fork Width
- 5.59 in.
- Overall Fork Width (Inner / Outer)
- 11.8 in. / 26.8 in. (Fixed)
- Leg / Fork Type
- Fixed (Fork-Over Design)
- Suitable Load Types
- Skids, Bins, 4-Way Plastic Pallets, Pallets Without Bottom Boards
- Power Type
- Electric
- Battery
- 2×12V / 85Ah (Included)
- Internal Charger
- 24V / 15A (Included)
- Drive Motor
- 24V Center / 0.75 kW
- Lift Motor
- 24V / 2.2 kW
- Controller
- Curtis
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
