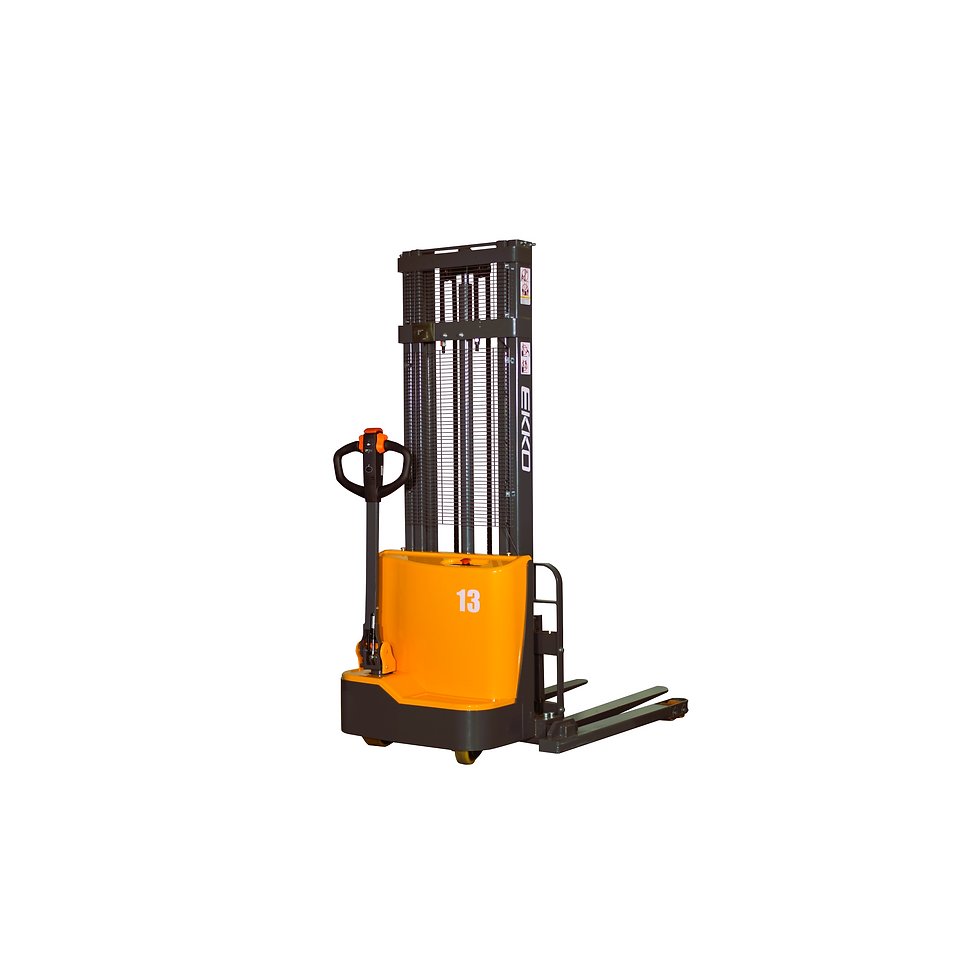

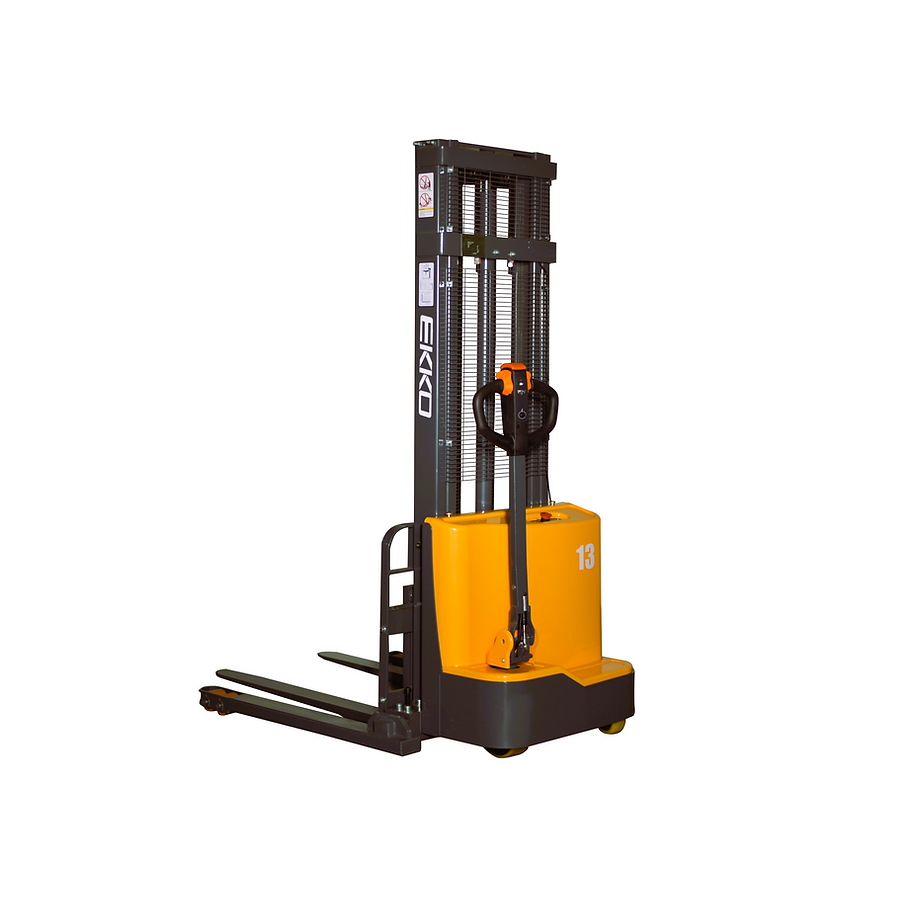

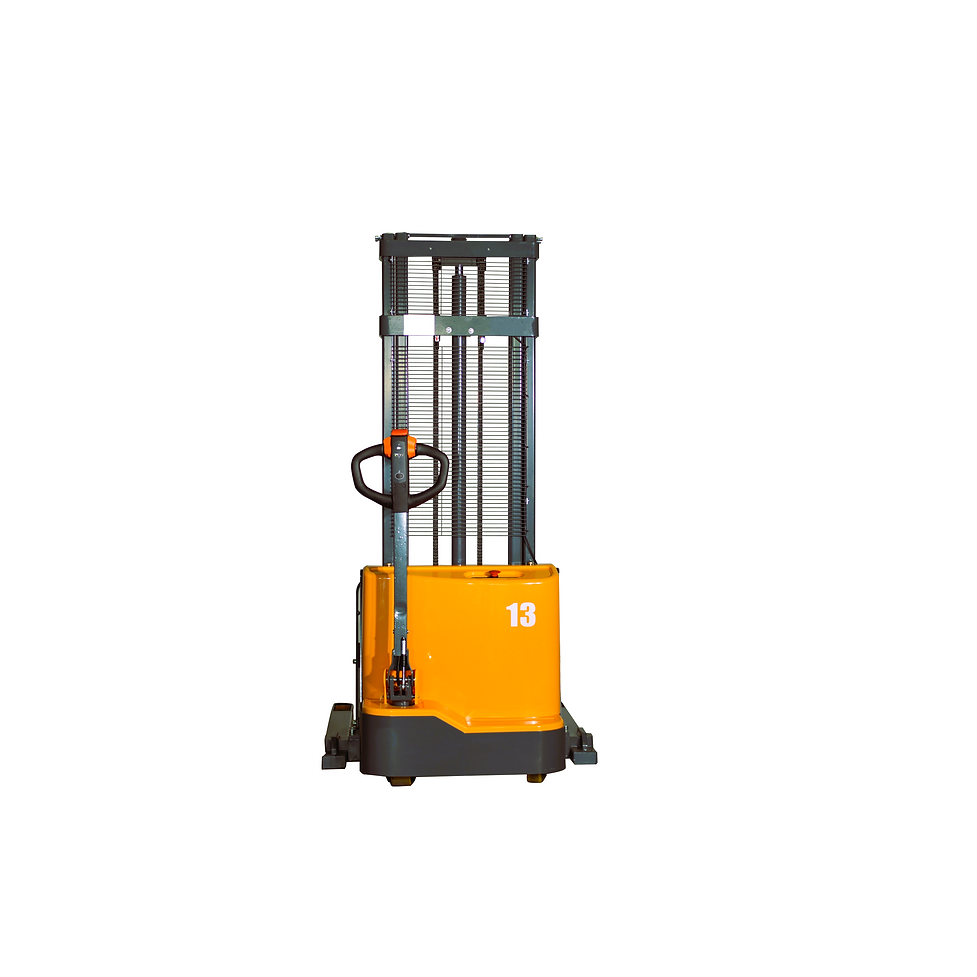

EKKO EB13C-138 Electric Straddle Stacker | 138" Lift Height | 2800 lb Capacity
The EKKO EB13C-138 is a fully powered electric straddle stacker that combines the functionality of a forklift, reach truck, and walkie stacker in a single unit, designed for loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a 2,800 lb. capacity lift to 138 inches. Adjustable outrigger legs from 35.4 to 51.2 inches wide straddle standard pallets on the floor, while forks adjust from 8.6 to 32.1 inches and extend 45.3 inches in length to accommodate a wide range of standard pallet configurations. Powered by a 0.75 kW DC drive motor and 2.2 kW lift motor with a Curtis Instrument controller and internal 24V / 10A charger, it delivers reliable fully powered drive and lift operation for continuous indoor warehouse use. Battery and internal charger are included standard with a 3-year limited warranty.
- 2,800 lb. Capacity with 138 in. Maximum Lift Height - Rated for 2,800 lbs at a 24 in. load center with a maximum lift height of 138 in., and a lowered fork height of 2.56 in. for floor-level pallet access in loading dock and stock room environments
- Adjustable Outrigger Legs and Forks for Pallet Flexibility - Legs adjust from 35.4 to 51.2 in. to straddle standard pallets, with forks adjustable from 8.6 to 32.1 in. overall width and 45.3 in. fork length for varied pallet configurations
- 0.75 kW DC Drive and 2.2 kW Lift Motor with Curtis Controller - Equipped with a 24V / 0.75 kW DC drive motor and 24V / 2.2 kW lift motor controlled by a Curtis Instrument controller for reliable fully powered drive and lift operation
- Compact Footprint with 56.1 in. Turning Radius - At 73.4 in. overall length, 61 in. maximum overall width, and a 56.1 in. turning radius, the EB13C-138 is sized for standard warehouse aisle configurations while accommodating wide pallet leg spans
- 24V / 85Ah Battery and Internal 24V / 10A Charger Included - Ships with a 24V / 85Ah lead acid battery and internal 24V / 10A charger at no additional cost, with a robotically welded steel frame backed by a 3-year limited warranty
- Model Number
- EB13C-138
- Product Type
- Fully Powered Electric Straddle Stacker
- Load Capacity
- 2,800 lbs
- Load Center
- 24 in.
- Lift Height
- 138 in.
- Lowered Fork Height
- 2.56 in.
- Overall Length
- 73.4 in.
- Max Overall Width
- 61 in.
- Turning Radius
- 56.1 in.
- Fork Length
- 45.3 in.
- Single Fork Width
- 4 in.
- Fork Adjust Width (Overall)
- 8.6 in. – 32.1 in.
- Adjustable Leg Width
- 35.4 in. – 51.2 in.
- Power Type
- Electric
- Battery
- 24V / 85Ah (Included)
- Internal Charger
- 24V / 10A (Included)
- Drive Motor
- 0.75 kW DC
- Lift Motor
- 2.2 kW
- Controller
- Curtis Instrument
- Tire Type
- Polyurethane
- Construction
- Steel with Robotic Welding
- Warranty
- 3-Year Limited
- Brand
- EKKO Lifts
