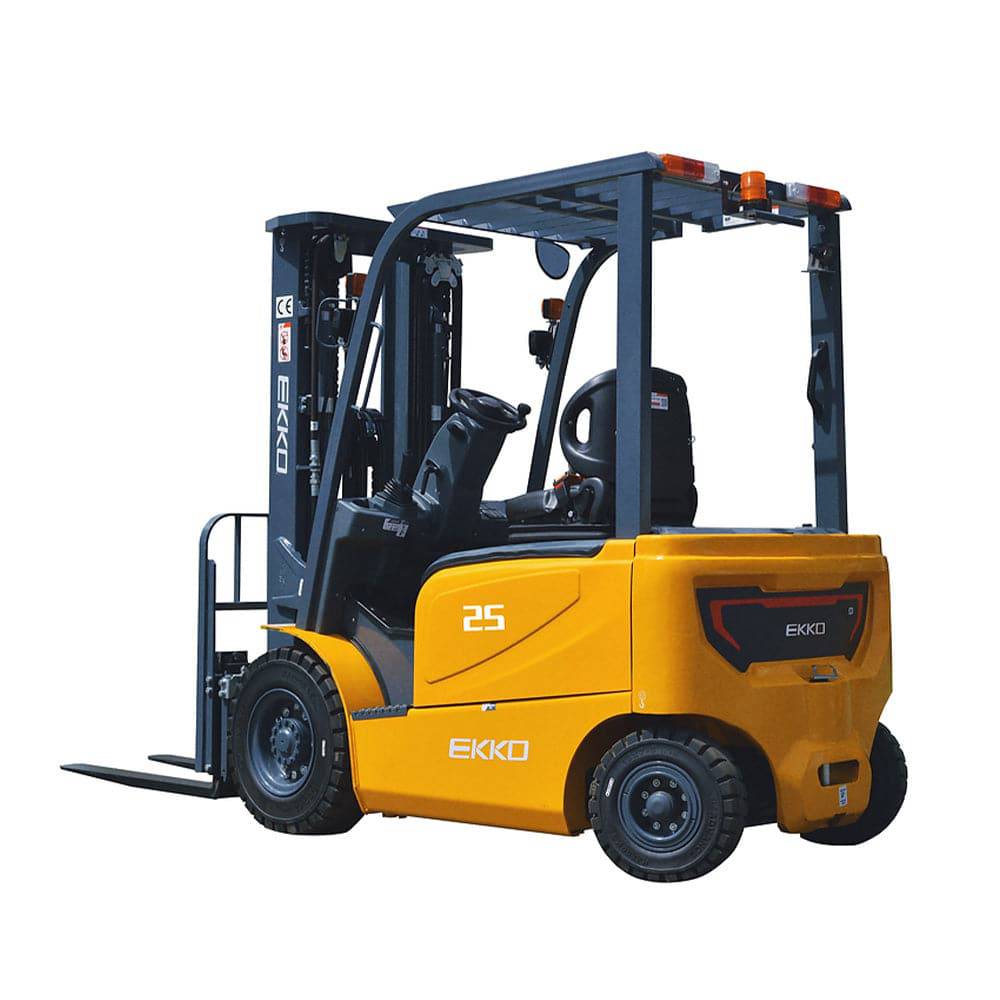

The EKKO EK25GB is a 4-wheel electric counterbalanced forklift designed for material handling across loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a zero-emission, battery-powered unit. Rated for 5,000 lbs at a 24-inch load center with a maximum lift height of 189 inches, it is powered by a 48V / 600Ah lead acid battery and controlled by a ZAPI controller for reliable, programmable performance. The unit is constructed from high-quality steel with robotic welding and features solid pneumatic tires, side-shifting forks, and ergonomic controls suited for continuous multi-shift operation. This model is well suited for distribution centers, warehouses, and manufacturing facilities that require a capable electric forklift with a 3-year limited warranty and a 3-phase 480V charger.
- 5,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 5,000 lbs at a 24 in. load center with a maximum lift height of 189 in. and a free lifting height of 47.48 in.
- 48V / 600Ah Lead Acid Battery with ZAPI Controller - Battery-electric drivetrain powered by a 48V / 600Ah lead acid battery pack and a ZAPI controller for programmable, low-maintenance operation with zero direct emissions
- Dual Electric Motors for Drive and Lift - Equipped with an 11 kW driving motor and a 12 kW lifting motor, providing independent power delivery for propulsion and load handling across demanding cycles
- Side-Shifting Forks with 4-Way Valve - 42 in. forks with adjustable width from 8.7 to 29 in. and a standard 4-way hydraulic valve provide precise load positioning without repositioning the truck
- Compact Footprint with 84.2 in. Turning Radius - At 46.45 in. overall width, 65.35 in. wheelbase, and an 84.2 in. turning radius, the EK25GB is sized for standard warehouse aisle operation and tight-space maneuvering
Product Specifications:
| Model Number | EK25GB |
| Product Type | 4-Wheel Electric Counterbalanced Forklift |
| Load Capacity | 5,000 lbs |
| Load Center | 24 in. |
| Lift Height | 189 in. |
| Free Lifting Height | 47.48 in. |
| Mast Overall Height (Lowered) | 83 in. |
| Overall Length | 137.95 in. |
| Overall Width | 46.45 in. |
| Wheelbase | 65.35 in. |
| Turning Radius | 84.2 in. |
| Service Weight | 9,981 lbs |
| Fork Size (Thick / Width / Length) | 1.57 in. x 4.72 in. x 42.12 in. |
| Fork Adjust Width | 8.7 in. – 29 in. |
| Mast Tilt (Forward / Backward) | 6° / 6° |
| Power Type | Electric |
| Battery | 48V / 600Ah Lead Acid |
| Controller | ZAPI |
| Driving Motor | 11 kW |
| Lifting Motor | 12 kW |
| Charger | 3-Phase 480V (220V Optional) |
| Hydraulic Valve | 4-Way Valve (Side Shifting Forks) |
| Tire Type | Solid Pneumatic |
| Max Gradient (Laden / Unladen) | 15% / 25% |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
