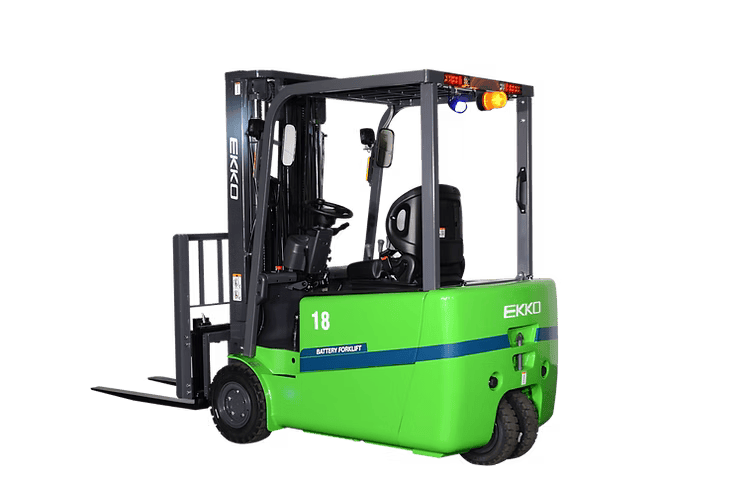

The EKKO EK18AT-216Li 3 Wheel Lithium Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing. Dual motors provide extra power, stability and handling.
Made from high quality steel and materials with durable qualities to withstand any terrain, usage, impact and directional changes for any operation with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 216" (17.67 ft)
- Cascade Side Shift
- Shimadzu 4-Way Valve
- Free Lift 54.6”
- Adjustable Forks

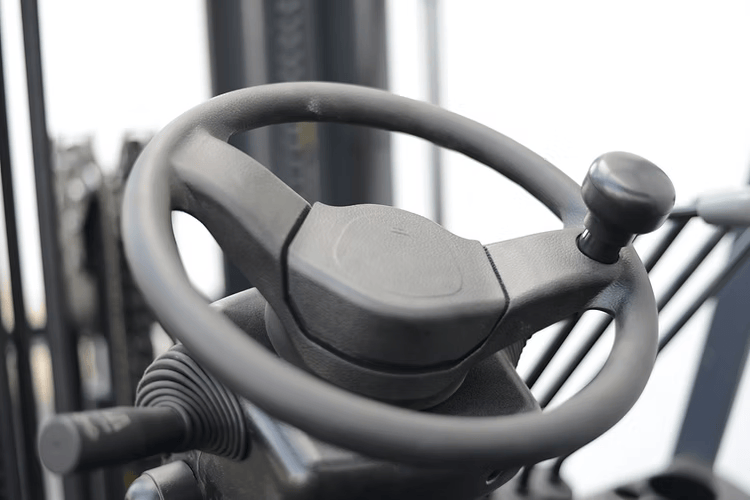

- Hydraulic Steering
- INMOTION controller
- Battery 48V/202Ah Lithium (included)
- Solid Pneumatic Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/100A
- 3-Phase 480V Charger (optional 220V & 110V)
| Specifications | Value |
|---|---|
| Model | EK18AT-216Li |
| Power unit | Lithium |
| Operation Type | Rider |
| Loading capacity (LBS) | 4000 |
| Load center (Inch) | 24 |
| Wheelbase (Inch) | 53.5 |
| Service weight with battery LBS | 7550 |
| Wheels type | Solid Pneumatic |
| Tire size front | 200/50-10 |
| Tire size rear | 140x55-9 |
| Wheels | 2×/2 |
| Tread, front (Inch) | 35.8 |
| Tread, back (Inch) | 7.1 |
| Mast Tilt (°) | |
| Lowered mast height (Inch) | 83.1 |
| Free lift height (Inch) | 54.6 |
| Lift height (Inch) | 212 |
| Height of overhead guard (cabin) (Inch) | 77.6 |
| Overall length (Inch) | 116.9 |
| Overall width (Inch) | 41.5 |
| Ground clearance under mast (Inch) | 4.3 |
| Min.Ground clearance (Inch) | 3.7 |
| Min.Turning radius (Inch) | 61 |
| Travel speed,laden/unladen (mph) | 10/10 |
| Lifting speed, with/without load (in/s) | 13.8/20.5 |
| Climbing ability, with load (%) | 20 |
| Service brake | Hydraulic |
| Drive motor, (kw) | 4.75 |
| Lift motor (kw) | 10 |
| Battery voltage/rated capacity (V/Ah) | 48V/202 lithium |
| Type of drive control | AC |
