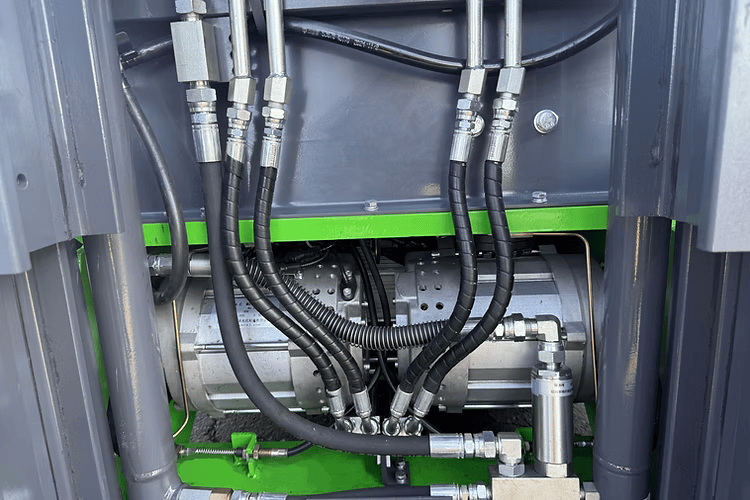

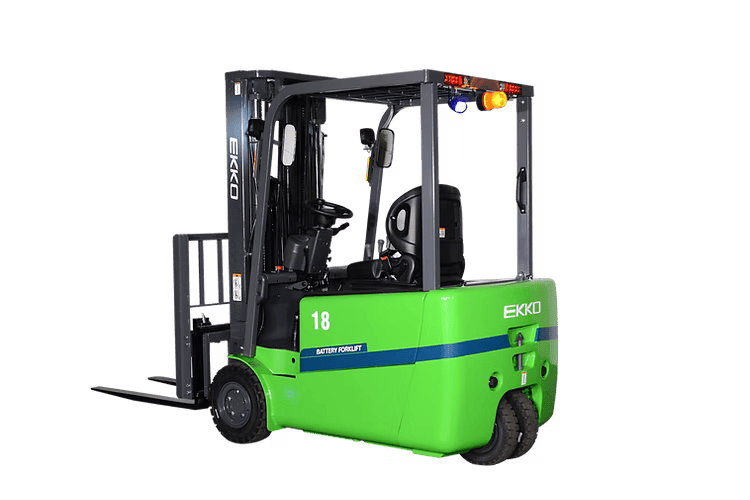

The EKKO EK18AT-185Li 3-Wheel Lithium Forklift is built to meet all your material handling needs. Perfect for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses, this forklift ensures reliable performance in any environment. Equipped with dual motors. This unit offers enhanced power, stability, and handling, making it ideal for demanding tasks.
Built with high quality steel and durable materials, the EK18AT-216Li features a strong design to withstand various terrains, heavy usage, impacts, and directional changes, ensuring dependable performance in all operations.
- Load Capacity 4000 lb
- Raised Height 185" (15.4ft)
- Side Shifting Forks
- Free Lift 43.7”
- Adjustable Forks

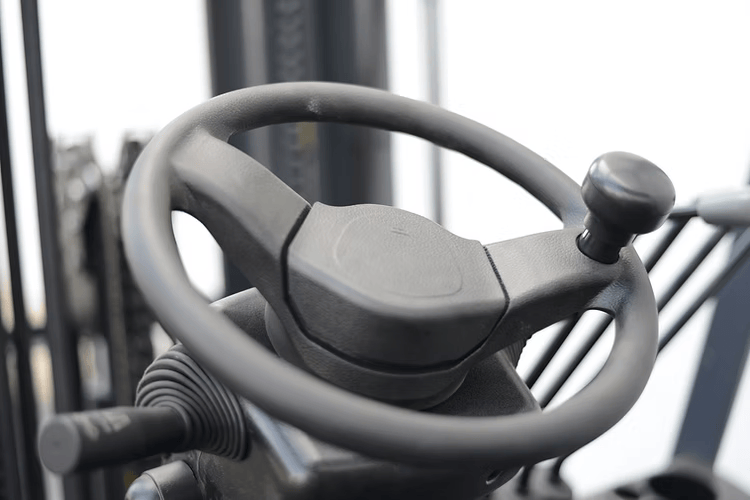

- Hydraulic Steering
- INMOTION controller
- Battery 48V/202Ah Lithium (included)
- Solid Pneumatic Tires

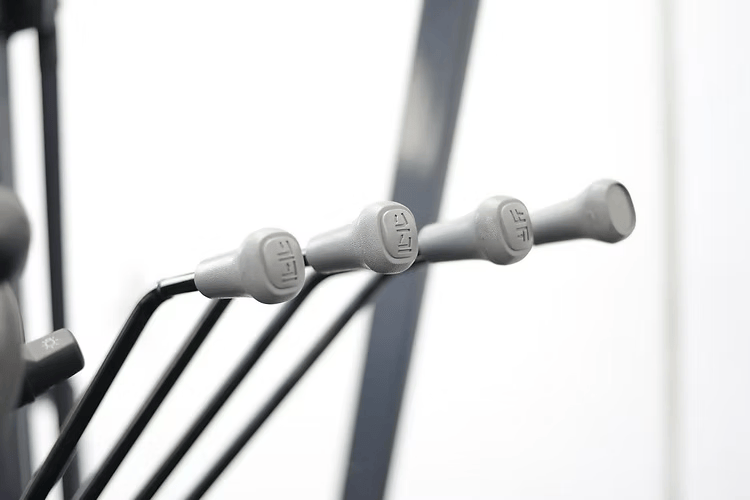

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/100A
- 3-Phase 480V Charger (optional 220V & 110V)
| Specifications | Value |
|---|---|
| Model | EK18AT-LI |
| Power unit | Lithium |
| Operation Type | Rider |
| Loading capacity (LBS) | 4000 |
| Load center (Inch) | 24 |
| Wheelbase (Inch) | 53.5 |
| Service weight with battery LBS | 7341 |
| Wheels type | Solid Pneumatic |
| Tire size front | 200/50-10 |
| Tire size rear | 140x55-9 |
| Wheels | 2×/2 |
| Tread, front (Inch) | 35.8 |
| Tread, back (Inch) | 7.1 |
| Mast Tilt (°) | |
| Lowered mast height (Inch) | 83.1 |
| Free lift height (Inch) | 43.7 |
| Lift height (Inch) | 185 |
| Height of overhead guard (cabin) (Inch) | 77.6 |
| Overall length (Inch) | 116.9 |
| Overall width (Inch) | 41.5 |
| Ground clearance under mast (Inch) | 4.3 |
| Min.Ground clearance (Inch) | 3.7 |
| Min.Turning radius (Inch) | 61 |
| Travel speed,laden/unladen (mph) | 10/10 |
| Lifting speed, with/without load (in/s) | 13.8/20.5 |
| Climbing ability, with load (%) | 20 |
| Service brake | Hydraulic |
| Drive motor, (kw) | 4.75 |
| Lift motor (kw) | 10 |
| Battery voltage/rated capacity (V/Ah) | 48V/202 lithium |
| Type of drive control | AC |
