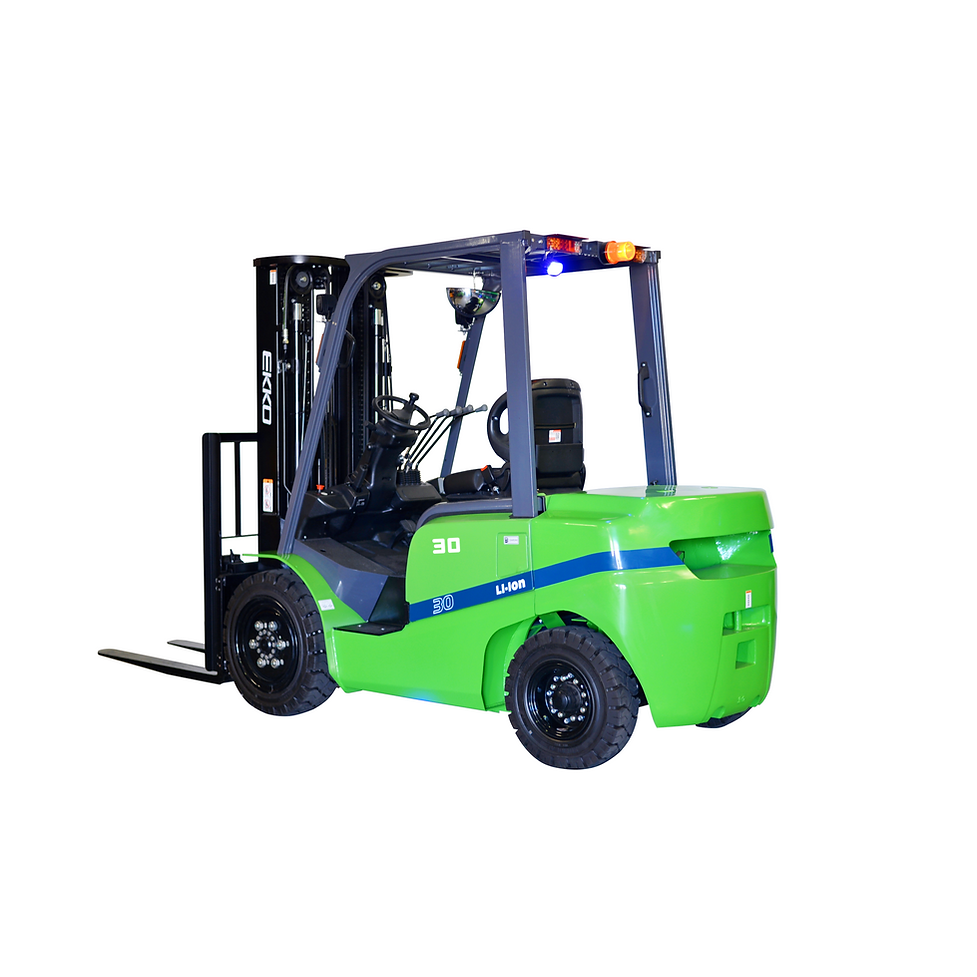

The EKKO EK30GT-Li is a 4-wheel lithium-powered electric counterbalanced forklift designed for high-capacity material handling across loading docks, stock rooms, manufacturing floors, and warehouse environments requiring a zero-emission, battery-electric unit rated at 6,000 lbs. Equipped with an 80V / 230Ah lithium-ion battery and InMotion AC drive controller, it delivers a maximum lift height of 185 inches at a 24-inch load center with low-maintenance electric operation suited to continuous multi-shift use. Standard equipment includes Cascade side shift, Shimadzu 4-way hydraulic valve pre-plumbed, solid pneumatic tires, and a hydraulic foot pedal brake, making this model a direct lithium-electric alternative for facilities transitioning away from combustion or lead acid forklifts in the 6,000 lb. class. The steel frame is constructed with robotic welding and backed by a 3-year limited warranty.
- 6,000 lb. Lift Capacity at 24 in. Load Center - Rated for loads up to 6,000 lbs at a 24 in. load center with a maximum lift height of 185 in. and a free lifting height of 37.9 in.
- 80V / 230Ah Lithium-Ion Battery with InMotion Controller - Powered by an 80V / 230Ah lithium-ion battery pack and an InMotion AC drive controller for responsive speed regulation, regenerative braking, and reduced maintenance compared to lead acid systems
- Cascade Side Shift and Shimadzu Hydraulics Standard - Factory-installed Cascade side shift and Shimadzu 4-way valve come pre-plumbed for precise load positioning and responsive mast control straight from delivery
- Wide-Body 6,000 lb. Class with 96.2 in. Turning Radius - At 48.2 in. overall width, 66.9 in. wheelbase, and 106 in. body length without forks, the EK30GT-Li is proportioned for the 6,000 lb. class with a 96.2 in. minimum outside turning radius
- Flexible Charging Options - Accepts a 3-phase 480V charger with optional 220V and 110V configurations, supporting compatibility across a range of facility power setups without dedicated high-voltage infrastructure
Product Specifications:
| Model Number | EK30GT-Li |
| Product Type | 4-Wheel Lithium-Ion Electric Counterbalanced Forklift |
| Load Capacity | 6,000 lbs |
| Load Center | 24 in. |
| Lift Height | 185 in. |
| Free Lifting Height | 37.9 in. |
| Mast Overall Height (Lowered) | 86.2 in. |
| Mast Tilt (Forward / Backward) | 6° / 6° |
| Overall Length (with Forks) | 148 in. |
| Overall Length (without Forks) | 106 in. |
| Overall Width | 48.2 in. |
| Wheelbase | 66.9 in. |
| Turning Radius (Outside) | 96.2 in. |
| Ground Clearance (at Mast) | 4.7 in. |
| Service Weight | 9,788 lbs |
| Fork Length | 42.1 in. |
| Max Travel Speed (Laden / Unladen) | 9.3 mph / 9.3 mph |
| Power Type | Lithium-Ion Electric |
| Battery | 80V / 230Ah Lithium-Ion |
| Charger | 3-Phase 480V (Optional 220V and 110V) |
| Controller | InMotion |
| Service Brake | Hydraulic Foot Pedal |
| Hydraulic Valve | Shimadzu 4-Way (Pre-Plumbed) |
| Side Shift | Cascade (Standard) |
| Tire Type | Solid Pneumatic |
| Construction | High-Strength Steel with Robotic Welding |
| Warranty | 3-Year Limited |
| Brand | EKKO Lifts |
