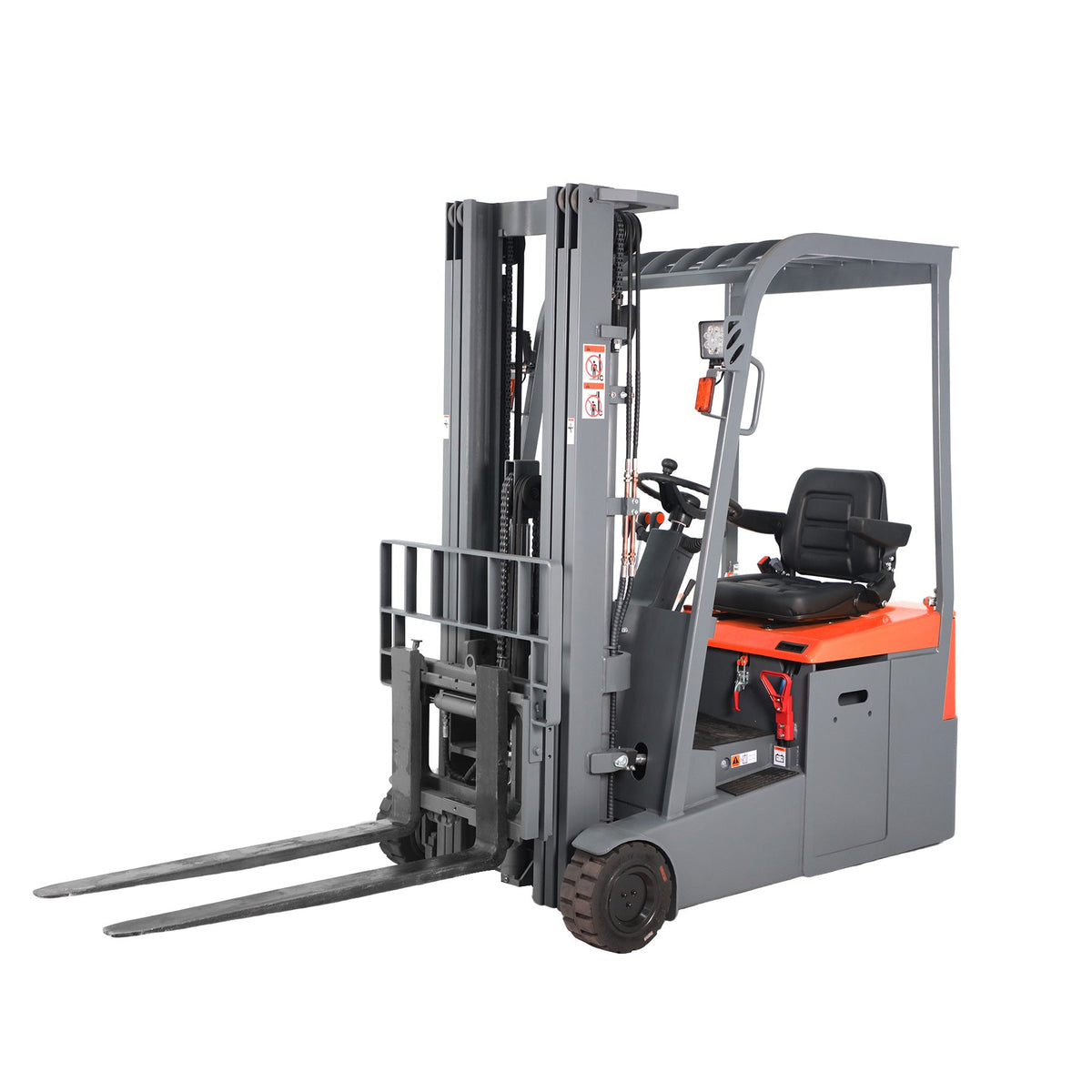

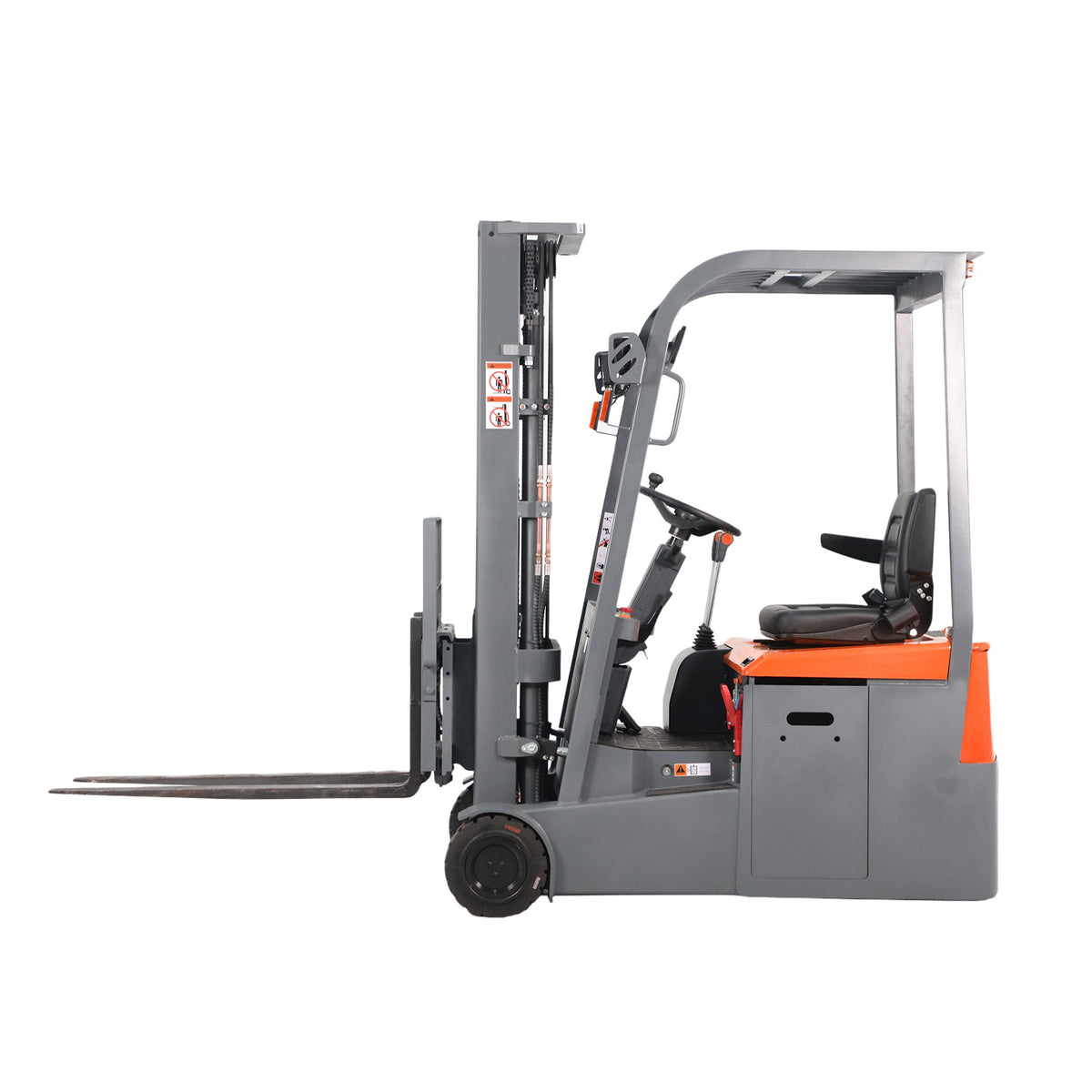

Elevate Your Warehouse Efficiency with this Versatile 3300lbs Electric Forklift
This 3300lbs capacity electric forklift is engineered for optimal performance in even the tightest warehouse spaces. It boasts a 197” lift height and a range of features designed for productivity and ease of use.

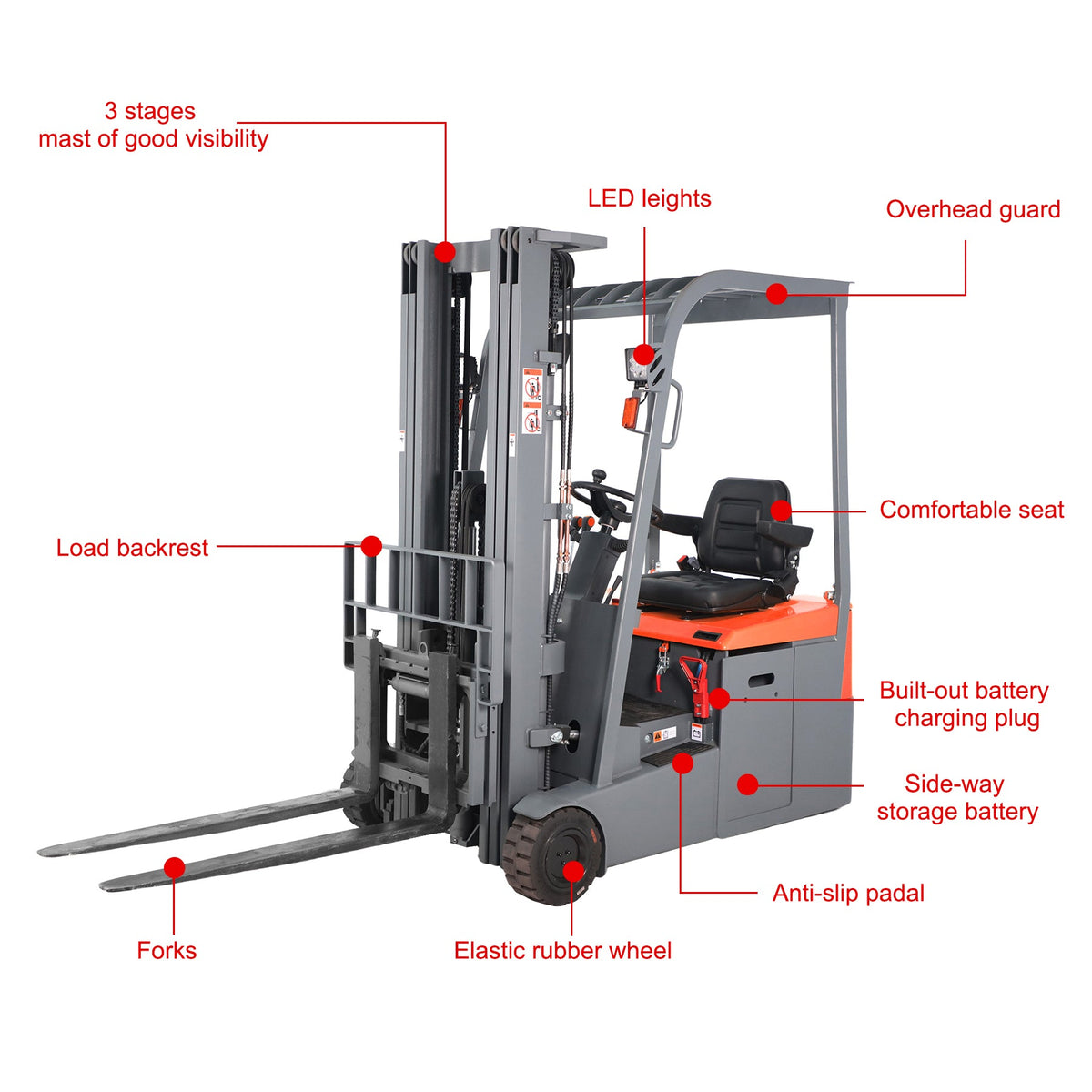

- Standard Capacity 3300lbs with fork lift height 197”
- AC motor, without brush, free of maintenance
- Reliable Sweden Inmotion controller

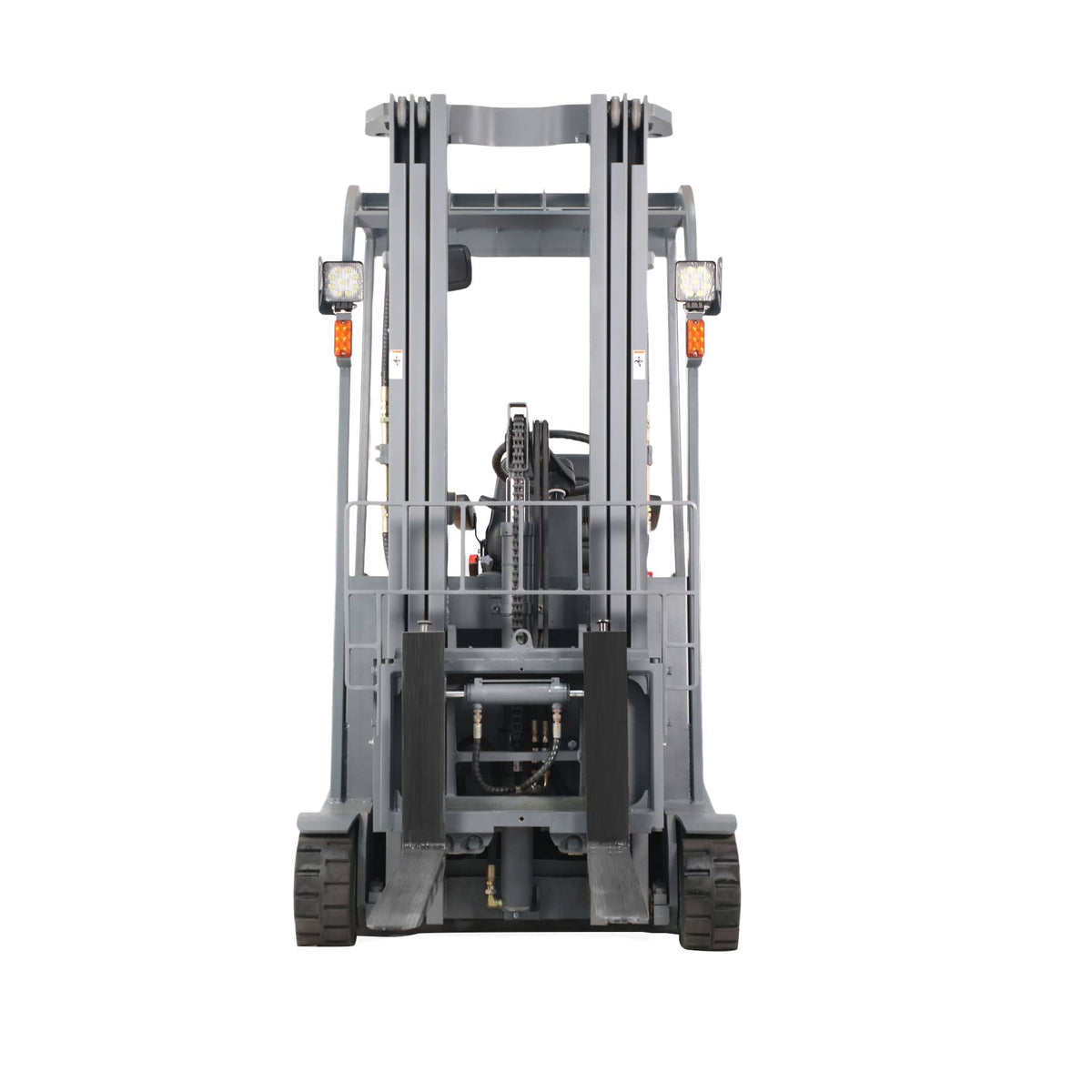

- Three-stages mast with free lift and sider shift

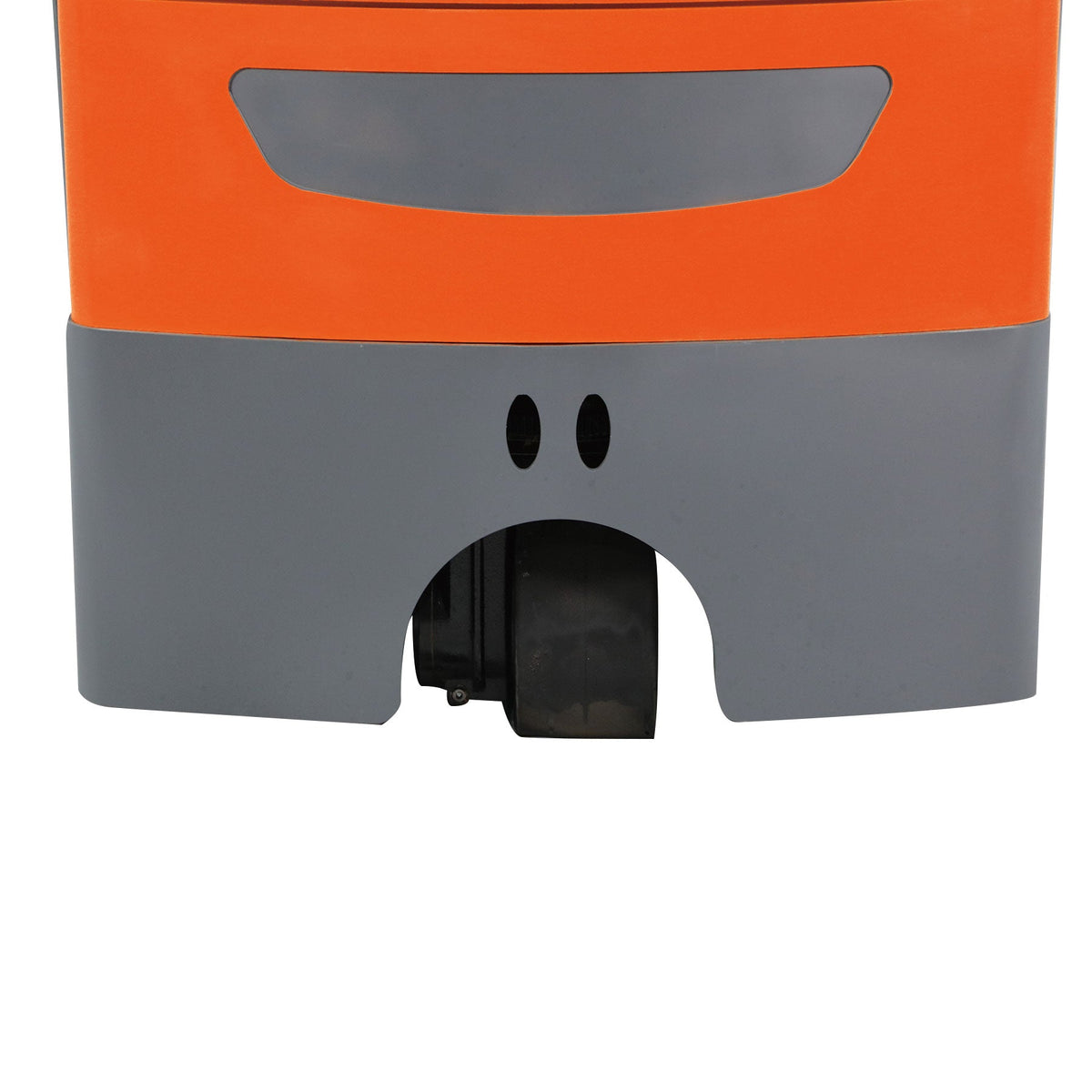

- Rear wheel driven design, with stable quality and small turning radius

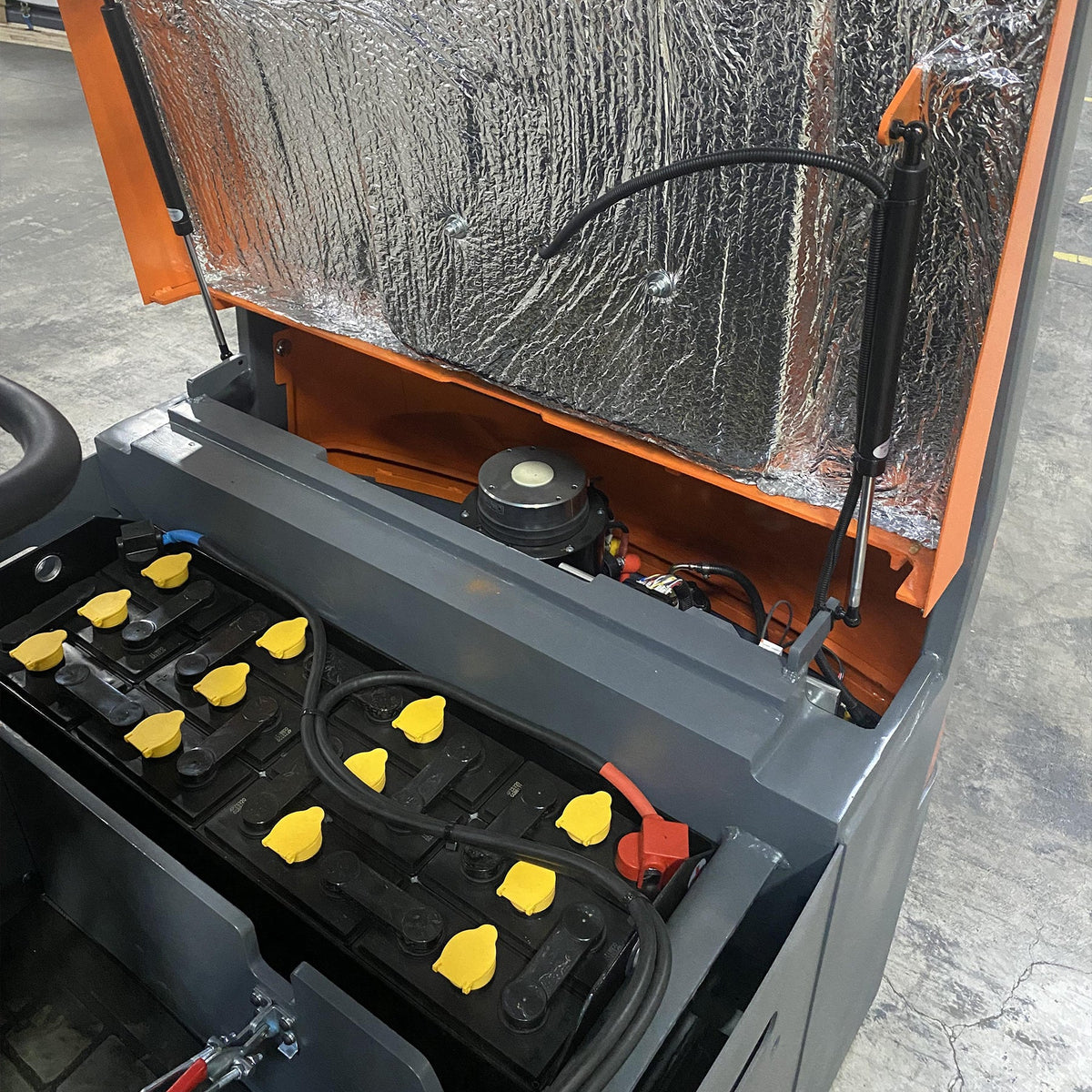

- Side-way moving lead acid battery 24V/320Ah
- Charger 24V/40A, plugs into single-phase 110V power outlets
- LED working lights
- Comfortable seat with safety belt and handrail

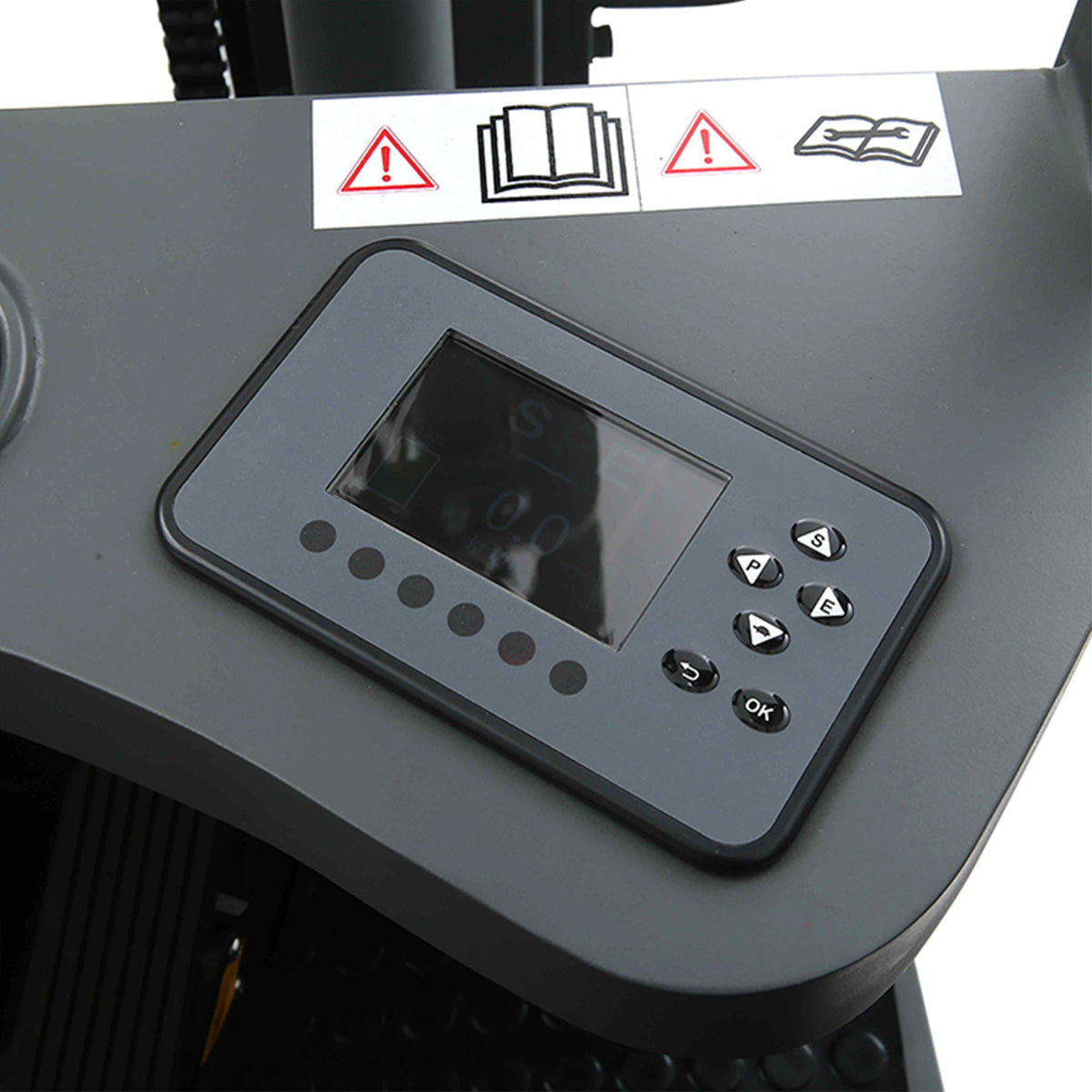

- Multi-Function display with using, battery status, fault code, and forklift running information
- Elastic rubber wheels with good shock proof and low noise

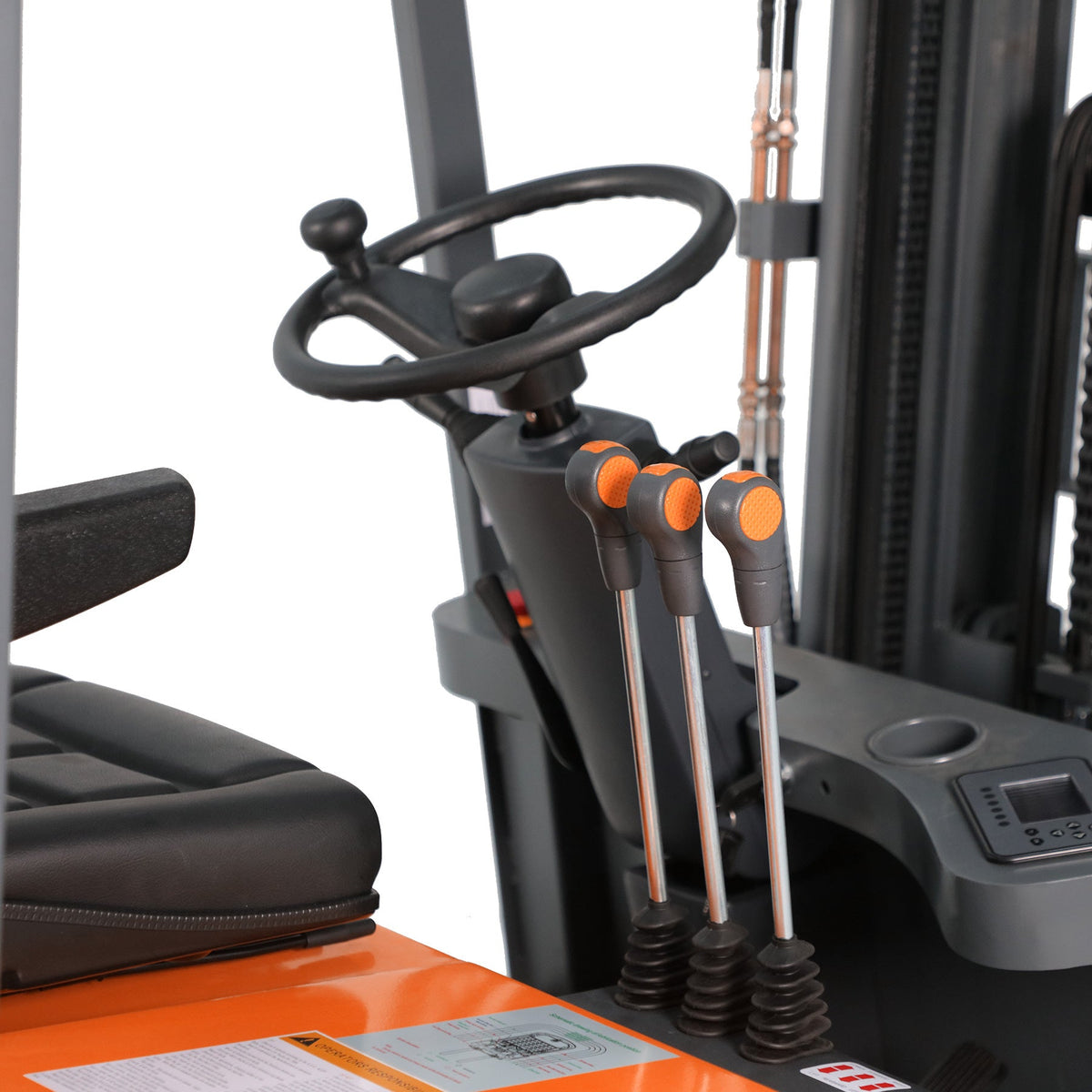

- 3-way hydraulic control valve
- High gradeability up to 10% with full laden
- Ideal design for operate in the warehouse with narrow aisle.
| Model NO: | A-3041 |
| Operator Type: | Seated |
| Load Capacity | 3,300 lbs |

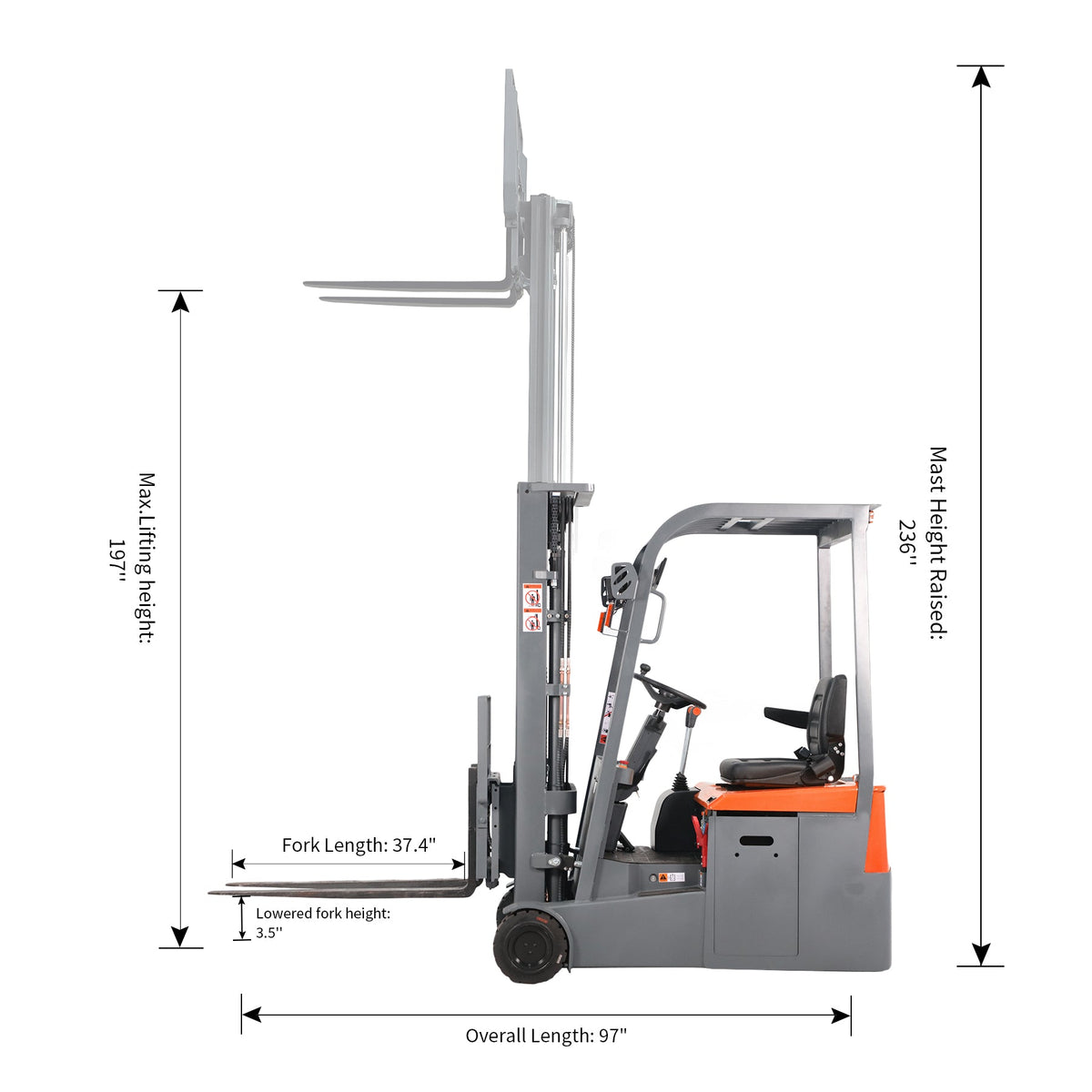

| Max. Lifting Height (Fork) | 197" |
| Load center | 19.7" |
| Cabin Height | 78'' |
| Battery Type | Lead acid |
| Battery Capacity | 24V/320AH |
| Charger ( Input single phase) | 24V/40A built-out |
| Tires Type | Rubber |
| Overall Length | 97" |

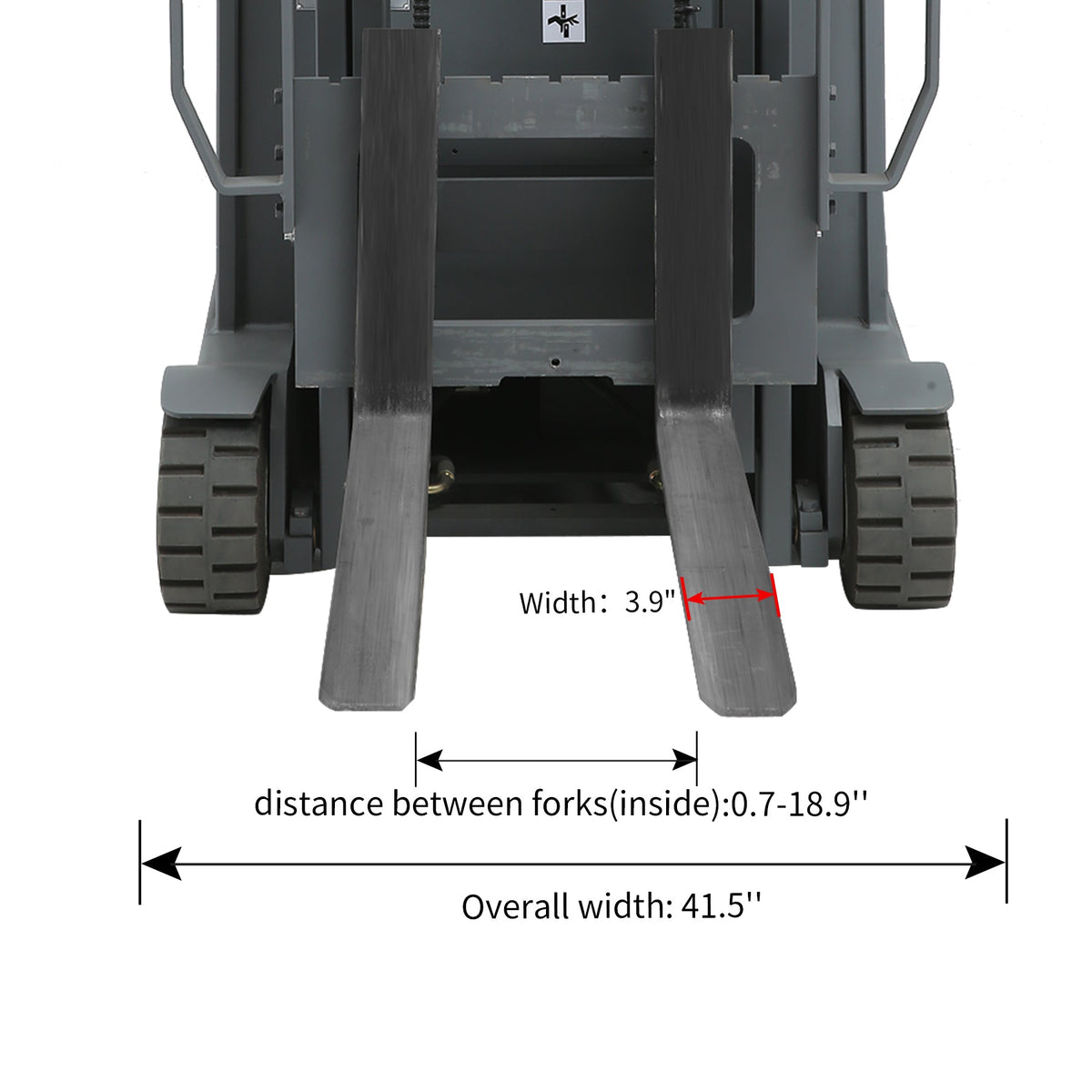

| Overall width | 41.5" |
| Recommended Aisle Width | 124" |
| Turning Radius | 61" |
| Mast Height Lowered | 77.9" |
| Mast Height Raised | 236" |
| Free Lifting height (with / without backrest) | 52"/66" |
| Mast Tilt Degree (forward/backward) | 3° /6 ° |
| Fork Dimension (Thickness/Width/Length) | 1.3" /3.9"/ 37.4" |
| Side Shifter |
Left and right reach distance 2''
|
| Travel Speed(laden/unladen) | 4.3 / 4.3mph |
| Lifting Speed(laden/unladen) | 3.9 / 5.9 inch/s |
| Lowering Speed(laden/unladen) | 15 /15 inch/s |
| Temperature range of working environment | 50˚F ˜ 104˚F |
