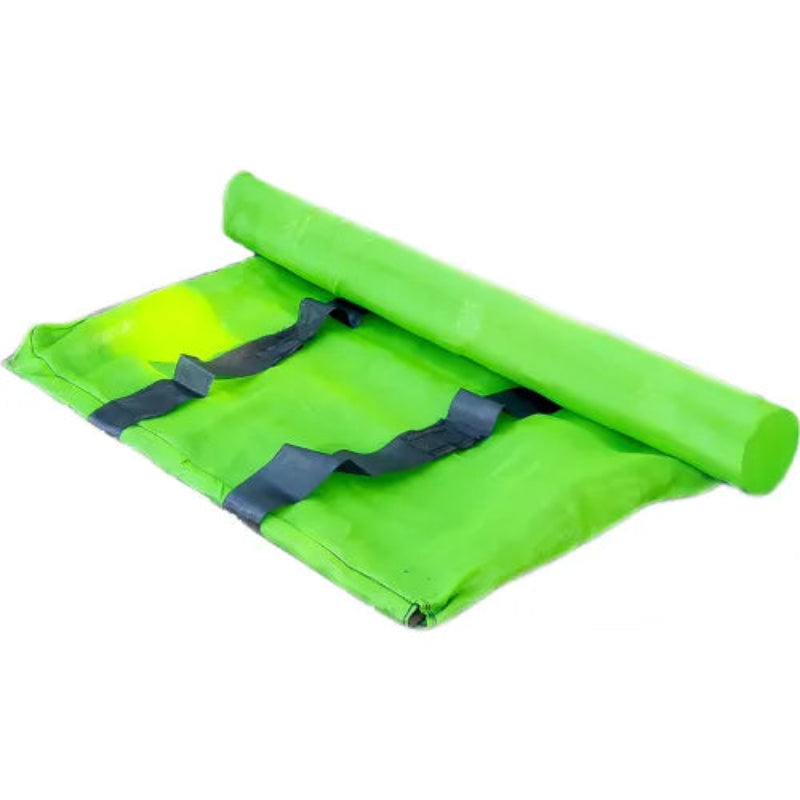

The UltraTech 9860 Grate Guard, Sediment Model is a high-flow curb-style stormwater inlet protection device designed for 24" x 36" flat grate catch basins. It slides directly onto the storm drain grate and uses heavy-duty hook-and-loop fasteners to secure a high-flow woven sediment filter so that cleaning and maintenance can be performed at street level without removing the grate. Configured as a sediment-only, curb-style model with no overflow ports, it provides controlled sediment capture while maintaining stormwater flow at curb-inlet drainage points.
- 24" x 36" Grate Coverage – Sized to fit 24" x 36" (610 x 914 mm) storm drain grates, providing full curb-style coverage for sediment and debris control at flat grate catch basins.
- Curb-Style with 44" Deflector – Curb-side extension with a 44" curb deflector (per product configuration) intercepts runoff along the curb line and directs flow into the filter area for improved capture efficiency.
- High-Flow Sediment-Only Design – High-flow woven filtration media allows stormwater to pass through while capturing sediment, silt, and debris, with no integrated oil-absorbent media and no overflow ports.

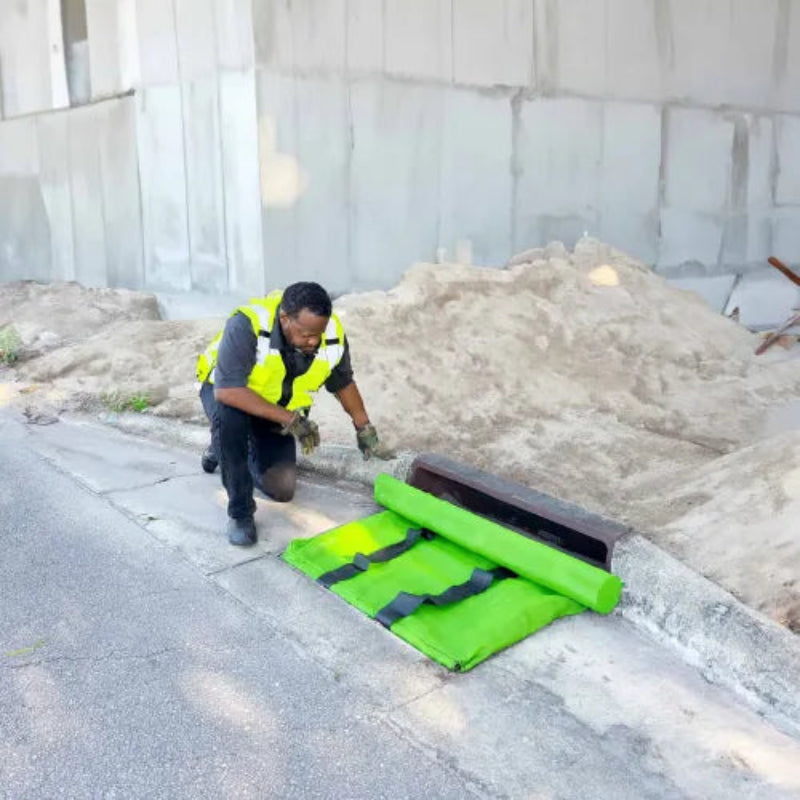

- Hook-and-Loop Grate Attachment – Slides onto the storm drain grate and is secured with heavy-duty hook-and-loop fasteners, enabling cleaning at street level with a broom or shovel without grate removal.
- Durable, Reusable Construction – Manufactured from high-flow woven polypropylene stormwater fabric with a 2 lb (0.9 kg) weight, engineered for repeated cleaning and reuse in stormwater BMP programs.
Product Specifications:
| Model Number | 9860 |
| Product Type | Grate Guard – Sediment Only Model, High Flow, Curb-Style, No Overflows |
| Dimensions | 24" L x 36" W x 4" H (610 x 914 x 102 mm) |
| Curb Deflector Length | 44" (1,118 mm) Curb Deflector (per product title configuration) |
| Grate Compatibility | For use with flat grate catch basins and curb-inlet style storm drains sized 24" x 36" |
| Material | High-flow woven polypropylene stormwater filtration fabric with hook-and-loop closure system |
| Filtration Type | Sediment, silt, and debris control (sediment-only configuration) |
| Flow Capacity | High-flow design for stormwater runoff; no overflow ports |
| Installation Method | Slides over storm drain grate and secures with heavy-duty hook-and-loop fasteners |
| Maintenance | Sediment and debris removed at street level using broom or shovel; unit is reusable and cleanable |
| Weight | 2 lbs (0.9 kg) |
| Compliance | Helps support NPDES, 40 CFR 122.26 (1999) and TMDL stormwater management requirements when used as part of BMPs |
| Color | Green (high-visibility stormwater fabric) |
| Country of Origin | Not specified by manufacturer (verify with purchasing documentation if required) |
| Brand | UltraTech International |
