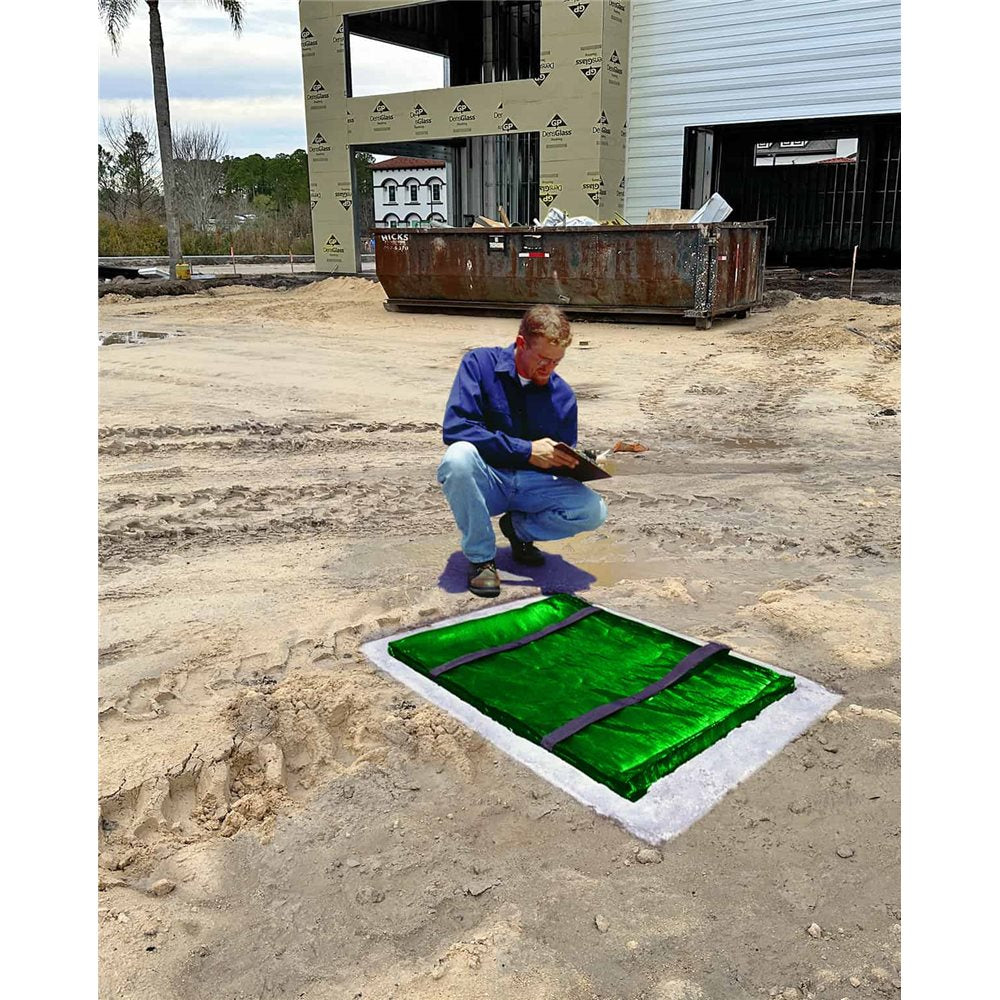

The UltraTech 9855 Grate Guard is a sediment-only, high-flow stormwater inlet protection insert designed for 24" x 40" flat storm drain grates. It slides onto the storm drain’s grate and uses heavy-duty hook-and-loop fasteners to secure a high-flow woven filter that captures sediment, silt, and debris while allowing runoff to pass through. Once installed, accumulated material can be removed from street level with a broom, flat shovel, or similar tools, reducing the need to lift or remove the grate during maintenance.
- 24" x 40" Inlet Coverage – Sized to fit 24" x 40" (610 x 1,016 mm) flat storm drain grates, providing full coverage for sediment and debris control at catch basin inlets.
- Sediment-Only High-Flow Design – High-flow woven polypropylene filtration media captures sediment, silt, and debris while maintaining drainage performance in a sediment-only, no-overflow configuration.
- Hook-and-Loop Grate Attachment – Slides onto the storm drain grate and uses heavy-duty hook-and-loop fasteners to keep the unit closed and secured around the grate during operation.
- Street-Level Maintenance Access – Sediment, dirt, and silt are removed from the surface with a broom, flat shovel, or similar tool, allowing cleanout from street level without removing the grating.
- Durable, Reusable Construction – Manufactured from durable, hi-vis woven polypropylene with integrated lifting straps and a 2 lb (0.9 kg) unit weight, designed for repeated cleaning and reuse in stormwater BMP programs.
Product Specifications:
| Model Number | 9855 |
| Product Type | Ultra-Grate Guard – 24" x 40", Sediment Only Model, High Flow, No Overflows |
| Dimensions | 24" L x 40" W x 4" H (610 x 1,016 x 102 mm) |
| Grate Compatibility | Flat storm drain / catch basin grates sized 24" x 40" |
| Filter Material | High-flow woven polypropylene stormwater filtration fabric; hi-vis construction |
| Filtration Type | Sediment, silt, and debris control (sediment-only configuration) |
| Flow Capacity | High-flow design; regular-flow spec rated up to 250 gpm/ft² (Ultra-Grate Guard woven fabric) |
| Overflow Design | No overflows – closed high-flow sediment model (per product title configuration) |
| Installation Method | Slides onto storm drain grate and secures with heavy-duty hook-and-loop fasteners; installed to fit catch basin opening |
| For Drain Type | Storm drain / flat grate inlet |
| Substances Filtered | Debris, sediment, silt |
| Weight | 2 lbs (0.9 kg) |
| Series | Ultra-Grate Guard® |
| UPC | |
| Color | High-visibility lime / green |
| Country of Origin | |
| Compliance | Helps support NPDES 40 CFR 122.26 (1999) and TMDL stormwater requirements when used as part of BMPs |
| Warranty | |
| Shipping | |
| Brand | UltraTech International |
