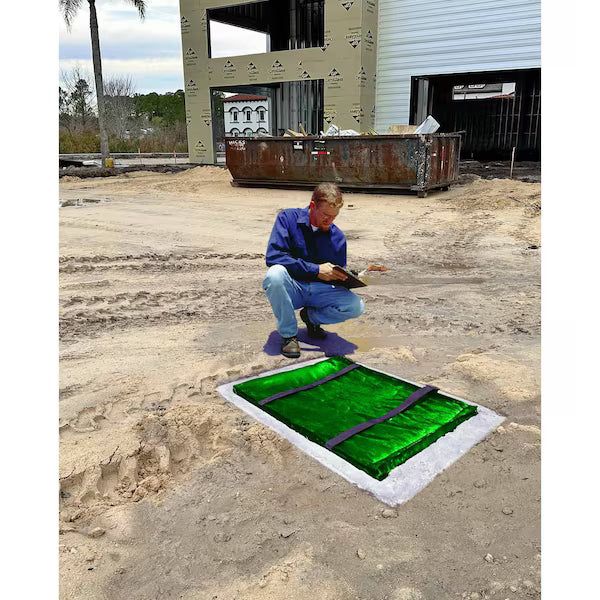

UltraTech 9851 is a high-flow Ultra-Grate Guard sized for 28" x 28" flat catch basin grates, designed to capture sediment and debris while allowing overflow bypass through integrated overflows. It uses a woven high-flow fabric and hook-and-loop attachment, sliding over the grate so pollutants are retained at street level for easier cleanout.
- High-Flow Sediment Model with Overflows – Configured as a “Sediment Only” high-flow grate guard with overflow features, allowing stormwater to bypass through designated overflow areas during heavy rain while retaining sediment and debris.
- 28" x 28" x 4" Flat Grate Coverage – Sized to fit 28" x 28" (711 x 711 mm) flat grate catch basins, with a 4" (102 mm) profile to provide sediment storage volume at the inlet.
- High-Flow Woven Fabric Construction – Manufactured from high-flow woven geotextile (polypropylene) that allows runoff to pass through while blocking sediment and fines, in line with UltraTech’s high-flow grate guard fabric specifications.
- Hook-and-Loop Grate Attachment – Slides onto the storm drain grate and uses heavy-duty hook-and-loop fasteners to remain secured during operation, allowing the unit to be removed and reinstalled without tools.
- Street-Level Sediment Maintenance – Keeps captured sediment, silt, and debris at street level so they can be removed with a broom or flat shovel, reducing the need to lift or remove the grate during routine cleanouts.
Product Specifications:
| Model Number | 9851 |
| Product Type | Ultra-Grate Guard – Sediment Only, High Flow with Overflows |
| Dimensions | 28" L x 28" W x 4" H (711.2 x 711.2 x 101.6 mm) |
| Grate/Drain Compatibility | Flat grate catch basins – 28" x 28" opening (nominal) |
| Weight | 2 lbs (0.9 kg) |
| Material | High-Flow Woven Geotextile (Polypropylene) |
| Flow Classification | High Flow with Overflows |
| Sediment/Oil Control | Sediment Only Model – captures sediment, silt, and debris; allows runoff to flow through |
| Overflow Features | Integrated overflow provisions for bypass flow during high-intensity rainfall events |
| Attachment Method | Slides onto grate with heavy-duty hook-and-loop fasteners |
| Color | Hi-Vis Green |
| Country of Origin | Guatemala |
| Brand | UltraTech International |
| UPC | 808416102130 |
| Compliance | Helps support compliance with NPDES 40 CFR 122.26 and TMDL stormwater requirements when used as part of a BMP program |
