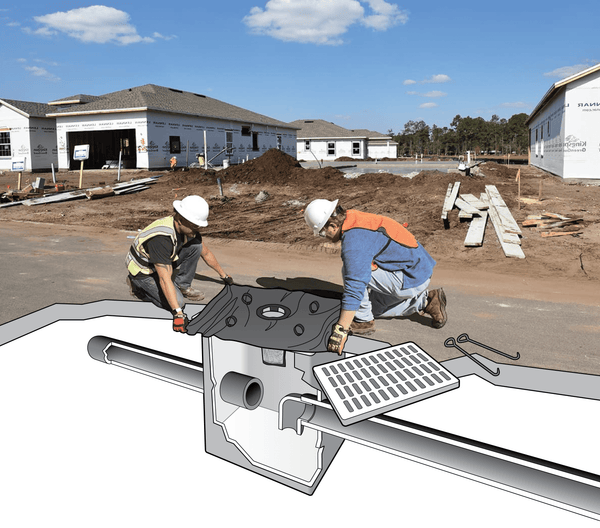

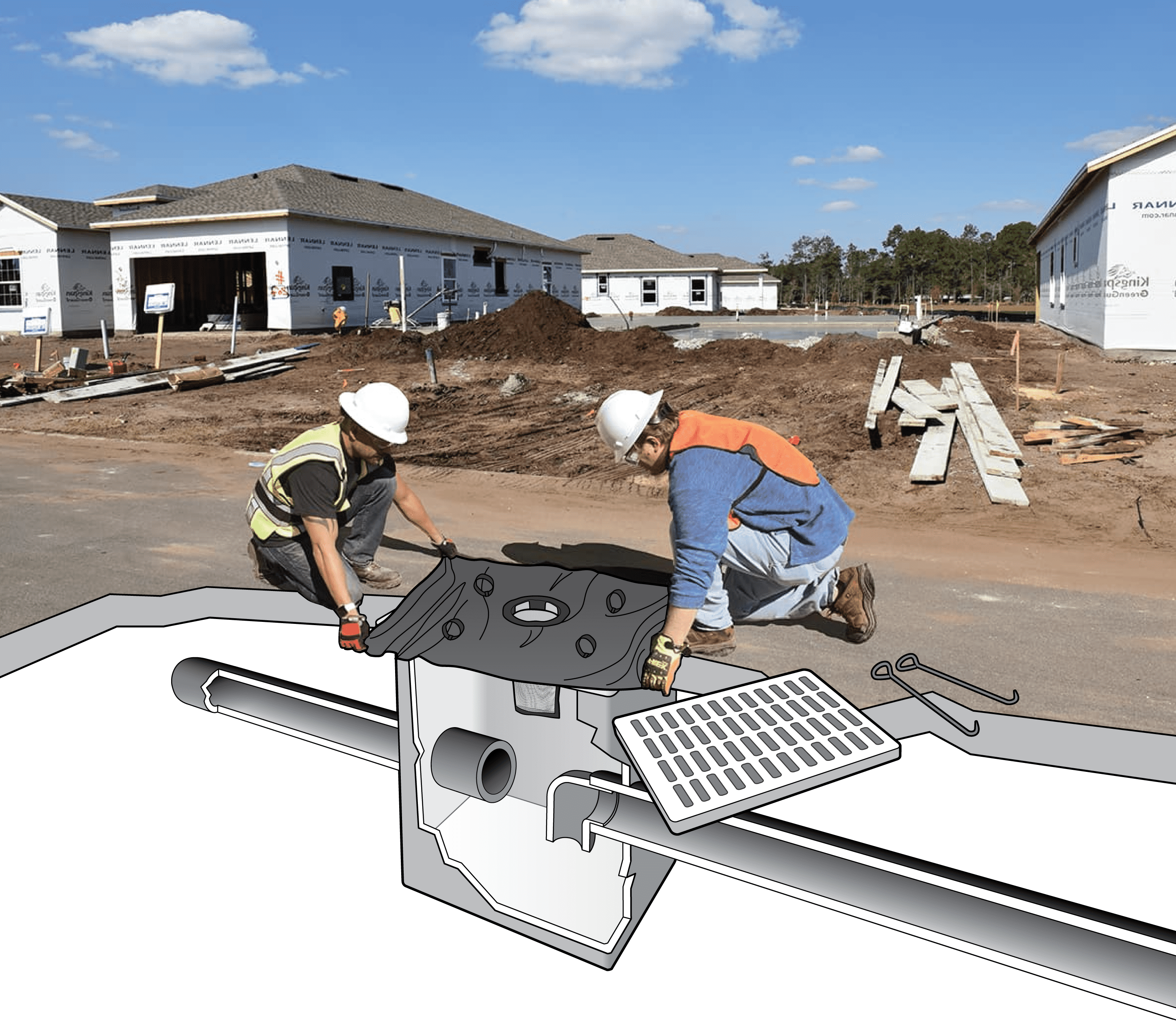

The UltraTech 9846 Ultra-Drain Guard Reusable Model is a catch basin insert designed to capture sediment, debris, and trash before they enter stormwater systems. Constructed from durable high-visibility woven polypropylene, the reusable filter features a deep collection pocket capable of holding up to 500 lbs. of accumulated material. Eight integrated overflow ports help maintain drainage capacity during heavy rainfall while allowing the unit to be cleaned and reused for multiple service cycles.
- Reusable Catch Basin Filter – Designed for repeated use and can be cleaned and reinstalled during ongoing stormwater management programs
- 500 lb Sediment Capacity – Deep collection pocket captures and retains up to 500 lbs. (227 kg) of sediment, dirt, sand, debris, and trash
- Regular Flow Fabric – Woven polypropylene construction provides effective sediment filtration while maintaining stormwater flow through the system
- Eight Overflow Ports – Integrated overflow ports help reduce ponding and maintain drainage performance during high-flow rain events
- Durable High-Visibility Construction – Heavy-duty woven polypropylene fabric withstands repeated maintenance and cleaning operations
Product Specifications:
| Model Number | 9846 |
| Product Type | Ultra-Drain Guard, Reusable Model |
| Dimensions | 38" L x 38" W x 36" D (965 x 965 x 914 mm) |
| Flow Type | Regular Flow |
| Overflow Ports | 8 |
| Sediment Capacity | 500 lbs. (227 kg) |
| Pocket Depth | 36" (914 mm) |
| Material | High-Visibility Woven Polypropylene Fabric |
| Fabric Type | Regular Flow Geotextile |
| Permittivity | 0.5 sec⁻¹ |
| Apparent Opening Size (AOS) | 40 U.S. Sieve |
| Trapezoid Tear Strength | 115 x 90 lbs. |
| Grab Tensile Strength | 355 x 240 lbs. |
| Grab Elongation | 16 x 7% |
| CBR Puncture Strength | 950 lbs. |
| Reusable | Yes |
| Substances Filtered | Sediment, Dirt, Sand, Debris, Trash |
| Hydrocarbon Filtration | No |
| Weight | 1 lb. (0.5 kg) |
| Color | Green |
| Compliance | NPDES 40 CFR 122.26 (1999), TMDL |
| UPC | 808416102109 |
| Country of Origin | Guatemala |
| Brand | UltraTech International |
