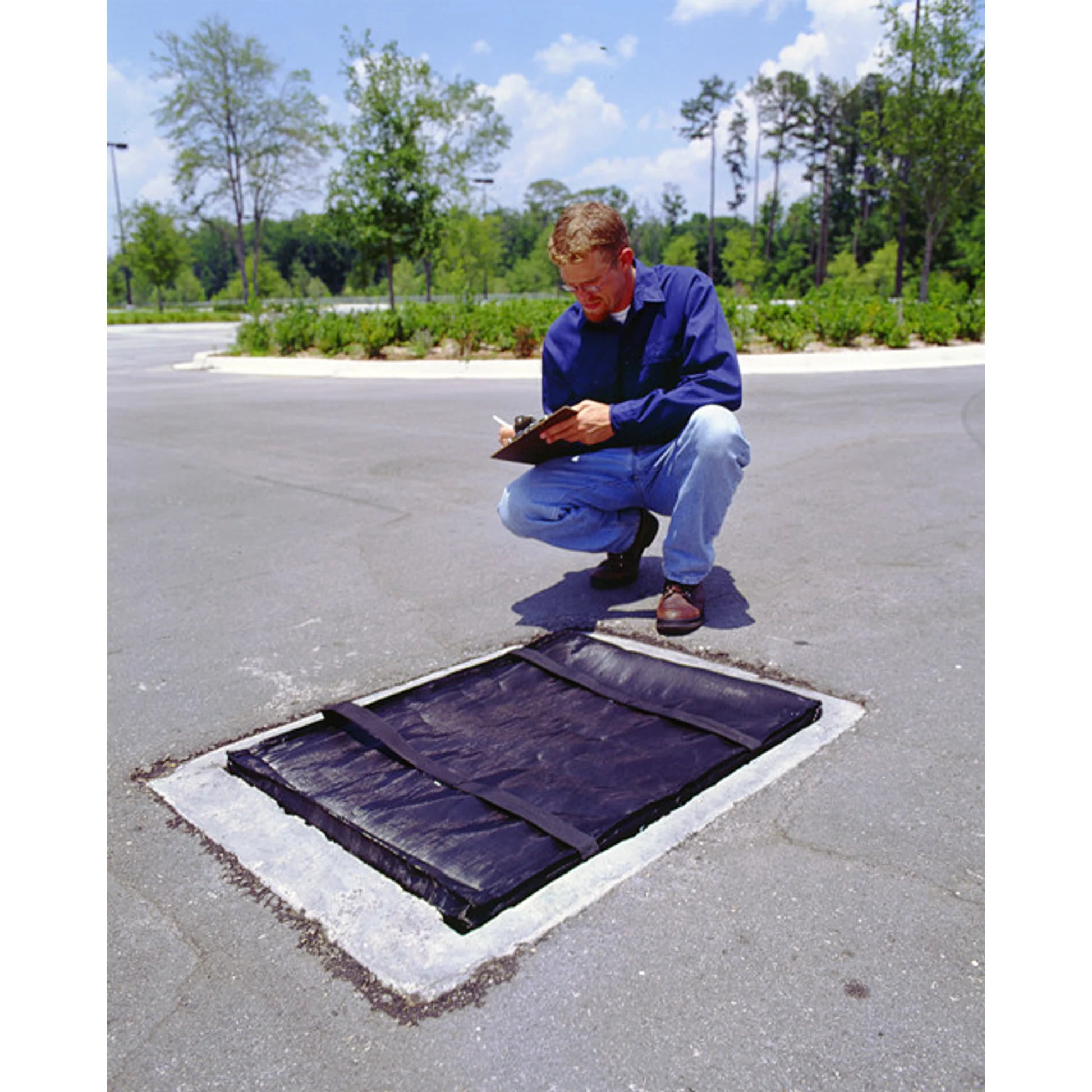

The UltraTech 9277-SED Grate Guard is a sediment-only inlet protection device for flat grate catch basins, using a high-flow woven polypropylene filter panel in a 24" x 40" x 4" configuration. It captures sediment, silt, and debris at street level while allowing stormwater to pass through the fabric and into the catch basin. The unit slides over the grate and is secured with hook-and-loop closure, so accumulated material can be cleaned with standard tools without lifting the grate.
- Sediment-Only Inlet Protection – Configured as a sediment-only model to capture sediment, silt, and debris at the inlet while allowing stormwater to flow through to the catch basin
- 24" x 40" x 4" Catch Basin Fit – Sized for 24" length x 40" width x 4" height flat grate catch basins, providing a defined containment volume for captured material at street level
- High-Flow Woven Polypropylene Fabric – Manufactured from high-flow woven polypropylene fabric with engineered tensile strength and flow performance for sediment control at inlets

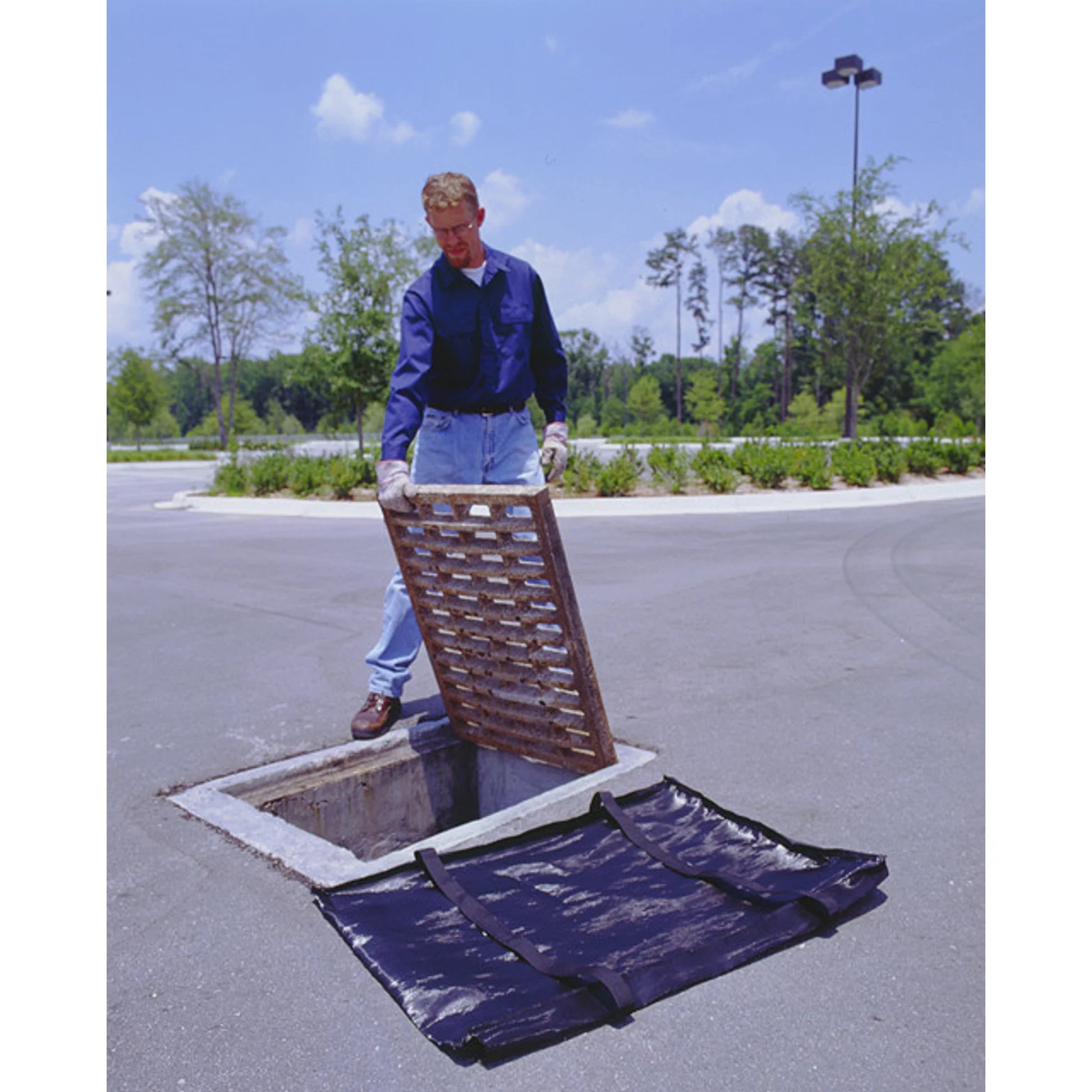

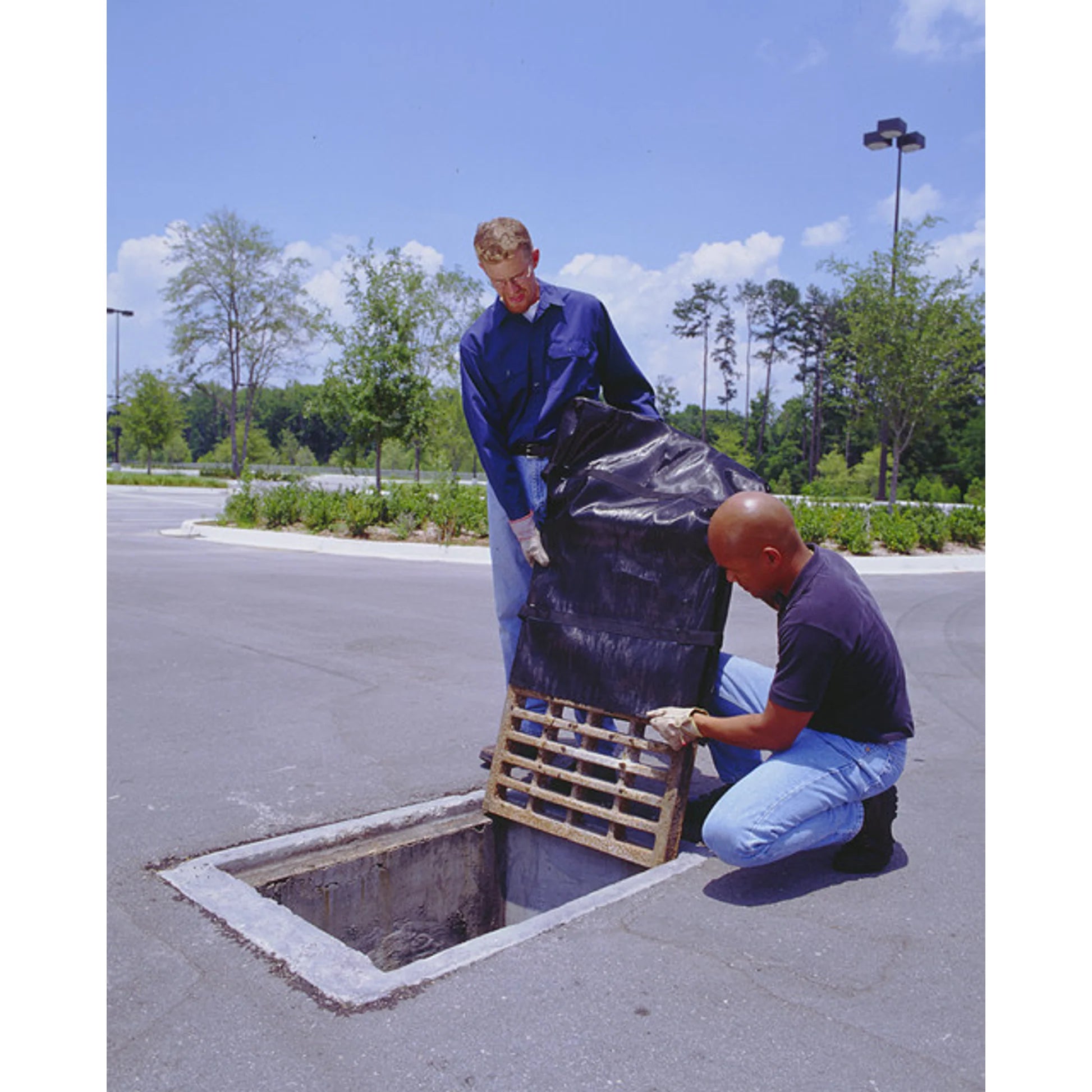

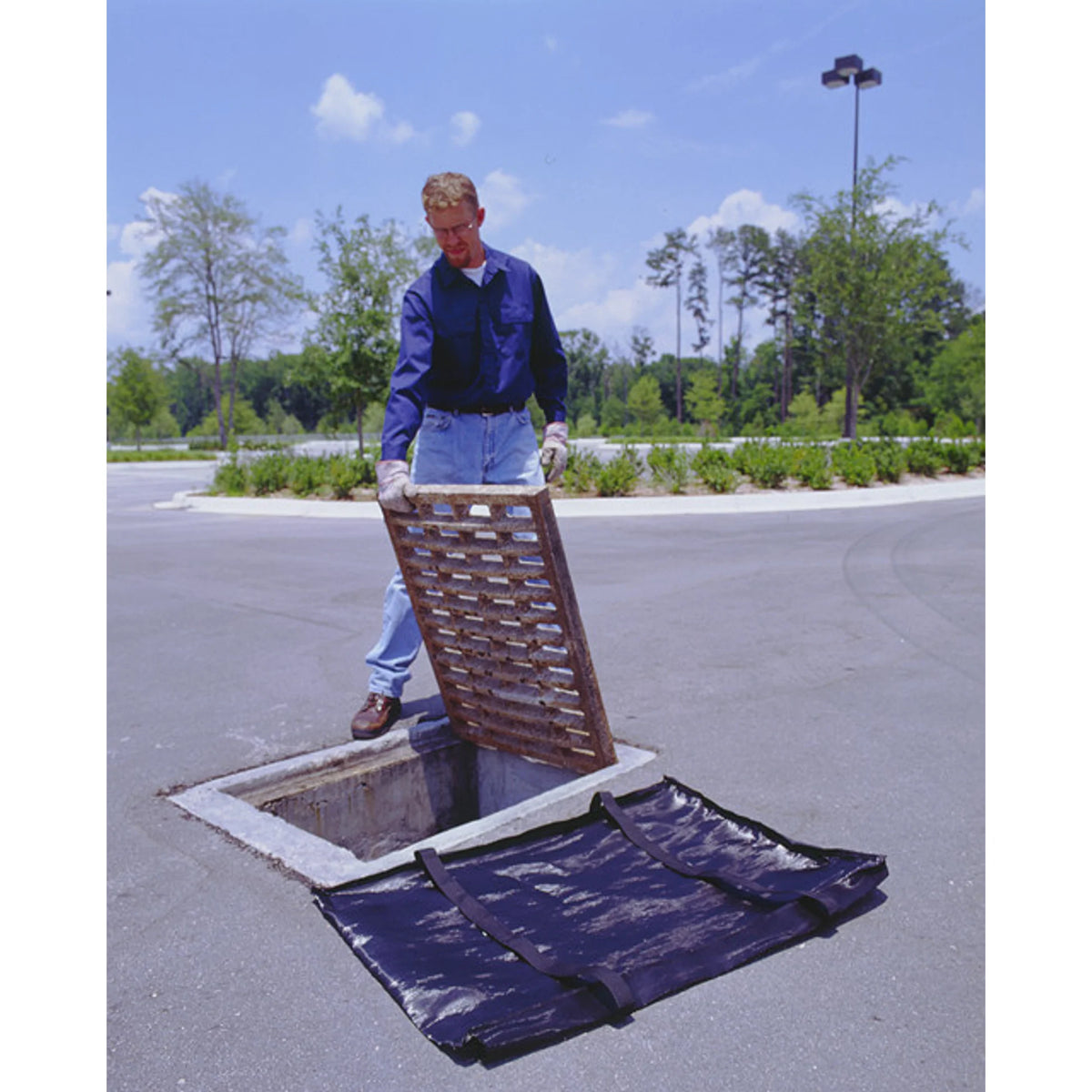

- Slide-On Hook-and-Loop Attachment – Installs by sliding onto the storm drain grate and closing a hook-and-loop fastened flap, with integrated lifting straps to move the grate and guard assembly
- Stormwater Program Support – Helps support compliance with stormwater regulations such as NPDES 40 CFR 122.26 when used as part of a best management practice (BMP) plan
Product Specifications:
| Model Number | 9277-SED |
| Product Type | Ultra-Grate Guard – Sediment Only Model |
| Dimensions | 24" L x 40" W x 4" H (610 x 1,016 x 102 mm) |
| Grate/Drain Compatibility | Flat grate catch basins – nominal 24" x 40" grate size |
| Weight | 2.0 lbs (0.9 kg) |
| Material | High-flow woven polypropylene fabric |
| Flow Classification | High-flow woven fabric – flow rate per Ultra-Grate Guard high-flow specification |
| Sediment/Oil Control | Sediment only – captures sediment, silt, and debris; allows runoff to pass through |
| Overflow Features | Street-level filter panel; no separate overflow bypass openings |
| Attachment Method | Slides onto grate; flap closure with heavy-duty hook-and-loop fasteners and lifting straps |
| Color | Black |
| Country of Origin | United States (subject to change) |
| Brand | UltraTech International |
| UPC | 808416005608 |
| Compliance | Supports NPDES 40 CFR 122.26 stormwater requirements when used as a BMP |
| Warranty | |
| Shipping | Shipping weight 2.5 lbs (1.1 kg); ships as individual unit |
