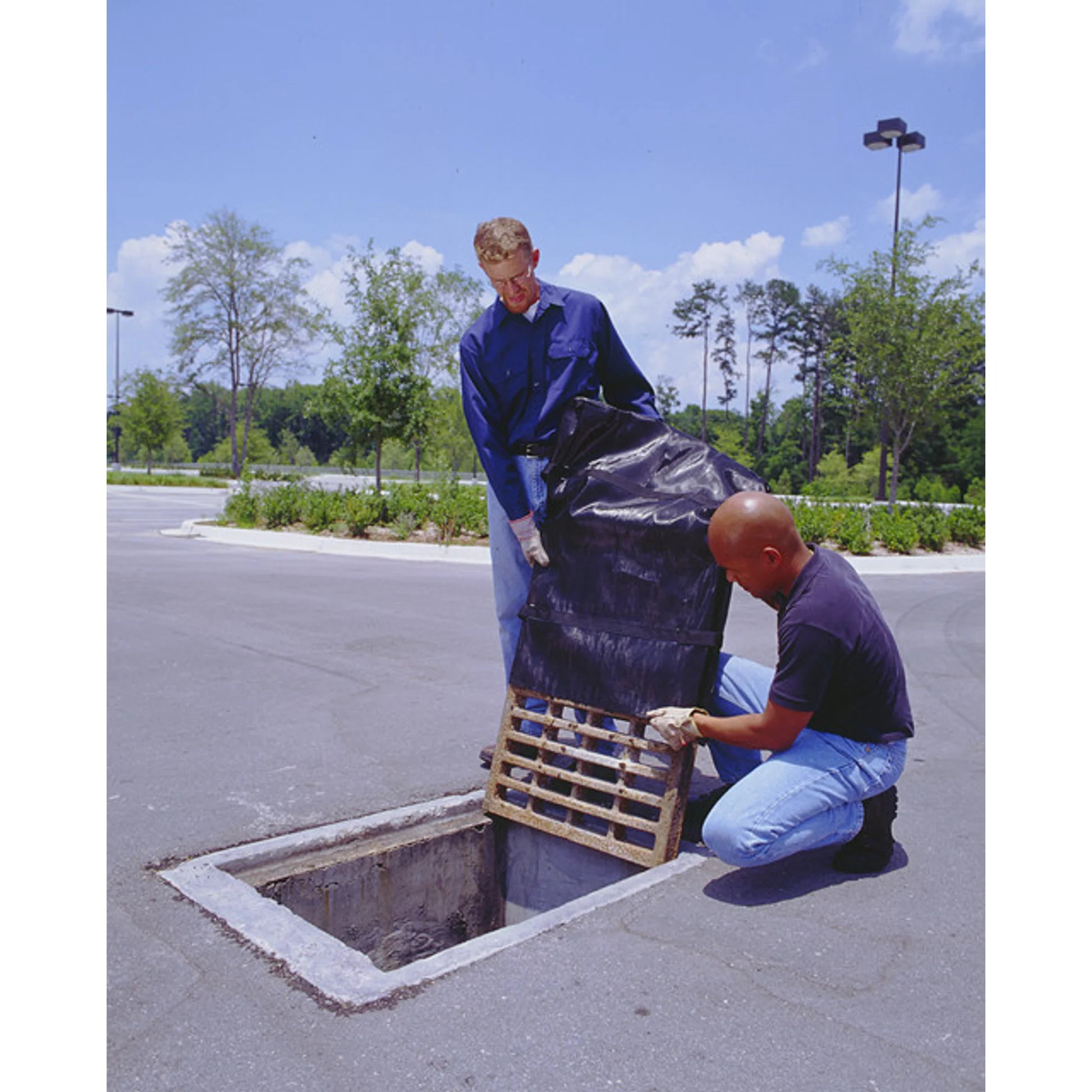

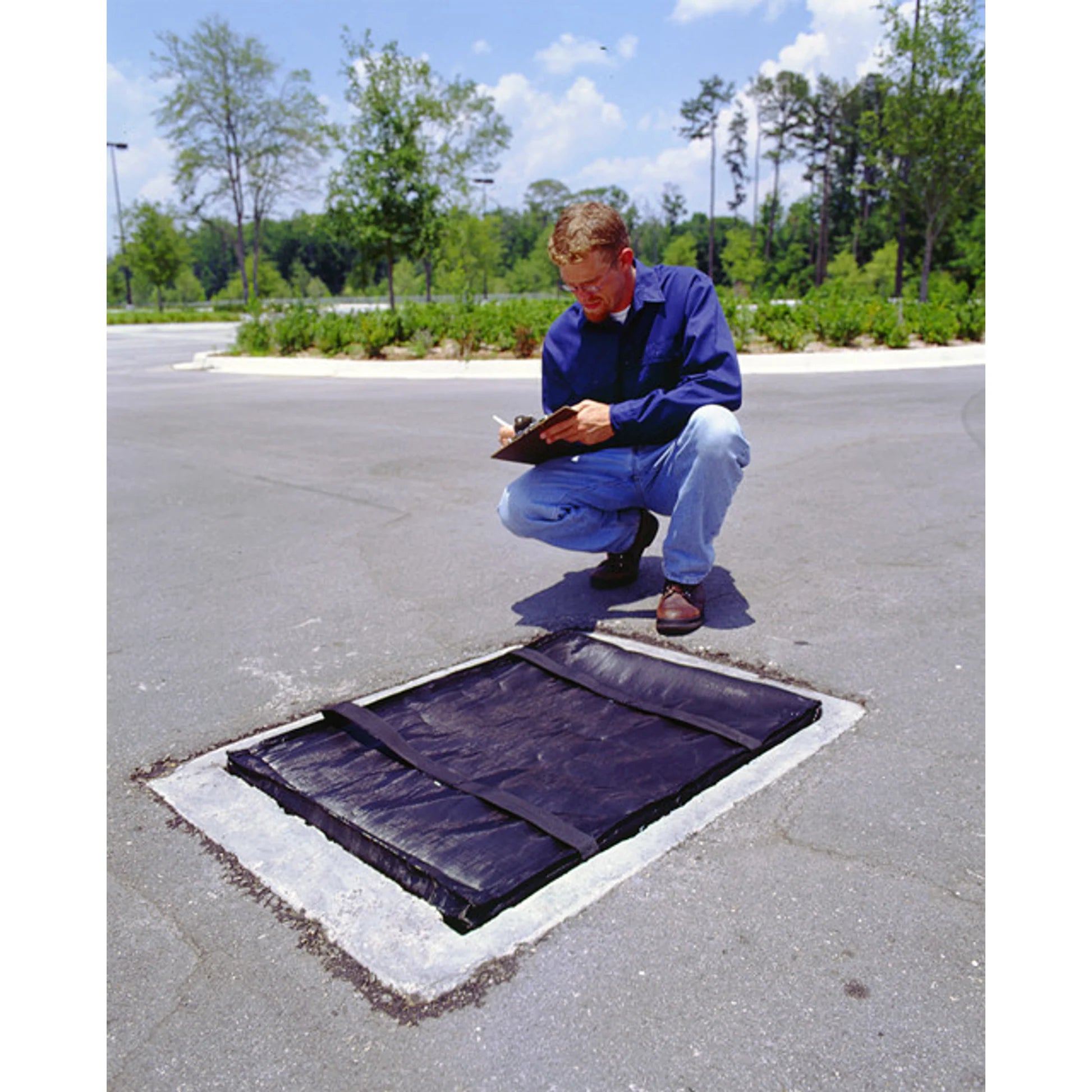

The UltraTech 9274-SED Grate Guard is a sediment-only inlet protection device for flat grate catch basins, built with a high-flow woven polypropylene filter panel in a 28" x 28" x 4" format. It captures sediment, silt, and debris at street level while allowing runoff to pass through the fabric and into the catch basin. The unit installs by sliding over the grate and fastening with hook-and-loop closure, so captured material can be cleaned with standard tools without lifting the grate.
- Sediment-Only Inlet Protection – Configured as a sediment-only model to capture sediment, silt, and debris at the inlet while allowing stormwater to flow through to the catch basin
- 28" x 28" x 4" Catch Basin Fit – Sized for 28" length x 28" width x 4" height flat grate catch basins, providing a defined storage volume for accumulated material at street level
- High-Flow Polypropylene Filter Material – Uses a woven polypropylene filter material that supports high flow while retaining sediment and fines in front of the grate

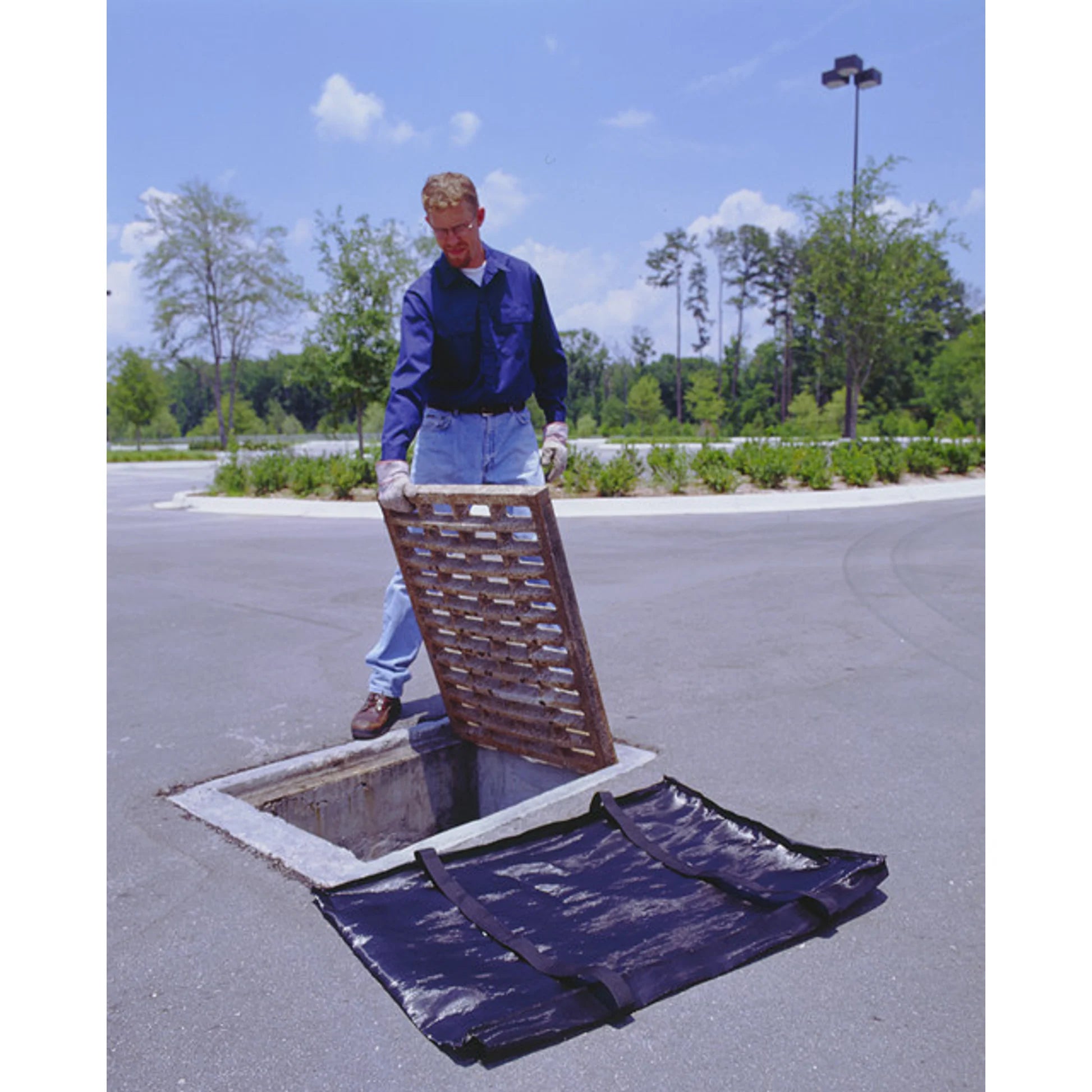

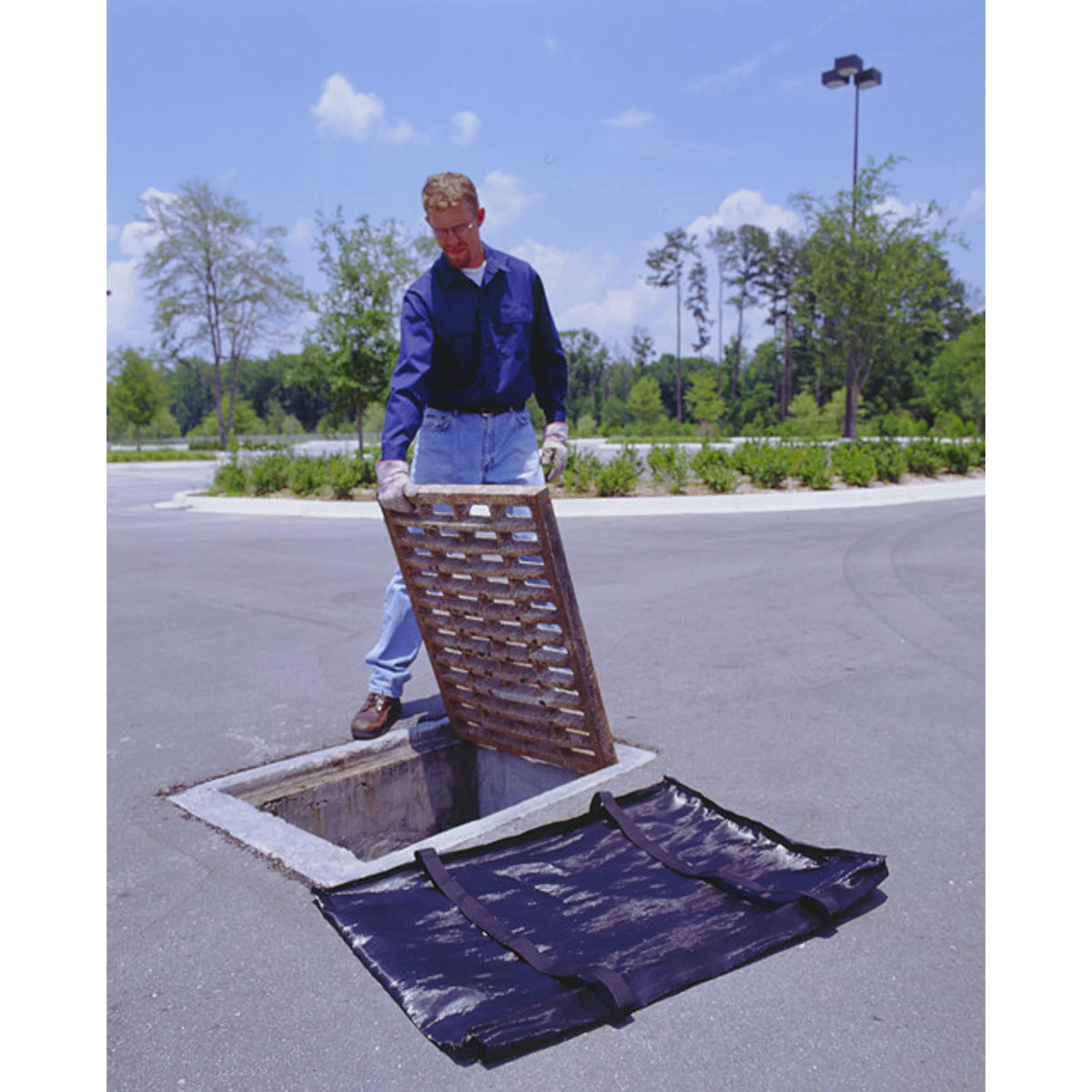

- Slide-On Hook-and-Loop Attachment – Installs by sliding onto the grate and closing a hook-and-loop fastened flap, with no retaining rods required and no need to modify the grate
- Rated Flow and Standards Support – Provides a maximum flow rate of approximately 192 gpm through the filter and helps support NPDES 40 CFR 122.26 stormwater program requirements when used as part of a BMP plan
Product Specifications:
| Model Number | 9274-SED |
| Product Type | Ultra-Grate Guard – Sediment Only Model |
| Dimensions | 28" L x 28" W x 4" H (711 x 711 x 102 mm) |
| Grate/Drain Compatibility | Flat grate catch basins – nominal 28" x 28" grate size |
| Weight | 2.0 lbs (0.9 kg) |
| Material | High-flow woven polypropylene filter material |
| Flow Classification | High-flow woven fabric – maximum flow 192 gpm |
| Sediment/Oil Control | Sediment only – captures sediment, silt, and debris; allows runoff to pass through |
| Overflow Features | Street-level filter panel; no separate overflow bypass openings |
| Attachment Method | Slides onto grate; flap closure with heavy-duty hook-and-loop fasteners |
| Color | Black |
| Country of Origin | United States (subject to change) |
| Brand | UltraTech International |
| UPC | 808416092622 |
| Compliance | Supports NPDES 40 CFR 122.26 stormwater requirements when used as a BMP |
| Warranty | |
| Shipping | Shipping weight 2.5 lbs (1.1 kg); ships as individual unit |
