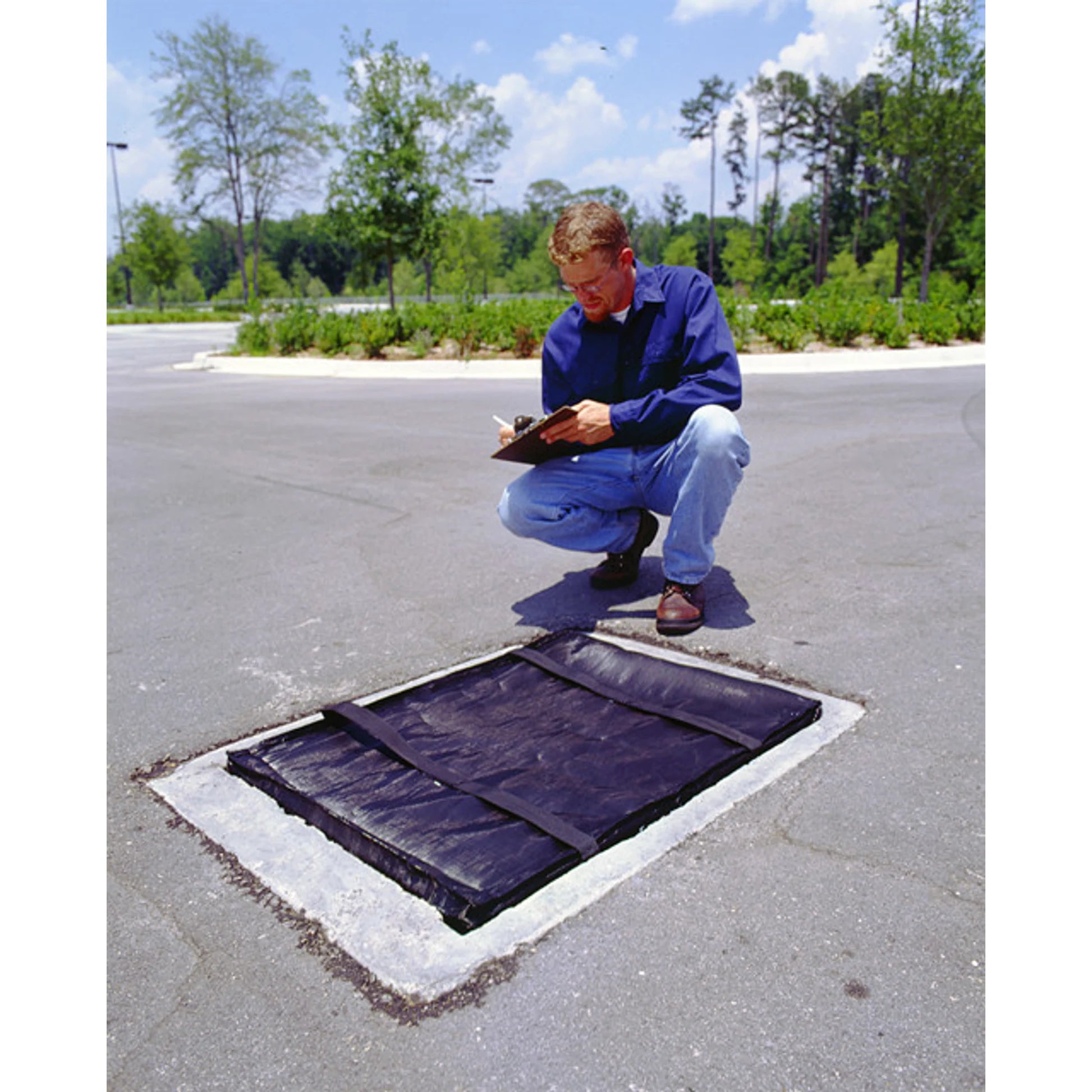

The UltraTech 9273-SED Grate Guard is a sediment-only inlet protection device for flat grate catch basins, built around a high-flow woven polypropylene filter panel in a 24" x 24" x 4" format. It captures sediment, silt, and debris at street level while allowing runoff to pass through the fabric and into the catch basin. The unit slides over the grate and is secured with hook-and-loop closure, so captured material can be removed with a broom or flat shovel without lifting or removing the grate.
- Sediment-Only Inlet Protection – Configured as a sediment-only model to capture sediment, silt, and debris at the inlet while allowing stormwater to continue into the drainage system
- 24" x 24" x 4" Catch Basin Fit – Sized for 24" length x 24" width x 4" height flat grate catch basins, providing a defined containment volume for accumulated material at street level
- High-Flow Woven Polypropylene Fabric – Uses a high-flow woven polypropylene fabric panel engineered to allow runoff through while retaining sediment and fines in front of the grate

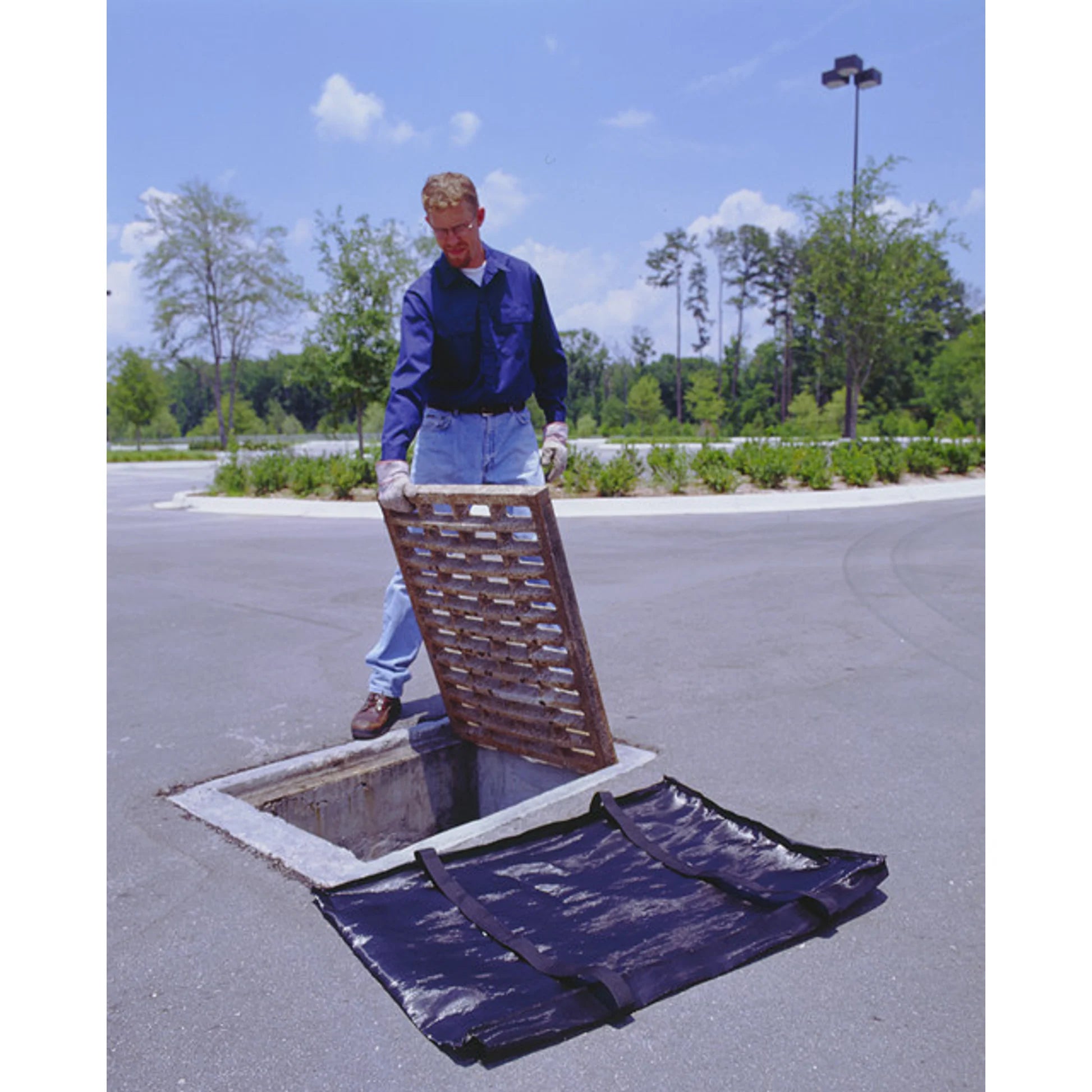

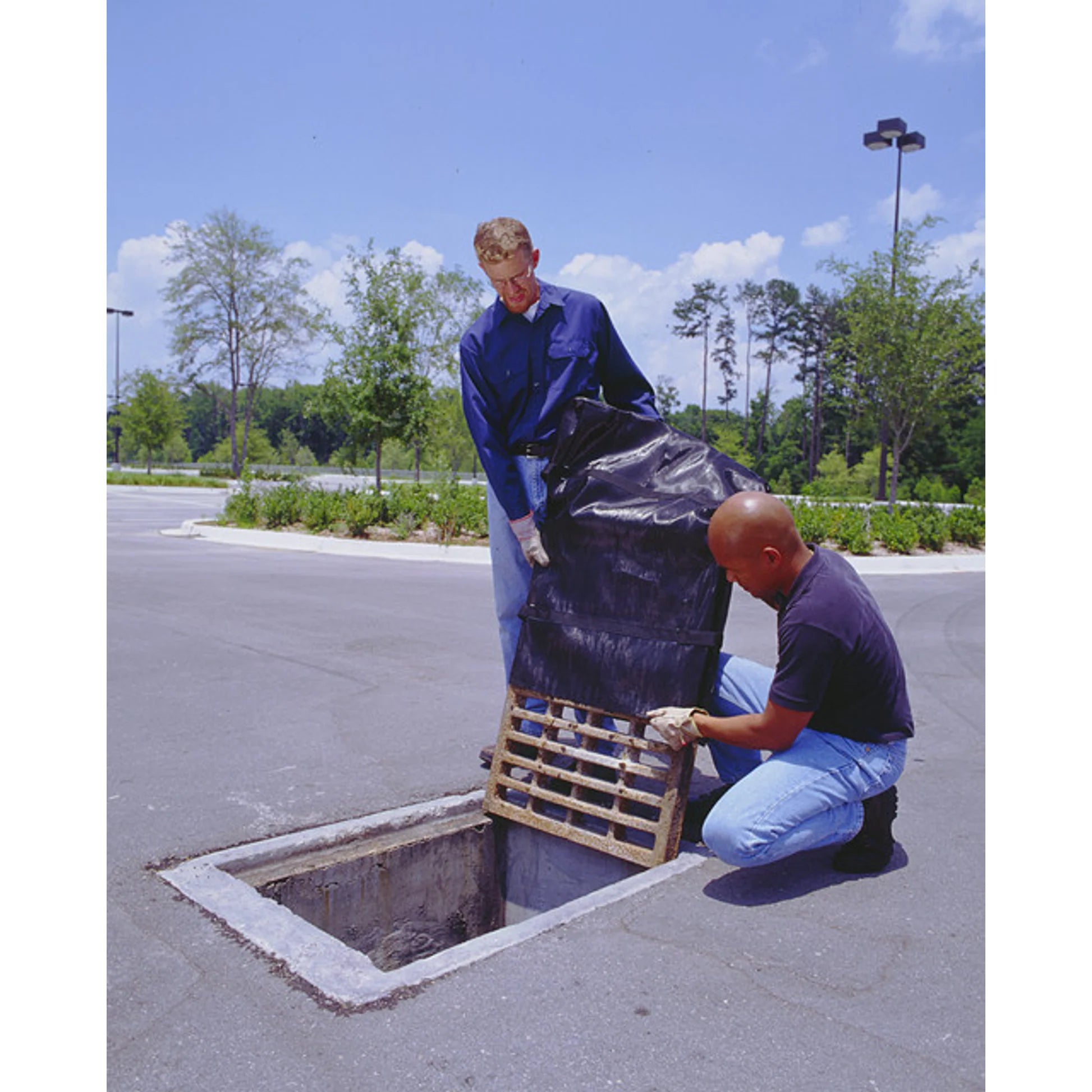

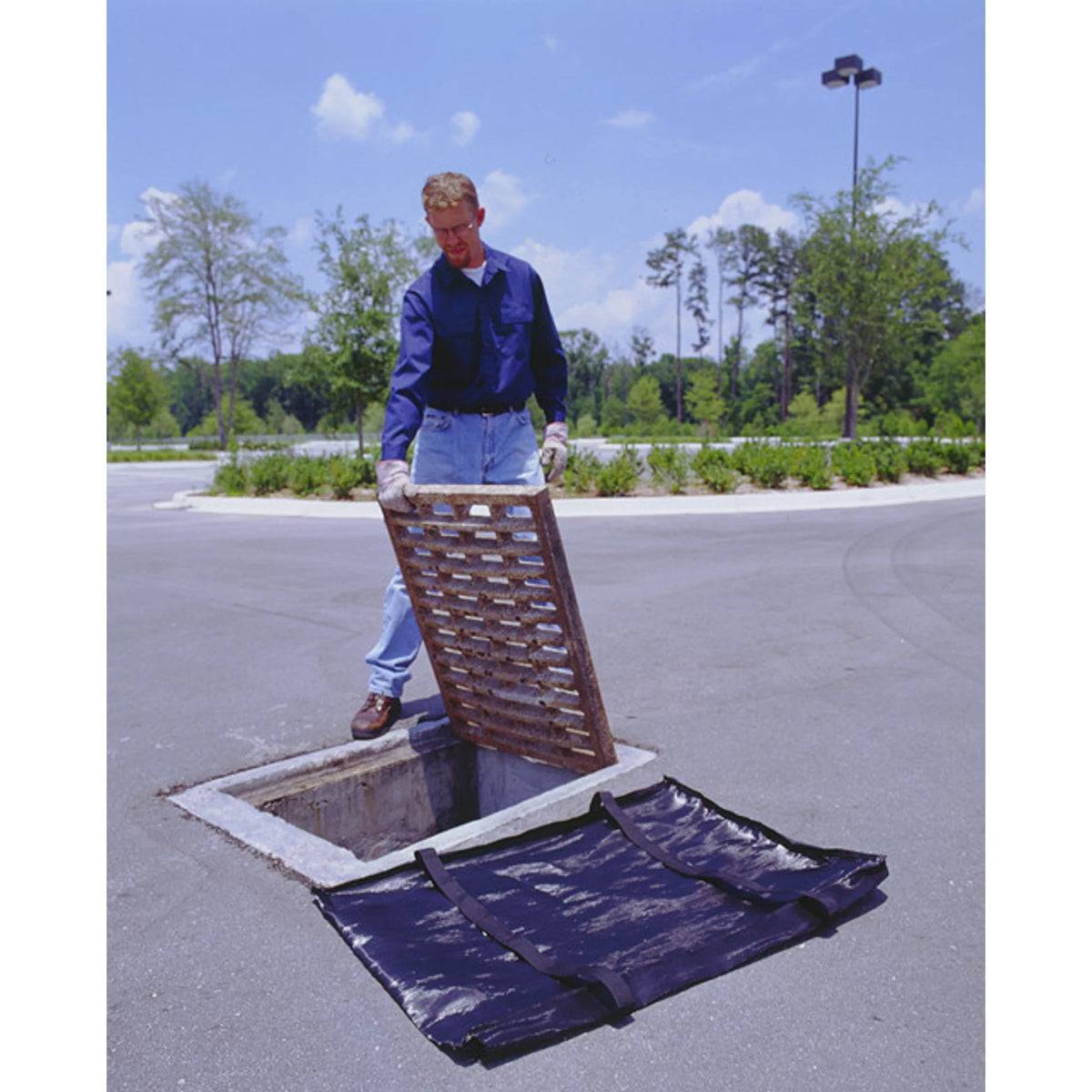

- Slide-On Hook-and-Loop Attachment – Installs by sliding onto the storm drain grate and closing a hook-and-loop fastened flap, with built-in lifting straps to assist in lowering the grate and guard assembly back into place
- Stormwater Program Support – Helps support compliance with NPDES 40 CFR 122.26 and related stormwater regulations when used as part of a best management practice (BMP) plan
Product Specifications:
| Model Number | 9273-SED |
| Product Type | Ultra-Grate Guard – Sediment Only Model |
| Dimensions | 24" L x 24" W x 4" H (610 x 610 x 102 mm) |
| Grate/Drain Compatibility | Flat grate catch basins – nominal 24" x 24" grate size |
| Weight | 2.0 lbs (0.9 kg) |
| Material | High-flow woven polypropylene fabric |
| Flow Classification | High-flow woven fabric – maximum flow 192 gpm |
| Sediment/Oil Control | Sediment only – captures sediment, silt, and debris; allows runoff to pass through |
| Overflow Features | Street-level filter panel; no separate overflow bypass openings |
| Attachment Method | Slides onto grate; flap closure with heavy-duty hook-and-loop fasteners and built-in lifting straps |
| Color | Black |
| Country of Origin | United States (subject to change) |
| Brand | UltraTech International |
| UPC | 808416092677 |
| Compliance | Supports NPDES 40 CFR 122.26 stormwater requirements when used as a BMP |
| Warranty | |
| Shipping | Shipping weight approx. 2.5 lbs (1.1 kg); ships as individual unit |
