The UltraTech 9227 Drain Guard Trash & Debris Model is a catch basin insert designed to capture larger floatable debris and sediment from stormwater runoff before contaminants enter the drainage system. Constructed with a non-woven polypropylene geotextile filter and mesh body, it provides increased water flow while retaining leaves, cigarette butts, paper products, plastic pellets, and other common stormwater pollutants. Designed for quick installation beneath storm drain grates, it supports stormwater management and regulatory compliance programs.
- Designed for Trash and Floatable Debris – Specifically engineered to capture leaves, cigarette butts, paper products, plastic pellets, and other larger debris before entering stormwater systems
- Exceeds 80% Sediment Removal Efficiency – Helps reduce sediment and particulate contamination in runoff through geotextile filtration media

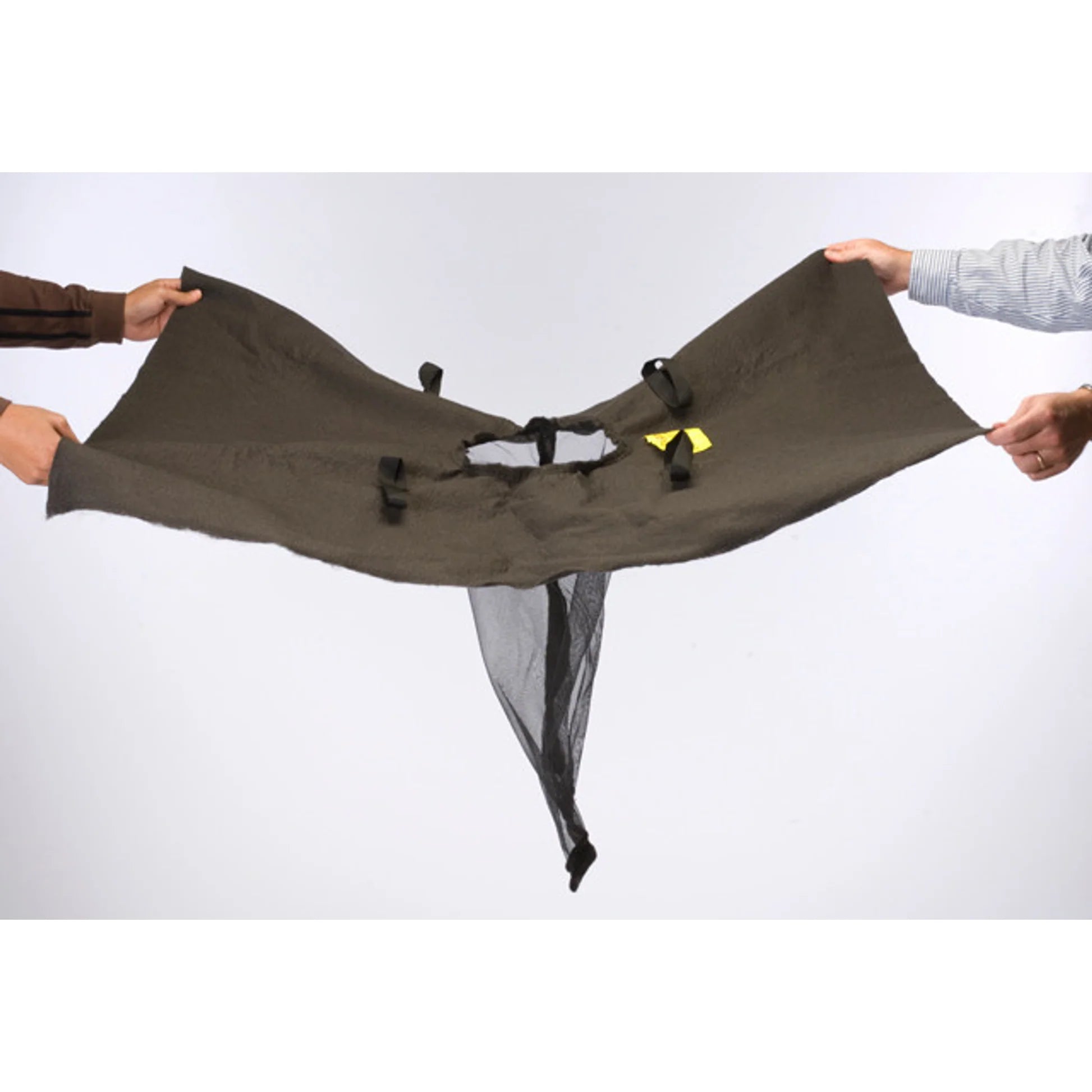

- High-Flow Mesh Construction – Combines non-woven geotextile filtration fabric with a mesh body design to maintain water flow while retaining debris and sediment
- Integrated Overflow Protection – Built-in bypass ports help prevent flooding and ponding during heavy rainfall events while maintaining drainage system performance

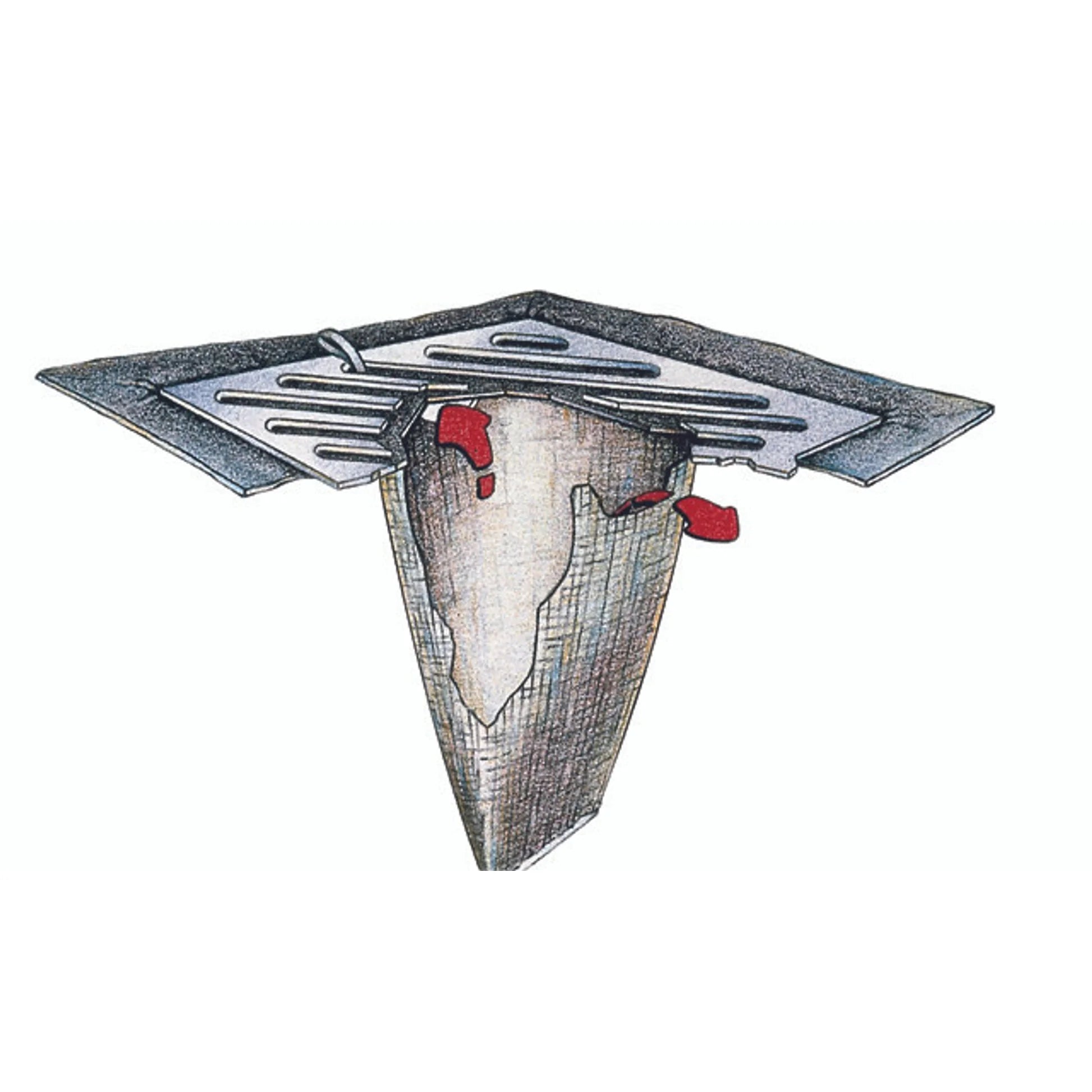

- Simple Under-Grate Installation – Installs by lifting the grate, positioning the Drain Guard over the opening, and lowering the grate back into place without special tools
Product Specifications:
| Model Number | 9227 |
| Product Type | Ultra-Drain Guard® Trash & Debris Model |
| Dimensions | 48" L x 36" W x 18" H (1,219 x 914 x 457 mm) |
| Collection Area | 10" Diameter x 18" Deep (254 x 457 mm) |
| Capacity | 1 cu. ft. (28 L) Before Reaching Bypass Ports |
| Sediment Capture Capacity | 40 lbs. (18 kg) |
| Sediment Removal Efficiency | Exceeds 80% |
| Flow Rate | 90 GPM/ft² (New); Up to 770 GPM Through Overflow Ports |
| Material | Non-Woven Polypropylene Geotextile with Mesh Body |
| Drain Compatibility | Catch Basin Storm Drains |
| Filtration Targets | Leaves, Plastic Pellets, Cigarette Butts, Paper Goods, Sediment, Trash and Floatable Debris |
| Installation Method | Under Grate |
| Reusable | Yes |
| Weight | 1 lb (0.45 kg) |
| Color | Black |
| Package Quantity | 1-Pack |
| Compliance | Stormwater Management Regulation 40 CFR 122.26, NPDES, TMDL |
| UPC | 808416092271 |
| Country of Origin | Guatemala |
| Brand | UltraTech International |
