UltraTech 9165 Inlet Guard Plus, Oil & Sediment, Curb-Style, 24" x 48", Curb Deflector 56", Black

The UltraTech 9165 Ultra Inlet Guard Plus provides surface level storm drain filtration for combination and curb style catch basins without requiring the removal of heavy iron grates. Engineered from high performance geotextile fabric, this low profile bypass system captures hydrocarbons, silt, sand, and trash directly from incoming stormwater runoff. Integrated rare earth magnets securely anchor the unit over the steel infrastructure to prevent bypass during high flow periods, while a built in overflow port prevents localized street flooding.

• Constructed from heavy duty, non woven polypropylene geotextile fabric that captures oils, fuels, and suspended sediment while maintaining a flow rate of up to 92 gallons per square foot per minute.

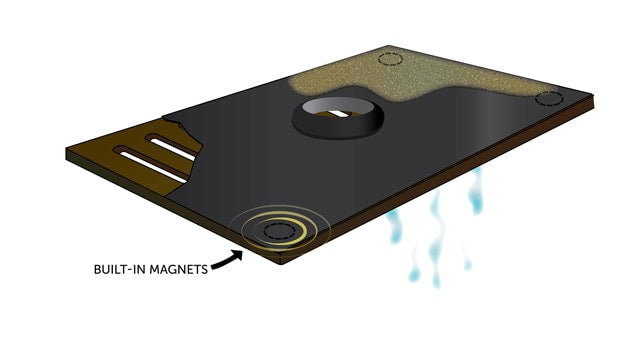

• Features six heavy duty, sewn in rare earth magnets (positioned at each corner and the center of the long edges) to anchor the system securely against street traffic and heavy water rushing.

• Includes an integrated overflow port designed to handle high intensity precipitation, mitigating water backup, ponding, and dangerous roadside hydroplaning conditions.

• Low profile, durable fabric composition allows industrial facility personnel and commercial vehicles to drive over the guard without displacement or damage.

• Aids industrial facilities, construction sites, and municipalities in maintaining strict compliance with stormwater management regulations, including NPDES, 40 CFR 122.26, and TMDL mandates.
