UltraTech 9164 Inlet Guard Plus, Oil & Sediment, Curb-Style, 24" x 36", Curb Deflector 44", Black
The UltraTech 9164 Ultra Inlet Guard Plus delivers reliable storm drain filtration for combination and curb style catch basins without the need to lift heavy iron grates. Formed from high performance geotextile fabric, this low profile system intercepts hydrocarbons, silt, sand, and trash directly from surface water runoff. Heavy duty rare earth magnets keep the unit anchored firmly over the steel framework during high flow conditions, while an integrated overflow port manages extreme rainfall to prevent localized pooling.
-
Manufactured from rugged, non woven polypropylene geotextile fabric that captures oils, fuels, and suspended sediment while maintaining a water flow rate of up to 92 gallons per square foot per minute.
-

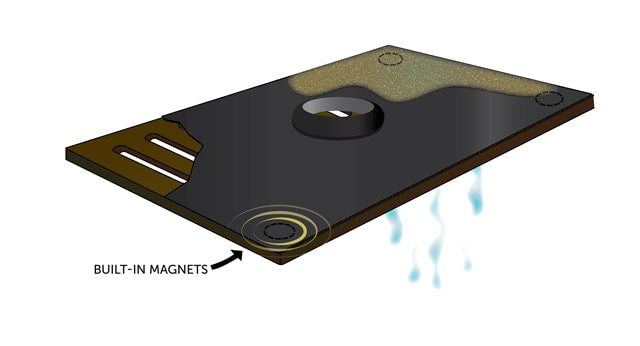

Equipped with integrated, sewn in rare earth magnets along the perimeter to securely anchor the system against heavy roadside runoff and vehicle traffic.
-
Designed with a built in center overflow port to prevent street flooding, water backup, and hazardous hydroplaning conditions during intense precipitation events.
-
Low profile, durable fabric construction permits direct vehicle traffic and facility equipment drive overs without ripping or displacement.
-
Assists industrial sites, municipal properties, and construction areas in staying fully compliant with clean water regulations including NPDES, 40 CFR 122.26, and TMDL requirements.
- Part Number
- 9164
- Manufacturer
- UltraTech International
- Model Series
- Ultra-Inlet Guard Plus®
- Inlet Style
- Curb-Style / Combination Catch Basin
- Filtration Target
- Oil, Sediment, Debris, and Trash
- Filter Dimensions (L x W)
- 36" x 24" (914 mm x 610 mm)
- Curb Deflector Length
- 44" (1118 mm)
- Profile Height
- Flat / Low-Profile (Drive-over rated)
- Material of Construction
- Non-Woven Polypropylene Geotextile
- Installation Hardware
- Integrated Sewn-In Rare Earth Magnets
- Water Flow Rate
- 92 gal/ft²/min (3,748 L/min/m²)
- Overflow Prevention
- Built-In Material Bypass Port
- Product Weight
- 5.0 lbs (2.3 kg)
- Color
- Black
- Regulatory Compliance
- NPDES, 40 CFR 122.26 (1999), TMDL
- UPC / EAN
- 808416091649
- Country of Origin
- Guatemala
