UltraTech 9162 Inlet Guard Plus, Oil & Sediment, 24" x 48", Black
The UltraTech 9162 Ultra Inlet Guard Plus delivers top of grate surface filtration for standard street, trench, and combination storm drains without requiring the removal of heavy iron grates. Fabricated from industrial grade geotextile fabric, this low profile filtration insert intercepts hydrocarbons, silt, sand, and trash directly from surface water runoff. Heavy duty rare earth magnets anchor the unit securely over the existing steel drain structure to resist displacement from rushing water, while an integrated overflow port manages peak rainfall events to prevent street flooding.
-
Manufactured from rugged, non woven polypropylene geotextile fabric engineered to capture oils, fuels, and suspended solids while maintaining a high flow rate of up to 92 gallons per square foot per minute.
-

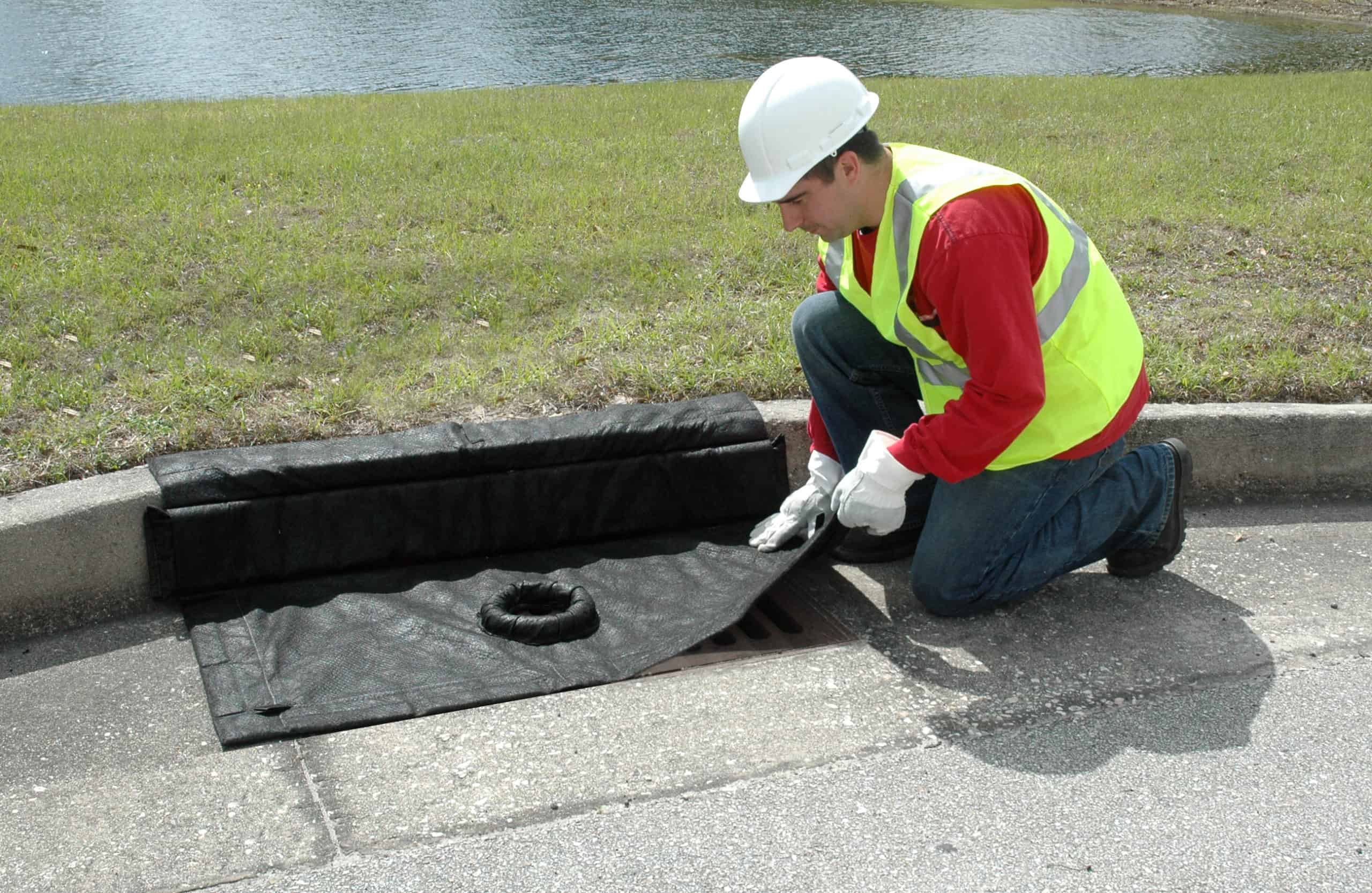

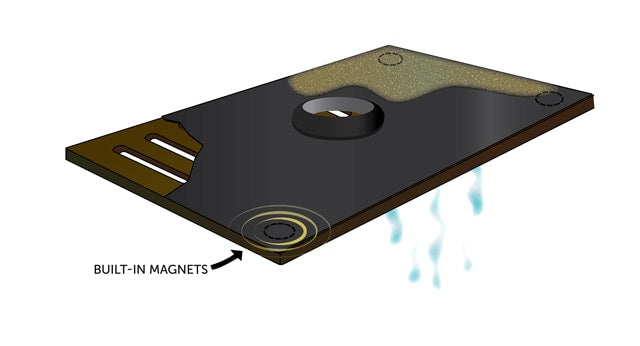

Features integrated perimeter magnets that securely anchor the filter system to the steel drain grate, eliminating the need for lifting tools or physical fasteners during installation.
-
Designed with a built in overflow port to accommodate unexpected storm surges, ensuring continuous drainage and preventing hazardous roadside water accumulation.
-
Low profile fabric structure is rated for direct vehicle drive overs, allowing industrial facility equipment and commercial traffic to pass over without damage or shifting.
-
Assists industrial properties, construction sites, and municipal operations in maintaining strict compliance with stormwater management mandates, including NPDES, 40 CFR 122.26, and TMDL guidelines.
- Part Number
- 9162
- Manufacturer
- UltraTech International
- Model Series
- Ultra-Inlet Guard Plus®
- Drain Compatibility
- Street Drain, Trench Drain, Combination Catch Basin
- Filtration Target
- Oil, Sediment, Debris, and Trash
- Filter Dimensions (L x W)
- 48" x 24" (1219 mm x 610 mm)
- Profile Height
- 2" (51 mm) Nominal / Low-Profile (Drive-over rated)
- Material of Construction
- Non-Woven Polypropylene Geotextile
- Installation Method
- Integrated Sewn-In Rare Earth Magnets
- Material Flow Rate
- 92 gal/ft²/min (3,748 L/min/m²)
- Total Flow Capacity
- 192 GPM (727 L/min)
- Overflow Prevention
- Built-In Material Bypass Port
- Product Weight
- 5.0 lbs (2.3 kg)
- Color
- Black
- Regulatory Compliance
- NPDES, 40 CFR 122.26 (1999), TMDL Requirements
- UPC / EAN
- 808416091625
- Country of Origin
- Guatemala
- Liftgate service required if the site has no loading dock.
- Driver will not move freight inside the building.
- Inspect and note damage on the delivery receipt before signing.
- Freight claims filed by us on your behalf within 48 hours.
- Residential and limited-access sites carry a carrier accessorial; we quote it before dispatch.
