The UltraTech 8943 Drain Guard Reusable Model, Low Capacity is a rugged catch basin insert designed to capture sand, dirt, silt, and sediment from stormwater runoff before contaminants enter the drainage system. Constructed from woven polypropylene geotextile, it can be rinsed, emptied, and reused multiple times, providing a cost-effective solution for sites with moderate sediment loading. The shallow 24-inch collection depth and built-in overflow ports help maintain drainage performance while supporting stormwater compliance programs.
- Reusable Polypropylene Construction – Woven polypropylene geotextile can be removed, cleaned, and reused, reducing replacement frequency and operating costs
- 1,496-Gallon Collection Capacity – Large internal collection area provides substantial containment volume for captured sediment and stormwater runoff
- 24" Deep Collection Pocket – Shallow-profile design is suited for locations with lower sediment accumulation rates and moderate rainfall conditions
- Built-In Overflow Ports – Allows controlled water flow during heavy rain events to help reduce ponding and flooding around storm drains

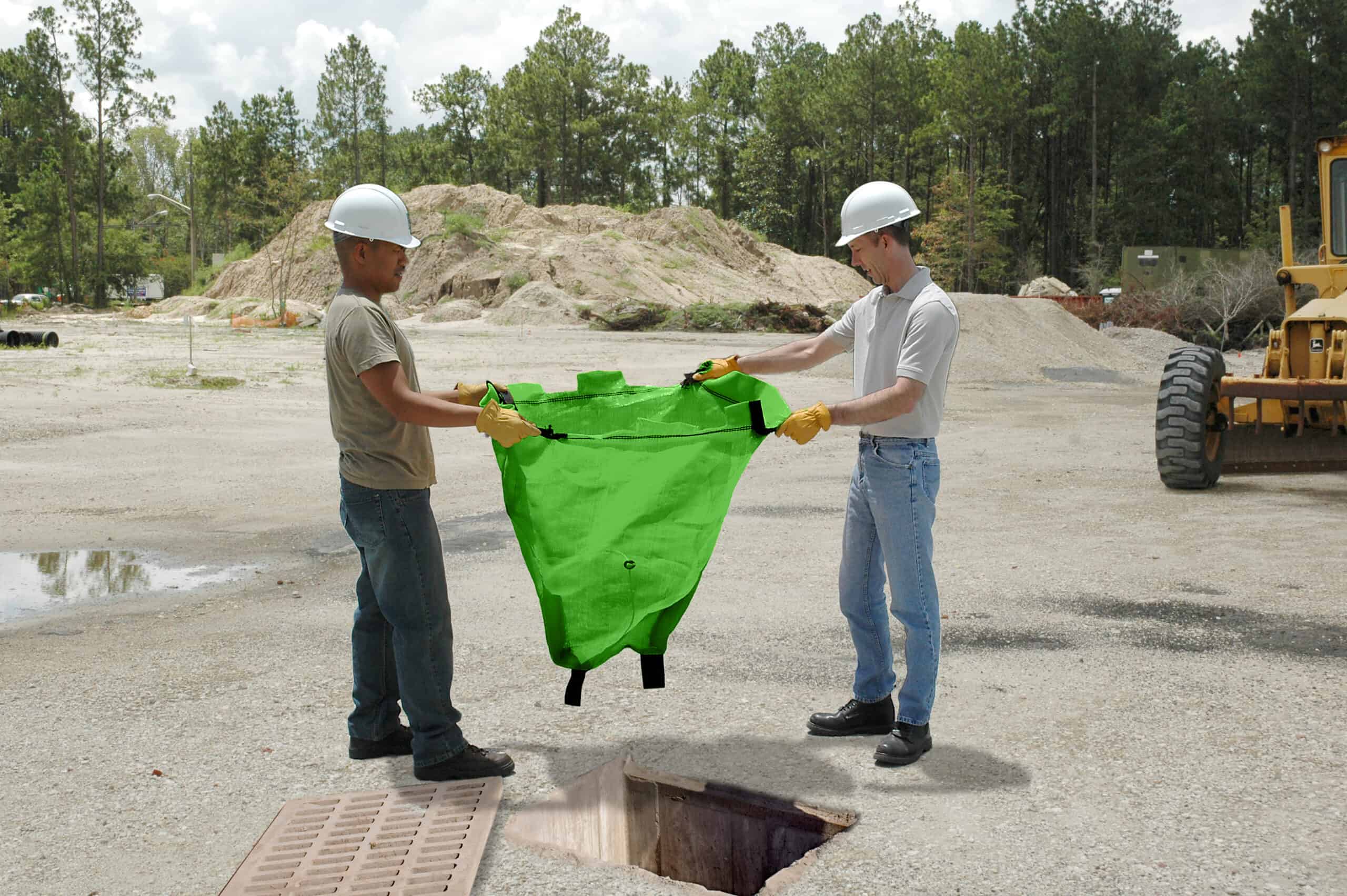

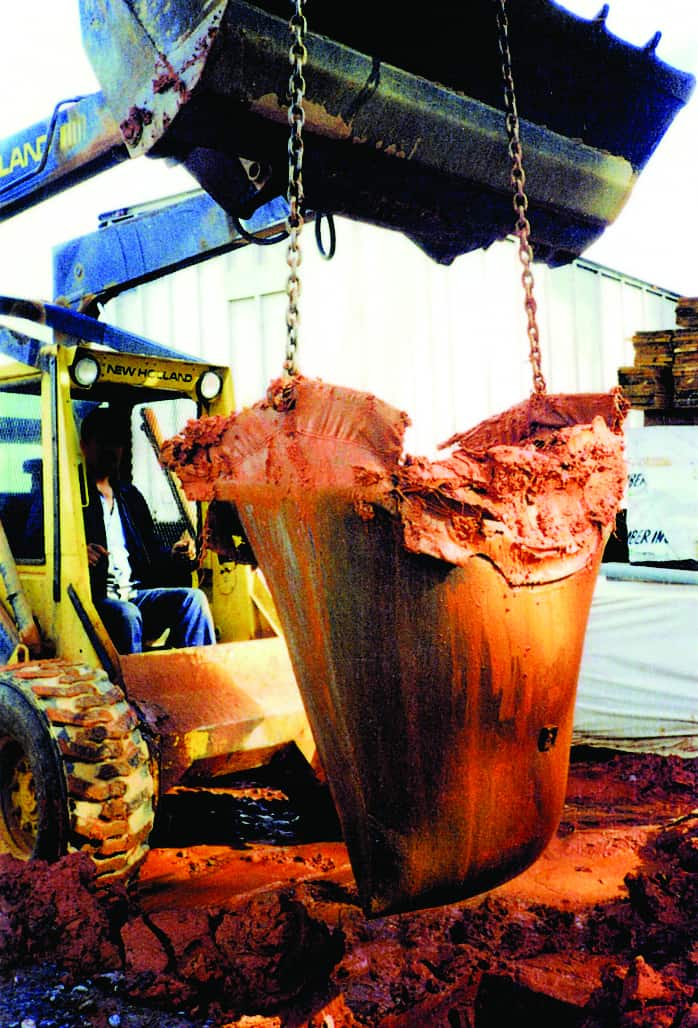

- Integrated Lifting Straps – Heavy-duty straps simplify installation, removal, emptying, and maintenance of the drain guard when loaded with sediment
Product Specifications:
| Model Number | 8943 |
| Product Type | Ultra-Drain Guard® Reusable Model – Low Capacity |
| Dimensions | 36" L x 48" W x 24" H (0.9 x 1.2 x 0.6 m) |
| Collection Depth | 24" (610 mm) |
| Containment Capacity | 1,496 Gallons (5,663 L) |
| Material | Woven Polypropylene Geotextile |
| Flow Rate | |
| Sediment Capture | |
| Overflow Protection | Built-In Overflow Ports |

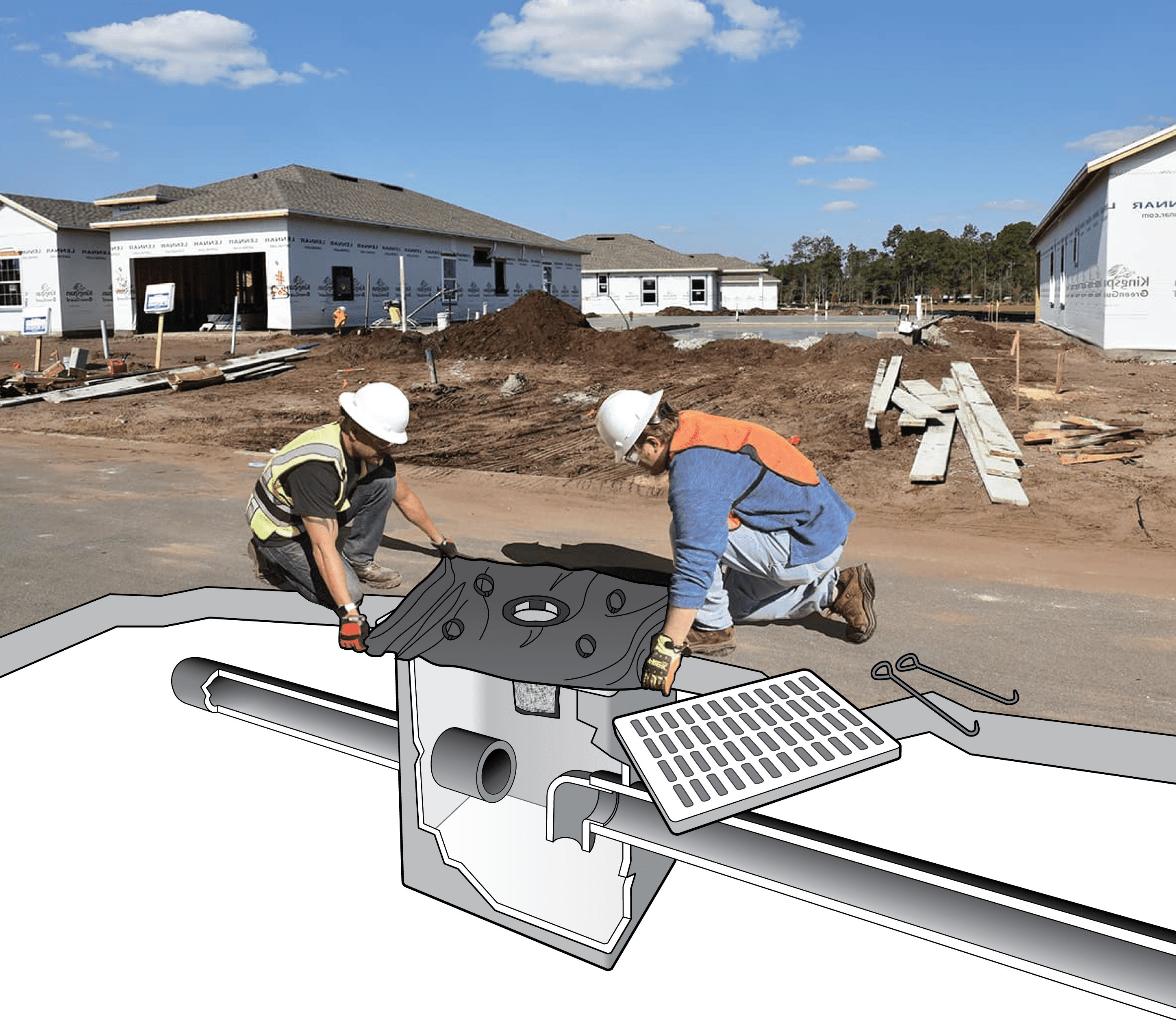

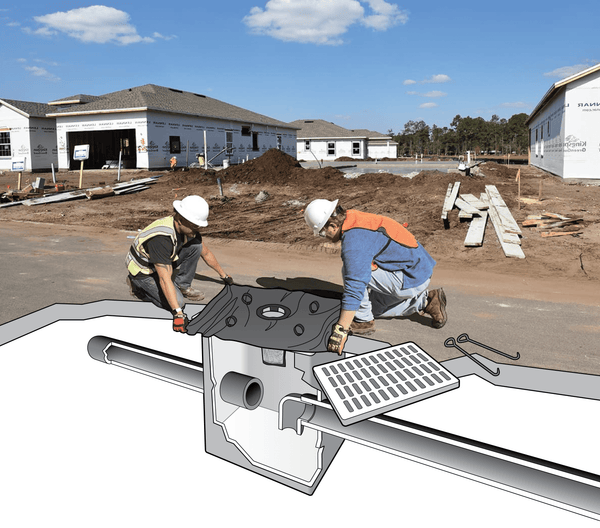

| Installation Method | Installed Inside Catch Basin Under Drain Grate |
| Drain Compatibility | Standard Street Drains and Combination Drains |
| Lifting System | Integrated Heavy-Duty Lifting Straps |
| Weight | 3 lbs (1.4 kg) |
| Color | Green |
| Package Quantity | 1-Pack |
| Compliance | Stormwater Management Regulation 40 CFR 122.26, NPDES, TMDL |
| UPC | 808416089431 |
| Country of Origin | |
| Brand | UltraTech International |
