The UltraTech 8942 Drain Guard Reusable Model, Low Capacity is a reusable catch basin insert designed to capture sand, dirt, silt, and sediment from stormwater runoff before pollutants enter the drainage system. Constructed from woven polypropylene geotextile, it can be removed, cleaned, and reinstalled multiple times, making it suitable for locations with moderate sediment loading and lower rainfall volumes. The shallow 24-inch collection depth and integrated overflow ports help maintain drainage performance while supporting stormwater management programs.
- Reusable Polypropylene Construction – Rugged woven polypropylene geotextile can be rinsed, emptied, and reused multiple times, reducing replacement costs and maintenance requirements
- 1,047-Gallon Containment Capacity – Internal collection area provides substantial capacity for capturing sediment and stormwater runoff before maintenance is required
- 24" Deep Collection Pocket – Low-capacity profile is designed for sites with lower sediment accumulation rates and less frequent heavy rainfall events
- Built-In Overflow Ports – Allows controlled water flow during storm events to help reduce standing water and localized flooding around drains
- Heavy-Duty Lifting Straps – Integrated straps simplify installation, removal, emptying, and maintenance operations when the unit is loaded with sediment
Product Specifications:
| Model Number | 8942 |
| Product Type | Ultra-Drain Guard® Reusable Model – Low Capacity |
| Dimensions | 24" L x 48" W x 24" H (0.6 x 1.2 x 0.6 m) |
| Collection Depth | 24" (610 mm) |
| Containment Capacity | 1,047 Gallons (3,963 L) |
| Material | Woven Polypropylene Geotextile |
| Flow Rate | |
| Sediment Capture | Sand, Dirt, Silt, and Sediment |
| Overflow Protection | Built-In Overflow Ports |

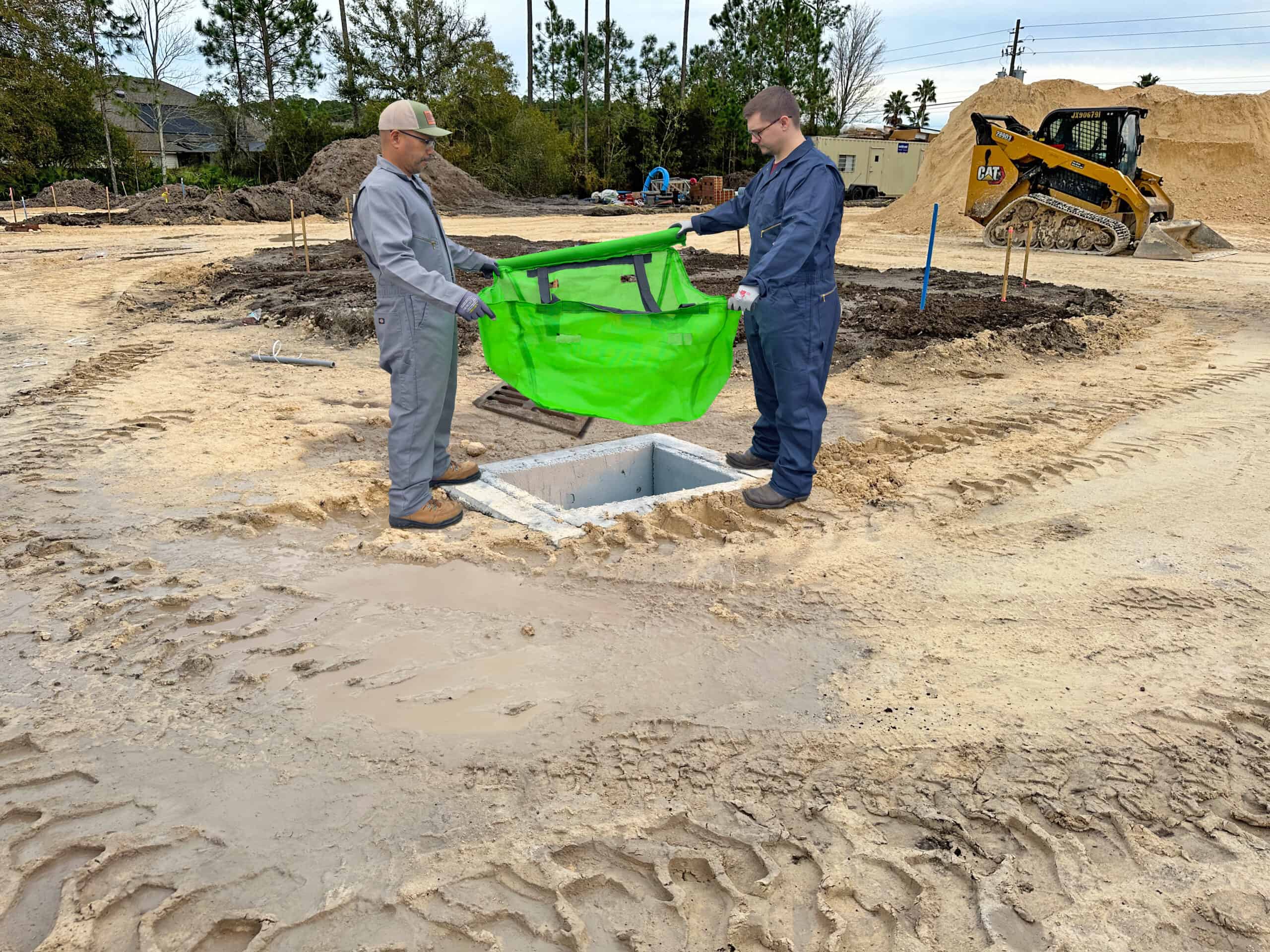

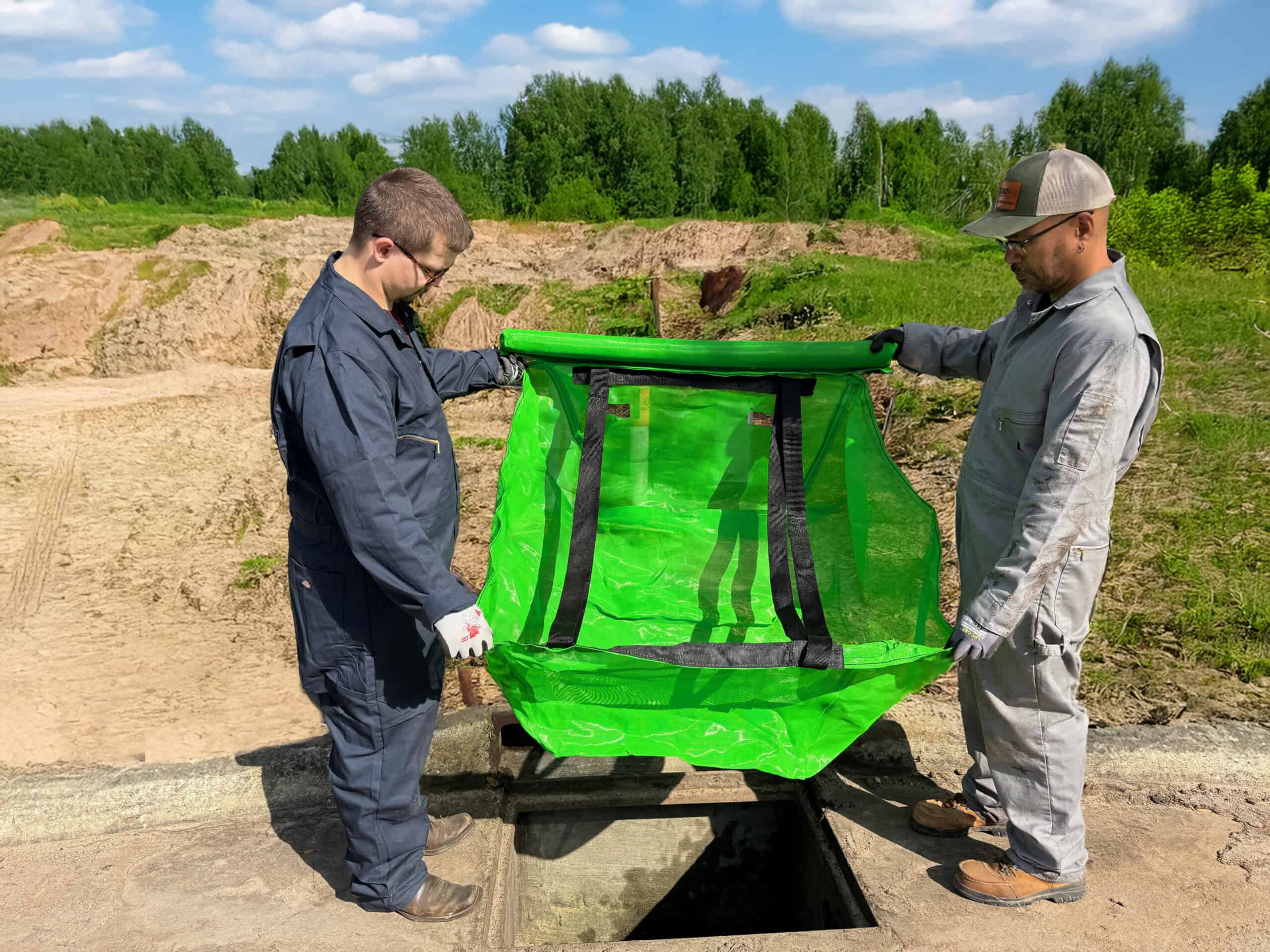

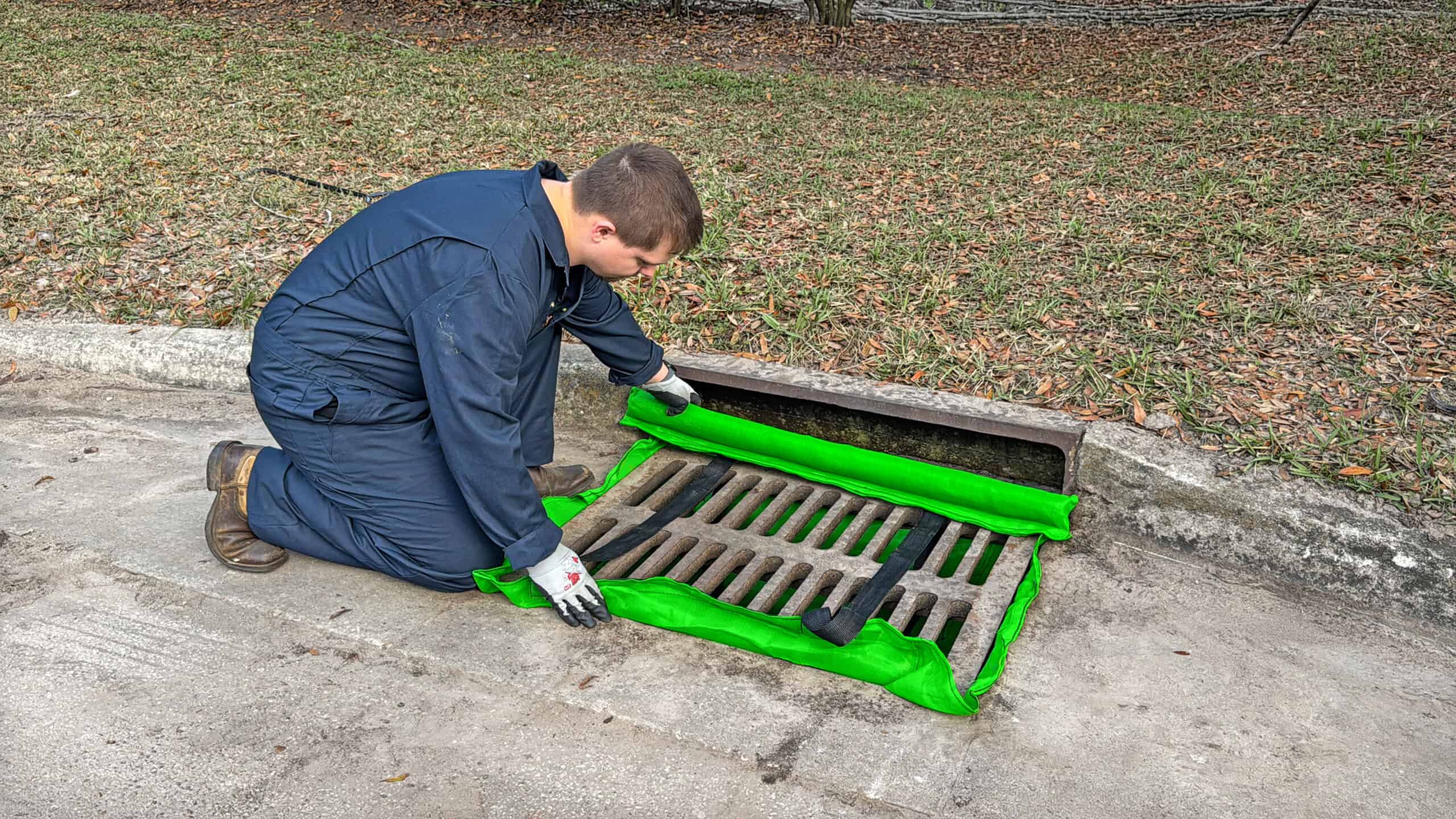

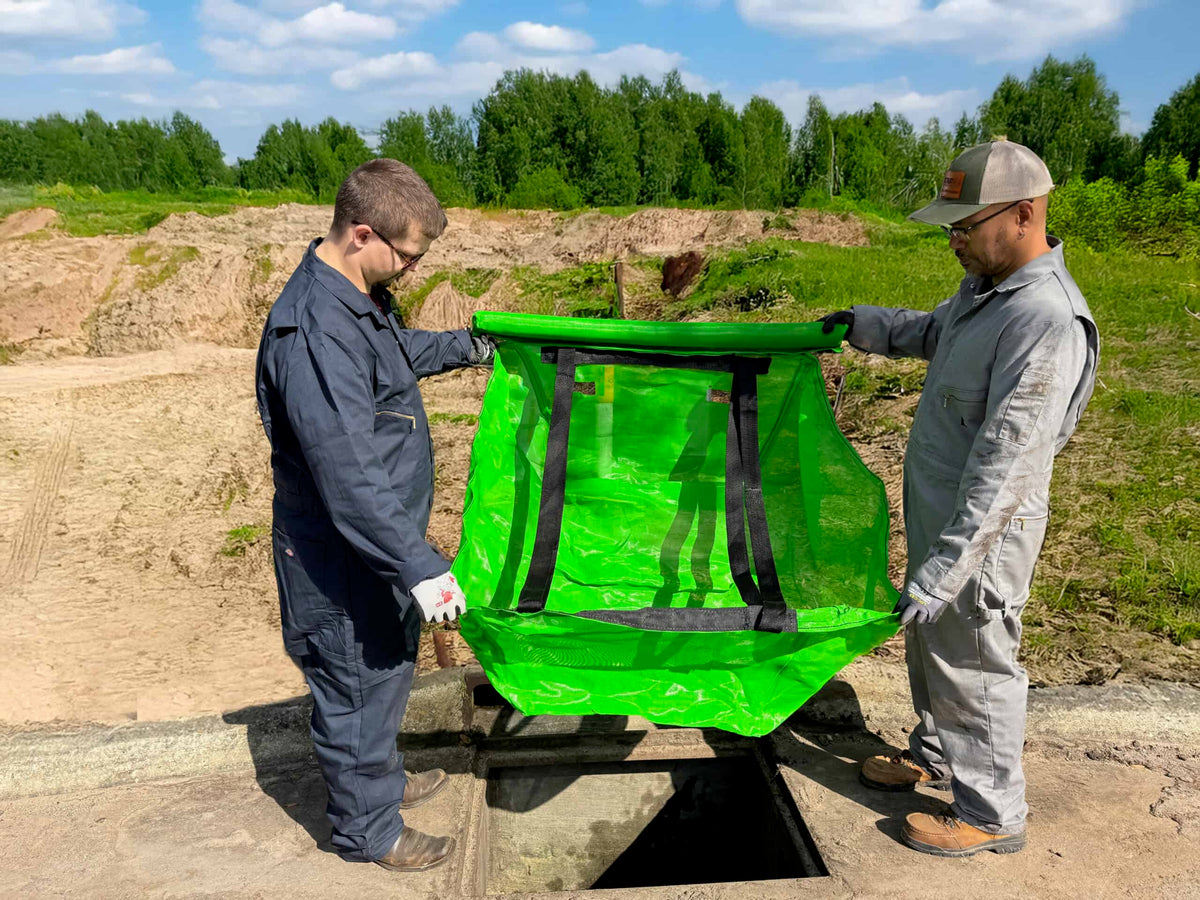

| Installation Method | Installed Inside Catch Basin Under Drain Grate |
| Drain Compatibility | Standard Street Drains and Combination Drains |
| Lifting System | Integrated Heavy-Duty Lifting Straps |
| Weight | 2 lbs (0.91 kg) |
| Color | Green |
| Package Quantity | 1 Each |
| Compliance | Stormwater Management Regulation 40 CFR 122.26, NPDES, TMDL |
| UPC | 808416089424 |
| Country of Origin | |
| Brand | UltraTech International |
